എഥിലീൻ ഗ്ലൈക്കോൾ ഉപയോക്തൃ മാനുവലിനുള്ള ലേസർ 4293 ആന്റി ഫ്രീസ് ടെസ്റ്റർ

1. ആമുഖം

The Laser 4293 Anti Freeze Tester is a precision instrument designed to accurately measure the freeze protection level of ethylene glycol-based coolants in automotive cooling systems. This manual provides essential information for the safe and effective use of your tester, ensuring optimal performance and longevity of your vehicle's cooling system.

2 സുരക്ഷാ വിവരങ്ങൾ

Always observe the following safety precautions when using the anti-freeze tester:

• Wear appropriate personal protective equipment, including eye protection, to prevent contact with coolant.
• Automotive coolant is toxic. Avoid skin contact and ingestion. Wash hands thoroughly after use.
• Ensure the engine is cool before attempting to test the coolant. Hot coolant and steam can cause severe burns.
• Dispose of used coolant responsibly according to local environmental regulations.
• Do not use this tester for coolants other than ethylene glycol.

3. പാക്കേജ് ഉള്ളടക്കം

എല്ലാ ഘടകങ്ങളും ഉണ്ടെന്ന് ഉറപ്പാക്കുക:

• 1 x Laser 4293 Anti Freeze Tester for Ethylene Glycol

4. സജ്ജീകരണം

Before use, ensure the tester is clean and free from debris. No specific assembly is required for this device.

ചിത്രം 1: The Laser 4293 Anti Freeze Tester. This image displays the full length of the tester, showing the black rubber bulb at the top, the clear plastic body with internal floating discs, and the flexible intake tube at the bottom. The markings for freeze protection levels are visible on the side of the clear body.

5. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

Follow these steps to accurately test your engine's coolant:

1. Ensure Engine is Cool: Park the vehicle on a level surface and allow the engine to cool completely. This is crucial for safety and accurate readings.
2. Locate Coolant Reservoir/Radiator: Identify the coolant reservoir or radiator cap.
3. തൊപ്പി നീക്കം ചെയ്യുക: Carefully remove the cap. If removing a radiator cap, turn it slowly to release any residual pressure.
4. Draw Coolant: Submerge the flexible intake tube of the tester into the coolant. Squeeze the rubber bulb at the top of the tester to expel air, then release it to draw coolant into the tester's clear body. Fill the tester sufficiently so the internal discs can float freely.
5. Lift and Read: Lift the tester out of the coolant. Allow a few seconds for the floating discs to settle.
6. Return Coolant: Hold the tester over the coolant reservoir or radiator and squeeze the rubber bulb to return the coolant.
7. Clean Tester: Rinse the tester thoroughly with clean water immediately after use to prevent residue buildup.
8. തൊപ്പി മാറ്റിസ്ഥാപിക്കുക: Securely replace the coolant reservoir or radiator cap.

ചിത്രം 2: A person using the Laser 4293 Anti Freeze Tester on a motorcycle. The image shows the tester's intake tube submerged in the coolant reservoir of a motorcycle, with a hand squeezing the rubber bulb to draw in fluid. This illustrates the practical application of the device.

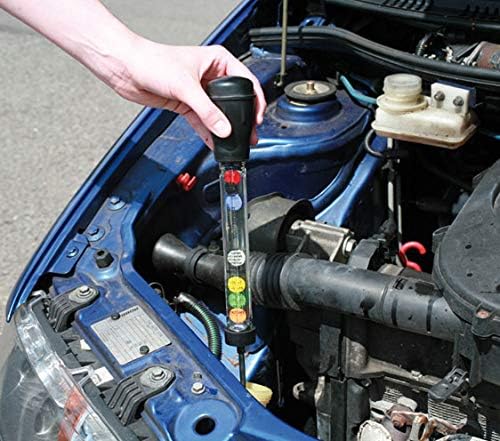

ചിത്രം 3: A person using the Laser 4293 Anti Freeze Tester in a car engine bay. The tester is shown with its intake tube placed into the coolant reservoir, demonstrating the process of drawing coolant for testing in a typical automotive setting.

6. വായനാ ഫലങ്ങൾ

The tester uses a series of floating discs to indicate the freeze protection level. The number of discs that float to the top corresponds to a specific temperature range, displayed in both Celsius and Fahrenheit on the tester's scale.

• Observe the highest disc that floats. The reading next to this disc indicates the freeze protection temperature.
• The orange disc indicates an 'over protection' or 'not safe' condition. This typically means the coolant mixture contains more than 70% antifreeze, which can lead to reduced efficiency and protection. Pure ethylene glycol antifreeze freezes at approximately -6°F (-21°C).

ചിത്രം 4: ഒരു ക്ലോസപ്പ് view of the Laser 4293 Anti Freeze Tester's clear body, highlighting the internal floating discs and the temperature scale. The scale clearly shows freeze protection levels in both Celsius and Fahrenheit, along with the orange disc indicating an 'over protection' or 'not safe' state.

7. പരിപാലനം

Proper maintenance ensures the accuracy and longevity of your tester:

• Always rinse the tester with clean water immediately after each use to remove all traces of coolant.
• Store the tester in a clean, dry place, away from direct sunlight and extreme temperatures.
• Do not use abrasive cleaners or solvents on the tester, as this may damage the plastic or markings.

8. പ്രശ്‌നപരിഹാരം

If you encounter issues with your tester, consider the following:

9 സ്പെസിഫിക്കേഷനുകൾ

• മോഡൽ: 4293
• Antifreeze Type: എഥിലീൻ ഗ്ലൈക്കോൾ
• അളക്കൽ യൂണിറ്റുകൾ: സെൽഷ്യസും ഫാരൻഹീറ്റും
• ഉൽപ്പന്ന അളവുകൾ: 5.7 x 12.1 x 39.3 സെ.മീ
• ഇനത്തിൻ്റെ ഭാരം: 180 ഗ്രാം
• നിർമ്മാതാവിൻ്റെ ഭാഗം നമ്പർ: LAS4293

10. വാറൻ്റിയും പിന്തുണയും

വാറന്റി വിവരങ്ങൾക്കും സാങ്കേതിക പിന്തുണയ്ക്കും, ദയവായി നിർമ്മാതാവിന്റെ ഉദ്യോഗസ്ഥനെ കാണുക. webനിങ്ങളുടെ വാങ്ങൽ കേന്ദ്രത്തിന്റെ സൈറ്റിൽ ബന്ധപ്പെടുക അല്ലെങ്കിൽ ബന്ധപ്പെടുക. ഏതെങ്കിലും വാറന്റി ക്ലെയിമുകൾക്കായി നിങ്ങളുടെ വാങ്ങലിന്റെ തെളിവ് സൂക്ഷിക്കുക.
