1. ആമുഖം
This instruction manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your Raimondi 125USA GS86 Portable Tile Saw. Please read this manual thoroughly before using the saw to ensure proper handling and to prevent injury or damage to the equipment.
The Raimondi 125USA GS86 is designed for precision cutting of various tile materials, including porcelain, single-double fired tiles, marble, and granite. It is capable of performing straight cuts, 45° bevel (Jolly) cuts, and creating square or round knockouts.
2 സുരക്ഷാ വിവരങ്ങൾ
Always prioritize safety when operating power tools. Failure to follow these safety guidelines may result in serious injury or property damage.
- മാനുവൽ വായിക്കുക: Before any operation, thoroughly read and understand all instructions and warnings in this manual.
- വ്യക്തിഗത സംരക്ഷണ ഉപകരണങ്ങൾ (PPE): Always wear appropriate PPE, including safety glasses, hearing protection, and gloves. A dust mask is recommended when cutting dry.
- ജോലി ഏരിയ: Ensure your work area is clean, well-lit, and free from obstructions. Keep children and bystanders away from the operating saw.
- ഇലക്ട്രിക്കൽ സുരക്ഷ: Connect the saw to a properly grounded 110V power outlet. Do not operate in wet conditions or expose the saw to rain. Inspect power cords for damage before each use.
- ബ്ലേഡ് സുരക്ഷ: Ensure the blade is correctly installed and secured. Never operate the saw without the blade guard in place. Disconnect power before changing blades.
- Material Securement: മുറിക്കുമ്പോൾ ചലനം തടയാൻ വർക്ക്പീസ് എപ്പോഴും ദൃഢമായി ഉറപ്പിക്കുക.
- പരിപാലനം: Perform regular maintenance as described in this manual. Disconnect power before performing any maintenance or adjustments.
- അടിയന്തരമായി നിർത്തുക: അടിയന്തര സ്റ്റോപ്പ് ബട്ടണിന്റെ സ്ഥാനവും പ്രവർത്തനവും സ്വയം പരിചയപ്പെടുത്തുക.
3. ഉൽപ്പന്നം കഴിഞ്ഞുview
The Raimondi 125USA GS86 is a compact and portable tile saw designed for versatility and precision. Key features include a powerful motor, a water cooling system for the blade, and the ability to perform various types of cuts on different materials.

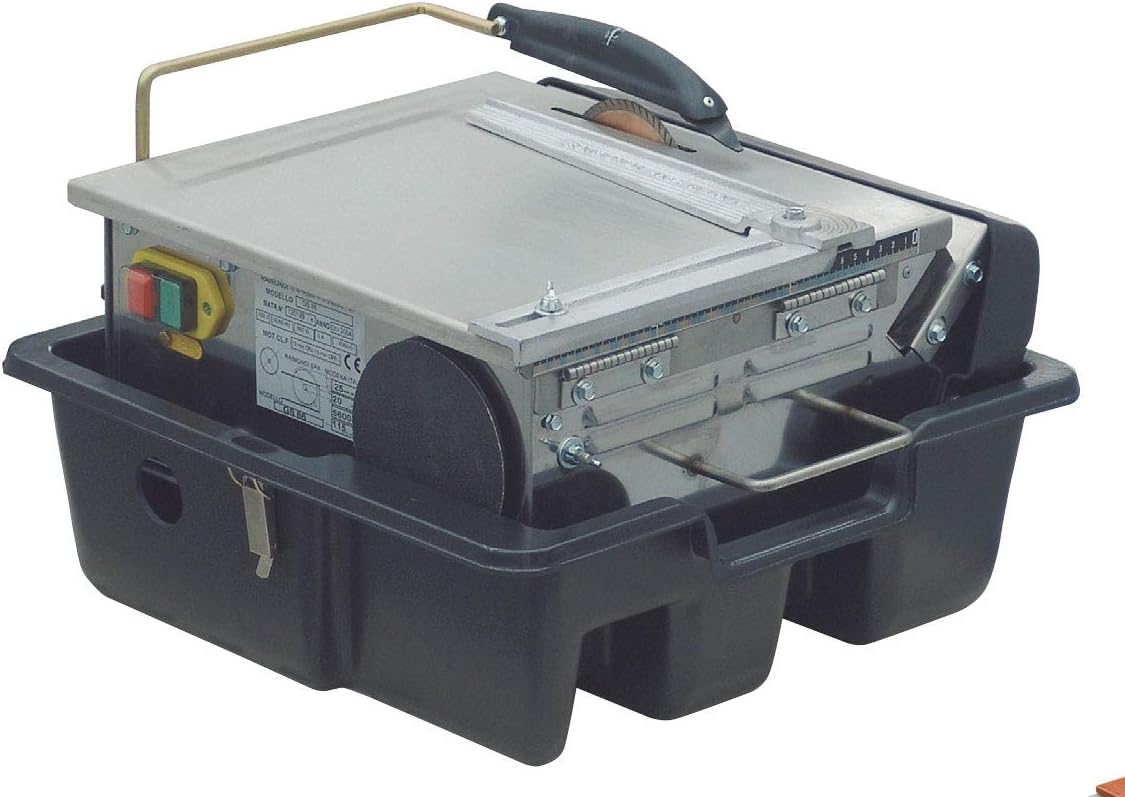

ചിത്രം 3.1: Raimondi 125USA GS86 Portable Tile Saw. This image shows the complete tile saw unit, including the cutting table, motor assembly, blade guard, and water tray.

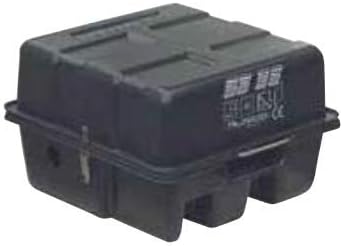

ചിത്രം 3.2: Raimondi 125USA GS86 in its protective turtle shell cover. The cover helps prevent damage during transport and storage.
ഘടകങ്ങൾ:
- മോട്ടോർ: 0.9 HP, 110V motor providing 7000 RPM blade speed.
- ബ്ലേഡ്: Accepts 4" to 4-1/2" diameter blades. Supplied with a 4" turbo blade for tiles.
- വാട്ടർ കൂളിംഗ് സിസ്റ്റം: Heavy-duty pump for blade cooling.
- Cutting Table: Provides a stable surface for material.
- ബ്ലേഡ് ഗാർഡ്: Essential safety feature covering the blade.
- Turtle Shell Cover: Integrated cover for protection during transport and storage.
- ആക്സസറികൾ: Includes 5 abrasive discs for polishing/sanding, key kit, and dressing stone.
4. സജ്ജീകരണം
Follow these steps to prepare your tile saw for operation.
- അൺപാക്ക് ചെയ്യുന്നു: Carefully remove the saw from its packaging. Inspect for any shipping damage.
- പ്ലേസ്മെൻ്റ്: Place the saw on a stable, level surface capable of supporting its weight (approximately 55 lbs). Ensure adequate space for material handling and safe operation.
- പവർ കണക്ഷൻ: Connect the saw to a standard 110V, grounded electrical outlet. Verify that the power switch is in the "OFF" position before plugging in.
- ജലസംഭരണി: Fill the integrated water tray with clean water. The water level should be sufficient to cover the lower portion of the blade during operation, ensuring proper cooling and dust suppression.
- ബ്ലേഡ് ഇൻസ്റ്റാളേഷൻ/പരിശോധന:
- Ensure the saw is unplugged.
- Verify that the correct blade (4" to 4-1/2" diameter) is securely mounted. The supplied 4" turbo blade is suitable for most tile cutting tasks.
- Check the blade for any damage or wear. Replace damaged blades immediately.
- പ്രാരംഭ പരിശോധന: With the blade guard in place and the water reservoir filled, briefly turn on the saw to ensure the blade spins freely and the water pump is functioning, delivering water to the blade.
5. പ്രവർത്തന നിർദ്ദേശങ്ങൾ
This section details the procedures for cutting various materials and performing different types of cuts.
General Cutting Procedure:
- മെറ്റീരിയൽ തയ്യാറാക്കുക: Mark your cutting line clearly on the tile.
- Position Tile: Place the tile firmly on the cutting table, aligning the marked line with the blade's path. Ensure the tile is stable and will not shift during the cut.
- സ്റ്റാർട്ട് സോ: Turn on the saw. Allow the blade to reach full speed before beginning the cut. Ensure the water cooling system is active.
- Perform Cut: Slowly and steadily push the tile through the blade. Do not force the material; let the blade do the work. Maintain a consistent feed rate.
- പൂർണ്ണമായ കട്ട്: Continue pushing until the cut is complete. Turn off the saw and wait for the blade to stop before removing the cut pieces.
ചിത്രം 5.1: Examples of tile cutting operations, including straight cuts and creating knockouts. Always ensure hands are clear of the blade path.
Specific Cutting Operations:
- നേരായ മുറിവുകൾ: Align the tile's edge with the fence (if applicable) and feed it through the blade.
- 45° Bevel (Jolly) Cuts: Adjust the cutting table or blade angle to 45 degrees as per the saw's mechanism. Carefully feed the tile to achieve the desired bevel.
- Square/Round Knockouts: For internal cuts, plunge the blade into the material at the desired location, then carefully guide the tile to complete the cutout. Multiple passes may be required.
- Polishing/Sanding: Use the supplied abrasive discs for finishing edges. Ensure the correct disc is installed and follow safety precautions.
Maximum Cut Thickness: The saw can cut up to 1 inch in a single pass and up to 2 inches in a double pass. For thicker materials, make a shallow first pass, then adjust the material or blade depth for a second pass.
6. പരിപാലനം
Regular maintenance ensures the longevity and optimal performance of your Raimondi tile saw. Always disconnect the saw from power before performing any maintenance.
- വൃത്തിയാക്കൽ: After each use, clean the saw thoroughly. Remove all tile debris and sludge from the cutting table, water tray, and blade guard. This prevents buildup that can affect performance and cooling.
- ജല സംവിധാനം: Drain and clean the water tray regularly to prevent algae growth and pump clogging. Inspect the water pump for proper function.
- ബ്ലേഡ് പരിശോധന: Regularly inspect the blade for wear, cracks, or missing segments. A dull or damaged blade can lead to poor cuts and increased motor strain. Replace blades as needed.
- Blade Dressing: Use the supplied dressing stone to clean and sharpen the diamond blade. This helps expose new diamond particles and maintains cutting efficiency.
- ഡ്രൈവ് ബെൽറ്റ്: Periodically check the Z90 drive belt for tension and wear. Adjust or replace if necessary.
- പൊതു പരിശോധന: Check all nuts, bolts, and fasteners for tightness. Lubricate moving parts as recommended by the manufacturer (refer to specific product documentation if available).
- സംഭരണം: When not in use, store the saw in a clean, dry place, preferably using its turtle shell cover for protection.
7. പ്രശ്നപരിഹാരം
നിങ്ങൾ നേരിട്ടേക്കാവുന്ന പൊതുവായ പ്രശ്നങ്ങൾക്കുള്ള പരിഹാരങ്ങൾ ഈ വിഭാഗം നൽകുന്നു.
| പ്രശ്നം | സാധ്യമായ കാരണം | പരിഹാരം |
|---|---|---|
| സോ ആരംഭിക്കുന്നില്ല. | No power, faulty switch, motor issue. | Check power connection and circuit breaker. Ensure switch is fully engaged. If problem persists, contact service. |
| Poor cut quality (chipping, rough edges). | Dull or incorrect blade, improper feed rate, insufficient water. | Dress or replace blade. Reduce feed rate. Ensure water reservoir is full and pump is working. |
| Blade overheating or excessive dust. | Insufficient water cooling, clogged pump. | Check water level. Clean water pump and lines. Ensure water is reaching the blade. |
| Motor strains or slows down during cut. | Forcing the cut, dull blade, worn drive belt. | Reduce feed pressure. Dress or replace blade. Inspect and replace drive belt if worn. |
8 സ്പെസിഫിക്കേഷനുകൾ
Detailed technical specifications for the Raimondi 125USA GS86 Portable Tile Saw.
| ഫീച്ചർ | വിശദാംശങ്ങൾ |
|---|---|
| മോഡൽ | 125USA GS86 |
| ബ്രാൻഡ് | റൈമോണ്ടി |
| പവർ ഉറവിടം | 110V |
| മോട്ടോർ പവർ | 0.9 HP (90 Watts) |
| ബ്ലേഡ് ആർപിഎം | 7000 ആർപിഎം |
| Maximum Disc Diameter | 4-1/2 ഇഞ്ച് (115 മിമി) |
| Minimum Disc Diameter | 4 ഇഞ്ച് (100 മിമി) |
| Maximum Cut Thickness (Single Pass) | 1 ഇഞ്ച് (25 മിമി) |
| Maximum Cut Thickness (Double Pass) | 2 ഇഞ്ച് (50 മിമി) |
| കട്ടിംഗ് ആംഗിൾ | 0-45 Degrees (for bevel cuts) |
| Blade Cooling | Heavy-duty pump water cooling |
| Drive Belt Type | Z90 |
| Gear Ratio (Motor to Disc) | 1 ÷ 2.1 |
| ഉൽപ്പന്ന അളവുകൾ (L x W x H) | 18" x 18" x 12" (45 x 45 x 30 സെ.മീ) |
| ഇനത്തിൻ്റെ ഭാരം | 55 പൗണ്ട് (25 കി.ഗ്രാം) |
| Materials for Cutting | Porcelain, Single-Double Fired Tiles, Marble, Granite |
| ആക്സസറികൾ ഉൾപ്പെടുത്തിയിട്ടുണ്ട് | 4" Turbo Blade, 5 Abrasive Discs, Key Kit, Dressing Stone, User and Maintenance Manual |
ചിത്രം 8.1: Visual representation of technical characteristics and model specifications, including blade sizes, cutting capabilities, and dimensions.
9. വാറൻ്റിയും പിന്തുണയും
For specific warranty details, terms, and conditions, please refer to the warranty card included with your product or contact Raimondi customer support directly. Keep your purchase receipt as proof of purchase.
For technical assistance, spare parts, or service inquiries, please contact your authorized Raimondi dealer or visit the official Raimondi webബന്ധപ്പെടാനുള്ള വിവരങ്ങൾക്കുള്ള സൈറ്റ്.
