1. ഉൽപ്പന്നം കഴിഞ്ഞുview
The Antec ISK 300-150 is a compact desktop computer case designed exclusively for Mini-ITX motherboards. It offers a small footprint while providing essential features for a functional PC build, including drive bays, an integrated cooling system, and a stable power supply.
ചിത്രം 1.1: മുൻവശവും വശവും view of the Antec ISK 300-150 Mini-ITX computer case, showcasing its compact design and front panel ports.
പ്രധാന സവിശേഷതകൾ:
- കോംപാക്റ്റ് ഡിസൈൻ: Specifically built for Mini-ITX motherboards, ideal for space-constrained environments.
- സംയോജിത പവർ സപ്ലൈ: Features a stable 150-watt power supply to power your components.
- ഫ്ലെക്സിബിൾ സ്റ്റോറേജ്: Includes one external 5.25" slim optical bay and two internal 2.5" HDD/SSD bays.
- കാര്യക്ഷമമായ തണുപ്പിക്കൽ: Equipped with an 80mm TriCool 3-speed exhaust fan for effective heat dissipation.
- Convenient Front Ports: Provides 2 x USB 3.0, 1 x eSATA, and audio in/out ports for easy connectivity.
2 സുരക്ഷാ വിവരങ്ങൾ
Please read and understand all safety instructions before installing or operating the Antec ISK 300-150 computer case. Failure to follow these guidelines may result in personal injury or damage to the product.
- Always disconnect the power cord from the wall outlet before performing any installation, maintenance, or troubleshooting.
- വൈദ്യുതാഘാതം തടയാൻ ശരിയായ ഗ്രൗണ്ടിംഗ് ഉറപ്പാക്കുക.
- Handle internal components with care to avoid damage from static electricity. Use an anti-static wrist strap if available.
- Do not block ventilation openings on the case, as this can lead to overheating.
- Keep the case away from sources of heat, direct sunlight, and excessive moisture.
- Do not attempt to repair the power supply unit yourself. Refer to qualified service personnel.
3. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും
This section provides step-by-step instructions for installing components into your Antec ISK 300-150 case.
3.1. കേസ് തുറക്കൽ
- കേസ് ഒരു പരന്നതും സ്ഥിരതയുള്ളതുമായ പ്രതലത്തിൽ വയ്ക്കുക.
- Locate the thumbscrews on the rear of the case. Unscrew them to release the side panel.

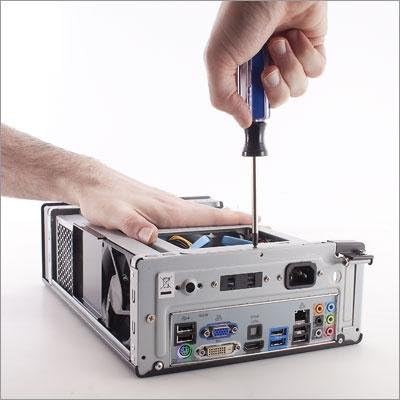

Figure 3.1: A hand using a screwdriver to remove a screw from the rear panel of the computer case, preparing to open it.
- Gently slide the side panel backward and lift it off to expose the interior.
Figure 3.2: A hand gripping the rear edge of the computer case's side panel, sliding it open to reveal the internal components.
3.2. മദർബോർഡ് ഇൻസ്റ്റാളേഷൻ
Install your Mini-ITX motherboard into the case. Ensure standoffs are correctly aligned and secure the motherboard with screws.
ചിത്രം 3.3: ഒരു ആന്തരിക view of the Antec ISK 300-150 case, showing a Mini-ITX motherboard installed with CPU cooler and RAM, along with various cables.
3.3. ഡ്രൈവ് ഇൻസ്റ്റലേഷൻ
The case supports one external 5.25" slim optical drive and two internal 2.5" hard disk drives or solid-state drives.
3.3.1. 5.25" Slim Optical Drive Installation
- Remove the drive cage if necessary.
- Slide the slim optical drive into the 5.25" bay from the front.
- സ്ക്രൂകൾ ഉപയോഗിച്ച് ഡ്രൈവ് സുരക്ഷിതമാക്കുക.
Figure 3.4: Hands holding a slim optical drive and a drive cage, with a screwdriver securing the drive to the cage.
3.3.2. 2.5" HDD/SSD Installation
- Locate the two 2.5" drive bays inside the case.
- Mount your 2.5" drives into the designated bays and secure them with screws.
ചിത്രം 3.5: ഒരു ആന്തരിക view of the Antec ISK 300-150 case, showing two 2.5-inch hard drives or SSDs mounted in their bays, with cables connected.
3.4. കേബിൾ മാനേജ്മെന്റ്
Due to the compact nature of the ISK 300-150, careful cable management is crucial for optimal airflow and ease of assembly. Route cables neatly to avoid obstructing components or airflow.
ചിത്രം 3.6: ഒരു ആന്തരിക view of the Antec ISK 300-150 case, highlighting the 80mm TriCool fan and the routing of various internal cables.
കുറിപ്പ്: The USB 3.0 front panel cable can be thick. Ensure it is routed carefully to prevent strain on the motherboard header.
3.5. വൈദ്യുതി വിതരണ കണക്ഷൻ
The case includes a pre-installed 150W power supply. Connect the 24-pin ATX power connector and the 8-pin CPU power connector (if needed) from the power board to your motherboard. The external 19V power adapter connects to the DC input on the rear of the case.
4. പ്രവർത്തന നിർദ്ദേശങ്ങൾ
4.1. പവർ ഓൺ/ഓഫ്
- പവർ ഓണാക്കാൻ: Connect the external power adapter to the case and a wall outlet. Press the power button located on the front panel.
- പവർ ഓഫ് ചെയ്യാൻ: Perform a graceful shutdown through your operating system. Alternatively, press and hold the power button for several seconds for a forced shutdown (not recommended for regular use).
4.2. Front Panel Ports
The front panel provides convenient access to various ports:
- USB 3.0 പോർട്ടുകൾ (x2): അതിവേഗ യുഎസ്ബി ഉപകരണങ്ങൾ ബന്ധിപ്പിക്കുന്നതിന്.
- eSATA പോർട്ട് (x1): For connecting external SATA devices.
- ഓഡിയോ ഇൻ/ഔട്ട്: For connecting headphones, microphones, or other audio peripherals.
5. പരിപാലനം
Regular maintenance helps ensure the longevity and optimal performance of your Antec ISK 300-150 case.
- പൊടി നീക്കം: Periodically clean dust from the case interior and fan blades using compressed air or a soft brush. Ensure the system is powered off and unplugged before cleaning.
- ഫാൻ പരിശോധന: Check the 80mm TriCool fan for any obstructions or excessive noise. If the fan becomes noisy, consider cleaning it or, if necessary, replacing it. Note that replacing the fan after motherboard installation can be challenging due to space constraints.
- വെൻ്റിലേഷൻ: Ensure that the case's ventilation openings are not blocked by objects or placed in an enclosed space.
6. പ്രശ്നപരിഹാരം
This section addresses common issues you might encounter with your Antec ISK 300-150 case.
| പ്രശ്നം | സാധ്യമായ കാരണം | പരിഹാരം |
|---|---|---|
| സിസ്റ്റം പവർ ഓണാക്കുന്നില്ല. | Power cable not connected; PSU issue; motherboard connection issue. | Ensure power adapter is securely connected to the case and wall outlet. Verify 24-pin and 8-pin power connectors are properly seated on the motherboard. |
| ഫാൻ മുഴങ്ങുന്നു. | Dust accumulation; fan bearing wear. | Clean the fan blades. If noise persists, consider replacing the 80mm TriCool fan. |
| Difficulty installing components due to limited space. | Compact design; thick cables. | Plan your component installation order carefully. Route cables, especially the thick USB 3.0 cable, before securing other components. Consider using M.2 SSDs instead of 2.5" drives if space is extremely tight. |
| Power supply makes ticking noises at low/medium loads. | Characteristic of some PSU designs. | This may be a normal operational characteristic for the integrated PSU. If concerned, monitor system stability. |
7 സ്പെസിഫിക്കേഷനുകൾ
| ഫീച്ചർ | സ്പെസിഫിക്കേഷൻ |
|---|---|
| മോഡൽ | ISK 300-150 |
| യൂണിറ്റ് അളവുകൾ (H x W x D) | 96mm x 222mm x 328mm (3.8 x 8.7 x 12.9 ഇഞ്ച്) |
| മദർബോർഡ് അനുയോജ്യത | മിനി-ഐടിഎക്സ് |
| വൈദ്യുതി വിതരണം | 150 Watt (Integrated) |
| External Drive Bays | 1 x 5.25" Slim Optical Bay |
| ആന്തരിക ഡ്രൈവ് ബേകൾ | 2 x 2.5" HDD/SSD Bays |
| തണുപ്പിക്കൽ സംവിധാനം | 1 x Side 80mm TriCool 3-speed Exhaust Fan |
| ഫ്രണ്ട് പോർട്ടുകൾ | 2 x USB 3.0, 1 x eSATA, Audio In/Out (AC'97 and HDA compatible) |
| വിപുലീകരണ സ്ലോട്ടുകൾ | 1 (Note: May impact cable management) |
| മൊത്തം ഭാരം | 2.5 കി.ഗ്രാം (5.5 പൗണ്ട്) |
| മെറ്റീരിയൽ | അലോയ് സ്റ്റീൽ |
| നിറം | ISK300-150 Black |
8. വാറൻ്റിയും പിന്തുണയും
Antec products are manufactured to high quality standards. For specific warranty terms and conditions, please refer to the warranty information provided with your purchase or visit the official Antec webസൈറ്റ്.
For technical support, troubleshooting assistance beyond this manual, or inquiries regarding replacement parts, please contact Antec customer support through their official channels.
കുറിപ്പ്: Unauthorized modifications or repairs may void your warranty.
