BELL 2-Gang Weatherproof Box (Model 5348-0) Instruction Manual

ആമുഖം

This manual provides comprehensive instructions for the safe and proper installation, operation, and maintenance of your BELL 2-Gang Weatherproof Box, Model 5348-0. Please read all instructions carefully before beginning any work to ensure safety and optimal performance of the product.

സുരക്ഷാ വിവരങ്ങൾ

മുന്നറിയിപ്പ്: Risk of electric shock. Improper installation or use can lead to serious injury or death. Always follow local electrical codes and consult a qualified electrician if you are unsure about any part of the installation process.

• Always disconnect power at the circuit breaker or fuse box before installing or servicing this product.
• എല്ലാ കണക്ഷനുകളും സുരക്ഷിതവും ശരിയായി ഇൻസുലേറ്റ് ചെയ്തതുമാണെന്ന് ഉറപ്പാക്കുക.
• This product is designed for outdoor use and must be installed in accordance with all applicable electrical codes for wet locations.
• Use only approved fittings and conduit with the threaded outlets.
• Ensure the ground screw is properly connected to the electrical system's ground.

ഉൽപ്പന്നം കഴിഞ്ഞുview

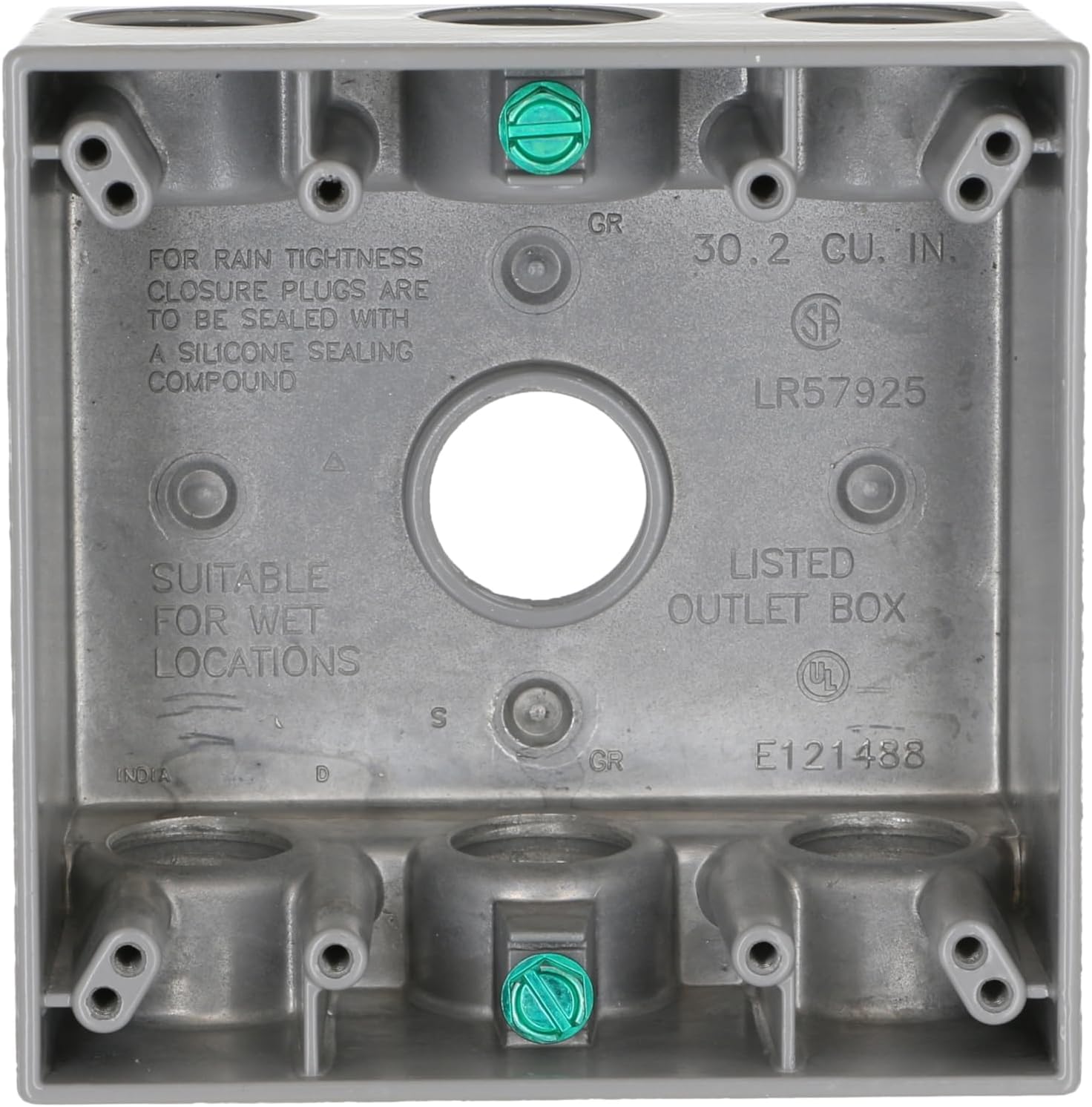

The BELL 2-Gang Weatherproof Box (Model 5348-0) is a durable enclosure designed for electrical installations in outdoor or wet environments. Constructed from rugged die-cast aluminum, it features a powder-coated finish for enhanced weatherability and scratch resistance.

പ്രധാന സവിശേഷതകൾ:

• Rugged die-cast aluminum construction for durability.
• പരമാവധി കാലാവസ്ഥ പ്രതിരോധത്തിനും പോറൽ പ്രതിരോധത്തിനും വേണ്ടി അത്യാധുനിക പൗഡർ കോട്ട് ഫിനിഷ്.
• Seven 3/4 inch threaded outlets for versatile conduit connections.
• Eight box mounting options with detachable lugs for flexible installation.
• Internal hub threads comply with NEMA requirements.
• Pre-installed ground screw for safety.

ഘടകങ്ങൾ:

• 2-Gang Weatherproof Box (Model 5348-0)
• Two 3/4 inch closure plugs
• Ground screw (pre-installed)
• Detachable mounting lugs

സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും

നിങ്ങൾ ആരംഭിക്കുന്നതിന് മുമ്പ്:

• Ensure power is disconnected at the main electrical panel.
• Gather necessary tools: screwdriver, wire strippers, conduit wrench, sealant, drill, mounting hardware (screws/anchors).
• Verify the installation location is suitable for a weatherproof electrical box.

ബോക്സ് മൌണ്ട് ചെയ്യുന്നു:

1. Position the weatherproof box at the desired mounting location. The box offers eight mounting options, including detachable lugs for flexibility.
2. മൗണ്ടിംഗ് ദ്വാരങ്ങളിലൂടെ ഡ്രില്ലിംഗ് പോയിന്റുകൾ അടയാളപ്പെടുത്തുക.
3. Drill pilot holes appropriate for your mounting hardware.
4. Securely fasten the box to the surface using appropriate screws or anchors. Ensure the box is level and firmly attached.

വയറിംഗ് കണക്ഷനുകൾ:

1. Route electrical conduit into the desired 3/4 inch threaded outlets. The internal hub threads are NEMA compliant.
2. Securely tighten all conduit fittings to ensure a weatherproof seal.
3. Connect the ground wire to the pre-installed green ground screw inside the box.
4. Make all necessary electrical connections for your devices (e.g., outlets, switches) within the box, following local electrical codes.

Sealing Unused Outlets:

The box includes two 3/4 inch closure plugs. For rain tightness, any unused threaded outlets must be sealed with these plugs and a silicone sealing compound. Apply sealant around the threads of the closure plugs before inserting and tightening them into the unused outlets.

മെയിൻ്റനൻസ്

The BELL Weatherproof Box is designed for minimal maintenance. Periodically inspect the box for any signs of damage, corrosion, or compromised seals. Ensure all conduit connections remain tight and that the box cover (if applicable, sold separately) is securely fastened. Clean the exterior with a damp ആവശ്യത്തിന് തുണി.

ട്രബിൾഷൂട്ടിംഗ്

• വെള്ളം കയറുക: If water is found inside the box, immediately disconnect power. Inspect all conduit connections, closure plugs, and the box cover for proper sealing. Reapply silicone sealant as necessary.
• അയഞ്ഞ കണക്ഷനുകൾ: Periodically check all electrical connections within the box to ensure they remain tight and secure.
• നാശം: While the powder coat finish is designed for resistance, inspect for any signs of corrosion, especially in harsh environments. Address any corrosion promptly to maintain integrity.

സ്പെസിഫിക്കേഷനുകൾ

വാറൻ്റിയും പിന്തുണയും

For warranty information and technical support, please refer to the official BELL product webസൈറ്റിൽ ബന്ധപ്പെടുക അല്ലെങ്കിൽ അവരുടെ ഉപഭോക്തൃ സേവനവുമായി നേരിട്ട് ബന്ധപ്പെടുക. വാറന്റി ക്ലെയിമുകൾക്കായി നിങ്ങളുടെ വാങ്ങൽ രസീത് സൂക്ഷിക്കുക.
