1. ആമുഖം
This manual provides essential information for the safe and effective use of your Body-Solid SP-200 90kg Weight Stack. This weight stack is designed as an optional component for compatible Body-Solid fitness equipment, providing a total of 90 kilograms of resistance distributed across 20 individual plates, each weighing 4.5 kg.
2 സുരക്ഷാ വിവരങ്ങൾ
Before using the Body-Solid SP-200 weight stack, please read and understand all instructions and warnings. Failure to do so may result in serious injury or damage to the equipment.
- ഏതെങ്കിലും പുതിയ വ്യായാമ പരിപാടി ആരംഭിക്കുന്നതിന് മുമ്പ് എല്ലായ്പ്പോഴും ഒരു ആരോഗ്യ സംരക്ഷണ വിദഗ്ദ്ധനുമായി കൂടിയാലോചിക്കുക.
- Ensure the weight stack is securely installed and all pins are properly engaged before use.
- Inspect the weight stack and associated equipment for any signs of wear, damage, or loose parts before each use. Do not use if damaged.
- പ്രവർത്തന സമയത്ത് ഉപകരണങ്ങളിൽ നിന്ന് കുട്ടികളെയും വളർത്തുമൃഗങ്ങളെയും അകറ്റി നിർത്തുക.
- Use proper lifting techniques and maintain control of the weight at all times. Avoid sudden or jerky movements.
- Do not modify the weight stack or any part of the equipment. Use only genuine Body-Solid replacement parts.
3. സജ്ജീകരണം
The SP-200 weight stack is designed for integration with specific Body-Solid fitness machines. Refer to the primary equipment's manual for detailed installation instructions.
- അനുയോജ്യത പരിശോധന: Verify that your Body-Solid fitness machine is compatible with the SP-200 90kg weight stack.
- അൺപാക്ക് ചെയ്യുന്നു: Carefully unpack all components of the weight stack. Ensure all 20 plates and the selector pin are present.
- ഇൻസ്റ്റലേഷൻ: Follow the specific instructions provided with your Body-Solid machine for attaching the weight stack. This typically involves aligning the plates and securing them to the machine's frame.
- Pin Insertion: Once installed, ensure the weight selector pin slides smoothly through the designated holes in the weight plates and engages fully.
- സ്ഥിരത പരിശോധന: After installation, gently test the weight stack to ensure it is stable and securely attached to the main equipment.

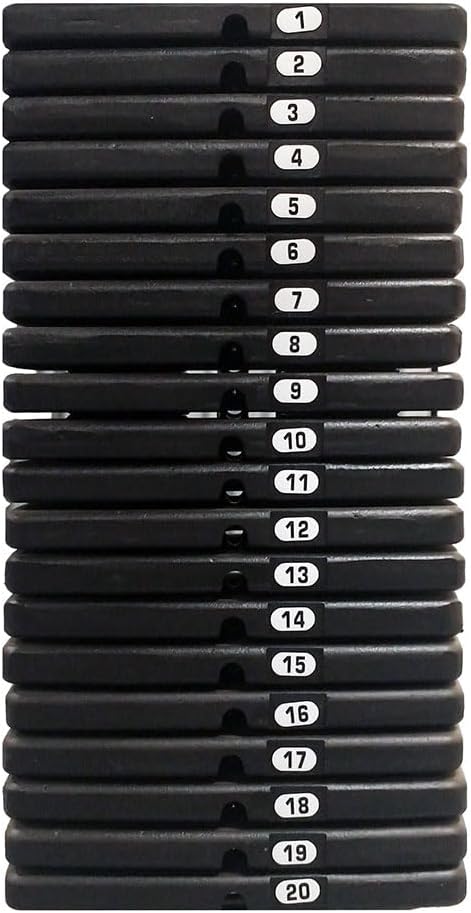

This image displays the Body-Solid SP-200 90kg weight stack, composed of 20 individual black weight plates. Each plate is numbered sequentially from 1 to 20, indicating its position within the stack. The numbers are clearly visible in white text on a black background, facilitating easy weight selection.
4. പ്രവർത്തന നിർദ്ദേശങ്ങൾ
To use the weight stack, follow these steps:
- Select Weight: Insert the weight selector pin into the desired weight plate. The plates are numbered from 1 to 20, with each plate adding 4.5 kg to the total resistance. Ensure the pin passes completely through the selected plate and is securely seated.
- Perform Exercise: Begin your exercise with controlled, smooth movements. Avoid dropping or slamming the weight stack.
- Return to Start: Allow the weight stack to return gently to its resting position after each repetition.
- Change Weight: To change the weight, remove the selector pin, insert it into the new desired plate, and ensure it is fully engaged.
5. പരിപാലനം
Regular maintenance ensures the longevity and safe operation of your weight stack.
- വൃത്തിയാക്കൽ: Wipe down the weight plates and guide rods periodically with a damp cloth to remove dust and sweat. Avoid abrasive cleaners.
- ലൂബ്രിക്കേഷൻ: Apply a silicone-based lubricant to the guide rods as recommended by your main equipment's manual to ensure smooth movement of the weight plates. Do not use oil-based lubricants as they can attract dust.
- പരിശോധന: Regularly check the weight plates, selector pin, and any connecting cables or pulleys for signs of wear, cracks, or damage. Replace worn or damaged parts immediately.
- സംഭരണം: Store the equipment in a dry, clean environment away from extreme temperatures and direct sunlight.
6. പ്രശ്നപരിഹാരം
If you encounter issues with your weight stack, refer to the following common problems and solutions:
- Weight Plates Sticking:
- Ensure guide rods are clean and properly lubricated.
- Check for any obstructions between plates or on the guide rods.
- Selector Pin Not Engaging:
- Verify the pin is straight and not bent.
- Ensure the holes in the weight plates are clear of debris.
- Confirm the weight stack is correctly aligned with the main equipment.
- അസാധാരണമായ ശബ്ദങ്ങൾ:
- Inspect all connections and bolts on the main equipment and weight stack for tightness.
- Check for any loose components or friction points.
If problems persist, contact Body-Solid customer support or your authorized dealer.
7 സ്പെസിഫിക്കേഷനുകൾ
| ഫീച്ചർ | വിശദാംശങ്ങൾ |
|---|---|
| മോഡൽ നമ്പർ | SP200 |
| ആകെ ഭാരം | 90 കി.ഗ്രാം |
| പ്ലേറ്റുകളുടെ എണ്ണം | 20 |
| Weight Per Plate | 4.5 കി.ഗ്രാം |
| നിറം | കറുപ്പ് |
| അളവുകൾ (ഉൽപ്പന്നം) | 28 x 15 x 51.5 സെ.മീ |
| കായികം | ഫിറ്റ്നസ് |
| നിർമ്മാതാവ് | BOEFE|#Body-Solid |
Note: The total weight listed in some product specifications as 200 Kilogram appears to be an error, as the product title and description consistently state 90kg, which aligns with 20 plates of 4.5kg each. The 90kg figure is used here for accuracy.
8. വാറൻ്റിയും പിന്തുണയും
For information regarding warranty coverage, technical support, or replacement parts, please contact your authorized Body-Solid dealer or visit the official Body-Solid webസൈറ്റ്. വാങ്ങിയതിന്റെ തെളിവായി നിങ്ങളുടെ വാങ്ങൽ രസീത് സൂക്ഷിക്കുക.
Body-Solid Official Webസൈറ്റ്: www.bodysolid.com
