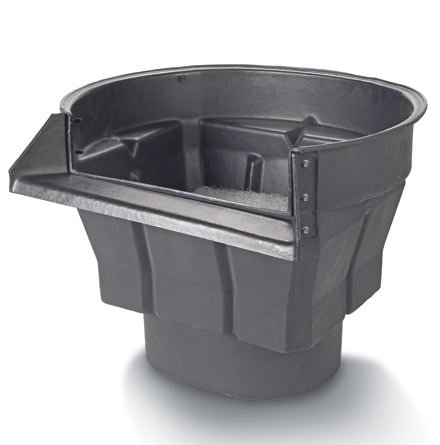

Blue Thumb DIY Pond Waterfall 1500 Box User Manual

ആമുഖം

This manual provides detailed instructions for the installation, operation, and maintenance of your Blue Thumb DIY Pond Waterfall 1500 Box. This unit is designed to create a beautiful waterfall feature while biologically filtering and aerating pond water, contributing to a healthy aquatic environment for fish and plants. Please read these instructions thoroughly before beginning installation.

സുരക്ഷാ വിവരങ്ങൾ

• Always disconnect power to all pond equipment before performing any installation or maintenance.
• എല്ലാ വൈദ്യുത കണക്ഷനുകളും വാട്ടർപ്രൂഫ് ആണെന്നും പ്രാദേശിക വൈദ്യുത കോഡുകൾ പാലിക്കുന്നുണ്ടെന്നും ഉറപ്പാക്കുക.
• Do not operate the unit if any components are damaged.
• Keep children and pets away from the pond area during installation and operation.

പാക്കേജ് ഉള്ളടക്കം

ഇൻസ്റ്റാളേഷൻ ആരംഭിക്കുന്നതിന് മുമ്പ് എല്ലാ ഘടകങ്ങളും നിലവിലുണ്ടെന്ന് ഉറപ്പാക്കുക:

• Filter/Waterfall Unit
• Detachable Weir (14-inch spillway)
• Bio Filter Mat
• Mesh Media Bag
• Plumbing Fittings (1.5-inch for kink-free, vinyl, or PVC flex hose)
• Stainless Screws
• സ്ക്രൂ ക്യാപ്സ്
• ലൈനർ ക്ലിപ്പുകൾ
• സിലിക്കൺ സീലൻ്റ്
• ഇൻസ്റ്റലേഷൻ നിർദ്ദേശങ്ങൾ (ഈ മാനുവൽ)

സജ്ജമാക്കുക

1. സ്ഥാനം: Position the waterfall box at the desired location at the edge of your pond, ensuring it is level and securely supported. The unit should be partially buried or camouflaged with rocks and landscaping.
2. Pond Liner Connection: Carefully cut the pond liner to fit around the opening of the waterfall box. Use the provided liner clips and silicone sealant to create a watertight seal between the liner and the waterfall unit. Ensure no wrinkles or folds compromise the seal.
3. Spillway Attachment: Attach the 14-inch detachable weir (spillway) to the front of the waterfall box using the stainless screws and screw caps provided. Apply silicone sealant to ensure a watertight connection.
4. Pump and Plumbing: Connect your pond pump (not included) to the inlet fitting on the waterfall box using appropriate 1.5-inch kink-free, vinyl, or PVC flex hose. Ensure all connections are tight and leak-free. The maximum recommended flow rate for the pump is 2340 GPH.
5. Filter Media Placement: Place the bio filter mat inside the waterfall box. If using additional filter media (e.g., bio-balls), place them in the mesh media bag and position them within the unit.
6. അന്തിമ പരിശോധനകൾ: Fill the pond with water and check for any leaks around the waterfall box and plumbing connections before starting the pump.

പ്രവർത്തിക്കുന്നു

Once installation is complete and checked for leaks, you can start your pond pump. Water will flow from the pump, into the waterfall box, through the biological filter mat, and then cascade over the 14-inch spillway back into your pond. This process provides both aesthetic appeal and essential biological filtration and aeration for your pond ecosystem.

മെയിൻ്റനൻസ്

• Filter Mat Cleaning: Periodically remove and rinse the bio filter mat with pond water (not chlorinated tap water) to remove accumulated debris. The frequency depends on pond size and debris load. Avoid over-cleaning, as beneficial bacteria reside on the mat.
• അവശിഷ്ടങ്ങൾ നീക്കം ചെയ്യൽ: Regularly inspect the waterfall box for large debris such as leaves or twigs and remove them to prevent clogging.
• ശീതകാലം: In freezing climates, disconnect the pump and drain the waterfall box and plumbing lines to prevent ice damage. Store the pump indoors. The waterfall box can remain in place if properly drained.

ട്രബിൾഷൂട്ടിംഗ്

• കുറഞ്ഞ ജലപ്രവാഹം: Check the pump for clogs or blockages. Ensure hoses are not kinked. Clean the filter mat if it is heavily soiled.
• ചോർച്ച: Inspect all plumbing connections and the liner seal for proper seating and damage. Reapply silicone sealant if necessary.
• മേഘാവൃതമായ വെള്ളം: Ensure the filter mat is clean and properly seated. Check pond water parameters. Allow time for biological filtration to establish.

സ്പെസിഫിക്കേഷനുകൾ

വാറൻ്റിയും പിന്തുണയും

Specific warranty details for the Blue Thumb DIY Pond Waterfall 1500 Box are not provided in this document. For warranty information, technical support, or replacement parts, please contact Blue Thumb customer service directly or refer to the product packaging. Keep your purchase receipt as proof of purchase.
