PWR+ USB-C Laptop Charger Instruction Manual
Model: PWR-TAJ65PD
1. ആമുഖം
This manual provides essential information for the safe and effective use of your PWR+ USB-C Laptop Charger, Model PWR-TAJ65PD. This charger is designed to provide reliable power to compatible LG Gram laptops and other USB-C powered devices. Please read these instructions carefully before use and retain them for future reference.
2 സുരക്ഷാ വിവരങ്ങൾ
Your PWR+ charger is designed with multiple safety features and is UL Safety Certified to ensure protection for both the device and the user.
Image: UL Safety Certified Logo, indicating the product meets rigorous safety standards.
അന്തർനിർമ്മിത സുരക്ഷാ പരിരക്ഷകൾ:
- ഷോർട്ട് സർക്യൂട്ട് സംരക്ഷണം (SCP): ഷോർട്ട് സർക്യൂട്ടുകളിൽ നിന്നുള്ള കേടുപാടുകൾ തടയുന്നു.
- Over Current Protection (OCP): അമിതമായ വൈദ്യുത പ്രവാഹത്തിനെതിരായ സംരക്ഷണങ്ങൾ.
- ഓവർ വോളിയംtagഇ സംരക്ഷണം (OVP): വോള്യം പ്രവാഹത്തിൽ നിന്ന് ഉപകരണങ്ങളെ സംരക്ഷിക്കുന്നുtagഇ സ്പൈക്കുകൾ.
- Over Temperature Protection (OTP): പ്രവർത്തന സമയത്ത് അമിതമായി ചൂടാകുന്നത് തടയുന്നു.
Image: A diagram showing the internal safety protections (SCP, OCP, OVP, OTP) and the high-quality construction of the power cord, including high-grade copper, wire insulation, aluminum foil shield, protective tinned copper braid, and PVC cable jacket.
Always use the charger in a well-ventilated area and avoid covering it during use to prevent heat buildup.
3. പാക്കേജ് ഉള്ളടക്കം
The PWR+ USB-C Laptop Charger package includes:
- 1 x PWR+ USB-C Laptop Charger (Model: PWR-TAJ65PD)
- 1 x എസി പവർ കോർഡ്

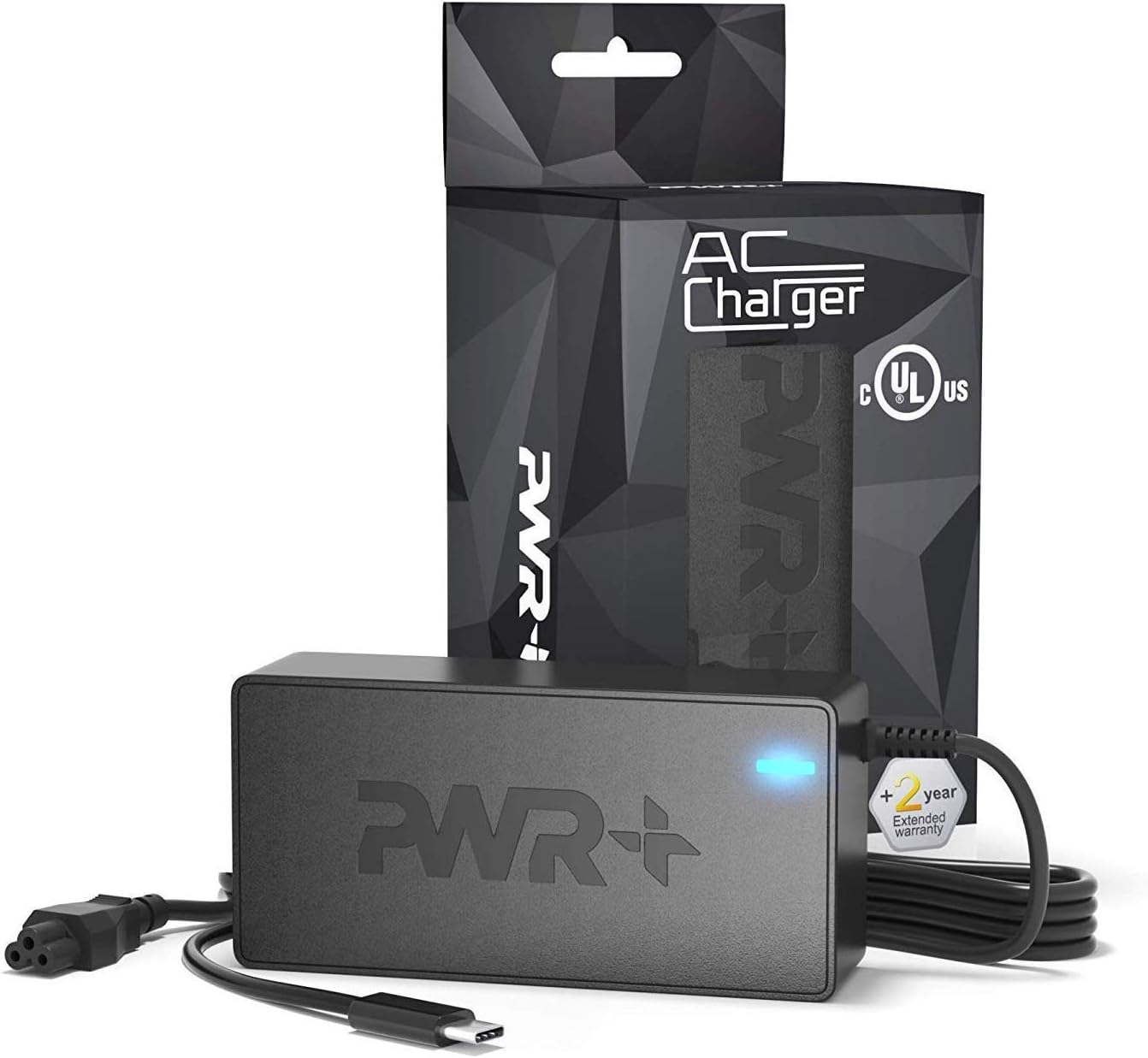

Image: The PWR+ USB-C Laptop Charger, including the main adapter unit and the detachable AC power cord, shown alongside its product packaging.
4 സ്പെസിഫിക്കേഷനുകൾ
| ഫീച്ചർ | വിശദാംശങ്ങൾ |
|---|---|
| മോഡൽ നമ്പർ | PWR-TAJ65PD |
| ഇൻപുട്ട് വോളിയംtage | 100-240V |
| ഔട്ട്പുട്ട് | 5V 3A, 9V 3A, 12V 3A, 15V 3A, 20V 3.25A (30W, 45W, 65W Compatible) |
| വാട്ട്tage | 65 വാട്ട്സ് |
| Ampഉന്മേഷം | 3.25 Amps |
| കണക്റ്റർ തരം | യുഎസ്ബി ടൈപ്പ് സി |
| മൊത്തം USB പോർട്ടുകൾ | 1 |
| പവർ കോർഡ് നീളം | 12 Feet (Total AC/DC cord length) |
| സുരക്ഷാ സർട്ടിഫിക്കേഷൻ | UL/cUL ലിസ്റ്റ് ചെയ്തു |
| ഇനത്തിൻ്റെ ഭാരം | 1.12 പൗണ്ട് |
| പാക്കേജ് അളവുകൾ | 8.43 x 3.54 x 3.5 ഇഞ്ച് |
5 അനുയോജ്യത
This PWR+ USB-C Laptop Charger is compatible with a wide range of LG Gram laptops and other devices requiring USB-C Power Delivery (PD) charging. Compatible LG Gram models include, but are not limited to:
- LG Gram 14, 15, 16, 17 series
- Specific models: 14Z90N, 14Z90R, 14T90R, 14T90P, 14Z90RS, 14Z90Q, 14Z90P, 15Z90N, 15Z995, 15Z90R, 15Z95N, 15Z95P, 15Z90Q, 16Z90R, 16Z90P, 16Z90RS, 16T90R, 16T90Q, 16T90SP, 17Z90P, 17U70P, 17Z90N, 17Z95N, 17Z90Q, 17Z90R, 17Z90SP, 17Z95P
- Part numbers: ADT-65DSU-D03-2, EAY65910831, EAY65895901, LP65WFC20P-NJB
For a complete list of compatible models, please refer to the product listing or contact PWR+ customer support.
6. സജ്ജീകരണവും കണക്ഷനും
Follow these steps to connect and begin using your PWR+ USB-C Laptop Charger:
- Connect the AC power cord to the charger unit. Ensure a firm connection.
- Plug the AC power cord into a standard wall outlet (100-240V).
- Insert the USB-C connector of the charger into the USB-C charging port on your compatible laptop or device.
- The charger features a blue LED indicator light that illuminates when power is supplied, confirming proper connection and operation.
Image: The PWR+ USB-C Laptop Charger connected to a laptop, demonstrating the proper setup for charging.
7. ഓപ്പറേഷൻ
Once connected, the PWR+ USB-C Laptop Charger will automatically detect your device's power requirements and deliver the appropriate voltage and current (up to 65W) using Power Delivery (PD) technology. The blue LED indicator on the charger will remain lit during operation.
Video: An official PWR+ video demonstrating the charger's features and compatibility with various laptop brands, highlighting its reliable power delivery.
The extra-long 12-foot power cord provides flexibility for use in various environments, from office desks to home settings.
8. പരിപാലനം
To ensure the longevity and optimal performance of your PWR+ USB-C Laptop Charger, follow these maintenance guidelines:
- വൃത്തിയാക്കൽ: Disconnect the charger from the power outlet and your device before cleaning. Use a soft, dry cloth to wipe the surface. Avoid liquid cleaners or abrasive materials.
- സംഭരണം: When not in use, store the charger in a cool, dry place. Avoid extreme temperatures and direct sunlight.
- കേബിൾ കെയർ: കേബിളുകൾ അമിതമായി വളയ്ക്കുകയോ വളച്ചൊടിക്കുകയോ വലിക്കുകയോ ചെയ്യരുത്. കേബിളുകളിൽ ഭാരമുള്ള വസ്തുക്കൾ വയ്ക്കുന്നത് ഒഴിവാക്കുക.
- പരിശോധന: Periodically inspect the charger and cables for any signs of damage, such as frayed wires or cracked casing. കേടുപാടുകൾ കണ്ടെത്തിയാൽ, ഉപയോഗം നിർത്തി ഉപഭോക്തൃ പിന്തുണയുമായി ബന്ധപ്പെടുക.
9. പ്രശ്നപരിഹാരം
If you encounter issues with your PWR+ USB-C Laptop Charger, refer to the following common problems and solutions:
- Charger Not Working / No Power:
- Ensure the AC power cord is securely connected to both the charger unit and the wall outlet.
- മറ്റൊരു ഉപകരണം ഉപയോഗിച്ച് പരിശോധിച്ചുകൊണ്ട് വാൾ ഔട്ട്ലെറ്റ് പ്രവർത്തനക്ഷമമാണെന്ന് ഉറപ്പാക്കുക.
- Check if the blue LED indicator on the charger is lit. If not, there may be an issue with the power supply or the charger itself.
- Slow Charging / Device Displays "Slow Charging" Message:
- Confirm that your device is fully compatible with the charger's power output (up to 65W PD). Some devices may require specific power profiles.
- Ensure no other power-intensive tasks are running on your laptop that might draw more power than the charger can consistently deliver, especially when the battery is very low.
- Try disconnecting and reconnecting the charger to reset the power delivery negotiation.
- Charger Gets Warm During Use:
- It is normal for chargers to become warm during operation, especially under heavy load.
- Ensure the charger is in a well-ventilated area and not covered by blankets or other materials.
- If the charger becomes excessively hot to touch, disconnect it immediately and contact customer support.
- Loose Connection at the Wall Outlet or Charger Unit:
- Ensure all connections are snug. If the AC cord connection to the brick feels loose, it might affect power delivery.
If these steps do not resolve the issue, please contact PWR+ customer support for further assistance.
10. വാറൻ്റിയും പിന്തുണയും
PWR+ stands behind the quality of its products. This USB-C Laptop Charger comes with a 2 വർഷത്തെ വിപുലീകൃത വാറന്റി.
Image: A red stamp graphic indicating a "2 Year Warranty" for the product.
For warranty claims, technical support, or any questions regarding your PWR+ product, please visit the official PWR+ website or contact their customer service department. Please have your model number (PWR-TAJ65PD) and purchase details ready when contacting support.
