CURT 56106 Vehicle-Side Custom 4-Pin Trailer Wiring Harness

1. ഉൽപ്പന്നം കഴിഞ്ഞുview

The CURT 56106 Vehicle-Side Custom 4-Pin Trailer Wiring Harness is designed to provide a standard 4-way flat trailer wiring connection for vehicles not originally equipped for towing. This T-connector system integrates directly into your vehicle's existing electrical system, typically at the taillight assemblies, eliminating the need for cutting, splicing, or soldering wires. It offers a reliable and secure electrical connection for trailer tail lights, brake signal lights, and turn signals.

This harness is vehicle-specific, ensuring a precise fit and optimal performance for compatible Toyota Sienna models. It includes all necessary wiring components and a dust cover to protect the connector when not in use.

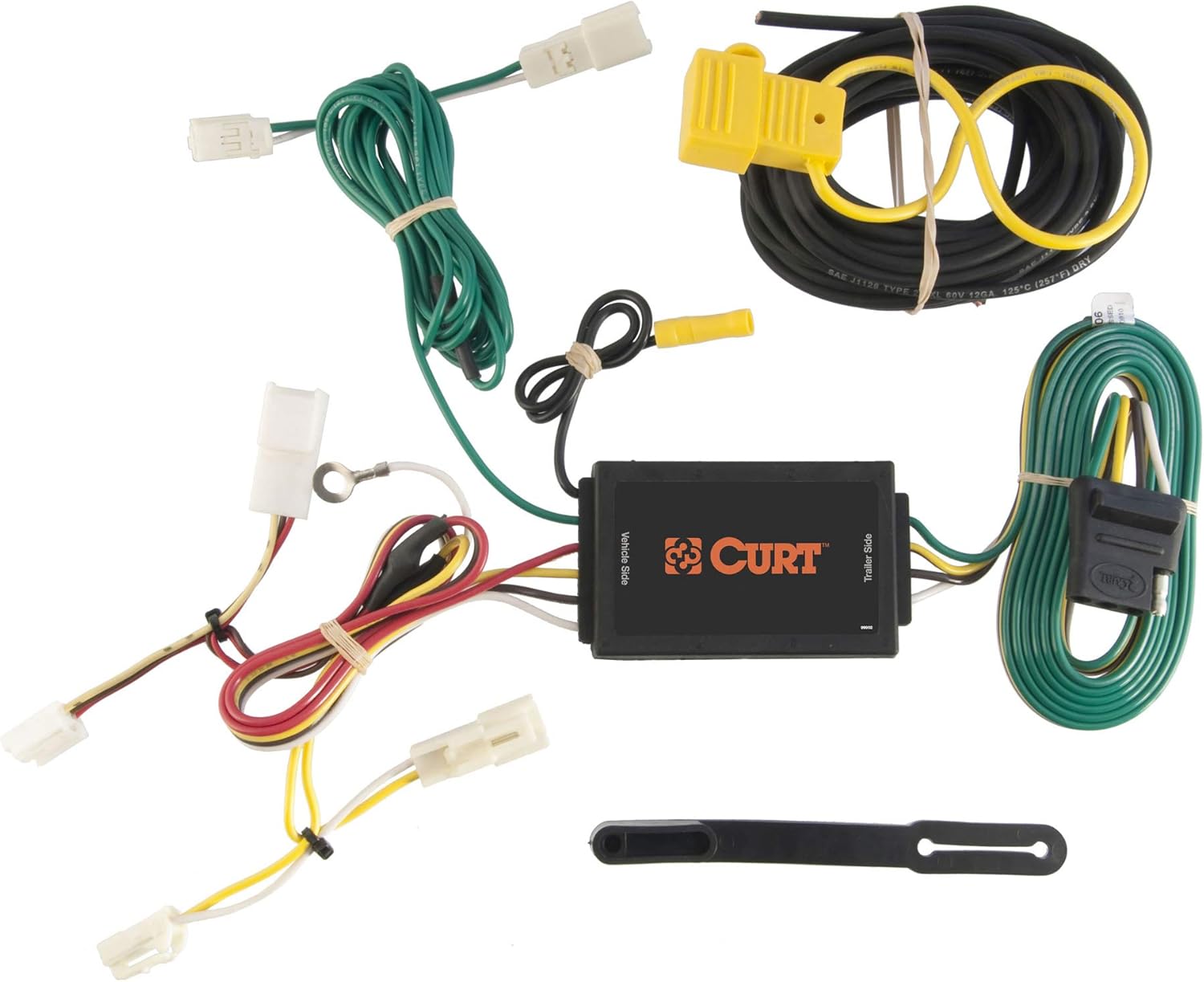

Figure 1.1: Complete CURT 56106 wiring harness kit, showing the main converter box, various wiring segments, and connectors.

2 സുരക്ഷാ വിവരങ്ങൾ

• Always disconnect the vehicle's battery before beginning any electrical installation to prevent electrical shock or damage to the vehicle's electrical system.
• ഷോർട്ട് സർക്യൂട്ടുകൾ തടയുന്നതിന് എല്ലാ കണക്ഷനുകളും സുരക്ഷിതമാണെന്നും ശരിയായി ഇൻസുലേറ്റ് ചെയ്തിട്ടുണ്ടെന്നും ഉറപ്പാക്കുക.
• Route wiring away from hot surfaces, sharp edges, and moving parts to prevent damage and ensure longevity.
• Verify proper function of all trailer lights (tail lights, brake lights, turn signals) after installation and before towing.
• പരമാവധി കവിയരുത് amperage rating of the wiring harness or the vehicle's electrical system.

3. പാക്കേജ് ഉള്ളടക്കം

ഇൻസ്റ്റാളേഷൻ ആരംഭിക്കുന്നതിന് മുമ്പ് എല്ലാ ഘടകങ്ങളും നിലവിലുണ്ടെന്ന് ഉറപ്പാക്കുക:

• Custom Wiring Harness (T-connector with integrated converter module)
• 4-Way Flat Connector with Dust Cover
• Power Wire (for battery connection, if applicable)
• Fuse Holder and Fuse
• റിംഗ് ടെർമിനൽ
• സ്പ്ലൈസ് കണക്ടറുകൾ
• കേബിൾ ബന്ധങ്ങൾ
• Mounting Hardware (screws, etc.)

Figure 3.1: Individual components of the CURT 56106 kit, including the circuit protection information card, fuse, terminals, and cable ties.

4. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും

This custom wiring harness is designed for a plug-and-play installation. For detailed, step-by-step instructions, it is highly recommended to refer to the official CURT installation manual PDF and any available video tutorials specific to your vehicle's year and model.

Download the official Installation Manual (PDF): CURT 56106 Installation Manual

പൊതു ഇൻസ്റ്റാളേഷൻ ഘട്ടങ്ങൾ:

1. തയ്യാറാക്കൽ: Ensure the vehicle is turned off and the negative battery terminal is disconnected. Gather all tools required (e.g., trim panel removal tools, wrenches, wire strippers/crimpers if power wire connection is needed).
2. Access Taillight Assemblies: Locate and carefully remove the taillight assemblies on both the driver and passenger sides of the vehicle. This typically involves removing retaining screws and gently prying the assembly away from the vehicle body.
3. Connect T-Connectors: The harness features vehicle-specific connectors. Plug the appropriate T-connector ends into the vehicle's taillight wiring harnesses. These are designed to fit directly between the factory harness and the taillight assembly.
4. Mount Converter Module: Find a secure, dry location within the vehicle's rear cargo area (e.g., behind a trim panel) to mount the converter module. Use the provided mounting hardware or cable ties to secure it.
5. Route 4-Way Flat Connector: Route the 4-way flat connector to an accessible location near the trailer hitch. Ensure it is protected from pinching, heat, and road debris.
6. Connect Power Wire (if applicable): Some installations require a direct connection to the vehicle's battery for consistent power. Route the power wire from the converter module to the battery, ensuring it is protected and fused according to the instructions. Connect the fuse holder and fuse as specified.
7. ഗ്രൗണ്ട് കണക്ഷൻ: Secure the white ground wire to a clean, unpainted metal surface on the vehicle chassis using a self-tapping screw or existing bolt.
8. വീണ്ടും കൂട്ടിച്ചേർക്കുക: Reinstall the taillight assemblies and any removed trim panels.
9. ടെസ്റ്റ്: Reconnect the vehicle's battery. Use a trailer or a trailer light tester to verify that all trailer lights (tail, brake, left turn, right turn) function correctly.

Figure 4.1: Illustration of the plug-and-play connectors that plug into existing vehicle sockets and the standard trailer wiring output.

Figure 4.2: Detail of the standard 4-way flat trailer wiring output, showing the male and female ends.

Figure 4.3: The included rubber dust cover easily fits onto the 4-way flat connector for protection when not in use.

5. Operating the Wiring Harness

Once installed, the CURT 56106 wiring harness provides a standard 4-way flat connector for connecting to a trailer. This connector transmits signals for:

• Left Turn Signal / Brake Light
• Right Turn Signal / Brake Light
• Tail Lights / Running Lights
• ഗ്രൗണ്ട്

To operate, simply plug the 4-way flat connector from your trailer into the corresponding connector on your vehicle's wiring harness. Ensure the connection is secure before driving. When not towing, use the provided dust cover to protect the connector from dirt, moisture, and corrosion.

Figure 5.1: Visual representation of the 4-way flat vehicle end plug output.

6. പരിപാലനം

• പതിവ് പരിശോധന: Periodically inspect the wiring harness, especially the 4-way flat connector, for any signs of wear, corrosion, or damage.
• ക്ലീൻ കണക്ഷനുകൾ: Keep the 4-way flat connector clean and free of dirt and debris. Use electrical contact cleaner if necessary.
• പൊടി മൂടൽ ഉപയോഗിക്കുക: Always use the provided dust cover when the harness is not connected to a trailer to protect the terminals from the elements.
• സുരക്ഷിത വയറിംഗ്: Ensure all wiring remains securely routed and fastened to prevent chafing or damage from vehicle movement or road conditions.

7. പ്രശ്‌നപരിഹാരം

The CURT 56106 harness features a circuit-protected converter system designed to prevent damage to the vehicle's electrical system in case of a short circuit or overload. If you experience issues with your trailer lights, refer to the following:

Circuit Protected Converter Systems:

This product has been 100% tested under full load and provides internal circuit protection. If a short circuit or overload situation occurs in a trailer lighting circuit, the module is designed to shut the circuit down, allowing no current to flow until the issue is resolved.

• If trailer lamps are working but the trailer lamps are not working, shut power off to the faulted circuit for a few seconds then try the circuit again.
• എങ്കിൽ എൽamps do not return to normal function, the fault has not been cleared.

എങ്കിൽ എൽampകുറച്ച് സെക്കൻഡ് നേരത്തേക്ക് ലൈറ്റ് ഓഫ് ചെയ്യുക:

1. Check ground wire on both the harness and trailer.
2. Check for an overload condition (too many bulbs).

സർക്യൂട്ട് പ്രകാശിക്കുന്നില്ലെങ്കിൽ:

1. Check low vehicle fuse.
2. Check for open or broken connections.
3. Check for defective bulbs.
4. Check ground wire on both the harness and trailer.
5. Locate and correct a short.

Note: Using a tester can help confirm system function. If problems persist, see your installer for corrective action. Do not use the product while towing if it is not functioning properly.

8 സ്പെസിഫിക്കേഷനുകൾ

9. വാഹന അനുയോജ്യത

The CURT 56106 Custom 4-Pin Trailer Wiring Harness is designed to fit specific years and models of the Toyota Sienna. Please verify your vehicle's compatibility using the table below or by consulting the official CURT application guide.

Figure 9.1: Compatible Toyota Sienna models and years for the CURT 56106 wiring harness.

10. വാറൻ്റിയും പിന്തുണയും

For information regarding product warranty, returns, or technical support, please visit the official CURT website or contact CURT customer service directly. You can also visit the CURT brand store on Amazon for additional product information and support resources.

Visit the CURT Store: CURT Amazon Brand Store
