1. ആമുഖം
This manual provides essential instructions for the installation, operation, and maintenance of your Panasonic Teflon-coated replacement kneading paddle. This high-quality replacement blade is designed to ensure optimal mixing and non-stick performance for your bread machine, facilitating cleaner and easier use.
It is compatible with various Panasonic bread machine models, including SD252, SD253, SD200, SD206, SD251, SD254, SD255, and SD257. Please read these instructions carefully before use to ensure proper function and longevity of the product.

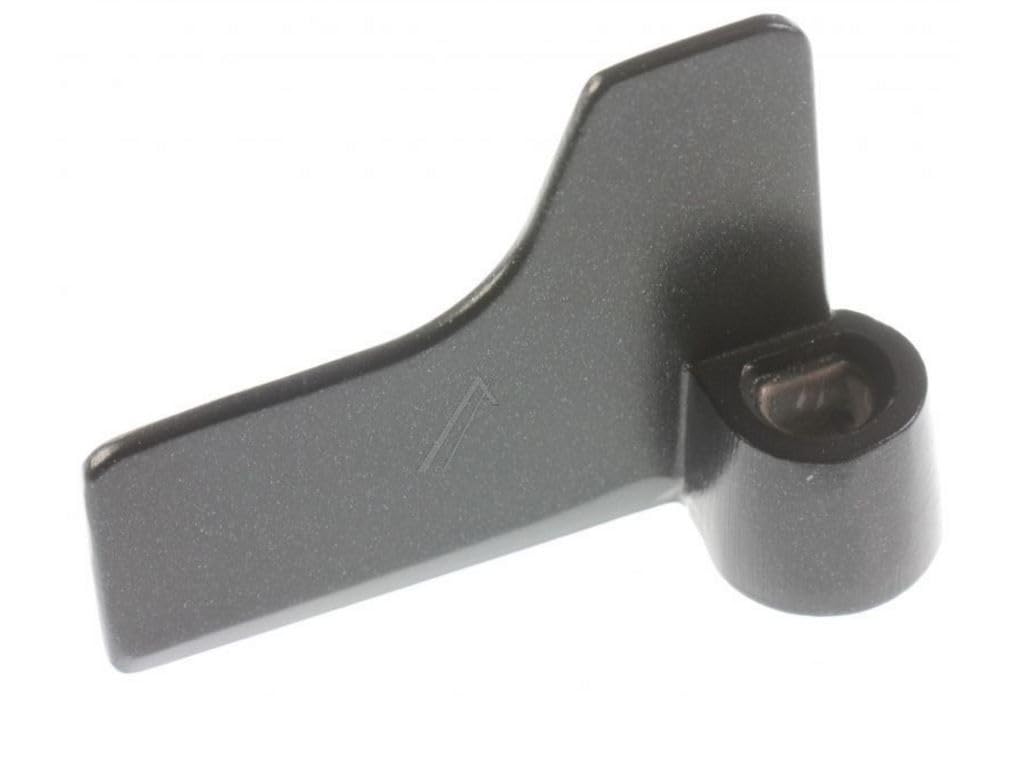

Image 1.1: The Panasonic Teflon-coated kneading paddle.
2. സജ്ജീകരണം
Follow these steps to correctly install the kneading paddle in your Panasonic bread machine:
- Prepare the Bread Pan: Ensure the bread pan is clean and completely dry before installation. Remove any residue from previous baking cycles.
- Locate the Drive Shaft: Inside the bread pan, identify the metal drive shaft at the bottom center.
- Install the Kneading Paddle: Align the opening at the bottom of the kneading paddle with the drive shaft. Press the paddle firmly down onto the shaft until it is securely seated. The paddle should fit snugly and not wobble.
Image 2.1: Illustration of the kneading paddle being placed onto the drive shaft inside the bread pan.
കുറിപ്പ്: Always ensure the paddle is correctly installed before adding ingredients to prevent damage to the bread machine or improper mixing.
3. പ്രവർത്തന നിർദ്ദേശങ്ങൾ
The kneading paddle operates automatically as part of your Panasonic bread machine's baking cycle. No manual intervention is required during operation once installed correctly.
- Before Adding Ingredients: Double-check that the kneading paddle is firmly seated on the drive shaft.
- ചേരുവകൾ ചേർക്കുന്നു: Add your ingredients to the bread pan according to your recipe, ensuring they do not obstruct the paddle's movement.
- പ്രവർത്തന സമയത്ത്: The paddle will rotate to mix and knead the dough as programmed by your bread machine.
- ബേക്കിംഗ് ചെയ്ത ശേഷം: Once the baking cycle is complete, allow the bread to cool slightly within the pan. This helps the bread release more easily from the paddle and prevents large holes in the bottom of the loaf. Gently remove the bread from the pan. The non-stick Teflon coating should allow the paddle to detach easily from the baked loaf.
Image 3.1: A baked loaf of bread with the kneading paddle visible at its base, ready for removal.
4. പരിപാലനവും പരിചരണവും
Proper care will extend the life of your kneading paddle and maintain its non-stick properties:
- വൃത്തിയാക്കൽ: After each use, remove the paddle from the bread pan. Wash it with warm, soapy water using a soft sponge or cloth. For stubborn dough residue, soak the paddle in warm water for a few minutes before cleaning.
- ഉണക്കൽ: Thoroughly dry the paddle with a soft cloth after washing. Ensure no moisture remains, especially around the shaft opening, to prevent corrosion.
- ഉരച്ചിലുകൾ ഒഴിവാക്കുക: Do not use abrasive cleaners, scouring pads, or metal utensils on the paddle, as these can damage the Teflon non-stick coating.
- സംഭരണം: Store the paddle in a dry place, preferably within the bread pan or with your bread machine accessories.
- പരിശോധന: Periodically inspect the Teflon coating for any signs of wear or damage. A damaged coating can lead to sticking and reduced performance. Replace the paddle if significant wear is observed.
Image 4.1: A hand cleaning the Teflon-coated kneading paddle with a soft sponge.
5. പ്രശ്നപരിഹാരം
If you encounter issues with your kneading paddle, refer to the following common problems and solutions:
| പ്രശ്നം | സാധ്യമായ കാരണം | പരിഹാരം |
|---|---|---|
| Paddle not turning or mixing dough effectively. | Paddle not correctly seated on the drive shaft. | Remove the paddle and re-install it, ensuring it is pushed down firmly onto the shaft. |
| Bread sticking to the paddle after baking. | Damaged or worn Teflon coating; insufficient cooling time. | Allow bread to cool longer in the pan before removal. If coating is damaged, consider replacing the paddle. |
| Paddle detaches from the shaft during kneading. | Paddle not securely installed; worn drive shaft or paddle opening. | Ensure the paddle is firmly pressed onto the shaft. If the issue persists, inspect the drive shaft and paddle for wear. |
| Unusual noise during kneading. | Paddle rubbing against the pan or loose. | Check paddle installation. If noise continues, consult your bread machine's manual or contact Panasonic support. |
6 സ്പെസിഫിക്കേഷനുകൾ
- ബ്രാൻഡ്: പാനസോണിക്
- Model Number (Paddle): PANADD96E160
- Compatible Bread Machine Models: SD252, SD253, SD200, SD206, SD251, SD254, SD255, SD257
- മെറ്റീരിയൽ: Teflon-coated Stainless Steel
- നിറം: കറുപ്പ്
- അളവുകൾ (L x W x H): ഏകദേശം 6.6 x 5.2 x 10 സെ.മീ (2.6 x 2.0 x 3.9 ഇഞ്ച്)
- ഭാരം: ഏകദേശം 30 ഗ്രാം (1.1 ഔൺസ്)
- പരിചരണ നിർദ്ദേശങ്ങൾ: Wipe with a dry cloth; hand wash with warm soapy water.
7. വാറൻ്റിയും പിന്തുണയും
For information regarding the warranty of this replacement kneading paddle, please refer to the documentation provided with your original purchase or contact the seller directly. As this is a replacement part, its warranty may be covered under the terms of the original bread machine or the specific seller's policy.
For further assistance or technical support related to your Panasonic bread machine or this replacement part, please visit the official Panasonic support webസൈറ്റ് അല്ലെങ്കിൽ അവരുടെ ഉപഭോക്തൃ സേവന വിഭാഗവുമായി ബന്ധപ്പെടുക.
ഏതെങ്കിലും വാറന്റി ക്ലെയിമുകൾക്കായി നിങ്ങളുടെ വാങ്ങിയതിന്റെ തെളിവ് സൂക്ഷിക്കുക.
