Pertronix Ignitor Module Replacement User Manual

1. ആമുഖവും ഉൽപ്പന്നവും കഴിഞ്ഞുview

This manual provides essential information for the installation, operation, and maintenance of the Pertronix 12470 Module, designed as a direct replacement for the 1247 Ignitor Kit. The Pertronix Ignitor system replaces traditional points and condenser ignition systems, offering enhanced performance and reliability.

The Pertronix Ignitor series has been a cornerstone in electronic ignition conversions since its introduction. This module is part of a system that eliminates mechanical wear components, providing a more stable and consistent ignition timing.

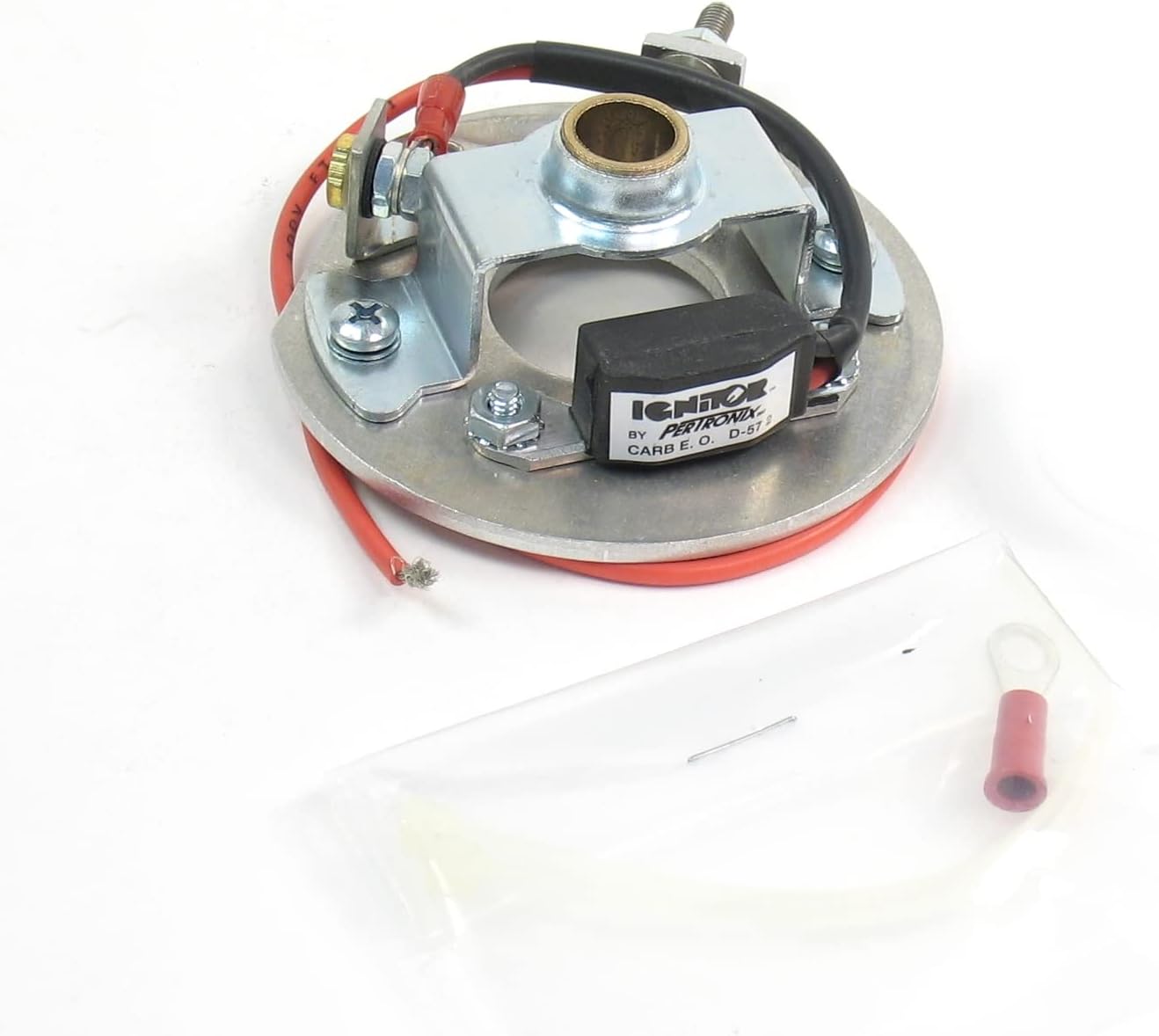

Image 1.1: The Pertronix 12470 Ignitor Module, showing its compact design and wiring connections. This module is a key component for converting traditional points-based ignition systems to electronic ignition.

2 പ്രധാന സവിശേഷതകൾ

• Direct module replacement for the Pertronix 1247 Ignitor Kit.
• CARB E.O. #D-57-22 certified, ensuring compliance with emissions standards.
• Legal for use in all 50 states and Canada.
• Designed for use with Pertronix part number 751-2541.
• Replaces mechanical points and condenser for improved reliability and performance.
• Maintains stable timing throughout the RPM range.

Image 2.1: Certification indicating the Pertronix Ignitor products are street legal in all 50 states, highlighting compliance and broad applicability.

3. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും

The 12470 module is a replacement component for an existing 1247 Ignitor Kit. Installation typically involves replacing the old module within the distributor. Always ensure the vehicle's battery is disconnected before beginning any work on the ignition system.

1. സുരക്ഷ ആദ്യം: ആകസ്മികമായ വൈദ്യുത ഡിസ്ചാർജ് തടയാൻ വാഹനത്തിന്റെ നെഗറ്റീവ് ബാറ്ററി ടെർമിനൽ വിച്ഛേദിക്കുക.
2. Access Distributor: Locate and open the distributor cap.
3. പഴയ മൊഡ്യൂൾ നീക്കം ചെയ്യുക: Carefully disconnect and remove the existing 1247 Ignitor module from its mounting location within the distributor. Note the wiring connections before removal.
4. പുതിയ മൊഡ്യൂൾ ഇൻസ്റ്റാൾ ചെയ്യുക: Position the new 12470 module in the same location. Secure it using the original fasteners.
5. വയറിംഗ് ബന്ധിപ്പിക്കുക: Reconnect the module's wiring according to the original configuration. Ensure all connections are clean and secure.
6. വീണ്ടും കൂട്ടിച്ചേർക്കുക: Replace the distributor cap and ensure it is properly seated.
7. ബാറ്ററി വീണ്ടും ബന്ധിപ്പിക്കുക: നെഗറ്റീവ് ബാറ്ററി ടെർമിനൽ വീണ്ടും ബന്ധിപ്പിക്കുക.
8. ടെസ്റ്റ്: Start the engine and verify proper operation.

For detailed installation instructions specific to your vehicle and the original 1247 Ignitor Kit, refer to the complete manual provided with the full kit or consult a qualified automotive technician.

4. പ്രവർത്തന തത്വങ്ങൾ

The Pertronix 12470 module operates as a solid-state electronic switch, replacing the mechanical points in a distributor. It uses a magnetic trigger to sense engine rotation and precisely control the ignition coil's primary circuit. This results in a more consistent spark, improved engine performance, and reduced maintenance compared to traditional points systems.

The module's design ensures stable timing and high energy output across the engine's RPM range. It is designed to work seamlessly with the existing ignition coil, though optimal performance is often achieved with a compatible Pertronix Flame-Thrower coil.

Image 4.1: A graph comparing the energy output (in Millijoules) of an Ignitor system with a Flame-Thrower coil versus a typical breaker point ignition system across various engine RPMs. The Ignitor system demonstrates significantly higher and more consistent energy output.

Image 4.2: A graph illustrating the Adaptive Dwell Control of the Ignitor II system with a Flame-Thrower II coil, compared to typical points ignition. This shows how dwell time is optimized for peak energy throughout the RPM range.

Image 4.3: A graph comparing the energy output of the Ignitor III system with a Flame-Thrower III coil against a typical breaker point ignition system. This demonstrates the advanced energy delivery capabilities of the Ignitor III.

5. പരിപാലനം

The Pertronix 12470 module is a solid-state electronic component and requires no routine maintenance. Unlike mechanical points, it does not require periodic adjustment, lubrication, or replacement due to wear. Ensure that all electrical connections remain clean and secure to maintain optimal performance.

6. പ്രശ്‌നപരിഹാരം

If you experience issues after installing the 12470 module, consider the following common troubleshooting steps:

• No Spark/Engine Cranks but Won't Start:
  • എല്ലാ വയറിംഗ് കണക്ഷനുകളും ശരിയാണെന്നും സുരക്ഷിതമാണെന്നും ഉറപ്പാക്കുക.
  • ശരിയായ വോള്യം പരിശോധിക്കുകtage supply to the module and coil.
  • Ensure the coil is compatible with the Ignitor system.
  • Inspect the module for any visible damage.
• Intermittent Misfire:
  • Check for loose connections or corroded terminals.
  • Ensure the distributor shaft has no excessive play.
  • Verify the coil's resistance is within specifications.
• Engine Runs Poorly:
  • Confirm correct timing. While the Ignitor provides stable timing, initial timing setup is crucial.
  • Check other ignition components (spark plugs, wires, rotor, cap) for wear or damage.

For further assistance, refer to the comprehensive troubleshooting guide for the Pertronix Ignitor Kit or contact Pertronix technical support.

7 സ്പെസിഫിക്കേഷനുകൾ

Image 7.1: A feature comparison table for Pertronix Ignitor, Ignitor II, and Ignitor III electronic ignition conversion systems, highlighting various technical attributes and benefits.

8. വാറൻ്റിയും പിന്തുണയും

Pertronix products are manufactured to high standards and are typically backed by a manufacturer's warranty against defects in materials and workmanship. For specific warranty terms and conditions, please refer to the documentation included with your original Pertronix Ignitor Kit or visit the official Pertronix webസൈറ്റ്.

For technical support, installation questions, or warranty claims, please contact Pertronix customer service directly. Contact information can usually be found on their official webസൈറ്റ് അല്ലെങ്കിൽ ഉൽപ്പന്ന പാക്കേജിംഗിൽ.
