ഉൽപ്പന്നം കഴിഞ്ഞുview
The Aqualisa Hydramax Fixed Shower Head (model cl139) is a replacement shower head designed for use with specific Aqualisa Hydramax shower systems. It features a single 'Rain' setting and is constructed from durable plastic with a chrome finish. This shower head is specifically engineered to connect with the Aqualisa Fixed arm (plastic) - 20mm - Chrome, due to its non-standard female thread.
ചിത്രം 1: മുൻഭാഗം view of the Aqualisa Hydramax Fixed Shower Head. This image displays the overall design and chrome finish of the shower head.
സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും
This shower head is intended as a replacement part. Proper installation is crucial for optimal performance and to prevent leaks. Please ensure your existing shower arm is compatible before proceeding.
അനുയോജ്യത പരിശോധന
- The Aqualisa Hydramax Fixed Shower Head features a non-standard female thread.
- It is designed exclusively for use with the Aqualisa Fixed arm (plastic) - 20mm - Chrome. Using other shower arms may result in improper fit, leaks, or damage.
ചിത്രം 2: ക്ലോസപ്പ് view of the unique female thread on the Aqualisa Hydramax Shower Head. This thread is specific to Aqualisa shower arms.
ഇൻസ്റ്റലേഷൻ ഘട്ടങ്ങൾ
- തയ്യാറാക്കൽ: Turn off the water supply to your shower system. Ensure the area is clean and free of debris.
- പഴയ ഷവർ ഹെഡ് നീക്കം ചെയ്യുക: Carefully unscrew the existing shower head from the shower arm. You may need a wrench if it is tightly secured, but often hand-tightening is sufficient.
- Inspect Shower Arm: Check the condition of your shower arm's thread. Ensure it is clean and undamaged.
- Install New Shower Head: Align the female thread of the Aqualisa Hydramax shower head with the male thread of the compatible Aqualisa shower arm. Screw the new shower head onto the arm by hand until it is snug.
- Tighten (if necessary): If a slight leak occurs after hand-tightening, you may use a wrench to gently tighten it further, being careful not to overtighten and damage the plastic components.
- ടെസ്റ്റ്: Turn the water supply back on and check for any leaks. If leaks persist, re-check the connection and ensure proper alignment.
പ്രവർത്തന നിർദ്ദേശങ്ങൾ
The Aqualisa Hydramax Fixed Shower Head provides a single, consistent 'Rain' spray pattern. There are no adjustable settings for spray type or intensity on this model.
- ജലപ്രവാഹം: The shower head delivers water in a gentle, rain-like cascade.
- സജീവമാക്കൽ: Water flow is controlled by your shower's main mixer or valve.

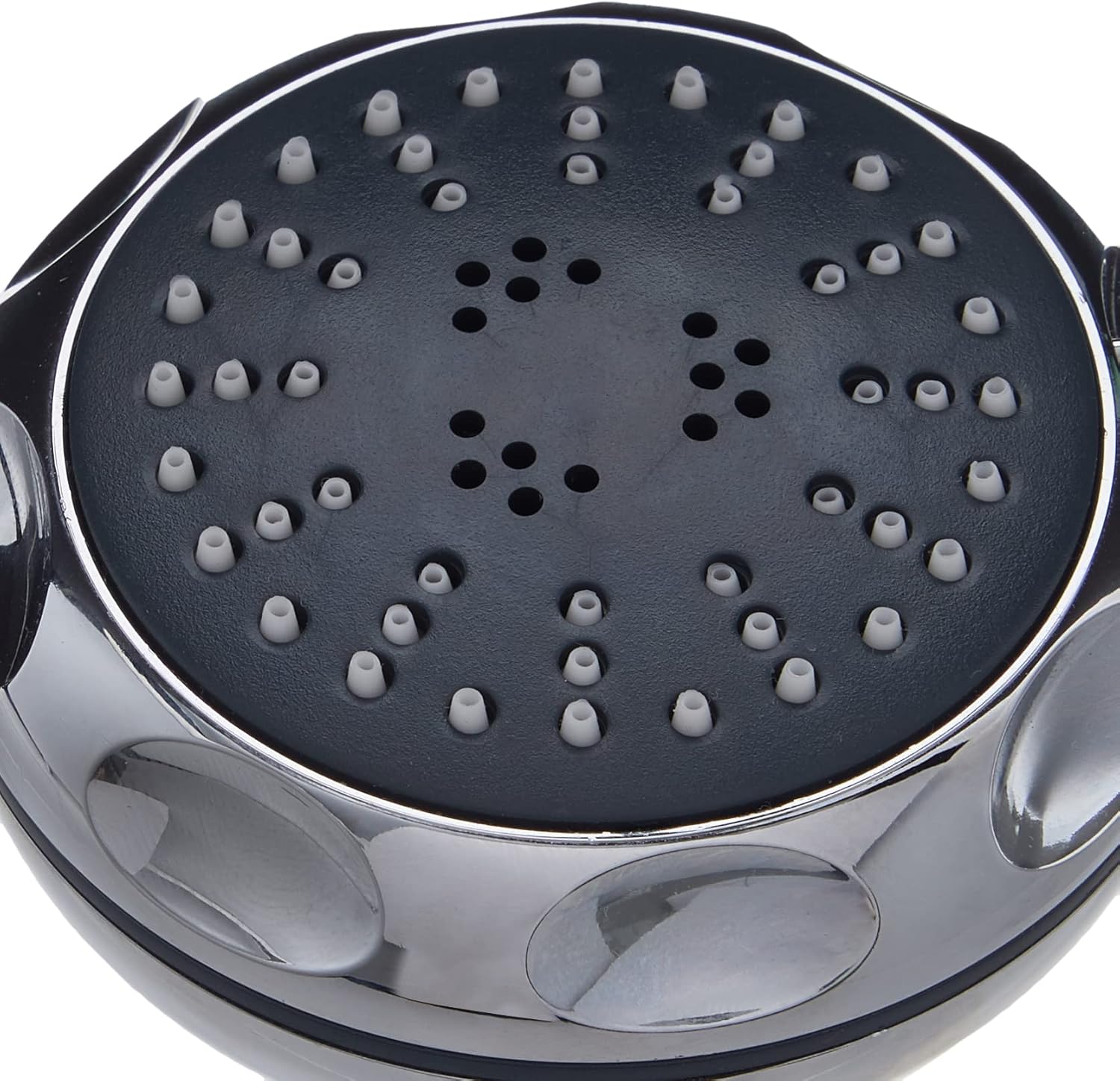

ചിത്രം 3: മുകളിൽ view of the shower head, illustrating the arrangement of the nozzles for the 'Rain' spray pattern.
മെയിൻ്റനൻസ്
Regular cleaning will help maintain the performance and appearance of your Aqualisa Hydramax Fixed Shower Head.
വൃത്തിയാക്കൽ
- പൊതുവായ ശുചീകരണം: Wipe the chrome finish with a soft, damp cloth and a mild, non-abrasive cleaner. Avoid harsh chemicals or abrasive pads, as these can damage the chrome finish.
- നോസൽ വൃത്തിയാക്കൽ: Over time, mineral deposits (limescale) can build up in the nozzles, affecting water flow. Gently rub the rubber nozzles with your finger or a soft brush to dislodge any deposits. For stubborn buildup, a solution of equal parts white vinegar and water can be applied to the shower head for 15-30 minutes before rinsing thoroughly.
- ആവൃത്തി: Clean the shower head regularly, especially in areas with hard water, to prevent significant mineral buildup.
ട്രബിൾഷൂട്ടിംഗ്
This section addresses common issues you might encounter with your shower head.
| പ്രശ്നം | സാധ്യമായ കാരണം | പരിഹാരം |
|---|---|---|
| Low Water Pressure / Uneven Spray | Mineral buildup (limescale) in nozzles. | Clean the nozzles as described in the Maintenance section. Ensure main water supply is fully open. |
| Leaking from connection point | Improperly tightened connection; damaged thread; incompatible shower arm. | Ensure the shower head is securely tightened to the shower arm. Verify that the shower arm is the correct Aqualisa 20mm plastic arm. If damage is visible, replacement may be necessary. |
| Water squirting from sides of shower head | Cracked or split plastic housing (common issue over time). | This indicates material fatigue. The shower head will need to be replaced. |
സ്പെസിഫിക്കേഷനുകൾ
| ആട്രിബ്യൂട്ട് | വിശദാംശങ്ങൾ |
|---|---|
| ബ്രാൻഡ് | അക്വാലിസ |
| മോഡൽ നമ്പർ | cl139 |
| അളവുകൾ (L x W) | 4.92"L x 3.74"W (approx. 125mm x 95mm) |
| മെറ്റീരിയൽ | പ്ലാസ്റ്റിക് |
| ഫിനിഷ് തരം | Chrome |
| നിറം | കറുപ്പ് |
| ക്രമീകരണ തരം | മഴ |
| ക്രമീകരണങ്ങളുടെ എണ്ണം | 1 |
| ഇൻസ്റ്റലേഷൻ തരം | വാൾ മൗണ്ടഡ് |
| ഇനത്തിൻ്റെ ഭാരം | 7.1 ഔൺസ് |
Figure 4: Dimensional diagram of the shower head, indicating its length and width for reference.
വാറൻ്റിയും പിന്തുണയും
Specific warranty details for the Aqualisa Hydramax Fixed Shower Head (model cl139) are not provided in this manual. For information regarding product warranty, returns, or technical support, please refer to the official Aqualisa webസൈറ്റിൽ ബന്ധപ്പെടുകയോ അവരുടെ ഉപഭോക്തൃ സേവനവുമായി നേരിട്ട് ബന്ധപ്പെടുകയോ ചെയ്യുക. ഏതെങ്കിലും വാറന്റി ക്ലെയിമുകൾക്ക് നിങ്ങളുടെ വാങ്ങലിന്റെ തെളിവ് സൂക്ഷിക്കാൻ ശുപാർശ ചെയ്യുന്നു.
നിർമ്മാതാവിനെ ബന്ധപ്പെടുക: Please visit the Aqualisa official webഏറ്റവും കാലികമായ കോൺടാക്റ്റ് വിവരങ്ങൾക്കും പിന്തുണാ ഉറവിടങ്ങൾക്കുമുള്ള സൈറ്റ്.
