എലൈറ്റ് Q032 ലിമിറ്റ് സ്വിച്ച് അഡ്ജസ്റ്റ്മെന്റ് നട്ട്സ് യൂസർ മാനുവൽ

1. ആമുഖം

The Elite Q032 Limit Switch Adjustment Nuts are essential replacement parts designed for various Elite gate openers. These nuts play a crucial role in the precise operation of your gate system's limit switches, ensuring accurate positioning and reliable performance. This manual provides detailed information on the product, its installation, operation, and maintenance.

This product is supplied as a pair of solid hard plastic nuts, engineered for enhanced durability compared to original designs that featured brass inserts prone to cracking under pressure or constant use.

2. ഉൽപ്പന്നം കഴിഞ്ഞുview ഒപ്പം അനുയോജ്യത

2.1 പ്രധാന സവിശേഷതകൾ

• Designed as a direct replacement for Elite gate openers.
• Constructed from solid hard plastic for improved durability and resistance to cracking.
• Supplied as a set of two (pair) for complete replacement.
• Facilitate lateral travel of limit switch components as the internal screw rotates via gear reduction.

2.2 അനുയോജ്യമായ മോഡലുകൾ

This replacement kit is compatible with the following Elite gate opener models:

• SL3000
• SL3000ULE
• ROBO SLIDE
• Various Commercial Slide Gate Operators

3. ഇൻസ്റ്റലേഷൻ (മാറ്റിസ്ഥാപിക്കൽ)

The Elite Q032 Limit Switch Adjustment Nuts are designed for replacement in existing Elite gate opener systems. Proper installation is crucial for the correct functioning of your gate opener's limit switches. It is recommended that installation be performed by a qualified technician.

3.1 സുരക്ഷാ മുൻകരുതലുകൾ

• പവർ വിച്ഛേദിക്കുക: Always ensure the gate opener's power supply is completely disconnected before beginning any installation or maintenance work.
• Refer to Gate Opener Manual: Consult your specific Elite gate opener's instruction manual for detailed diagrams and procedures related to limit switch access and adjustment.
• സംരക്ഷണ ഗിയർ ധരിക്കുക: കയ്യുറകളും നേത്ര സംരക്ഷണവും പോലുള്ള ഉചിതമായ വ്യക്തിഗത സംരക്ഷണ ഉപകരണങ്ങൾ (പിപിഇ) ഉപയോഗിക്കുക.

3.2 Replacement Procedure (General Steps)

1. Access Limit Switch Assembly: Locate and carefully open the housing of your Elite gate opener to access the limit switch mechanism. This typically involves removing covers or panels.
2. Identify Old Nuts: Identify the existing limit switch adjustment nuts. Note their position and orientation.
3. Remove Old Nuts: Carefully remove the old, damaged, or worn-out nuts from the limit switch screw or rod.
4. Install New Nuts: Slide the new Elite Q032 adjustment nuts onto the limit switch screw/rod, ensuring they are correctly oriented. The nuts are designed to travel laterally along the screw.
5. വീണ്ടും കൂട്ടിച്ചേർക്കുക, പരിശോധിക്കുക: Once the new nuts are in place, carefully reassemble the gate opener housing. Reconnect power and perform a functional test of the gate opener, ensuring the limit switches are properly engaging and disengaging the motor at the desired open and close positions. Adjust as necessary according to your gate opener's manual.

ചിത്രം 1: ക്ലോസപ്പ് view of a single Elite Q032 Limit Switch Adjustment Nut, highlighting its threaded inner bore and external gear teeth.

4. ഓപ്പറേഷൻ

The Q032 Limit Switch Adjustment Nuts are integral components of the gate opener's limit switch assembly. Their primary function is to define the gate's open and closed positions.

• When the gate opener motor operates, it drives a threaded rod or screw within the limit switch mechanism.
• The Q032 nuts are designed to travel along this threaded rod. As they move, they eventually contact and activate or deactivate the limit switches.
• This activation signals the gate opener's control board to stop the motor, thereby setting the gate's fully open or fully closed position.
• Proper adjustment of these nuts is critical for the safe and efficient operation of the gate, preventing it from over-traveling or not closing completely.

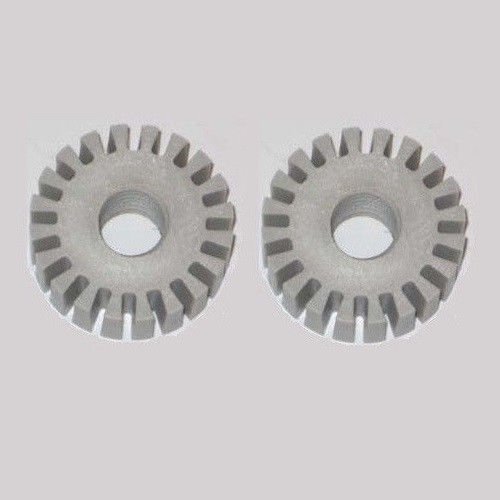

Figure 2: A pair of Elite Q032 Limit Switch Adjustment Nuts, as supplied.

5. പരിപാലനം

Regular inspection and minor maintenance can extend the lifespan of your limit switch adjustment nuts and ensure consistent gate operation.

• വിഷ്വൽ പരിശോധന: Periodically inspect the nuts for signs of wear, cracking, or damage. Check if they move freely along the threaded rod.
• വൃത്തിയാക്കൽ: Keep the area around the limit switch assembly clean and free from dirt, debris, or insect nests that could impede the nuts' movement. Use a soft, dry cloth or brush.
• ലൂബ്രിക്കേഷൻ: Refer to your gate opener's manual for recommendations on lubricating the limit switch threaded rod. If lubrication is recommended, use a suitable lubricant that will not degrade plastic components.
• ക്രമീകരണ പരിശോധന: Occasionally verify that the gate stops precisely at its intended open and closed positions. If adjustments are needed, refer to your gate opener's manual.

6. പ്രശ്‌നപരിഹാരം

If your gate opener is exhibiting issues related to its stopping points, the limit switch adjustment nuts may be a contributing factor. Always consult your gate opener's main troubleshooting guide first.

If issues persist after troubleshooting, contact a certified Elite gate opener technician for assistance.

7 സ്പെസിഫിക്കേഷനുകൾ

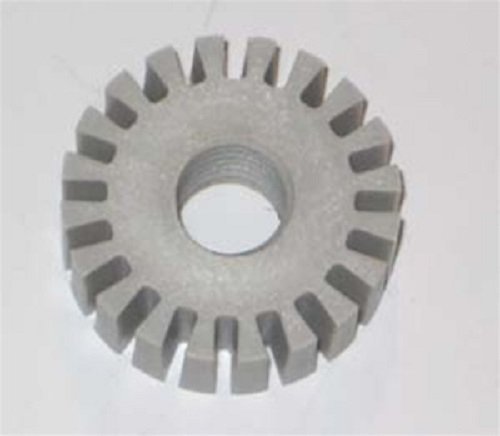

ചിത്രം 3: മുകളിൽ view of a single Elite Q032 Limit Switch Adjustment Nut.

8. വാറൻ്റിയും പിന്തുണയും

For specific warranty information regarding the Elite Q032 Limit Switch Adjustment Nuts, please refer to the documentation provided with your original Elite gate opener or contact Elite customer support directly. As a replacement part, its warranty may be covered under the original product's terms or as a separate component.

For technical support, installation assistance, or to inquire about other Elite replacement parts, please visit the official Elite website or contact their customer service department. Always provide your product model number (Q032) and the model of your gate opener when seeking support.
