1. ഉൽപ്പന്നം കഴിഞ്ഞുview
The Frigidaire 3204267 Safety Thermostat is a genuine replacement part designed to ensure the safe operation of your dryer. This component plays a critical role in preventing overheating by monitoring the internal temperature of the dryer. If the temperature exceeds a safe limit, the thermostat will interrupt the heating cycle, protecting the appliance and your laundry from potential damage.

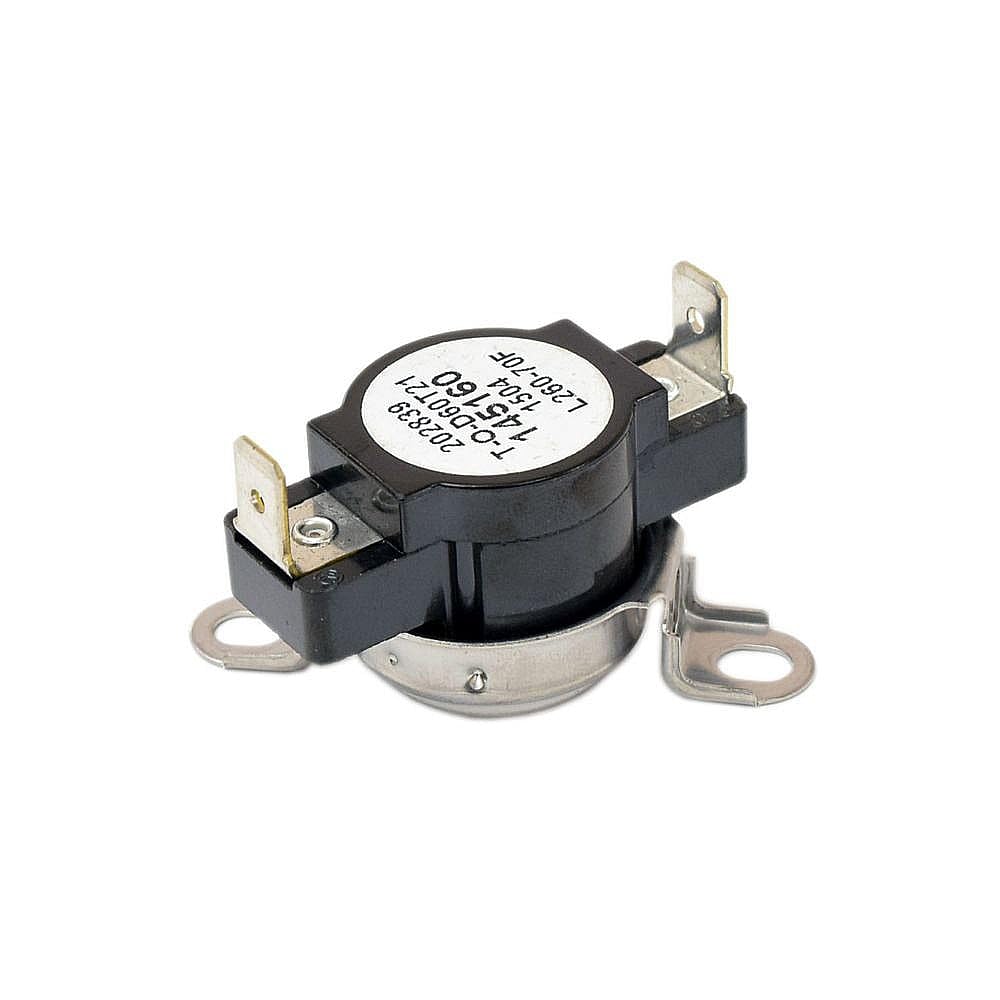

Figure 1: The Frigidaire 3204267 Safety Thermostat, a crucial component for dryer safety.
2 സുരക്ഷാ വിവരങ്ങൾ
മുന്നറിയിപ്പ്: Always disconnect power to the dryer before attempting any repairs or maintenance. Failure to do so can result in serious injury or electrical shock. If you are unsure about any step, it is recommended to consult a qualified appliance technician.
This safety thermostat is a critical component. Do not attempt to bypass or modify it for permanent operation. Bypassing safety devices can lead to fire hazards and severe damage to your appliance.
3 അനുയോജ്യത
This Frigidaire 3204267 Safety Thermostat is compatible with various dryer models from Frigidaire, Kenmore, and Electrolux. Please verify your dryer's model number against the following list or consult your appliance's service manual to ensure proper fit:
- Frigidaire 30-2758-00-03
- Frigidaire 30-2758-00-04
- Frigidaire 30-2758-23-03
- Frigidaire 30-2758-23-04
- Frigidaire 30-2758-66-03
- And other compatible models from FRIGIDAIRE, KENMORE, ELECTROLUX.
4. ഇൻസ്റ്റലേഷൻ
Replacing the safety thermostat requires careful attention to detail. Follow these general steps, and refer to the provided video for visual guidance:
- പവർ വിച്ഛേദിക്കുക: ഇലക്ട്രിക്കൽ ഔട്ട്ലെറ്റിൽ നിന്ന് ഡ്രയർ ഊരിമാറ്റുക.
- Access Rear Panel: Move the dryer away from the wall and remove the screws securing the rear access panel. Carefully remove the panel.
- Locate Thermostat: Identify the existing safety thermostat, typically located near the heating element or blower housing. It is often a small, disc-shaped component with two wire terminals.
- വയറുകൾ വിച്ഛേദിക്കുക: Carefully disconnect the wires from the old thermostat. Note their positions for correct reattachment.
- പഴയ തെർമോസ്റ്റാറ്റ് നീക്കം ചെയ്യുക: Unscrew or unclip the old thermostat from its mounting bracket.
- പുതിയ തെർമോസ്റ്റാറ്റ് ഇൻസ്റ്റാൾ ചെയ്യുക: Secure the new Frigidaire 3204267 Safety Thermostat in place using the original screws or clips.
- വയറുകൾ വീണ്ടും ബന്ധിപ്പിക്കുക: Attach the wires to the new thermostat's terminals, ensuring a secure connection.
- വീണ്ടും കൂട്ടിച്ചേർക്കുക: Replace the rear access panel and secure it with screws. Push the dryer back into its position.
- പവർ പുന ore സ്ഥാപിക്കുക: ഡ്രയർ വീണ്ടും ഇലക്ട്രിക്കൽ ഔട്ട്ലെറ്റിലേക്ക് പ്ലഗ് ചെയ്യുക.
ചിത്രം 2: ഒരു ക്ലോസ്-അപ്പ് view of the thermostat, showing its terminals for wire connections.
ഇൻസ്റ്റലേഷൻ വീഡിയോ ഗൈഡ്:
Video 1: This video demonstrates the replacement process for a dryer thermal limiter and thermostat, which is applicable to the Frigidaire 3204267 model. It covers common issues like the dryer not starting, not heating, or taking too long to dry.
5. പ്രവർത്തന തത്വങ്ങൾ
The Frigidaire 3204267 Safety Thermostat operates as an automatic temperature control device. It is designed to open an electrical circuit when the temperature inside the dryer reaches a predetermined unsafe level, thereby cutting off power to the heating element. This prevents the dryer from overheating, which could damage clothes or pose a fire risk. Once the temperature drops to a safe level, the thermostat will reset, allowing the heating element to resume operation.
6. പ്രശ്നപരിഹാരം
If your dryer is experiencing issues related to heating or starting, the safety thermostat might be a contributing factor. Here are common symptoms of a faulty thermostat:
- ഡ്രയർ സ്റ്റാർട്ട് ആകുന്നില്ല.
- Dryer produces no heat or insufficient heat.
- വസ്ത്രങ്ങൾ ഉണങ്ങാൻ വളരെ സമയമെടുക്കും.
- Dryer overheats or shuts off prematurely.
Before replacing the thermostat, it is advisable to perform diagnostic checks. A multimeter can be used to test for continuity across the thermostat terminals. A reading of infinity (open circuit) indicates a faulty thermostat that needs replacement.
ചിത്രം 3: വശം view of the thermostat, showing its compact design and mounting points.
7. പരിപാലനം
To prolong the life of your dryer and its components, including the safety thermostat, regular maintenance is recommended:
- Clean Lint Trap: Clean the lint trap before or after every load to ensure proper airflow and prevent lint buildup, which can cause overheating.
- വെന്റിലേഷൻ പരിശോധിക്കുക: Periodically check the dryer's exhaust vent for blockages. A clogged vent restricts airflow, leading to higher operating temperatures and potential thermostat failure.
- പ്രൊഫഷണൽ പരിശോധന: Consider a professional inspection of your dryer every few years to identify and address potential issues before they lead to component failure.
8 സ്പെസിഫിക്കേഷനുകൾ
| ഫീച്ചർ | വിശദാംശങ്ങൾ |
|---|---|
| ബ്രാൻഡ് | ഫ്രിജിഡെയർ |
| മോഡലിൻ്റെ പേര് | 3204267 |
| ഭാഗം നമ്പർ | 3204267 |
| ഇനത്തിൻ്റെ ഭാരം | 0.81 ഔൺസ് |
| ഉൽപ്പന്ന അളവുകൾ | 1 x 4 x 5 ഇഞ്ച് |
| അനുയോജ്യമായ ഉപകരണങ്ങൾ | FRIGIDAIRE, KENMORE, ELECTROLUX Dryers |
| നിയന്ത്രണ തരം | താപനില നിയന്ത്രണം |
| താപനില നിയന്ത്രണ തരം | ഓട്ടോമാറ്റിക് |
9. വാറൻ്റിയും പിന്തുണയും
Specific warranty information for this replacement part may vary. Please refer to the original product packaging or contact Frigidaire customer support for details regarding warranty coverage.
For technical assistance or further inquiries, please contact Frigidaire customer service or the retailer from whom the part was purchased. Always provide your dryer's model and serial number when seeking support.
