ആമുഖം
This manual provides essential instructions for the safe and effective use of your Camco Power Grip 25-foot, 30 Amp RV/EV Extension Cord, Model 55501. This cord is designed for dual functionality, serving as both a 30 Amp RV extension cord and a Level 1 EV charger extension cable. Please read this manual thoroughly before use and retain it for future reference.
Image: The Camco Power Grip 25-foot 30 Amp RV/EV Extension Cord, coiled and packaged, showcasing its length and ampഇറേജ് റേറ്റിംഗ്.
സുരക്ഷാ വിവരങ്ങൾ
Always prioritize safety when handling electrical equipment. Failure to follow these safety guidelines may result in electric shock, fire, or personal injury.
- ഉപയോഗിക്കുന്നതിന് മുമ്പ് പരിശോധിക്കുക: Before each use, visually inspect the cord for any signs of damage, including cuts, abrasions, or exposed wires. Do not use a damaged cord.
- ശരിയായ കണക്ഷൻ: Ensure all connections are secure and fully seated. The locking ring on the female end should be threaded tightly to create a weatherproof seal.
- ഓവർലോഡിംഗ് ഒഴിവാക്കുക: Do not exceed the cord's rated capacity of 30 Amps, 125 Volts, or 3750 Watts. Overloading can cause overheating and fire.
- വരണ്ട അവസ്ഥകൾ: Avoid using the cord in wet conditions unless connections are specifically designed and sealed for such environments. Keep connections off the ground and away from standing water.
- ഗ്രൗണ്ടിംഗ്: This cord is designed with a grounding conductor for your safety. Never remove or bypass the grounding prong.
- സുരക്ഷിതമായി അൺപ്ലഗ് ചെയ്യുക: Always grasp the plug housing, not the cord, when disconnecting from a power source or appliance. Use the Power Grip handle for safe plugging and unplugging.
- കുട്ടികളും വളർത്തുമൃഗങ്ങളും: Keep the cord out of reach of children and pets.
ഉൽപ്പന്ന സവിശേഷതകൾ
The Camco Power Grip Extension Cord is engineered with several features to ensure reliable and safe power delivery:
- ഇരട്ട ഉദ്ദേശ്യം: Functions as both a 30 Amp RV extension cord and a Level 1 EV charger extension cable.
- ഹെവി ഡ്യൂട്ടി നിർമ്മാണം: Features a flame-retardant PVC sheath for durability and protection against outdoor elements and wear.
- 100% Copper Wiring: Utilizes 10 AWG 100% copper wire for optimal conductivity and minimal power loss.
- Secure Grip Handle: An integrated handle on the male plug allows for safe and easy plugging and unplugging without straining the cord.
- 90° Head: The 90-degree design of the male plug reduces stress on the cord connections, preventing pressure or damage to the RV or EV inlet.
- Weatherproof Locking Ring: The female connector includes a threaded locking ring to secure the connection and provide a weatherproof seal.
- Cord Organizer: Comes with an adjustable cord organizer and carrying strap handle for convenient transport and storage.
- സാക്ഷ്യപ്പെടുത്തിയ സുരക്ഷ: ETL listed to CSA and UL standards, ensuring compliance with safety regulations in the U.S. and Canada.
Image: Close-up of the cord's male (NEMA TT-30P) and female (NEMA L5-30R) connectors, indicating 30 Amp റേറ്റിംഗ്.

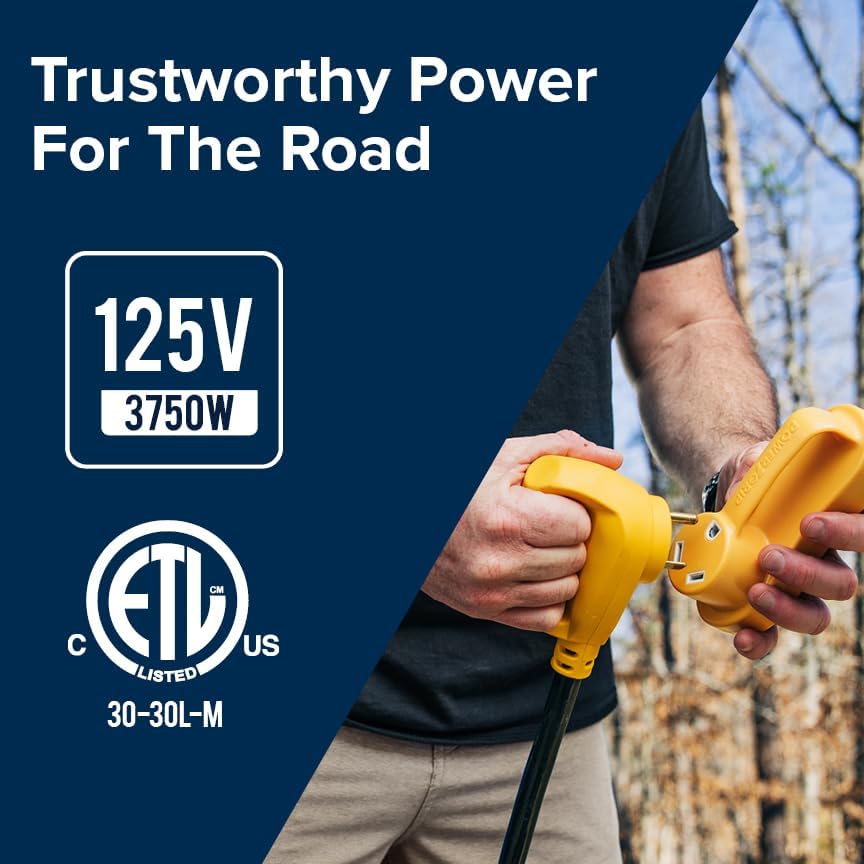

Image: A person connecting the cord, with overlays showing the 125V/3750W rating and ETL safety certification.
Image: A cutaway illustration of the cord's interior, emphasizing its 100% copper wire construction and 10 AWG gauge.

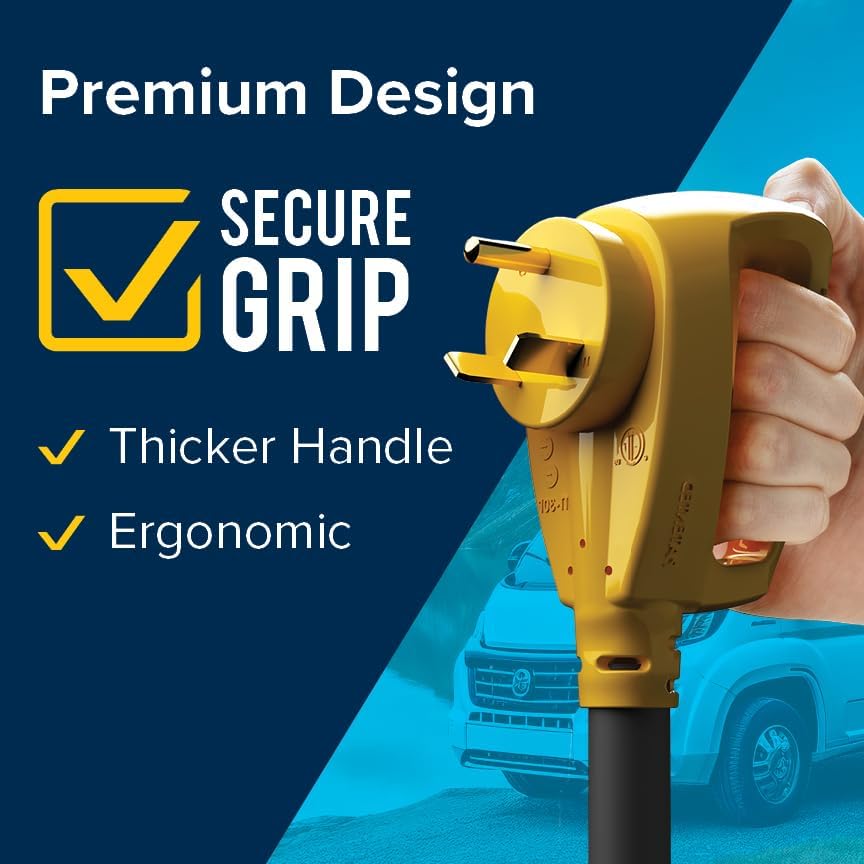

Image: A hand demonstrating the secure grip handle on the male connector, highlighting its ergonomic and thicker design for ease of use.
സജ്ജമാക്കുക
Follow these steps to properly set up your extension cord:
- ചരട് അഴിക്കുക: Carefully uncoil the necessary length of the extension cord. Avoid kinks or sharp bends.
- പവർ ഉറവിടത്തിലേക്ക് കണക്റ്റുചെയ്യുക: Insert the male (NEMA TT-30P) end of the extension cord into the 30 Amp power receptacle of your RV park pedestal or Level 1 EV charging station. Ensure it is fully seated.
- Connect to RV/EV: Insert the female (NEMA L5-30R) end of the extension cord into your RV's power inlet or your EV's charging port (if using as an EV extension).
- സുരക്ഷിത ലോക്കിംഗ് റിംഗ്: For RV connections, thread the locking ring on the female end clockwise until it is tight against the RV's power inlet. This creates a secure, weatherproof connection.
- കണക്ഷൻ സ്ഥിരീകരിക്കുക: Ensure both ends are firmly connected and the locking ring is tightened.
പ്രവർത്തന നിർദ്ദേശങ്ങൾ
Once the cord is properly set up, follow these guidelines for operation:
- പവർ ഓൺ: After securing all connections, activate the power at the source (e.g., flip the breaker at the RV pedestal).
- ഉപയോഗം നിരീക്ഷിക്കുക: Be mindful of the total electrical load to avoid exceeding the cord's 30 Amp റേറ്റിംഗ്.
- Avoid Tripping Hazards: Route the cord in a manner that minimizes tripping hazards for yourself and others.
- വിച്ഛേദിക്കുന്നു: To disconnect, first turn off the power at the source. Then, unthread the locking ring (if applicable) and firmly grasp the plug housings to pull them straight out. Do not yank the cord.
മെയിൻ്റനൻസ്
Proper maintenance extends the life of your extension cord and ensures continued safe operation.
- പതിവ് പരിശോധന: Periodically inspect the entire length of the cord, including the plugs and connectors, for any signs of damage, wear, or corrosion.
- വൃത്തിയാക്കൽ: If the cord becomes dirty, wipe it clean with a damp cloth. Ensure the cord is completely dry before storing or using it. Do not immerse plugs or connectors in water.
- സംഭരണം: When not in use, coil the cord neatly. Utilize the adjustable cord organizer and carrying strap for compact and tangle-free storage. Store in a dry place, away from direct sunlight and extreme temperatures.
- കേടുപാടുകൾ ഒഴിവാക്കുക: Do not drive over the cord, pinch it in doors or windows, or expose it to sharp objects that could cut the insulation.
ട്രബിൾഷൂട്ടിംഗ്
If you encounter issues with your extension cord, consider the following common problems and solutions:
| പ്രശ്നം | സാധ്യമായ കാരണം | പരിഹാരം |
|---|---|---|
| No power to RV/EV | Power source off; loose connection; tripped breaker; damaged cord. | Check power pedestal breaker; ensure all connections are secure; inspect cord for damage. |
| ചരട് ചൂടായി തോന്നുന്നു | Overloaded circuit; loose connection. | Reduce electrical load; ensure connections are tight. If warmth persists, discontinue use and inspect. |
| കണക്റ്റുചെയ്യുന്നതിനോ/വിച്ഛേദിക്കുന്നതിനോ ബുദ്ധിമുട്ട് | Corrosion on prongs; debris in receptacle; improper alignment. | Clean prongs; clear debris from receptacles; ensure proper alignment before pushing/pulling. Use the Power Grip handle. |
If troubleshooting steps do not resolve the issue, or if you suspect the cord is damaged, discontinue use immediately and contact Camco customer support or a qualified electrician.
സ്പെസിഫിക്കേഷനുകൾ
- മോഡൽ നമ്പർ: 55501
- നീളം: 25 അടി
- Amperage റേറ്റിംഗ്: 30 Amps
- വാല്യംtagഇ റേറ്റിംഗ്: 125 വോൾട്ട് (എസി)
- വാട്ട്tagഇ റേറ്റിംഗ്: 3750 വാട്ട്സ്
- വയർ ഗേജ്: 10 AWG (അമേരിക്കൻ വയർ ഗേജ്)
- Male Connector Type: NEMA TT-30P (Standard 30 Amp RV Plug)
- Female Connector Type: NEMA L5-30R (Marine-style 30 Amp Locking Receptacle)
- നിർമ്മാണം: 100% Copper Wire, Heavy-Duty Flame-Retardant PVC Jacket
- സർട്ടിഫിക്കേഷനുകൾ: ETL Listed to CSA and UL Standards
- ഉൽപ്പന്ന അളവുകൾ: 16.5 x 9 x 3.5 ഇഞ്ച് (പാക്കേജുചെയ്തത്)
- ഇനത്തിൻ്റെ ഭാരം: 3.74 പൗണ്ട്
വാറൻ്റിയും പിന്തുണയും
For specific warranty details and customer support, please refer to the documentation included with your product or visit the official Camco website. Camco is committed to providing quality products and support.
