Bravilor Bonamat Novo Coffee Machine

1. ആമുഖം

Welcome to the Bravilor Bonamat Novo Coffee Machine instruction manual. This document provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new coffee machine. Please read this manual thoroughly before initial use and keep it for future reference.

The Bravilor Bonamat Novo is a quick filter machine designed for locations without a direct water connection, capable of producing approximately 144 cups (18 litres) of coffee per hour. It is supplied with two glass decanters, each with a capacity of 1.5 litres.

2. സുരക്ഷാ നിർദ്ദേശങ്ങൾ

ഉപകരണത്തിന് പരിക്കേൽക്കുകയോ കേടുപാടുകൾ സംഭവിക്കുകയോ ചെയ്യാതിരിക്കാൻ ഇനിപ്പറയുന്ന സുരക്ഷാ മുൻകരുതലുകൾ എപ്പോഴും പാലിക്കുക:

• ഇലക്ട്രിക്കൽ സുരക്ഷ: മെഷീൻ ശരിയായ വോള്യം ഉള്ള ഒരു ഗ്രൗണ്ടഡ് പവർ ഔട്ട്‌ലെറ്റിലേക്ക് ബന്ധിപ്പിച്ചിട്ടുണ്ടെന്ന് ഉറപ്പാക്കുക.tage (230V) and current (9.2 Amp). Do not use extension cords unless absolutely necessary and ensure they are rated for the machine's power requirements. Never immerse the machine, cord, or plug in water or other liquids.
• ചൂടുള്ള പ്രതലങ്ങൾ: The brewing plate, decanters, and other parts of the machine become very hot during and after operation. Always use handles and allow the machine to cool before cleaning or handling hot components.
• വെള്ളവും ദ്രാവകവും: Only use fresh, cold drinking water in the water reservoir. Do not overfill. Be careful when pouring hot coffee.
• കുട്ടികളുടെ സുരക്ഷ: Keep the appliance out of reach of children and individuals with reduced physical, sensory, or mental capabilities. Supervise children to ensure they do not play with the appliance.
• ശരിയായ ഉപയോഗം: Use the machine only for its intended purpose of brewing coffee. Do not operate the machine if it is damaged or malfunctioning. Refer all servicing to qualified personnel.

3. ഉൽപ്പന്നം കഴിഞ്ഞുview

Familiarize yourself with the main components of your Bravilor Bonamat Novo coffee machine:

ചിത്രം 3.1: ഫ്രണ്ട് view of the Bravilor Bonamat Novo coffee machine, showcasing its compact design with two glass decanters in place. The top decanter is positioned on the upper warming plate, while the bottom decanter rests on the main brewing plate.

ചിത്രം 3.2: A closer front view of the Bravilor Bonamat Novo, highlighting the single glass decanter on the brewing plate. This view emphasizes the filter holder and the main control panel area.

ചിത്രം 3.3: സൈഡ് പ്രോfile of the Bravilor Bonamat Novo, illustrating the machine's depth and the placement of both glass decanters. This angle provides a good perspective on the overall structure.

ചിത്രം 3.4: മറ്റൊരു വശം view of the Bravilor Bonamat Novo, focusing on the single glass decanter on the brewing plate. This image provides a clear view of the machine's side panel and power cord entry point.

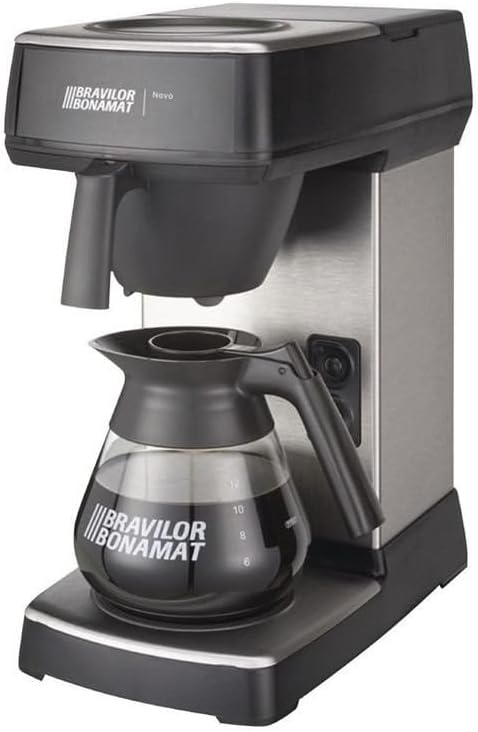

ചിത്രം 3.5: An angled side view of the Bravilor Bonamat Novo, showing the machine with one glass decanter. This perspective highlights the control button and the overall sleek design.

പ്രധാന ഘടകങ്ങൾ:

• ജലസംഭരണി: Located at the top, for filling with cold water.
• ഫിൽട്ടർ ഹോൾഡർ: Removable component where the filter paper and ground coffee are placed.
• Brewing Plate: The main heating element where the coffee is brewed into the decanter.
• Warming Plate (Upper): Keeps the second decanter of coffee warm.
• Glass Decanters: Two 1.5-litre capacity jugs for collecting and serving coffee.
• ഓൺ/ഓഫ് സ്വിച്ച്: Controls the power to the machine and initiates the brewing cycle.

4. സജ്ജീകരണം

1. അൺപാക്ക് ചെയ്യുന്നു: Carefully remove the coffee machine and all accessories from the packaging. Retain packaging for future transport or storage.
2. പ്ലേസ്മെൻ്റ്: Place the machine on a stable, flat, heat-resistant surface. Ensure there is adequate ventilation around the machine, especially at the back and sides. Avoid placing it near walls or heat-sensitive materials.
3. പ്രാരംഭ ക്ലീനിംഗ്: Before first use, clean the glass decanters and the filter holder with warm soapy water. Rinse thoroughly and dry. Wipe the exterior of the machine with a damp തുണി.
4. പവർ കണക്ഷൻ: Plug the machine into a suitable 230V, 9.2 Amp single-phase grounded power outlet.

5. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

Follow these steps to brew coffee with your Bravilor Bonamat Novo:

1. ഫിൽറ്റർ തയ്യാറാക്കുക: Place a new filter paper (e.g., 90/250mm) into the filter holder.
2. കോഫി ചേർക്കുക: Add the desired amount of ground coffee into the filter paper. A general guideline is 60 grams of coffee per litre of water, but adjust to taste.
3. Place Decanter: Ensure a clean glass decanter is placed correctly on the brewing plate beneath the filter holder. If brewing a second batch, place the second decanter on the upper warming plate.
4. ജലസംഭരണി നിറയ്ക്കുക: Open the lid of the water reservoir and carefully pour fresh, cold drinking water into it. The machine has a capacity of 1.5 litres per brewing cycle. Do not exceed the maximum fill line.
5. ബ്രൂവിംഗ് ആരംഭിക്കുക: Close the water reservoir lid. Press the On/Off switch to start the brewing process. The machine will begin heating the water and dispensing it over the coffee grounds.
6. ബ്രൂവിംഗ് സമയം: A full decanter of coffee will typically brew in approximately 5 minutes.
7. സേവിക്കുന്നത്: Once brewing is complete, the machine will automatically switch to a warming function to keep the coffee hot. Carefully remove the decanter by its handle to serve.

6. പരിപാലനവും ശുചീകരണവും

പതിവായി വൃത്തിയാക്കലും അറ്റകുറ്റപ്പണികളും നിങ്ങളുടെ കോഫി മെഷീനിന്റെ മികച്ച പ്രകടനവും ദീർഘായുസ്സും ഉറപ്പാക്കുന്നു.

പ്രതിദിന ശുചീകരണം:

• Glass Decanters and Filter Holder: After each use, empty any remaining coffee and grounds. Wash the decanters and filter holder with warm water and a mild detergent. Rinse thoroughly and allow to air dry.
• പുറം: Wipe the exterior surfaces of the machine with a soft, damp തുണി. ഉരച്ചിലുകളുള്ള ക്ലീനറുകളോ സ്‌കോറിംഗ് പാഡുകളോ ഉപയോഗിക്കരുത്.

നിരസിക്കൽ:

Depending on water hardness and frequency of use, descaling should be performed regularly (e.g., monthly or quarterly) to prevent limescale buildup, which can affect performance and taste.

1. Ensure the machine is cool and unplugged.
2. Prepare a descaling solution according to the descaler manufacturer's instructions (e.g., a mixture of white vinegar and water, or a commercial descaling agent).
3. ഡെസ്കലിംഗ് ലായനി വാട്ടർ റിസർവോയറിലേക്ക് ഒഴിക്കുക.
4. Place an empty decanter on the brewing plate.
5. Plug in the machine and turn it on to run a brewing cycle with the descaling solution.
6. സൈക്കിളിന് ശേഷം, ലായനി ഉപേക്ഷിക്കുക.
7. Rinse the machine by running at least two full cycles with fresh, clean water to remove any descaler residue.

7. പ്രശ്‌നപരിഹാരം

If you encounter issues with your Bravilor Bonamat Novo, refer to the following common problems and solutions:

If the problem persists after attempting these solutions, please contact Bravilor Bonamat customer support.

8 സ്പെസിഫിക്കേഷനുകൾ

Detailed technical specifications for the Bravilor Bonamat Novo Coffee Machine:

9. വാറൻ്റിയും പിന്തുണയും

Your Bravilor Bonamat Novo Coffee Machine comes with a manufacturer's warranty:

• വാറൻ്റി കാലയളവ്: 1 year labor, 2 years parts.
• കവറേജ്: This warranty covers defects in materials and workmanship under normal use. It does not cover damage resulting from misuse, neglect, accident, alteration, or unauthorized repair.

For warranty claims, technical support, or spare parts, please contact your authorized Bravilor Bonamat dealer or the manufacturer's customer service department. Please have your model number (F454) and purchase information ready when contacting support.
