മോറിസ് ഉൽപ്പന്നങ്ങൾ 97434 ക്ലിയർ ഇൻസുലേറ്റഡ് മൾട്ടി-കേബിൾ കണക്റ്റർ ഇൻസ്ട്രക്ഷൻ മാനുവൽ

1. ആമുഖം

This instruction manual provides essential information for the proper installation, operation, and maintenance of the Morris Products 97434 Clear Insulated Multi-Cable Connector. Please read this manual thoroughly before installation to ensure safe and efficient use. This connector is designed for joining multiple electrical conductors within a specified wire range.

2 സുരക്ഷാ വിവരങ്ങൾ

മുന്നറിയിപ്പ്: Electrical work should only be performed by qualified personnel. Failure to follow these instructions can result in electrical shock, fire, or serious injury.

• Always disconnect power at the source before installing or servicing electrical connectors.
• വോളിയം എന്ന് പരിശോധിക്കുകtage and current ratings of the circuit are compatible with the connector's specifications.
• ഷോർട്ട് സർക്യൂട്ടുകളും വൈദ്യുത അപകടങ്ങളും തടയുന്നതിന് എല്ലാ കണക്ഷനുകളും സുരക്ഷിതമാണെന്നും ശരിയായി ഇൻസുലേറ്റ് ചെയ്തിട്ടുണ്ടെന്നും ഉറപ്പാക്കുക.
• ഇൻസുലേറ്റഡ് കയ്യുറകൾ, സുരക്ഷാ ഗ്ലാസുകൾ എന്നിവയുൾപ്പെടെ ഉചിതമായ വ്യക്തിഗത സംരക്ഷണ ഉപകരണങ്ങൾ (പിപിഇ) ധരിക്കുക.
• Do not use this connector in environments exceeding its specified temperature range or in hazardous locations unless explicitly rated for such use.

3. ഉൽപ്പന്ന സവിശേഷതകൾ

• Clear Insulation: Allows for visual confirmation of proper conductor insertion, ensuring reliable connections.
• Dual Entry Design: Wires can be inserted from either side of the connector, offering installation flexibility.
• Multi-Port Design: Features 3 ports for connecting multiple conductors.
• Wide Wire Range: Accommodates 500-4 AWG wire sizes.
• Dual Rated: Suitable for use with both copper and/or aluminum conductors (CU9AL).
• Pre-filled with Oxide Inhibitor: Reduces oxidation and improves connection integrity, especially with aluminum wires.
• നീണ്ടുനിൽക്കുന്ന നിർമ്മാണം: Made from 6061-T6 aluminum with rugged high-dielectric Plastisol dipped PVC insulation, resistant to chemicals and abrasion.
• താപനില പരിധി: Operates effectively from -49°F to 194°F (-45°C to 90°C).
• സർട്ടിഫിക്കേഷനുകൾ: ANSI C119.4 & cULus 486b Listed. Rated for 600 Volt applications.

4. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും

Follow these steps for proper installation of the multi-cable connector:

1. വൈദ്യുതി വിച്ഛേദിക്കൽ: Ensure all power to the circuit is completely disconnected and locked out before beginning installation. Verify with a voltagഇ ടെസ്റ്റർ.
2. വയർ തയ്യാറാക്കൽ: Strip the insulation from the conductor ends to the appropriate length, ensuring that the bare wire will fully enter the connector port without excess insulation inside or bare wire exposed outside. Refer to local electrical codes for specific stripping length requirements.
3. Conductor Insertion: Insert one prepared conductor into each port of the connector. The clear insulation allows for visual confirmation that the conductor is fully seated and making proper contact with the internal metal barrel.

ചിത്രം 1: ഓവർview of the Morris Products 97434 Multi-Cable Connector.

4. ദൃഢമാക്കുന്ന കണക്ഷനുകൾ: Use an appropriate hex wrench to tighten the set screws for each conductor. Tighten until the wire is securely held and the connection is firm. Do not overtighten.

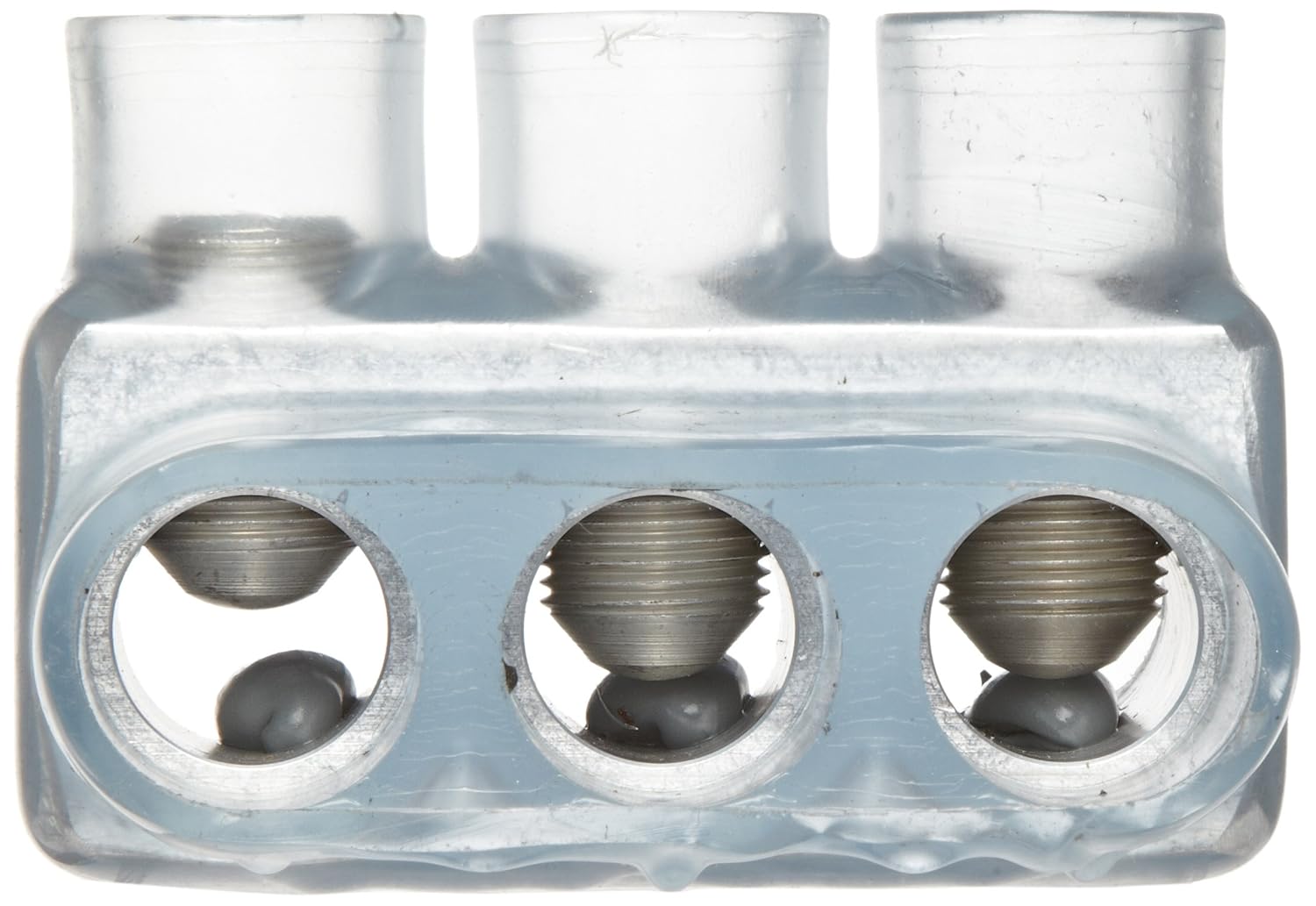

Figure 2: Close-up of connector ports with set screws and oxide inhibitor.

5. വിഷ്വൽ പരിശോധന: After tightening, visually inspect each connection through the clear insulation to confirm that the conductor is properly seated and the connection appears secure.
6. Re-entry Plugs: The connector features removable plugs marked with wire size, providing easy access for installation, inspection, or troubleshooting. Ensure these plugs are securely in place after installation.
7. വൈദ്യുതി പുനഃസ്ഥാപിക്കൽ: Once all connections are verified as correct and secure, restore power to the circuit.

5. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

Once installed, the Morris Products 97434 connector operates passively to maintain electrical continuity. No user interaction is required during normal operation. The clear insulation allows for ongoing visual inspection of the connections without disassembly.

6. പരിപാലനം

Periodic inspection of the connector is recommended to ensure continued integrity of the electrical connections. Check for:

• Any signs of physical damage to the insulation.
• Discoloration or signs of overheating.
• Loose connections (visually inspect through clear insulation).

If any issues are observed, disconnect power immediately and address the problem by re-terminating the connection or replacing the connector if damaged.

7. പ്രശ്‌നപരിഹാരം

Most issues related to electrical connectors stem from improper installation. If a circuit connected with the 97434 connector is not functioning correctly:

• പവർ ഇല്ല/ഇടവിട്ട പവർ: Disconnect power and visually inspect the connections through the clear insulation. Ensure wires are fully inserted and set screws are tight. Re-strip and re-terminate if necessary.
• അമിത ചൂടാക്കൽ: Disconnect power immediately. Overheating can indicate a loose connection, an undersized wire, or an overloaded circuit. Verify wire gauge, circuit load, and re-terminate connections. Replace the connector if it shows signs of heat damage.

8 സ്പെസിഫിക്കേഷനുകൾ

9. വാറൻ്റിയും പിന്തുണയും

For warranty information or technical support regarding the Morris Products 97434 Clear Insulated Multi-Cable Connector, please contact Morris Products directly through their official website or customer service channels. Keep your purchase receipt for any warranty claims.
