ആമുഖം
This service manual provides detailed instructions and information for the maintenance, repair, and overhaul of Case 430CK and 530CK series tractors. It is designed for technicians and experienced operators to ensure proper servicing and longevity of the machinery. Adherence to the procedures outlined herein is crucial for safe and efficient operation.
സുരക്ഷാ വിവരങ്ങൾ
Always prioritize safety when working with heavy machinery. Read and understand all safety decals on the tractor and in this manual before performing any service or operation. Failure to follow safety precautions can result in serious injury or death.
- എല്ലായ്പ്പോഴും ഉചിതമായ വ്യക്തിഗത സംരക്ഷണ ഉപകരണങ്ങൾ (പിപിഇ) ധരിക്കുക, including safety glasses, gloves, and sturdy footwear.
- ബാറ്ററി വിച്ഛേദിക്കുക before working on electrical systems.
- Relieve hydraulic pressure before disconnecting hydraulic lines.
- Support the tractor securely with jack stands before working underneath it.
- Ensure the engine is off and cooled down അറ്റകുറ്റപ്പണി നടത്തുന്നതിന് മുമ്പ്.
- Keep hands, feet, and clothing clear of moving parts.
- ശരിയായ ഉപകരണങ്ങൾ ഉപയോഗിക്കുക for each task.
പ്രീ-ഓപ്പറേഷൻ പരിശോധനകൾ
Before each operation, perform the following checks to ensure the tractor is in safe working condition:
- ദ്രാവക നിലകൾ: Check engine oil, hydraulic fluid, coolant, and fuel levels. Replenish as needed.
- ടയറുകൾ: Inspect tires for proper inflation and any signs of damage.
- ലൈറ്റുകളും സിഗ്നലുകളും: Verify all lights, turn signals, and warning lights are functional.
- ബ്രേക്കുകൾ: Test brake pedal operation and parking brake engagement.
- സ്റ്റിയറിംഗ്: Check for excessive play in the steering wheel.
- സുരക്ഷാ ഉപകരണങ്ങൾ: Ensure all safety guards and shields are in place and secure.
- ചോർച്ച: Look for any visible leaks of oil, fuel, or coolant.
പ്രവർത്തന നിർദ്ദേശങ്ങൾ
Familiarize yourself with the tractor's controls before starting. Always operate the tractor from the operator's seat. Ensure the area around the tractor is clear of personnel and obstacles.
എഞ്ചിൻ ആരംഭിക്കുന്നു:
- ട്രാൻസ്മിഷൻ ന്യൂട്രലാണെന്നും പാർക്കിംഗ് ബ്രേക്ക് ഇട്ടിട്ടുണ്ടെന്നും ഉറപ്പാക്കുക.
- Turn the ignition key to the "ON" position and wait for indicator lights to cycle.
- Turn the key to "START" and release once the engine fires. Do not crank for more than 15 seconds.
- Allow the engine to warm up before engaging implements or driving.
Driving the Tractor:
- Depress the clutch pedal fully.
- ആവശ്യമുള്ള ഗിയർ തിരഞ്ഞെടുക്കുക.
- പാർക്കിംഗ് ബ്രേക്ക് വിടുക.
- Slowly release the clutch while gradually applying throttle.
- എല്ലായ്പ്പോഴും സുരക്ഷിതമായ വേഗത നിലനിർത്തുകയും നിങ്ങളുടെ ചുറ്റുപാടുകളെക്കുറിച്ച് ബോധവാനായിരിക്കുകയും ചെയ്യുക.
മെയിൻ്റനൻസ്
Regular maintenance is essential for the performance and longevity of your Case 430CK or 530CK tractor. This section outlines general maintenance procedures. For detailed instructions, refer to the specific sections within the full service manual.
Service Manual Overview:
The comprehensive service manual covers various systems, including General Specifications, Electrical Systems, Engines, Fuel Systems, and Hydraulics. Each section provides detailed diagrams and step-by-step procedures for inspection, adjustment, repair, and overhaul.

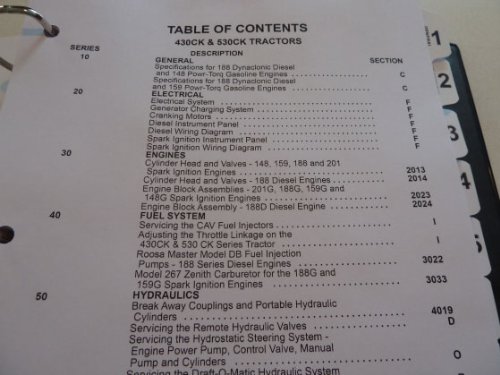

Image: A page from the service manual showing the Table of Contents, listing sections such as General, Electrical, Engines, Fuel System, and Hydraulics. This provides an overview of the manual's comprehensive coverage.
ഹൈഡ്രോളിക് സിസ്റ്റം പരിപാലനം:
The hydraulic system is critical for many tractor functions. Regular inspection of hydraulic cylinders, lines, and fluid is necessary. The service manual includes detailed exploded views and flow charts to assist in diagnosis and repair.

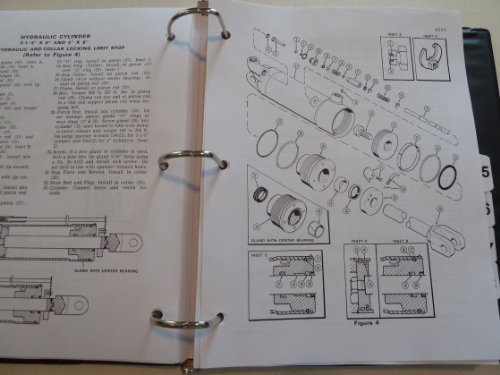

Image: An exploded diagram illustrating the components of a hydraulic cylinder, including seals, pistons, and housing. This diagram is essential for correct assembly and disassembly during maintenance.
Image: A color-coded oil flow chart depicting the hydraulic system in a neutral state. This diagram helps in understanding the fluid path and diagnosing hydraulic issues.
Transmission Service:
The transmission system, including the eight-speed dual range, requires periodic inspection and fluid changes. Detailed diagrams assist in understanding the internal workings and proper reassembly.

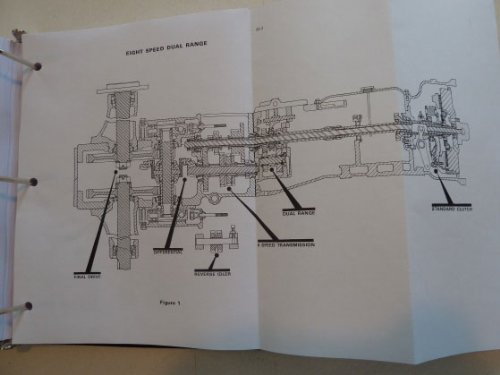

Image: A detailed cross-sectional diagram of an eight-speed dual range transmission, highlighting key components such as gears, shafts, and clutches. This visual aid is crucial for transmission repair and overhaul.
ട്രബിൾഷൂട്ടിംഗ്
This section provides general guidance for common issues. For specific diagnostic procedures and repair steps, consult the relevant sections of the full service manual.
| പ്രശ്നം | സാധ്യമായ കാരണം | പരിഹാരം |
|---|---|---|
| എഞ്ചിൻ ആരംഭിക്കുന്നതിൽ പരാജയപ്പെടുന്നു | Low fuel, dead battery, faulty starter, clogged fuel filter. | Check fuel level, charge/replace battery, inspect starter, replace fuel filter. |
| ഹൈഡ്രോളിക് പവർ നഷ്ടപ്പെടുന്നു | Low hydraulic fluid, clogged filter, faulty pump, air in system. | Check fluid level, replace filter, inspect pump, bleed system. |
| എഞ്ചിൻ അമിതമായി ചൂടാകുന്നു | Low coolant, clogged radiator, faulty thermostat, worn fan belt. | Check coolant, clean radiator, replace thermostat, adjust/replace belt. |
സ്പെസിഫിക്കേഷനുകൾ
The Case 430CK and 530CK tractors are robust machines designed for various agricultural and industrial tasks. Specific technical data, including engine displacement, horsepower, weight, and dimensions, are detailed within the service manual. Always refer to the manual for precise specifications relevant to your specific tractor model and serial number.
- എഞ്ചിൻ തരങ്ങൾ: Diesel and Gasoline options (e.g., 188 Dynaclonic Diesel, 148 Power-Torq Gasoline).
- പകർച്ച: Various options, including eight-speed dual range.
- ഹൈഡ്രോളിക് സിസ്റ്റം: Open-center system with specific pressure and flow rates.
- വൈദ്യുത സംവിധാനം: 12-volt system with generator/alternator charging.
വാറൻ്റിയും പിന്തുണയും
For information regarding the warranty of your Case 430CK or 530CK tractor, please consult your original purchase documentation or contact an authorized Case dealer. For technical support or to order genuine replacement parts, refer to the contact information provided by your local Case distributor or the manufacturer's official webസൈറ്റ്.
