BIKE HAND Fork Star Nut Setting Installer Tool

ആമുഖം

This manual provides detailed instructions for the proper use and maintenance of your BIKE HAND Fork Star Nut Setting Installer Tool. This tool is designed to accurately install star-fangled nuts into 1-1/8 inch threadless bicycle fork steerer tubes, ensuring a secure and correctly positioned headset assembly.

The star nut must be tapped into the fork steerer at the correct depth. Incorrect positioning, either too low or too high, can prevent the headset bolt from reaching or compromise the star nut's grip on the steerer wall. This tool facilitates precise installation.

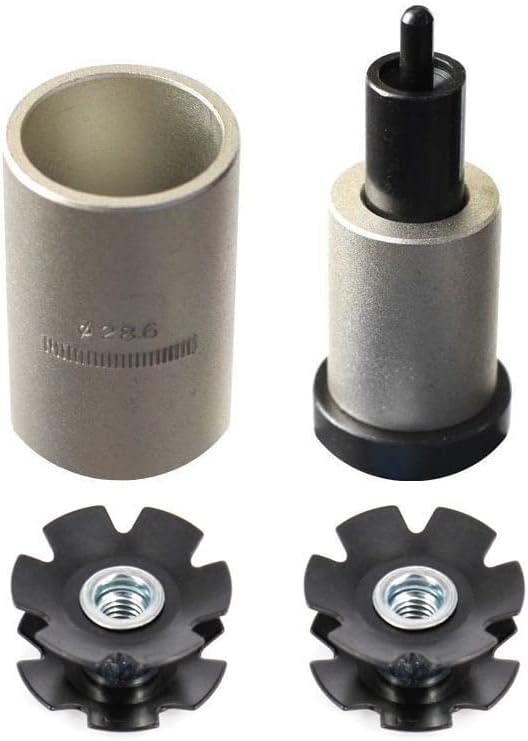

Image: The BIKE HAND Fork Star Nut Setting Installer Tool shown alongside two included star nuts. The tool consists of a main body and an internal setter component.

അനുയോജ്യത

The BIKE HAND YC-113A Threadless Nut Setter is specifically designed for use with 1-1/8 inch threadless headset systems. It is not compatible with 1-inch steerer tubes or other sizes.

Image: The BIKE HAND YC-113A tool, clearly labeled with its model number and indicating compatibility exclusively with 1-1/8 inch threadless fork steerer tubes.

ഉൾപ്പെടുത്തിയ ഘടകങ്ങൾ

• 1 x BIKE HAND Fork Star Nut Setting Installer Tool (Model YC-113A)
• 2 x 1-1/8 inch Star Nuts

Image: Two 1-1/8 inch fork steerer star nuts, which are included with the installer tool. These nuts are not compatible with 1-inch steerer tubes.

സജ്ജമാക്കുക

1. Prepare the Fork Steerer: Ensure the fork steerer tube is clean and free of debris. The steerer tube must be cut to the correct length for your bicycle's headset and stem setup.
2. Select a Star Nut: Use one of the provided 1-1/8 inch star nuts.
3. Assemble the Tool: Place the star nut onto the lower end of the installer tool's internal setter component. The star nut should sit securely on the setter, ready to be guided into the steerer tube.

Image: The star nut installer tool separated into its two main parts: the outer guide tube and the inner setter rod. This illustrates how the star nut is placed onto the setter before assembly.

പ്രവർത്തന നിർദ്ദേശങ്ങൾ

Follow these steps to correctly install a star nut into your bicycle's fork steerer tube:

1. ഉപകരണം ചേർക്കുക: Carefully insert the assembled tool, with the star nut attached, into the top of the fork steerer tube. The outer guide tube of the tool will rest on the top edge of the steerer tube.
2. Position for Setting: Ensure the tool is held straight and perpendicular to the steerer tube. The tool is designed to set the star nut at the optimal depth, typically 10-15mm below the top edge of the steerer tube, allowing sufficient space for the stem and top cap.
3. Tap the Star Nut: Using a rubber mallet or a hammer (with caution), gently but firmly tap the top of the installer tool. The internal setter will drive the star nut down into the steerer tube. Continue tapping until the tool's outer guide tube makes full contact with the top of the steerer tube, indicating the star nut has reached the correct depth.
4. ഉപകരണം നീക്കം ചെയ്യുക: Once the star nut is fully seated, carefully remove the installer tool from the steerer tube.
5. ഇൻസ്റ്റാളേഷൻ പരിശോധിക്കുക: Visually inspect the installed star nut to ensure it is straight and at the correct depth. The headset bolt should now be able to engage the star nut's threads properly.

Image: The BIKE HAND star nut installer tool being inserted into a bicycle fork steerer tube, demonstrating the initial positioning before tapping.

Image: A hammer is used to tap the top of the star nut installer tool, driving the star nut into the fork steerer tube. This action seats the star nut at the correct depth.

മെയിൻ്റനൻസ്

• വൃത്തിയാക്കൽ: After each use, wipe the tool clean with a dry cloth to remove any dirt or grease.
• സംഭരണം: Store the tool in a dry place to prevent rust.
• ലൂബ്രിക്കേഷൻ: No specific lubrication is required for this tool.
• ഈട്: The tool is constructed from heat-treated high-quality alloy steel for long-lasting performance.

ട്രബിൾഷൂട്ടിംഗ്

• Star Nut Not Seating Properly:
  • Ensure the fork steerer tube is clean and free of obstructions.
  • Verify that you are using a 1-1/8 inch star nut and the correct tool for a 1-1/8 inch steerer tube.
  • Apply firm, even taps with a hammer. Avoid excessive force that could damage the steerer tube.
• Star Nut Installed Crooked:
  • Ensure the installer tool is held perfectly straight and perpendicular to the steerer tube during the entire installation process.
  • If a star nut is installed crooked, it may need to be removed and replaced. Specialized tools are available for star nut removal.
• Headset Bolt Not Reaching Star Nut:
  • This indicates the star nut is installed too deep. The tool is designed to prevent this, but verify the tool was fully seated against the steerer tube during installation.
  • If the star nut is too deep, it will need to be removed and a new one installed at the correct depth.
• Star Nut Loose After Installation:
  • Ensure the star nut is fully expanded and gripping the inside of the steerer tube. This tool is designed to set it correctly.
  • Verify the steerer tube's internal diameter is consistent and within tolerance for a 1-1/8 inch star nut.

സ്പെസിഫിക്കേഷനുകൾ

വാറൻ്റി വിവരങ്ങൾ

BIKE HAND provides a lifetime warranty for this product, reflecting confidence in its quality and durability. For warranty claims or further details, please refer to the official BIKE HAND webസൈറ്റ് അല്ലെങ്കിൽ നിങ്ങളുടെ റീട്ടെയിലറെ ബന്ധപ്പെടുക.

പിന്തുണ

For additional assistance, technical questions, or to provide feedback, please visit the official BIKE HAND website or contact their customer support. You may also reach out to the retailer from whom you purchased this product.

Always ensure you are using the correct tools and following proper safety procedures when working on bicycles. If you are unsure about any step, consult a professional bicycle mechanic.
