J-040 സോൾഡറിംഗ് അയൺ യൂസർ മാനുവലിനുള്ള ECG JT-008 റീപ്ലേസ്‌മെന്റ് ടിപ്പ്

ആമുഖം

This manual provides detailed instructions for the proper installation, operation, and maintenance of the ECG JT-008 Replacement Soldering Iron Tip. This tip is specifically designed for use with the ECG J-040 Soldering Iron. Adhering to these guidelines will ensure optimal performance and extend the lifespan of your soldering tip.

ഉൽപ്പന്നം കഴിഞ്ഞുview

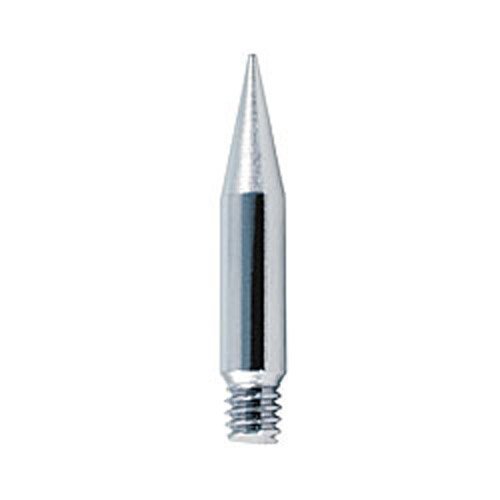

This image displays the ECG JT-008 replacement soldering iron tip. It features a sharp, conical point suitable for precision soldering tasks and a threaded base for secure attachment to compatible soldering irons.

The ECG JT-008 is a precision-engineered replacement tip, featuring a conical shape ideal for fine soldering work. Its robust construction ensures efficient heat transfer and durability when used with the specified ECG J-040 Soldering Iron.

സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും

1. സുരക്ഷ ഉറപ്പാക്കുക: Before beginning, ensure your ECG J-040 Soldering Iron is unplugged from the power source and has completely cooled down. Attempting to change a hot tip can result in severe burns.
2. Remove Old Tip: Carefully unscrew the old soldering tip from the heating element of the J-040 soldering iron. If the tip is stuck, apply gentle, steady pressure. Avoid excessive force that could damage the iron.
3. Inspect Heating Element: Briefly inspect the heating element for any debris or damage. Clean if necessary.
4. Install New Tip: Gently screw the new ECG JT-008 replacement tip onto the heating element. Tighten it securely by hand. Do not overtighten, as this can strip the threads or damage the heating element.
5. പ്രാരംഭ ടിന്നിംഗ്: After installation, plug in the soldering iron and allow it to reach operating temperature. Once hot, immediately apply a small amount of solder to the tip. This process, known as 'tinning,' coats the tip with solder, preventing oxidation and ensuring efficient heat transfer.

പ്രവർത്തന മാർഗ്ഗനിർദ്ദേശങ്ങൾ

While the JT-008 is a replacement tip, proper operating practices are crucial for its longevity and effective soldering:

• Maintain Tinning: Always keep the tip tinned with a thin layer of solder, especially when the iron is hot but not in use. This protects the tip from oxidation.
• Appropriate Temperature: Use the lowest effective temperature for your soldering tasks. Excessive heat can accelerate tip degradation.
• പതിവായി വൃത്തിയാക്കുക: Wipe the tip on a damp sponge or brass wool cleaner frequently during use to remove excess solder and flux residue.
• Avoid Scraping: Do not use the tip to scrape or pry components, as this can damage the tip's plating.

മെയിൻ്റനൻസ്

Regular maintenance is key to maximizing the performance and lifespan of your ECG JT-008 soldering tip:

• ടിപ്പ് ക്ലീനിംഗ്: പരസ്യം ഉപയോഗിക്കുകamp cellulose sponge or specialized brass wool tip cleaner to remove solder and flux residue. Avoid abrasive materials.
• റീ-ടിന്നിംഗ്: If the tip becomes oxidized (dark or black), clean it thoroughly and immediately re-tin it with fresh solder. Specialized tip tinner compounds can also be used for heavily oxidized tips.
• സംഭരണം: When not in use, ensure the soldering iron is turned off and cooled. Store the iron with a tinned tip to prevent oxidation during storage.
• പരിശോധന: Periodically inspect the tip for pitting, excessive wear, or damage to the plating. A severely worn or damaged tip should be replaced to ensure consistent soldering quality.

ട്രബിൾഷൂട്ടിംഗ്

നിങ്ങളുടെ സോളിഡിംഗ് ടിപ്പിൽ പ്രശ്നങ്ങൾ നേരിടുകയാണെങ്കിൽ, ഇനിപ്പറയുന്ന പൊതുവായ പ്രശ്നങ്ങളും പരിഹാരങ്ങളും പരിഗണിക്കുക:

• Problem: Solder does not adhere to the tip (tip appears black/dark).
  പരിഹാരം: The tip is oxidized. Clean the tip thoroughly with brass wool or a damp sponge, then immediately re-tin it with fresh solder. If heavily oxidized, use a tip tinner compound. Ensure the iron is not left hot and untinned for extended periods.
• Problem: Poor heat transfer to the solder joint.
  പരിഹാരം: Ensure the tip is clean and well-tinned. Check that the tip is securely screwed into the heating element. Verify the soldering iron is reaching its set temperature. A worn tip may also have reduced heat transfer capabilities and might require replacement.
• Problem: Tip wears out quickly.
  പരിഹാരം: This can be caused by using excessively high temperatures, abrasive cleaning methods, or leaving the tip untinned. Review operating and maintenance guidelines to ensure proper usage.

സ്പെസിഫിക്കേഷനുകൾ

വാറൻ്റി വിവരങ്ങൾ

Specific warranty details for the ECG JT-008 Replacement Tip are typically provided by the retailer at the time of purchase or by the manufacturer, NTE ELECTRONICS. Please retain your proof of purchase for any warranty claims. For detailed warranty terms and conditions, refer to the documentation included with your original purchase or contact NTE ELECTRONICS directly.

പിന്തുണ

For technical assistance, questions regarding the ECG JT-008 Replacement Tip, or inquiries about the ECG J-040 Soldering Iron, please contact the manufacturer, NTE ELECTRONICS, or your authorized dealer. Ensure you have the model number (JT-008) and any relevant purchase information available when seeking support.
