AcuRite 01098R Weather Station Instruction Manual

ആമുഖം

The AcuRite 01098R Weather Station provides accurate indoor and outdoor temperature and humidity readings, along with a 12 to 24-hour weather forecast. Featuring an Intelli-Time clock that automatically adjusts for Daylight Saving Time, this station offers essential environmental data for your home. The patented self-calibrating technology ensures the most accurate forecast for your specific location by utilizing data measured by the outdoor sensor.

പ്രധാന സവിശേഷതകൾ:

• Wireless all-weather outdoor sensor for precise environmental condition measurements.
• 12 to 24-hour weather forecast with icons for sunny, partly cloudy, cloudy, rain, snow, and rain/snow mix.
• Monitors indoor and outdoor temperature (Fahrenheit and Celsius) and humidity, including daily high and low records.
• Intelli-Time clock automatically adjusts for Daylight Saving Time.
• Display and outdoor sensor are completely wireless and designed for easy installation.

സജ്ജീകരണ ഗൈഡ്

Follow these steps to set up your AcuRite 01098R Weather Station for optimal performance.

1. ഘടകങ്ങൾ അൺപാക്ക് ചെയ്യുക

Carefully remove all components from the packaging. You should have the main display unit, the wireless outdoor sensor, and the power adapter.

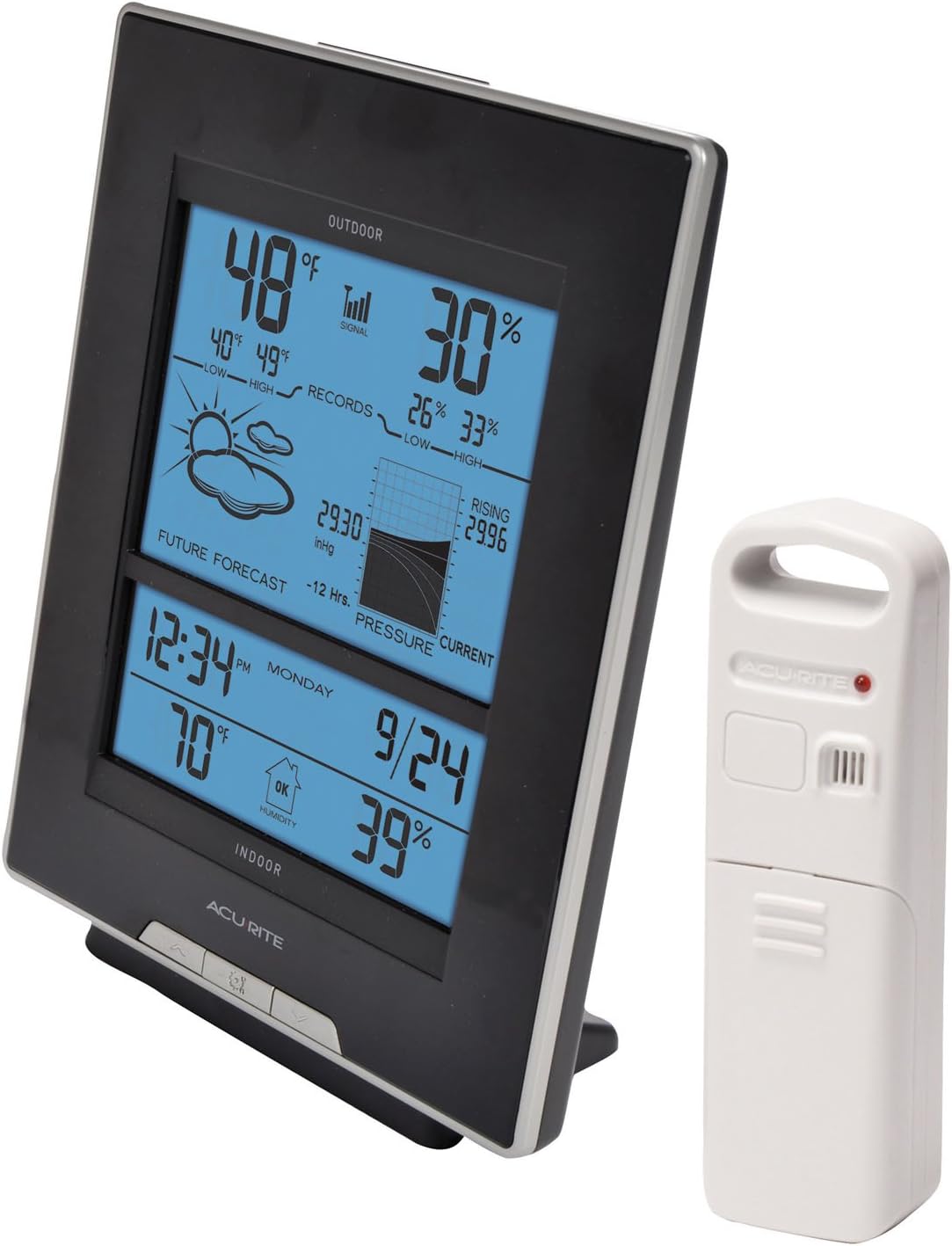

Image: AcuRite 01098R Weather Station display unit (left) and wireless outdoor sensor (right).

2. ബാറ്ററികൾ ഇൻസ്റ്റാൾ ചെയ്യുക

• ഔട്ട്‌ഡോർ സെൻസർ: Open the battery compartment on the wireless outdoor sensor. Insert 2 x AA alkaline or lithium batteries (not included). Ensure correct polarity (+/-). Close the battery compartment securely.
• ഡിസ്പ്ലേ യൂണിറ്റ്: Open the battery compartment on the back of the main display unit. Insert 3 x AA alkaline or lithium batteries (not included). These batteries provide backup power in case of an outage, preserving your settings. Ensure correct polarity (+/-). Close the battery compartment securely.

ചിത്രം: പിൻഭാഗം view of the AcuRite 01098R display unit, highlighting the battery compartment and control buttons.

3. Power the Display Unit

Plug the included power adapter into a standard electrical outlet and connect the other end to the power port on the back of the display unit. The display will illuminate and begin searching for the outdoor sensor signal.

4. Place the Outdoor Sensor

Choose a location for the outdoor sensor that is out of direct sunlight and direct weather elements (rain, snow). This ensures the most accurate temperature and humidity readings. The sensor features an integrated hanger for easy mounting on a nail or hook.

Image: The white wireless outdoor sensor is shown hanging from a tree branch, demonstrating ideal placement away from direct sunlight.

Allow a few minutes for the outdoor sensor and display unit to synchronize. Once connected, the outdoor temperature and humidity will appear on the display.

പ്രവർത്തന നിർദ്ദേശങ്ങൾ

The AcuRite 01098R Weather Station provides a wealth of information at a glance. Here's how to understand and interact with your display.

പ്രദർശനം കഴിഞ്ഞുview

The vibrant, color display is divided into several sections:

• പുറത്തെ അവസ്ഥകൾ: Displays current outdoor temperature and humidity, along with daily high/low records.
• കാലാവസ്ഥാ പ്രവചനം: Shows a 12 to 24-hour forecast using intuitive icons (sunny, cloudy, rain, snow, etc.). This forecast is generated using self-calibrating technology based on your sensor's data.
• ബാരോമെട്രിക് മർദ്ദം: Provides current barometric pressure readings and a 12-hour history chart.
• ഇൻഡോർ അവസ്ഥകൾ: Shows current indoor temperature and humidity, including daily high/low records and a humidity level icon (low, ideal, high).
• സമയവും തീയതിയും: Features the Intelli-Time clock, which automatically updates for Daylight Saving Time, and the current date.
• ചന്ദ്രന്റെ ഘട്ടം: ചന്ദ്രന്റെ നിലവിലെ ഘട്ടം പ്രദർശിപ്പിക്കുന്നു.

ക്രമീകരണങ്ങൾ ക്രമീകരിക്കുന്നു

Refer to the included instruction manual for detailed steps on adjusting specific settings such as time zone, units (Fahrenheit/Celsius), and display brightness. The display typically has buttons on the back or side for navigation and selection.

മെയിൻ്റനൻസ്

Proper maintenance ensures the longevity and accuracy of your AcuRite Weather Station.

• ബാറ്ററി മാറ്റിസ്ഥാപിക്കൽ: Replace batteries in both the display unit and the outdoor sensor annually, or when the low battery indicator appears on the display. Use high-quality alkaline or lithium batteries.
• വൃത്തിയാക്കൽ: Clean the display unit and outdoor sensor with a soft, damp cloth. Do not use abrasive cleaners or solvents that may damage the surfaces.
• സെൻസർ പ്ലേസ്മെന്റ്: Periodically check the outdoor sensor's placement to ensure it remains protected from direct sunlight and heavy precipitation, which can affect readings.

ട്രബിൾഷൂട്ടിംഗ്

If you encounter issues with your weather station, try these common troubleshooting steps:

• No Outdoor Sensor Signal:
  • Ensure both the display unit and outdoor sensor have fresh batteries.
  • Verify the outdoor sensor is within range (typically 100 feet or 30 meters) of the display unit.
  • Relocate the outdoor sensor or display unit to minimize interference from large metal surfaces, thick walls, or electronic devices.
  • Perform a hard reset by removing batteries from both units, waiting a few minutes, and then reinserting batteries into the outdoor sensor first, followed by the display unit.
• കൃത്യമല്ലാത്ത വായനകൾ:
  • ഔട്ട്ഡോർ സെൻസർ നേരിട്ട് സൂര്യപ്രകാശത്തിലോ താപ സ്രോതസ്സുകൾക്കടുത്തോ അല്ല (ഉദാ: എക്‌സ്‌ഹോസ്റ്റ് വെന്റുകൾ, ജനാലകൾ) എന്ന് ഉറപ്പാക്കുക.
  • Allow 14 days for the self-calibrating forecasting to learn your local weather patterns for optimal accuracy.
• Intelli-Time Clock Issues:
  • Ensure the display unit has battery backup installed to maintain time during power outages.
  • Manually set the time zone if necessary.

സ്പെസിഫിക്കേഷനുകൾ

വാറൻ്റിയും പിന്തുണയും

The AcuRite 01098R Weather Station comes with a One-Year Limited Warranty. For product support, troubleshooting, or warranty claims, please contact AcuRite Customer Support.

ഓൺലൈൻ പിന്തുണ: സന്ദർശിക്കുക www.AcuRite.com/support

ഇമെയിൽ പിന്തുണ: support@chaney-inst.com
