ആമുഖം
This manual provides essential information for the proper installation, operation, and maintenance of your Metra Installbay E-DLA Economy Door Lock Actuator. This device is designed to convert an electrical signal into mechanical movement, enabling remote locking and unlocking of vehicle doors. Please read these instructions carefully before proceeding with installation or use.

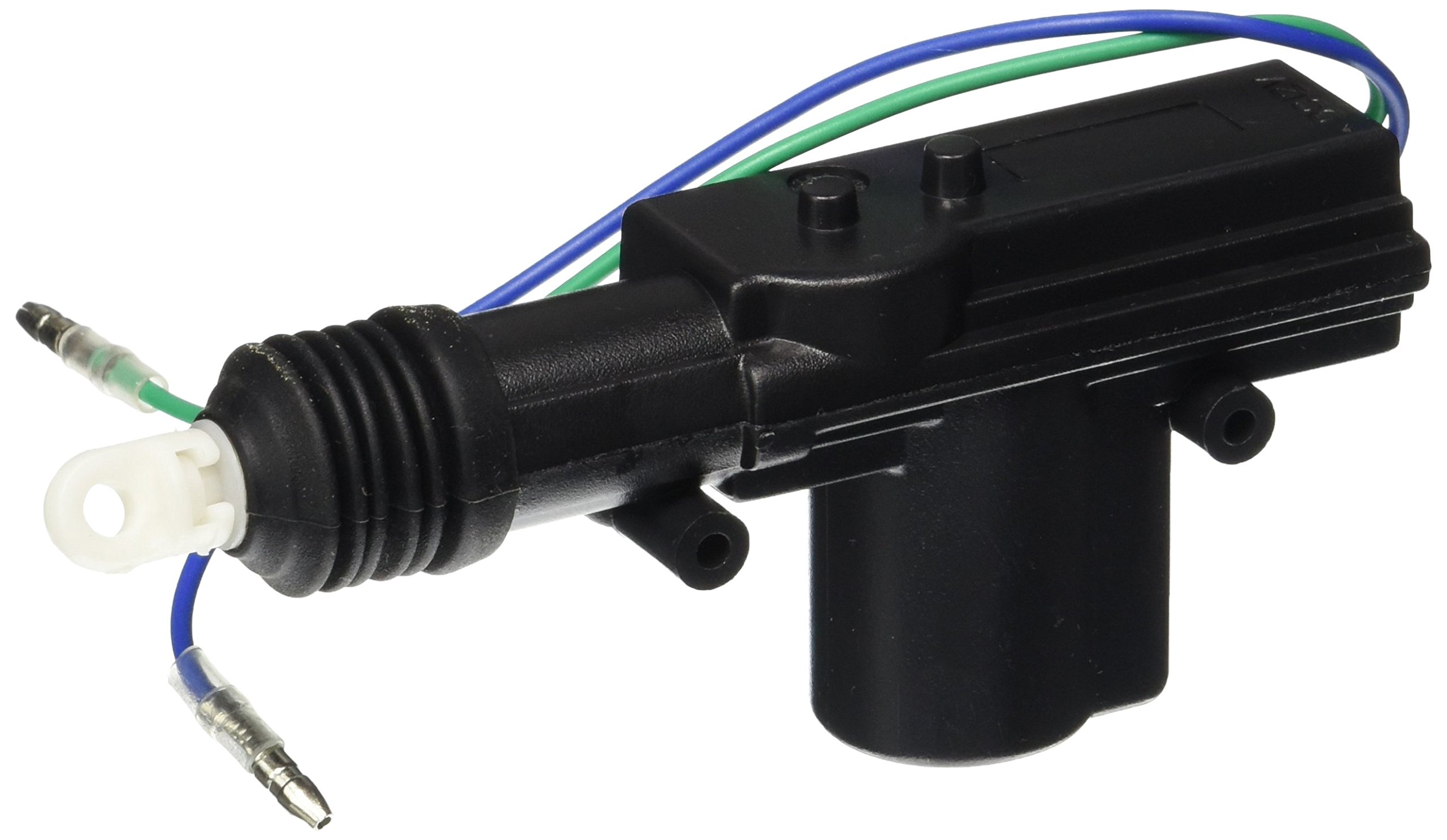

Figure 1: Metra Installbay E-DLA Economy Door Lock Actuator. This image displays the compact, rectangular black unit, which is the core component for converting electrical signals into mechanical door locking/unlocking actions.
സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും
Proper installation is crucial for the reliable operation of the door lock actuator. It is highly recommended that installation be performed by a qualified automotive technician.
- തയ്യാറാക്കൽ: Ensure the vehicle's battery is disconnected before beginning any electrical work. Gather all necessary tools, including wire strippers, crimpers, electrical tape, and mounting hardware.
- മൗണ്ടിംഗ് സ്ഥലം തിരിച്ചറിയുക: Determine a suitable location within the vehicle door panel that allows for free movement of the actuator rod and does not interfere with window mechanisms or other door components.
- Mount the Actuator: Securely mount the E-DLA actuator using appropriate screws or brackets. Ensure it is firmly attached to prevent vibration and ensure consistent operation.
- Connect to Door Lock Mechanism: Attach the actuator rod to the vehicle's existing door lock linkage. Adjust the rod length and position to ensure smooth and full travel for both lock and unlock positions.
- വയറിംഗ്: Connect the actuator's wires to the vehicle's central locking system or alarm system output as per the wiring diagram provided with your specific vehicle or alarm system. Ensure all connections are secure and properly insulated to prevent short circuits.
- പരിശോധന: Reconnect the vehicle battery. Test the actuator's function by activating the lock/unlock command. Verify that the door locks and unlocks completely and smoothly.
- വീണ്ടും കൂട്ടിച്ചേർക്കുക: Once tested and confirmed operational, carefully reassemble the door panel.
പ്രവർത്തന നിർദ്ദേശങ്ങൾ
The Metra Installbay E-DLA Economy Door Lock Actuator operates in conjunction with your vehicle's existing central locking system or an aftermarket alarm/keyless entry system. When an electrical signal is sent to the actuator, it mechanically moves the door lock linkage to either the locked or unlocked position.
- ലോക്കിംഗ്: Activating the lock function (e.g., via remote, key, or interior switch) sends a signal to the actuator, causing it to move the door lock mechanism to the locked state.
- അൺലോക്ക് ചെയ്യുന്നു: Activating the unlock function sends a signal to the actuator, causing it to move the door lock mechanism to the unlocked state.
Ensure that the door is properly closed before attempting to lock or unlock to prevent damage to the mechanism.
മെയിൻ്റനൻസ്
The Metra Installbay E-DLA Economy Door Lock Actuator is designed for long-term, maintenance-free operation. However, periodic checks can help ensure its longevity and performance.
- വിഷ്വൽ പരിശോധന: Periodically inspect the actuator and its connections for any signs of wear, corrosion, or loose wiring.
- ശുചിത്വം: Keep the area around the actuator free from excessive dust or debris, which could impede its movement.
- ലൂബ്രിക്കേഷൻ: The internal components are pre-lubricated. Avoid applying external lubricants unless specifically recommended by a professional, as this could attract dirt.
ട്രബിൾഷൂട്ടിംഗ്
If you experience issues with your door lock actuator, consider the following troubleshooting steps:
- ആക്യുവേറ്റർ പ്രതികരിക്കുന്നില്ല:
- എല്ലാ വൈദ്യുത കണക്ഷനുകളും അയഞ്ഞതാണോ അതോ നാശത്താണോ എന്ന് പരിശോധിക്കുക.
- Verify that the power supply to the actuator is correct and consistent.
- Ensure the central locking or alarm system is functioning correctly and sending the appropriate signals.
- Actuator Moves Partially or Stiffly:
- Inspect the mechanical linkage between the actuator and the door lock mechanism for obstructions or misalignment.
- Ensure the actuator is securely mounted and not binding against any part of the door.
- Check for any physical damage to the actuator itself.
- പ്രവർത്തന സമയത്ത് ശബ്ദം:
- A slight operational hum is normal. Excessive or grinding noises may indicate a mechanical obstruction or a faulty unit.
- Re-check mounting and linkage for proper alignment.
If these steps do not resolve the issue, it is recommended to consult a professional automotive technician.
സ്പെസിഫിക്കേഷനുകൾ
| മോഡലിൻ്റെ പേര് | Installbay - Economy Door Lock Actuator - Each (E-DLA) |
| ബ്രാൻഡ് | മെട്രോ |
| ഭാഗം നമ്പർ | E-DLA |
| ഇനം തരം | ഡോർ ലോക്ക് ആക്റ്റുവേറ്റർ |
| ഉൽപ്പന്ന തരം | പൂട്ടുക |
| മെറ്റീരിയൽ | ലോഹം |
| നിറം | കറുപ്പ് |
| ഇനത്തിൻ്റെ ആകൃതി | ദീർഘചതുരം |
| ലോക്ക് തരം | മാനുവൽ |
| കൺട്രോളർ തരം | Hand Control (refers to the input signal type, e.g., from a switch or remote) |
| പ്രത്യേക ഫീച്ചർ | അലാറം പ്രവർത്തനക്ഷമമാക്കി |
| ഉൽപ്പന്ന അളവുകൾ (L x W x H) | 8 x 4 x 2 inches (approximate, may refer to package or overall unit) |
| ഇനത്തിൻ്റെ ഭാരം | 0.353 ഔൺസ് |
| കഷണങ്ങളുടെ എണ്ണം | 1 |
| ബാറ്ററികൾ ആവശ്യമുണ്ടോ? | ഇല്ല |
| യു.പി.സി | 086429216789 |
വാറൻ്റി വിവരങ്ങൾ
This product is covered by a manufacturer's warranty. For specific details regarding warranty duration, coverage, and claims procedures, please refer to the documentation included with your purchase or contact Metra customer support directly. Keep your proof of purchase for warranty validation.
ഉപഭോക്തൃ പിന്തുണ
For technical assistance, installation questions, or warranty inquiries, please contact your authorized Metra dealer or visit the official Metra webപിന്തുണാ ഉറവിടങ്ങൾക്കായുള്ള സൈറ്റ്.
- മെട്രോ Webസൈറ്റ്: www.metraonline.com (ദയവായി ശ്രദ്ധിക്കുക: ഇത് ഒരു പൊതു മുൻample; verify the current official website for Metra.)
- പ്രൊഫഷണൽ ഇൻസ്റ്റാളേഷൻ: For complex installations or troubleshooting, it is always recommended to seek assistance from a certified automotive electronics installer.
