ലോജിടെക് MK270 വയർലെസ് കീബോർഡും മൗസ് കോംബോ യൂസർ മാനുവലും

ആമുഖം

This manual provides comprehensive instructions for setting up, operating, maintaining, and troubleshooting your Logitech MK270 Wireless Keyboard and Mouse Combo. Please read this manual carefully before using the product to ensure optimal performance and longevity.

The Logitech MK270 Wireless Keyboard and Mouse Combo, featuring a full-size keyboard and a compact mouse, designed for reliable wireless connectivity.

ബോക്സിൽ എന്താണുള്ളത്

Upon unboxing your Logitech MK270 combo, verify that all components are present:

• വയർലെസ് കീബോർഡ്
• വയർലെസ് മൗസ്
• നാനോ യുഎസ്ബി റിസീവർ
• Two AAA Batteries (for keyboard)
• One AA Battery (for mouse)
• ഉപയോക്തൃ ഡോക്യുമെൻ്റേഷൻ

An illustration showing the keyboard, mouse, USB receiver, and batteries as included in the product packaging.

സജ്ജമാക്കുക

1. ബാറ്ററികൾ ചേർക്കുക:

   Open the battery compartments on the underside of both the keyboard and the mouse. Insert the provided AAA batteries into the keyboard and the AA battery into the mouse, ensuring correct polarity. Close the battery compartments securely.
2. USB റിസീവർ കണ്ടെത്തുക:

   The Nano USB receiver is typically found within the packaging or stored inside the mouse's battery compartment for convenience during transport.



   The Nano USB receiver is securely placed in the top flap of the product box for easy retrieval.

3. റിസീവറെ ബന്ധിപ്പിക്കുക:

   Plug the Nano USB receiver into an available USB port on your computer. The system should automatically detect and install the necessary drivers. This is a plug-and-play device, requiring no additional software installation for basic functionality.
4. പവർ ഓൺ:

   Ensure the power switches on both the keyboard and mouse are in the "ON" position. The devices should connect wirelessly to your computer within a few seconds.

5. സിസ്റ്റം അനുയോജ്യത:

   The Logitech MK270 combo is compatible with various Windows operating systems, including Windows XP, Windows Vista, Windows 7, Windows 8, and Windows 10. It is also fully compatible with Windows 11.

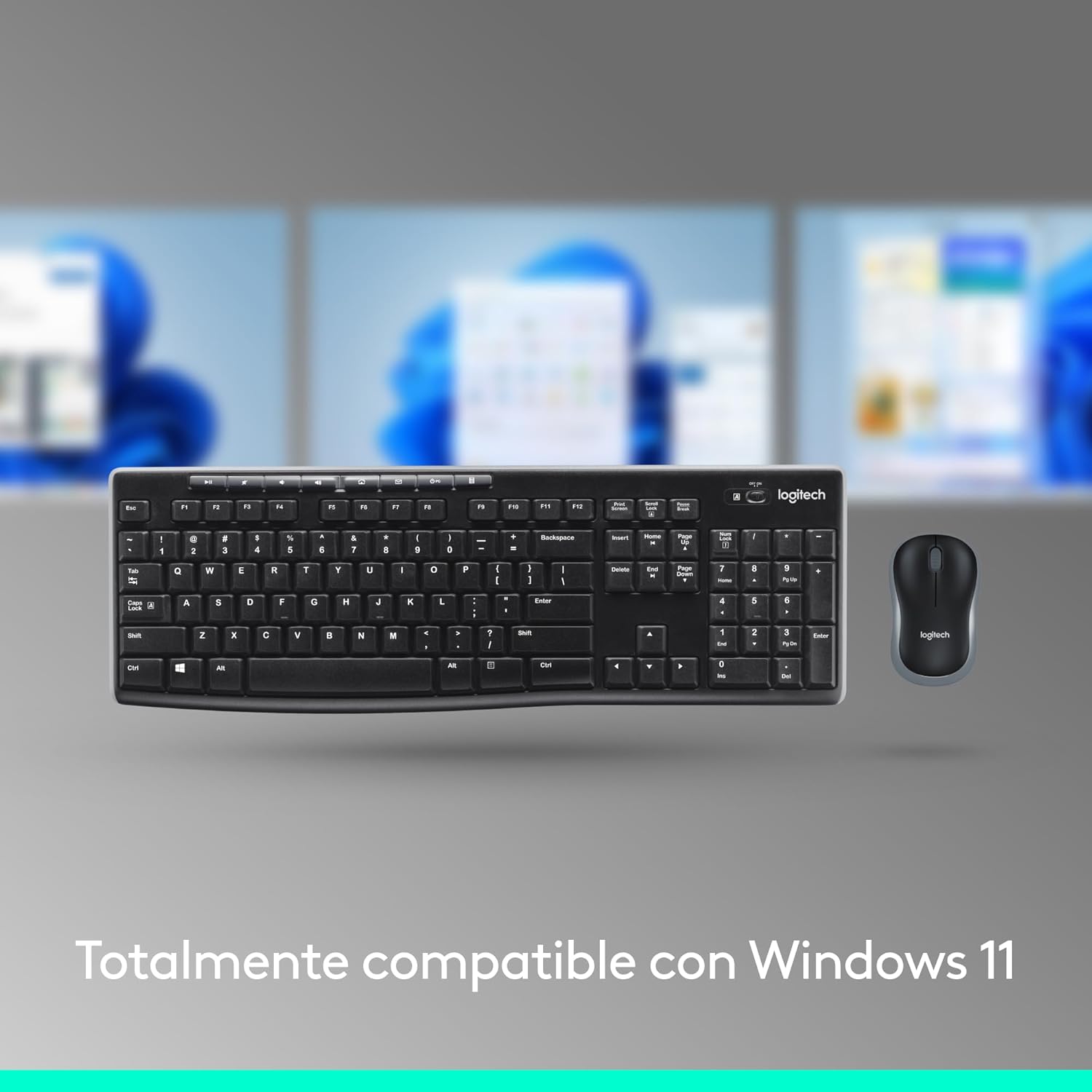

   The Logitech MK270 combo is designed for full compatibility with Windows 11, ensuring seamless operation.

പ്രവർത്തന നിർദ്ദേശങ്ങൾ

കീബോർഡ് സവിശേഷതകൾ:

• പൂർണ്ണ വലുപ്പത്തിലുള്ള ലേഔട്ട്: The keyboard features a standard full-size layout, including a numeric keypad and dedicated arrow keys for comfortable and efficient typing.
• ലോ-പ്രോfile, Quiet Keys: കുറഞ്ഞ പ്രോ ഉപയോഗിച്ച് രൂപകൽപ്പന ചെയ്‌തത്file keys that provide a comfortable typing experience with reduced noise.
• ക്രമീകരിക്കാവുന്ന ടിൽറ്റ് കാലുകൾ: Two sturdy tilt legs on the underside allow you to adjust the keyboard's angle for personalized comfort.
• മൾട്ടിമീഡിയ ഹോട്ട്കീകൾ: Access common functions quickly with 8 dedicated multimedia hotkeys. These include controls for internet browsing, email, play/pause, and volume adjustment.

മൗസ് സവിശേഷതകൾ:

• Compact and Ambidextrous Design: The mouse is compact and ergonomically designed for comfortable use by both left-handed and right-handed users.
• Smooth Cursor Control: Provides precise and smooth cursor control for easy navigation across most surfaces.

വിശദമായി view highlighting the 8 multimedia controls, on/off switch, full-size keyboard with numeric pad, ambidextrous mouse design, smooth cursor control, compact size, and the use of recycled plastic in both devices.

മെയിൻ്റനൻസ്

• വൃത്തിയാക്കൽ: കീബോർഡിന്റെയും മൗസിന്റെയും പ്രതലങ്ങൾ വൃത്തിയാക്കാൻ മൃദുവായതും ഉണങ്ങിയതുമായ തുണി ഉപയോഗിക്കുക. കഠിനമായ അഴുക്കിന്, അല്പം ഡി.amp ഉപകരണത്തിനുള്ളിൽ ദ്രാവകം പ്രവേശിക്കുന്നില്ലെന്ന് ഉറപ്പാക്കാൻ വീര്യം കുറഞ്ഞ സോപ്പുള്ള തുണി ഉപയോഗിക്കാം.
• ചോർച്ച പ്രതിരോധം: The keyboard features a spill-resistant design, meaning it can withstand minor liquid spills (up to 60 ml). However, it is not waterproof and should not be submerged in any liquid. In case of a spill, immediately power off the keyboard and allow it to dry completely before reuse.


The keyboard is designed to be spill-resistant, capable of handling small liquid splashes. Note that it is not waterproof and should not be immersed.

• ബാറ്ററി മാറ്റിസ്ഥാപിക്കൽ:

  The keyboard has an approximate battery life of 36 months, and the mouse has an approximate battery life of 12 months. When performance degrades or the low battery indicator (if present) illuminates, replace the batteries with new AAA (keyboard) and AA (mouse) alkaline batteries. Always dispose of used batteries responsibly.
• ഊർജ്ജനിയന്ത്രണം: Utilize the on/off switches on both the keyboard and mouse when not in use for extended periods to conserve battery life.

ട്രബിൾഷൂട്ടിംഗ്

സ്പെസിഫിക്കേഷനുകൾ

Detailed dimensions of the Logitech MK270 keyboard, showing length, width, and height.

Detailed dimensions of the Logitech MK270 mouse, showing length, width, and height.

വാറൻ്റിയും പിന്തുണയും

Logitech products typically come with a limited hardware warranty. For specific warranty details, duration, and terms applicable to your region, please refer to the warranty information included with your product documentation or visit the official Logitech support webസൈറ്റ്.

For technical support, driver downloads, FAQs, and further assistance, please visit the official Logitech support page:

ലോജിടെക് പിന്തുണ Webസൈറ്റ്

പാരിസ്ഥിതിക വിവരങ്ങൾ

Logitech is committed to sustainability. The plastic parts of the MK270 keyboard and mouse combo include certified post-consumer recycled plastic, with 54% in the keyboard and 49% in the mouse. This initiative helps give plastics a second life and reduces the product's carbon footprint.

An image illustrating the process of giving plastics a second life, highlighting the use of recycled materials in the MK270 keyboard and mouse.
