Briggs & Stratton 590615 Carburetor Spacer Installation and Maintenance Manual

1. ആമുഖം

This manual provides essential information for the proper installation and maintenance of the Briggs & Stratton 590615 Carburetor Spacer. This component is a genuine Original Equipment Manufacturer (OEM) part designed to ensure optimal performance and fit within compatible Briggs & Stratton engines. The carburetor spacer plays a crucial role in maintaining proper carburetor function by providing a seal and often acting as a thermal barrier between the carburetor and the engine intake manifold.

2 സുരക്ഷാ വിവരങ്ങൾ

മുന്നറിയിപ്പ്:

• Always disconnect the spark plug wire and ensure the engine is cool before performing any service or maintenance.
• Wear appropriate personal protective equipment (PPE), such as safety glasses and gloves, when working on engine components.
• Refer to your engine's specific service manual for detailed disassembly and reassembly procedures. This manual provides general guidance.
• Gasoline and engine oil are flammable. Handle with care and ensure adequate ventilation.
• കുട്ടികളെയും വളർത്തുമൃഗങ്ങളെയും ജോലിസ്ഥലത്ത് നിന്ന് അകറ്റി നിർത്തുക.

3. ഇൻസ്റ്റലേഷൻ

The Briggs & Stratton 590615 Carburetor Spacer is designed to fit between the carburetor and the engine's intake manifold. Its primary functions include providing a precise seal to prevent air leaks and, in some designs, insulating the carburetor from engine heat to prevent fuel vaporization issues.

3.1 ആവശ്യമായ ഉപകരണങ്ങളും വസ്തുക്കളും

• അടിസ്ഥാന കൈ ഉപകരണങ്ങൾ (റെഞ്ചുകൾ, സ്ക്രൂഡ്രൈവറുകൾ)
• വൃത്തിയുള്ള തുണിക്കഷണങ്ങൾ
• New gaskets (typically included with the spacer or sold separately)
• Engine-specific service manual (recommended)

3.2 ഇൻസ്റ്റലേഷൻ ഘട്ടങ്ങൾ

1. തയ്യാറാക്കൽ: Ensure the engine is off and cool. Disconnect the spark plug wire. Drain the fuel tank if necessary, or clamp ചോർച്ച തടയാൻ ഇന്ധന ലൈൻ.
2. Access Carburetor: Carefully remove any air filter assemblies, shrouds, or other components that obstruct access to the carburetor.
3. Disconnect Carburetor: Disconnect the fuel line, throttle linkage, and choke linkage from the carburetor. Note their positions for reassembly.
4. Remove Old Spacer: Unbolt the carburetor from the engine. The old spacer and gaskets will be located between the carburetor and the intake manifold. Remove them.
5. വൃത്തിയുള്ള പ്രതലങ്ങൾ: Thoroughly clean the mating surfaces on both the carburetor and the intake manifold. Remove any old gasket material or debris to ensure a proper seal.
6. Install New Gaskets and Spacer: Place a new gasket on the intake manifold, then position the Briggs & Stratton 590615 Carburetor Spacer. Place another new gasket on top of the spacer. Ensure all holes align correctly.
7. Reattach Carburetor: Carefully position the carburetor onto the new gasket and spacer assembly. Secure it with the mounting bolts, tightening them evenly to the manufacturer's specified torque (refer to your engine manual).
8. ഘടകങ്ങൾ വീണ്ടും ബന്ധിപ്പിക്കുക: Reattach the throttle linkage, choke linkage, and fuel line. Ensure all connections are secure and free of leaks.
9. വീണ്ടും കൂട്ടിച്ചേർക്കുക: Reinstall any removed air filter assemblies, shrouds, or other components.
10. അന്തിമ പരിശോധന: Reconnect the spark plug wire. Check for any loose connections or tools left in the engine area.

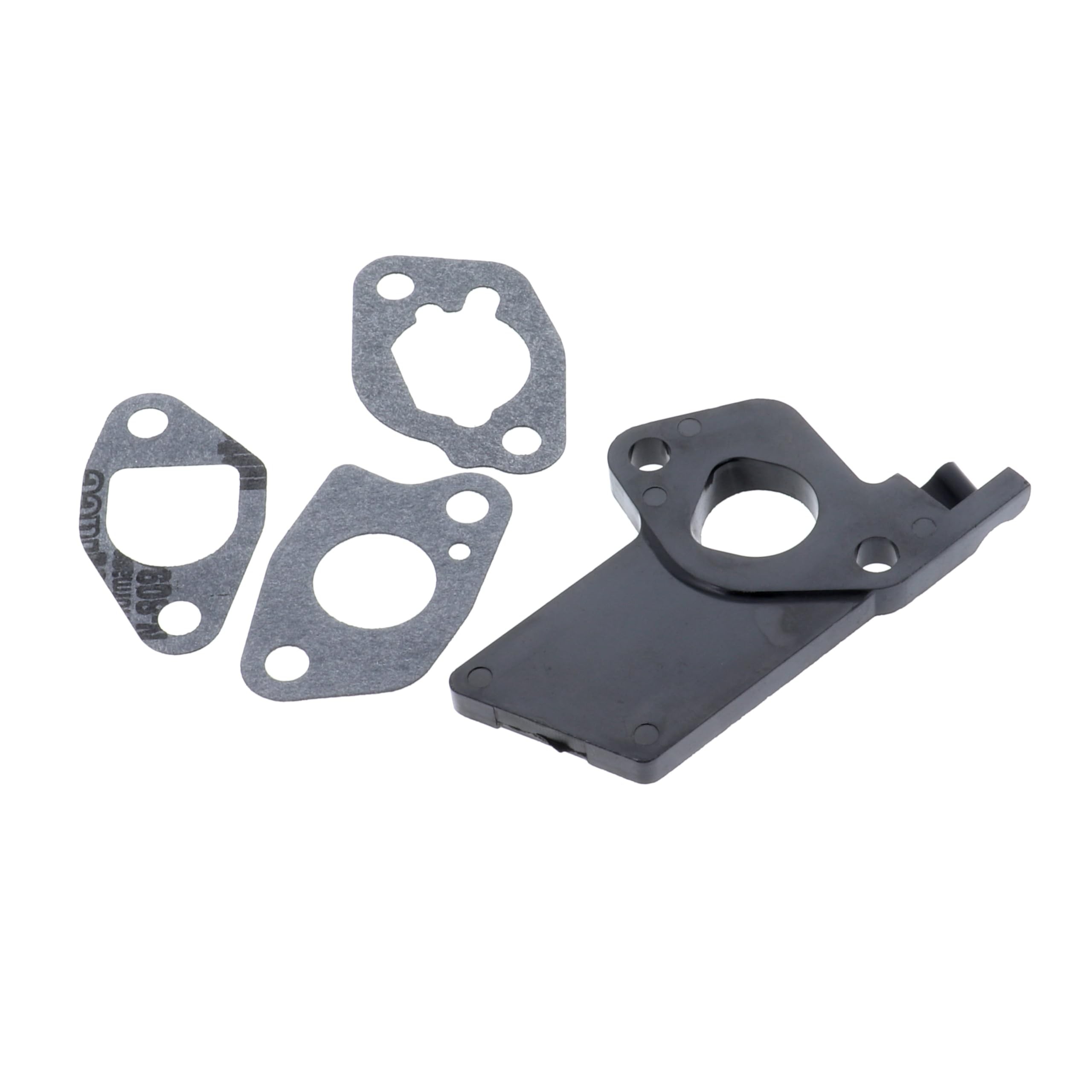

Image: The Briggs & Stratton 590615 Carburetor Spacer shown with accompanying gaskets. This image illustrates the components typically involved in a carburetor spacer replacement.

4. പ്രവർത്തനവും പ്രവർത്തനവും

The Briggs & Stratton 590615 Carburetor Spacer does not have an active "operation" in the traditional sense, as it is a static component. Its function is critical for the proper operation of the engine's fuel system. It ensures a sealed connection between the carburetor and the engine, preventing unmetered air from entering the intake manifold, which could lead to a lean fuel mixture and poor engine performance. Additionally, some spacers are designed to reduce heat transfer from the engine to the carburetor, helping to prevent fuel from boiling in the carburetor bowl, especially in hot operating conditions.

5. പരിപാലനം

The carburetor spacer itself is a passive component and does not require routine maintenance. However, it is recommended to inspect the spacer and its associated gaskets whenever the carburetor is removed for service or cleaning. Look for:

• വിള്ളലുകൾ അല്ലെങ്കിൽ കേടുപാടുകൾ: Inspect the spacer for any signs of cracks, warping, or physical damage that could compromise its sealing ability.
• Gasket Condition: Always replace gaskets when removing the carburetor or spacer. Reusing old gaskets can lead to air leaks.
• രൂപഭേദം: Ensure the spacer maintains its original shape and integrity. Excessive heat or improper tightening can cause deformation.

If any damage or wear is observed, replace the spacer and gaskets with genuine Briggs & Stratton OEM parts to ensure proper fit and function.

6. പ്രശ്‌നപരിഹാരം

Issues related to the carburetor spacer typically manifest as engine performance problems due to air leaks or improper sealing. If you experience any of the following symptoms after working on the carburetor, consider inspecting the spacer and gaskets:

• എഞ്ചിൻ സർജിംഗ് അല്ലെങ്കിൽ ഹണ്ടിംഗ്: The engine RPM fluctuates erratically, often indicating a lean fuel mixture caused by an air leak.
• ആരംഭിക്കുന്നതിനുള്ള ബുദ്ധിമുട്ട്: An air leak can make it hard for the engine to draw enough fuel, leading to starting problems.
• റഫ് ഐഡ്ലിംഗ്: The engine runs unevenly at idle speeds.
• ശക്തി നഷ്ടം: The engine may not develop full power under load.
• ഇന്ധന ചോർച്ച: Although less common for the spacer itself, damaged gaskets can lead to fuel leaks around the carburetor mounting area.

If these symptoms occur, re-check the installation of the carburetor spacer and gaskets, ensuring all mounting bolts are tightened correctly and that the gaskets are new and properly seated. A spray of carburetor cleaner around the carburetor base while the engine is running can help identify air leaks (engine RPM will temporarily increase if a leak is present).

7 സ്പെസിഫിക്കേഷനുകൾ

8. വാറൻ്റിയും പിന്തുണയും

As a genuine Briggs & Stratton Original Equipment Manufacturer (OEM) part, the 590615 Carburetor Spacer is covered by Briggs & Stratton's standard warranty for replacement parts. For specific warranty terms and conditions, please refer to the official Briggs & Stratton website or contact their customer support directly. Using genuine OEM parts ensures compatibility and maintains the integrity of your engine's warranty.

For technical assistance, parts inquiries, or to locate an authorized service dealer, please visit the official Briggs & Stratton webസൈറ്റ്: www.briggsandstratton.com
