Werner M1A-8-16B Multi-Ladder Instruction Manual

1. ഉൽപ്പന്നം കഴിഞ്ഞുview

The Werner M1A-8-16B is a versatile 16-foot aluminum articulated multi-ladder designed for various applications. It features a Type IA duty rating, supporting a maximum load capacity of 300 pounds. This ladder can be configured into multiple positions, including A-frame, extension, and scaffold base, providing flexibility for different tasks.

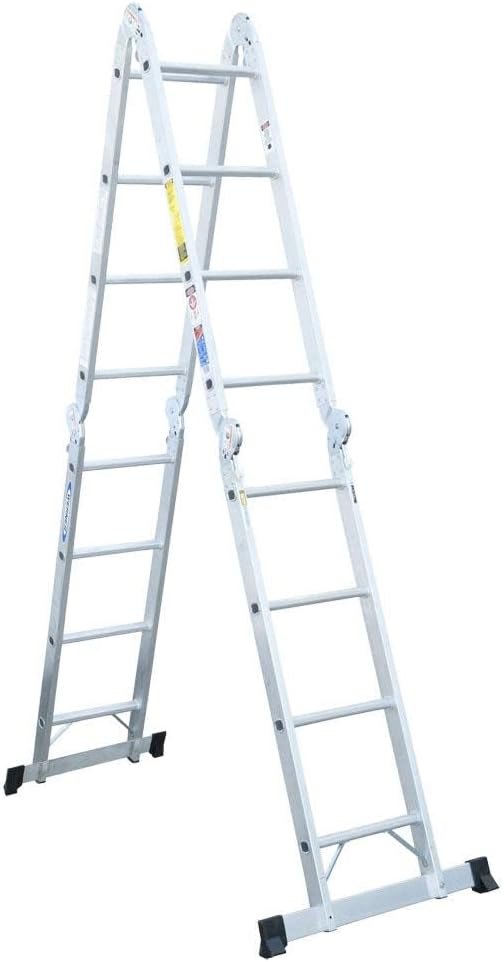

Image 1.1: The Werner M1A-8-16B Multi-Ladder shown in its A-frame configuration, ready for use.

2 സുരക്ഷാ വിവരങ്ങൾ

Always prioritize safety when using any ladder. Failure to follow these instructions can result in serious injury or death.

• വായിച്ച് മനസ്സിലാക്കുക: Before initial use, thoroughly read and understand all instructions and warning labels on the ladder.
• പരിശോധന: Before each use, inspect the ladder for any damage, loose components, or missing parts. Do not use a damaged ladder.
• സ്ഥിരതയുള്ള ഉപരിതലം: Ensure the ladder is placed on a firm, level, and non-slip surface. Do not use on unstable ground.
• ലോക്കിംഗ് മെക്കാനിസങ്ങൾ: Always ensure all hinges and locking mechanisms are fully engaged and secure before climbing.
• ലോഡ് കപ്പാസിറ്റി: Do not exceed the maximum load capacity of 300 pounds, which includes the user and any tools or materials.
• ശരിയായ കോൺ: When using as an extension ladder, maintain a 4:1 ratio (for every four feet of ladder height, the base should be one foot away from the wall).
• Three Points of Contact: Always maintain three points of contact (two hands and one foot, or two feet and one hand) while climbing or descending.
• അതിരുകടക്കുന്നത് ഒഴിവാക്കുക: ആവശ്യാനുസരണം ഗോവണി മാറ്റി സ്ഥാപിക്കുക.
• വൈദ്യുത അപകടങ്ങൾ: Keep the ladder away from electrical wires and power lines. Aluminum conducts electricity.

ചിത്രം 2.1: ഒരു ക്ലോസപ്പ് view of the ladder's articulated hinge, showing important warning labels and the locking mechanism. Always ensure these are visible and understood.

3. ഘടകങ്ങൾ

The Werner M1A-8-16B Multi-Ladder consists of several key components:

• Articulated Hinges: Allow the ladder to fold and lock into various configurations.
• ലോക്കിംഗ് മെക്കാനിസങ്ങൾ: Secure the hinges in place for safe operation.
• ഓടകൾ: Horizontal steps for climbing.
• Stabilizer Bars/Feet: Provide stability and prevent slipping.

ചിത്രം 3.1: വിശദമായത് view of the locking hinge, clearly indicating 'LOCKED' and 'UNLOCKED' positions for safe configuration.

Image 3.2: The ladder's non-slip feet, designed to provide stability and prevent movement during use.

4. സജ്ജീകരണവും കോൺഫിഗറേഷനും

The M1A-8-16B Multi-Ladder can be configured into several useful positions. Always ensure all locking mechanisms are fully engaged before use.

4.1. A-Frame Ladder Configuration

1. പരന്നതും സുസ്ഥിരവുമായ പ്രതലത്തിൽ ഗോവണി സ്ഥാപിക്കുക.
2. Release the hinge locks on both sides.
3. Open the ladder sections to form an 'A' shape.
4. Ensure all four hinges are fully locked into the A-frame position. Verify the 'LOCKED' indicator is visible.

4.2. Extension Ladder Configuration

1. Start with the ladder in the A-frame configuration.
2. Release the hinge locks and fully extend the ladder sections until they are straight.
3. Lock all hinges securely in the straight position.
4. Extend the inner sections to the desired height, ensuring the rung locks engage properly.
5. Position the ladder at the correct angle (4:1 ratio) against a stable support.

4.3. Scaffold/Work Platform Configuration

1. Lay the ladder flat on the ground.
2. Release the hinge locks and fold the ladder sections to create two separate bases.
3. Lock the hinges on each base to form two stable supports.
4. Place a suitable work platform (e.g., a plank) across the rungs of the two bases. Secure the platform if necessary.

Image 4.1: A hand demonstrating the operation of the hinge locking mechanism, crucial for securing the ladder in any configuration.

Image 4.2: The multi-ladder configured as a scaffold base, with a wooden plank secured across the rungs to create a work platform.

ചിത്രം 4.3: ഒരു ഓവർഹെഡ് view of the multi-ladder set up as a scaffold, illustrating how planks can be positioned to create a stable work surface.

5. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

Once the ladder is correctly configured and all safety checks are complete, you can begin using it.

• കയറ്റം: Always face the ladder when climbing or descending. Use both hands to grip the rungs.
• പ്രവർത്തന ഉയരം: Do not stand on the top two rungs of an extension ladder or the top step of an A-frame ladder.
• ഉപകരണ സ്ഥാനം: Use a tool belt or hoist tools up to avoid carrying them while climbing.
• കാലാവസ്ഥാ സാഹചര്യങ്ങൾ: Avoid using the ladder in strong winds, rain, or icy conditions.

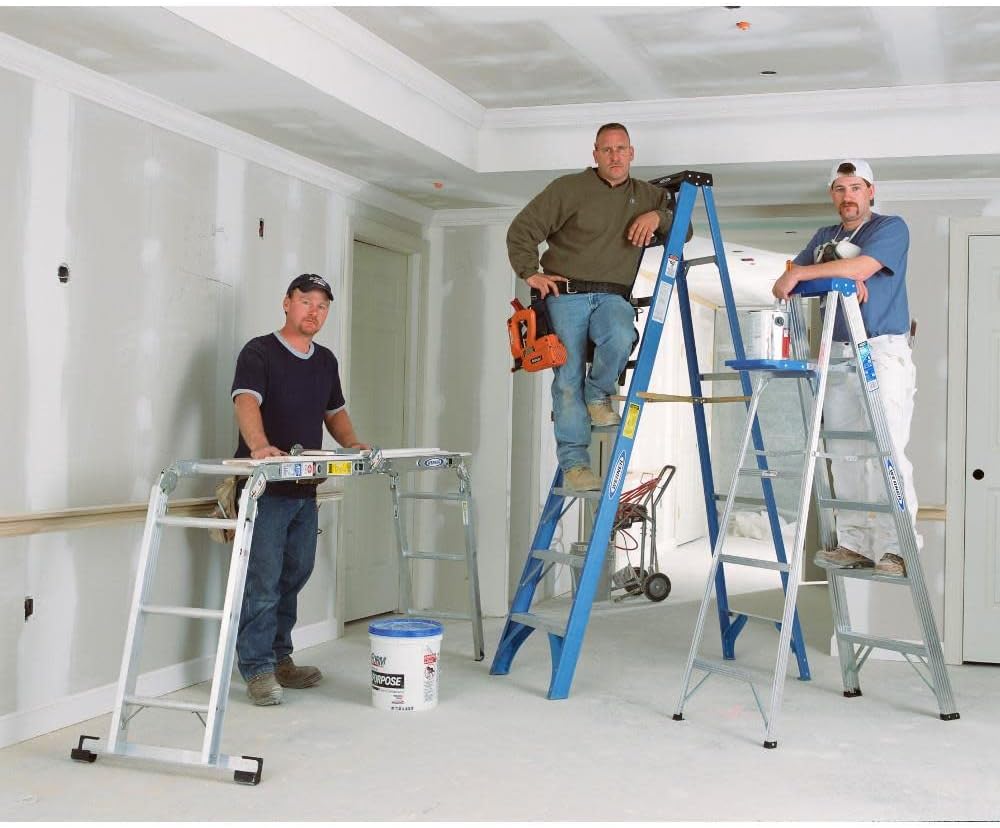

Image 5.1: Workers utilizing various Werner ladders, including the multi-ladder configured as a scaffold, demonstrating practical application in a work environment.

6. പരിപാലനവും സംഭരണവും

Proper maintenance and storage will extend the life of your Werner Multi-Ladder.

• വൃത്തിയാക്കൽ: പരസ്യം ഉപയോഗിച്ച് ഗോവണി പതിവായി വൃത്തിയാക്കുക.amp cloth to remove dirt, paint, or other debris. Do not use harsh chemicals.
• ലൂബ്രിക്കേഷൻ: Periodically lubricate the hinge mechanisms with a light oil to ensure smooth operation.
• സംഭരണം: Store the ladder in a dry, secure location, away from extreme temperatures and direct sunlight. Ensure it is stored in a way that prevents damage or accidental falling.
• നാശനഷ്ട പരിശോധന: If any part of the ladder becomes damaged, bent, or worn, discontinue use immediately and contact Werner for replacement parts or service.

7. പ്രശ്‌നപരിഹാരം

If you encounter issues with your Werner Multi-Ladder, consider the following:

• Difficulty Locking Hinges: Ensure the hinges are clean and free of debris. Apply a small amount of lubricant if stiff. If the mechanism appears bent or broken, do not use the ladder.
• Ladder Instability: Verify the ladder is on a level surface. Check that all feet are making full contact with the ground. Ensure all locking mechanisms are fully engaged for the chosen configuration.
• Rung Locks Not Engaging: Ensure the inner sections are fully extended or retracted to the correct position for the rung locks to engage. Clean any debris from the locking pins.

8 സ്പെസിഫിക്കേഷനുകൾ

9. വാറൻ്റിയും പിന്തുണയും

For information regarding warranty coverage, replacement parts, or technical support, please contact Werner customer service directly. Refer to the official Werner webഏറ്റവും പുതിയ കോൺടാക്റ്റ് വിശദാംശങ്ങൾക്കായി സൈറ്റ് അല്ലെങ്കിൽ ഉൽപ്പന്ന പാക്കേജിംഗ്.
