ആമുഖം
Welcome to the instruction manual for your REELY Carbon Fighter III 1:6 RC Gasoline Model Vehicle. This high-performance 2WD rear buggy is designed for off-road enthusiasts, featuring a powerful 1.6 hp gasoline engine, an improved conical wheel differential, and new high-grip off-road tires for superior traction. The 2.4 GHz remote control system ensures reliable operation. Please read this manual thoroughly before operating your model to ensure safe and optimal performance.
Image: The REELY Carbon Fighter III RC Buggy shown alongside its 2.4 GHz remote control unit.
സജ്ജമാക്കുക
Before operating your Carbon Fighter III, ensure all necessary components are prepared and installed correctly.
ആവശ്യമായ ഇനങ്ങൾ (ഉൾപ്പെടുത്തിയിട്ടില്ല):
- റിസീവർ ബാറ്ററി: A 6V Hump Pack battery with Sub-C cells (e.g., Conrad part numbers 206976 or 206975).
- ബാറ്ററി ചാർജർ: A compatible charger (e.g., Conrad part number 1460625) with a Tamiya / BEC adapter (e.g., Conrad part number 208430) for the receiver battery.
- ഇന്ധനം: A 1:25 fuel mixture. This is prepared by mixing 1.0 liter of Super gasoline or Super Plus with 40 ml of 2-stroke oil (e.g., Conrad part number 893267). Important: Do not use E10 fuel.
Initial Checks and Assembly:
While the Carbon Fighter III is designed as a Ready-to-Run (RTR) model, it is crucial to perform a thorough inspection before first use.
- അൺപാക്ക് ചെയ്യുന്നു: Carefully remove the model and all accessories from the packaging.
- വിഷ്വൽ പരിശോധന: Check for any visible damage during shipping. Ensure all parts are securely fastened.
- Engine and Drivetrain: Verify that the engine and drivetrain components (including the differential) are correctly assembled and move freely. Some users have reported initial assembly issues, so a careful check of the motor and drive train is recommended to prevent potential damage.
- റേഡിയോ സിസ്റ്റം: Install batteries in the 2.4 GHz remote control. Power on the remote control first, then the vehicle. Ensure proper binding and functionality of steering and throttle controls.
- ഇന്ധന ടാങ്ക്: Fill the fuel tank with the prepared 1:25 gasoline-oil mixture.
- ടയറുകൾ: Ensure tires are properly mounted and inflated to the recommended pressure (if applicable, check tire sidewall for details).
പ്രവർത്തന നിർദ്ദേശങ്ങൾ
The REELY Carbon Fighter III is built for dynamic off-road driving.
എഞ്ചിൻ ആരംഭിക്കുന്നു:
- Ensure the remote control is powered on and linked to the vehicle.
- Locate the pull-start mechanism on the engine.
- Apply a small amount of throttle on the remote control (if necessary, refer to engine-specific starting procedures).
- Pull the starter cord firmly and smoothly until the engine starts. Do not over-pull.
- Allow the engine to warm up for a short period before driving.
വാഹനം ഓടിക്കുന്നത്:
Your Carbon Fighter III features rear-wheel drive (2WD) for exciting power drifts and excellent off-road performance.
- ത്രോട്ടിൽ നിയന്ത്രണം: Use the throttle trigger on the remote control to accelerate (push forward) and brake/reverse (pull back).
- സ്റ്റിയറിംഗ് നിയന്ത്രണം: മുൻ ചക്രങ്ങൾ ഇടത്തോട്ടോ വലത്തോട്ടോ തിരിക്കാൻ റിമോട്ട് കൺട്രോളിലെ സ്റ്റിയറിംഗ് വീൽ ഉപയോഗിക്കുക.
- Off-Road Performance: The new high-grip off-road tires provide excellent traction on various surfaces. The 2WD system allows for controlled power slides and drifts, enhancing the driving experience.
- ഭൂപ്രദേശം: Ideal for grass, dirt, gravel, and other unpaved surfaces. Avoid deep water or extremely muddy conditions.

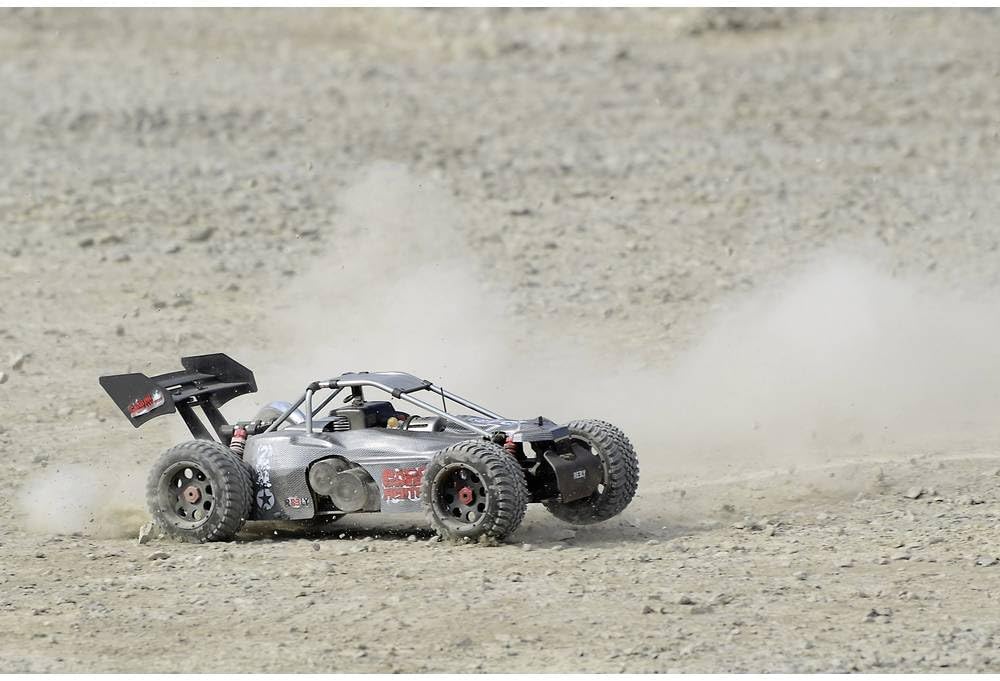

Image: The REELY Carbon Fighter III in action, kicking up dust on a dirt track, showcasing its off-road capabilities.
മെയിൻ്റനൻസ്
Regular maintenance is crucial for the longevity and performance of your REELY Carbon Fighter III.
- ഓരോ ഉപയോഗത്തിനും ശേഷം:
- Clean the vehicle thoroughly to remove dirt, dust, and debris, especially from moving parts and the engine cooling fins.
- Inspect for loose screws, nuts, or damaged parts. Tighten or replace as necessary.
- Check the air filter and clean or replace if dirty.
- Empty the fuel tank if storing for an extended period to prevent fuel degradation.
- എഞ്ചിൻ പരിപാലനം:
- Periodically check the spark plug and replace if fouled.
- Ensure proper engine tuning for optimal performance and longevity. Refer to engine-specific tuning guides if needed.
- Drivetrain and Differential:
- Regularly inspect the improved conical wheel differential for smooth operation and proper lubrication.
- Check gears for wear and tear.
- സസ്പെൻഷനും സ്റ്റിയറിങ്ങും:
- Inspect shock absorbers for leaks and proper damping.
- Check steering linkages for free movement and no excessive play.
- ടയറുകൾ:
- Inspect high-grip off-road tires for wear, cuts, or punctures.
- വീൽ നട്ടുകൾ ഇറുകിയതാണെന്ന് ഉറപ്പാക്കുക.
ട്രബിൾഷൂട്ടിംഗ്
നിങ്ങൾ നേരിട്ടേക്കാവുന്ന പൊതുവായ പ്രശ്നങ്ങൾക്കുള്ള പരിഹാരങ്ങൾ ഈ വിഭാഗം നൽകുന്നു.
| പ്രശ്നം | സാധ്യമായ കാരണം | പരിഹാരം |
|---|---|---|
| എഞ്ചിൻ ആരംഭിക്കുന്നില്ല. | No fuel, incorrect fuel mix, fouled spark plug, carburetor issues, low receiver battery. | Check fuel level and mix. Replace spark plug. Inspect carburetor. Charge/replace receiver battery. |
| Loss of control/Erratic behavior. | Low remote control battery, interference, loose radio connection, damaged servo. | Replace remote control batteries. Re-bind radio system. Check servo connections and functionality. |
| വാഹനം പതുക്കെ നീങ്ങുന്നു അല്ലെങ്കിൽ വൈദ്യുതി ഇല്ല. | Improper engine tuning, clogged air filter, low receiver battery, drivetrain binding. | Adjust engine tuning. Clean/replace air filter. Charge receiver battery. Inspect drivetrain for obstructions. |
| Unusual noises from differential/drivetrain. | Worn gears, lack of lubrication, foreign object. | Inspect differential and gears for wear. Lubricate moving parts. Remove any debris. |
സ്പെസിഫിക്കേഷനുകൾ
| ഫീച്ചർ | വിശദാംശങ്ങൾ |
|---|---|
| മോഡലിൻ്റെ പേര് | Carbon Fighter III |
| മോഡൽ നമ്പർ | FS10803 |
| അളവുകൾ (L x W x H) | 80 x 43 x 24.5 സെ.മീ |
| ഭാരം | 10.81 കി.ഗ്രാം |
| ശുപാർശ ചെയ്യുന്ന പ്രായം | 14 വർഷവും അതിൽ കൂടുതലും |
| എഞ്ചിൻ | 1.6 hp Gasoline Engine |
| ഡ്രൈവ് തരം | Rear-wheel drive (2WD) |
| റേഡിയോ സിസ്റ്റം | 2.4 GHz |
| ടയറുകൾ | New High Grip Off-Road Tires |
| ഡിഫറൻഷ്യൽ | Improved Conical Wheel Differential |
| നിറം | ചാരനിറം |
വാറൻ്റിയും പിന്തുണയും
REELY products are designed for durability and performance.
- സ്പെയർ പാർട്സ് ലഭ്യത: Spare parts for the Carbon Fighter III are generally available for a period of 1 year from the date of purchase.
- പരിമിത വാറൻ്റി: For specific warranty terms and conditions, please refer to the documentation included with your purchase or contact REELY customer support directly.
- ഉപഭോക്തൃ പിന്തുണ: For technical assistance, troubleshooting beyond this manual, or spare parts inquiries, please visit the official REELY webസൈറ്റ് അല്ലെങ്കിൽ നിങ്ങളുടെ റീട്ടെയിലറെ ബന്ധപ്പെടുക.
