ഉൽപ്പന്നം കഴിഞ്ഞുview
The Mount-It! MI-35114S is a robust and versatile wall-mounted monitor arm designed to enhance your workspace ergonomics and organization. Constructed from high-gloss aluminum, this mount provides a stable and aesthetically pleasing solution for displays up to 27 inches and weighing between 4.4 to 19.8 lbs (2 to 9 kg). Its articulating design allows for extensive adjustability, including height, tilt, swivel, and rotation, ensuring optimal viewing comfort and flexibility.
പ്രധാന സവിശേഷതകളിൽ ഇവ ഉൾപ്പെടുന്നു:
- ഉയരം ക്രമീകരിക്കാവുന്ന: Offers 11.5 inches of vertical adjustment.
- Articulating Arms: Provides 180-degree swivel and extends up to 27.5 inches from the wall.
- Tilting and Rotating: Screen can tilt 105 degrees and rotate 360 degrees for portrait or landscape orientation.
- സംയോജിത കേബിൾ മാനേജ്മെൻ്റ്: Keeps cables organized and out of sight.
- ക്വിക്ക് റിലീസ് ഡിസൈൻ: Facilitates easy installation and adjustments at connecting points.
- VESA അനുയോജ്യമാണ്: Supports 75x75mm and 100x100mm mounting patterns.
Figure 1: The Mount-It! MI-35114S monitor wall mount, showcasing its articulating arm and sleek design.
സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും
Proper installation is crucial for the stability and safety of your monitor and the mount. It is highly recommended to mount the unit directly into a wall stud for maximum security. All necessary hardware and instructions are included with your purchase.
നിങ്ങൾ ആരംഭിക്കുന്നതിന് മുമ്പ്:
- Verify your monitor's weight and VESA mounting pattern are compatible with the MI-35114S. This mount supports VESA 75x75mm and 100x100mm.
- Gather tools: Phillips head screwdriver, drill, stud finder, level, pencil.
- Ensure the wall location is free of electrical wires or plumbing.
Figure 2: VESA mounting compatibility for the MI-35114S, supporting 75x75mm and 100x100mm patterns.
ഇൻസ്റ്റലേഷൻ ഘട്ടങ്ങൾ:
- വാൾ പ്ലേറ്റ് ഘടിപ്പിക്കുക: Locate a wall stud using a stud finder. Mark the desired height for the mount. Secure the wall plate to the stud using appropriate screws. Use a level to ensure it is straight.
- Assemble Arm Components: The MI-35114S features quick-connect designs. Attach the main arm assembly to the wall plate. Ensure all connections click securely into place.
- മോണിറ്ററിലേക്ക് VESA പ്ലേറ്റ് അറ്റാച്ചുചെയ്യുക: Carefully place your monitor face down on a soft, clean surface. Align the VESA plate (the part that connects to the monitor) with the mounting holes on the back of your monitor. Secure it with the provided screws.
- മോണിറ്റർ കൈയിലേക്ക് മൌണ്ട് ചെയ്യുക: With the VESA plate attached to your monitor, carefully lift the monitor and slide the VESA plate onto the monitor end of the arm until it locks into place.
- കേബിൾ മാനേജുമെന്റ്: Route your monitor cables through the integrated cable management clips along the arm for a clean and organized setup.
Figure 3: Technical diagram highlighting the quick connect points and articulation capabilities of the MI-35114S.
Figure 4: A monitor securely mounted on the MI-35114S, demonstrating the rear attachment and cable management.
Operating the Monitor Mount
The MI-35114S offers a wide range of motion to customize your viewing experience. Adjustments should be smooth and require minimal effort once the gas spring tension is properly set.
സ്ഥാനം ക്രമീകരിക്കൽ:
- ഉയരം ക്രമീകരിക്കൽ: Gently push or pull the monitor up or down to achieve the desired height. The gas spring mechanism will hold it in place.
- വിപുലീകരണം/പിൻവലിക്കൽ: Extend or retract the arm by pulling or pushing the monitor towards or away from the wall. The arm can extend up to 27.5 inches.
- സ്വിവൽ: The arm and monitor plate can swivel up to 360 degrees, allowing you to easily share your screen or change viewകോണുകൾ.
- ടിൽറ്റ്: Grasp the top and bottom edges of your monitor and gently tilt it forward or backward to achieve the optimal viewing angle. The mount allows for 105 degrees of tilt.
- റൊട്ടേഷൻ: Rotate the monitor 360 degrees to switch between landscape and portrait orientations. This is ideal for reading long documents or viewing specific content.
Figure 5: Demonstrating the tilting capability of the MI-35114S for ergonomic viewing.
Figure 6: The 360-degree rotation feature allows for easy switching between landscape and portrait monitor orientations.
Adjusting Gas Spring Tension:
The gas spring tension may need adjustment to properly support your monitor's weight. If the monitor sags or springs up too easily, adjust the tension screw located on the arm. Typically, you will need to raise the arm to a vertical position to access and adjust the tension. Turn clockwise to increase tension for heavier monitors, and counter-clockwise to decrease tension for lighter monitors.
മെയിൻ്റനൻസ്
Regular maintenance ensures the longevity and optimal performance of your Mount-It! MI-35114S monitor mount.
- വൃത്തിയാക്കൽ: Wipe the mount surfaces with a soft, damp തുണി. ഫിനിഷിന് കേടുവരുത്തുന്ന ഉരച്ചിലുകളുള്ള ക്ലീനറുകളോ ലായകങ്ങളോ ഒഴിവാക്കുക.
- കണക്ഷനുകൾ പരിശോധിക്കുക: Periodically inspect all screws and connections to ensure they remain tight and secure, especially the wall mounting screws and the VESA plate screws.
- ഗ്യാസ് സ്പ്രിംഗ് ക്രമീകരണം: Re-adjust the gas spring tension if you change monitors or notice the arm is no longer holding its position correctly.
ട്രബിൾഷൂട്ടിംഗ്
If you encounter issues with your monitor mount, refer to the following common problems and solutions:
| പ്രശ്നം | സാധ്യമായ കാരണം | പരിഹാരം |
|---|---|---|
| മോണിറ്റർ തൂങ്ങുന്നു അല്ലെങ്കിൽ സ്ഥാനത്ത് തുടരുന്നില്ല. | മോണിറ്റർ ഭാരത്തിന് തെറ്റായ ഗ്യാസ് സ്പ്രിംഗ് ടെൻഷൻ. | Adjust the gas spring tension screw. Increase tension for heavier monitors, decrease for lighter ones. Ensure monitor weight is within 4.4 - 19.8 lbs range. |
| Mount feels unstable or loose on the wall. | Improper wall installation; not mounted into a stud or loose anchors. | Ensure the wall plate is securely fastened into a wall stud. If using drywall anchors, ensure they are appropriate for the weight and properly installed. Re-tighten all wall mounting screws. |
| Difficulty moving the arm or monitor. | Gas spring tension too high or connections too tight. | Decrease gas spring tension. Check for any overtightened screws at the joints and loosen slightly if necessary. |
| Monitor does not rotate 360 degrees. | Obstruction or limited range of motion. | Ensure no cables or objects are obstructing the rotation. Verify the monitor is centered on the VESA plate. |
സ്പെസിഫിക്കേഷനുകൾ
Detailed technical specifications for the Mount-It! MI-35114S monitor wall mount:
| ഫീച്ചർ | സ്പെസിഫിക്കേഷൻ |
|---|---|
| മോഡൽ നമ്പർ | MI-35114S (also MI-35114) |
| ഭാരം ശേഷി | 4.4 - 19.8 lbs (2 - 9 kgs) |
| VESA മൗണ്ടിംഗ് പാറ്റേണുകൾ | 75x75mm, 100x100mm |
| ടിൽറ്റ് റേഞ്ച് | 105 ഡിഗ്രി |
| ഭ്രമണം | 360 degrees (screen) |
| സ്വിവൽ റേഞ്ച് | Max 360 degrees (arm joints) |
| പരമാവധി വിപുലീകരണം | 27.5 inches (from wall) |
| ഉയരം ക്രമീകരിക്കൽ | 11.5 ഇഞ്ച് |
| മെറ്റീരിയൽ | High-gloss Aluminum |
| ഉൽപ്പന്ന അളവുകൾ | 16 x 8 x 8 ഇഞ്ച് (പാക്കേജുചെയ്തത്) |
| ഇനത്തിൻ്റെ ഭാരം | 4 പൗണ്ട് |

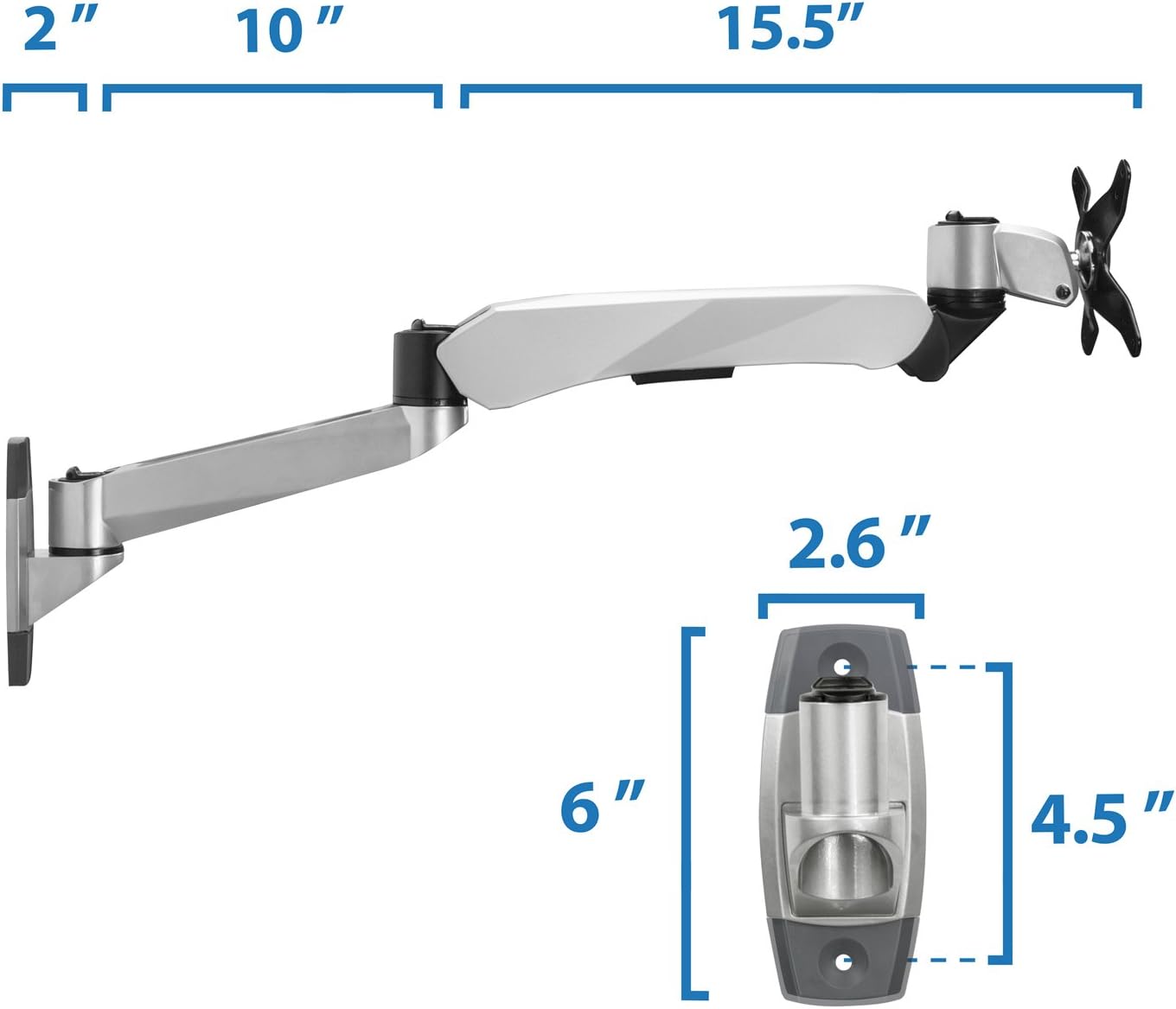

ചിത്രം 7: ഡൈമൻഷണൽ ഓവർview of the MI-35114S mount.
വാറൻ്റിയും പിന്തുണയും
For warranty information, product support, or to purchase replacement parts, please refer to the documentation included with your product or visit the official Mount-It! website. You can also contact Mount-It! customer service directly for assistance.
