കാൻഡി വാഷിംഗ് മെഷീൻ ഹീറ്റിംഗ് എലമെന്റ് 1850W യൂസർ മാനുവൽ

1. ഉൽപ്പന്നം കഴിഞ്ഞുview

This document provides essential information for the installation, maintenance, and troubleshooting of the Candy 1850W Washing Machine Heating Element. This component is crucial for heating water during wash cycles, ensuring effective cleaning performance.

ഉൽപ്പന്ന ചിത്രം:

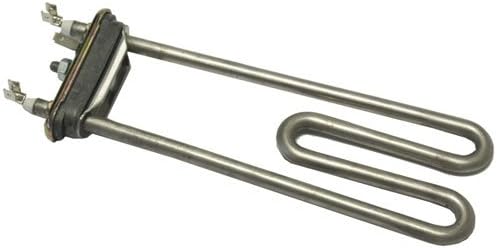

Image 1.1: The Candy 1850W Washing Machine Heating Element, showing its U-shaped metal tubes and electrical terminals. This element is responsible for heating the water inside the washing machine drum.

1.1 അനുയോജ്യത

This heating element is compatible with various Candy and Otsein washing machine models. Known compatible models and reference numbers include:

• മോഡലുകൾ: htr003cy, htr006cy, htr019cy, S445 x
• Equivalent References: 92987213, 31861, 90457722

Always verify compatibility with your specific washing machine model before purchase and installation. Refer to your appliance's original documentation or consult a qualified technician.

2 സുരക്ഷാ വിവരങ്ങൾ

WARNING: Electrical components can cause serious injury or death if not handled correctly. Always prioritize safety.

• പവർ വിച്ഛേദിക്കുക: Before attempting any installation, repair, or maintenance, ensure the washing machine is completely disconnected from the main power supply. Unplug the appliance from the wall outlet.
• പ്രൊഫഷണൽ ഇൻസ്റ്റാളേഷൻ: Installation should ideally be performed by a qualified and certified appliance technician.
• സംരക്ഷണ ഗിയർ: Wear appropriate personal protective equipment, including insulated gloves and eye protection.
• Water Hazards: Ensure there is no standing water around the appliance before beginning work.
• ഘടക സമഗ്രത: Do not install a damaged heating element. Inspect the new part for any visible defects before installation.

3. ഇൻസ്റ്റലേഷൻ (സജ്ജീകരണം)

Replacing a washing machine heating element typically involves accessing the rear or front of the appliance, depending on the model. The following steps are general guidelines; always refer to your specific washing machine's service manual for detailed instructions.

1. തയ്യാറാക്കൽ: Ensure the washing machine is unplugged and the water supply is turned off. Drain any residual water from the machine.
2. Access the Element: Depending on your washing machine model, you may need to remove the rear panel or the front panel (including the detergent dispenser and door seal) to access the heating element.
3. വയറിംഗ് വിച്ഛേദിക്കുക: Carefully disconnect the electrical wiring from the old heating element's terminals. Note the position of each wire for correct re-connection.
4. Remove Old Element: Loosen the central nut or bolt that secures the heating element. This will release the rubber seal. Gently pry out the old heating element. Be prepared for some water to escape.
5. വൃത്തിയുള്ള പ്രദേശം: Clean any scale or debris from the heating element housing opening.
6. Install New Element: Insert the new Candy heating element into the opening, ensuring the rubber seal is correctly seated. Tighten the central nut or bolt to compress the seal and secure the element. Do not overtighten.
7. വയറിംഗ് വീണ്ടും ബന്ധിപ്പിക്കുക: Reconnect the electrical wires to the new heating element's terminals in their original positions.
8. ടെസ്റ്റ്: Reassemble the washing machine panels. Restore power and water supply. Run a short, empty wash cycle (e.g., a rinse cycle) to check for leaks and proper heating.

If you are unsure about any step, contact a qualified appliance technician.

4. ഓപ്പറേഷൻ

The heating element operates automatically as part of the washing machine's programmed cycles. Its function is to heat the water to the desired temperature specified by the selected wash program. No direct user interaction is required for the heating element's operation once installed correctly.

5. പരിപാലനം

The heating element itself typically requires no routine maintenance. However, to prolong its lifespan and the efficiency of your washing machine, consider the following:

• നിരസിക്കൽ: In hard water areas, limescale can build up on the heating element, reducing its efficiency and lifespan. Periodically run a descaling cycle using a washing machine descaler product, following the product's instructions.
• പതിവ് വൃത്തിയാക്കൽ: Keep the washing machine drum and detergent dispenser clean to prevent residue buildup that could affect overall performance.
• ഓവർലോഡിംഗ് ഒഴിവാക്കുക: Overloading the washing machine can put undue stress on components, including the heating element.

6. പ്രശ്‌നപരിഹാരം

If your washing machine is experiencing issues related to water heating, the heating element may be a factor. Common symptoms include:

• ചൂടുവെള്ളമില്ല: Clothes are washed in cold water despite a hot wash cycle being selected.
• പിശക് കോഡുകൾ: Your washing machine display may show specific error codes related to heating element failure (consult your washing machine's user manual for code interpretation).
• Tripping Breaker: A faulty heating element can sometimes cause the circuit breaker to trip.

If you suspect a faulty heating element, it is recommended to have it inspected and replaced by a qualified technician.

7 സ്പെസിഫിക്കേഷനുകൾ

8. വാറൻ്റിയും പിന്തുണയും

For warranty information, please refer to the terms and conditions provided by your retailer or the official Candy website. For technical support or assistance with installation, it is recommended to contact a certified appliance technician or the Candy customer service department.

You can visit the official Candy store for more information: Candy Official Store
