ലംബർജാക്ക് ടൂൾസ് ഹോം മാസ്റ്റർ കിറ്റ് HSK3 ഇൻസ്ട്രക്ഷൻ മാനുവൽ

ആമുഖം

The Lumberjack Tools Home Master Kit HSK3 is designed for crafting log furniture and structures. This kit includes a selection of tenon cutters and Forstner bits, enabling users to create precise joints for various woodworking projects. The tools are engineered for safety, efficiency, and ease of use, operating similarly to a large pencil sharpener for logs.

ഉൽപ്പന്ന ഘടകങ്ങൾ

The Home Master Kit HSK3 includes the following items:

• One (1) 1-inch Home Tenon Cutter
• One (1) 1-1/2-inch Home Tenon Cutter
• One (1) 2-inch Home Tenon Cutter
• One (1) 1-inch Forstner Bit
• One (1) 1-1/2-inch Forstner Bit
• One (1) 2-inch Forstner Bit
• Two (2) Sets of Blades (each set includes 2 blades, 2 button screws, 1 Allen wrench)
• One (1) Log Furniture Plan Booklet with 20 project plans
• ഒരു (1) നിർദ്ദേശ മാനുവൽ

Image: The complete Lumberjack Tools Home Master Kit HSK3, showcasing the three tenon cutters, three Forstner bits, and the log furniture plan booklet.

സജ്ജമാക്കുക

To prepare the tenon cutters for use, a heavy-duty drill is required. It is recommended to use a 1/2-inch pipe handle drill with a single speed, high torque, and a low RPM (Revolutions Per Minute) of 500 or less. Ensure the drill is securely held and stable during operation.

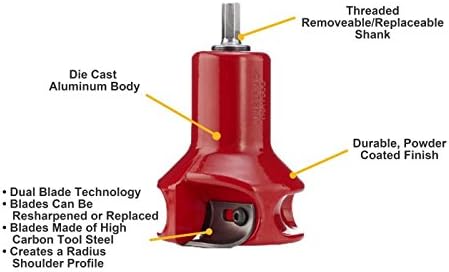

ചിത്രം: വിശദമായ ഒരു ചിത്രം view of a tenon cutter, highlighting its die-cast aluminum body, threaded removable/replaceable shank, durable powder-coated finish, and dual blade technology. This illustrates the tool's construction for proper setup and understanding.

പ്രവർത്തന നിർദ്ദേശങ്ങൾ

The tenon cutters function by creating a precise tenon on the end of a log, similar to how a pencil sharpener works. The dual blade technology ensures efficient and clean cuts. The radius shoulder profile creates a refined, low-profile shoulder on the tenon.

To operate, securely attach the desired tenon cutter to your heavy-duty drill. Position the log firmly and carefully guide the rotating cutter onto the end of the log. Apply steady pressure to allow the blades to cut the tenon to the specified diameter (1", 1-1/2", or 2").

Forstner bits are used to drill corresponding holes for the tenons. Select the Forstner bit that matches the tenon diameter. Attach the bit to your drill and carefully drill into the receiving log or material to create a clean, flat-bottomed hole for the tenon joint.

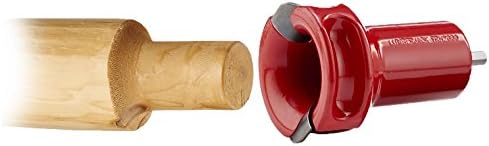

Image: A tenon cutter in action, demonstrating the creation of a smooth, rounded tenon on a piece of wood. This illustrates the primary function of the tool.

These tools can be used to construct various log furniture items, including beds, railings, fences, tables, chairs, arbors, and benches.

മെയിൻ്റനൻസ്

The tenon cutters feature blades made of high carbon tool steel. These blades are designed to be resharpened or replaced as needed to maintain optimal cutting performance. Regularly inspect the blades for wear or damage. Refer to the included instructions for blade replacement using the provided button screws and Allen wrench.

Keep the tools clean and free of debris after each use. Store them in a dry environment to prevent corrosion and maintain their condition.

ട്രബിൾഷൂട്ടിംഗ്

If you encounter difficulties during operation, ensure your drill meets the recommended specifications (1/2-inch, single-speed, high torque, 500 RPM or less). Check that the blades are sharp and properly installed. If cutting performance decreases, the blades may need resharpening or replacement. For persistent issues, consult the manufacturer's support resources.

സ്പെസിഫിക്കേഷനുകൾ

വാറൻ്റിയും പിന്തുണയും

Lumberjack Tools provides a Lifetime Warranty on the tenon cutters included in this kit. For warranty claims, technical support, or further assistance, please refer to the contact information provided with your purchase or visit the official Lumberjack Tools webസൈറ്റ്.
