പാറ്റ്ലൈറ്റ് BM-202H സിഗ്നൽ ഫോൺ നിർദ്ദേശ മാനുവൽ

1. ആമുഖം

This manual provides essential information for the safe and effective installation, operation, and maintenance of the Patlite BM-202H Signal Phone. Please read this manual thoroughly before using the product and retain it for future reference.

2 സുരക്ഷാ വിവരങ്ങൾ

Always observe the following safety precautions to prevent injury to personnel and damage to the product or other equipment.

• Ensure that installation and wiring are performed by qualified personnel only.
• Disconnect all power sources before performing any installation, wiring, or maintenance work.
• വൈദ്യുതി വിതരണം വോളിയം ആണെന്ന് പരിശോധിക്കുകtage matches the product's specifications (24V AC/DC).
• Do not expose the product to excessive moisture, dust, or extreme temperatures.
• Do not attempt to modify or disassemble the product. Refer all servicing to authorized personnel.

3. ഉൽപ്പന്നം കഴിഞ്ഞുview

The Patlite BM-202H is a compact signal phone designed for industrial applications, providing audio signaling capabilities. It operates on a 24V AC/DC power supply and consumes 0.4W.

3.1. ഘടകങ്ങൾ

ചിത്രം 1: മുൻഭാഗം View of Patlite BM-202H Signal Phone. This image displays the compact, black cubic housing of the signal phone with a prominent circular speaker grille on the front face, surrounded by a silver, ribbed bezel.

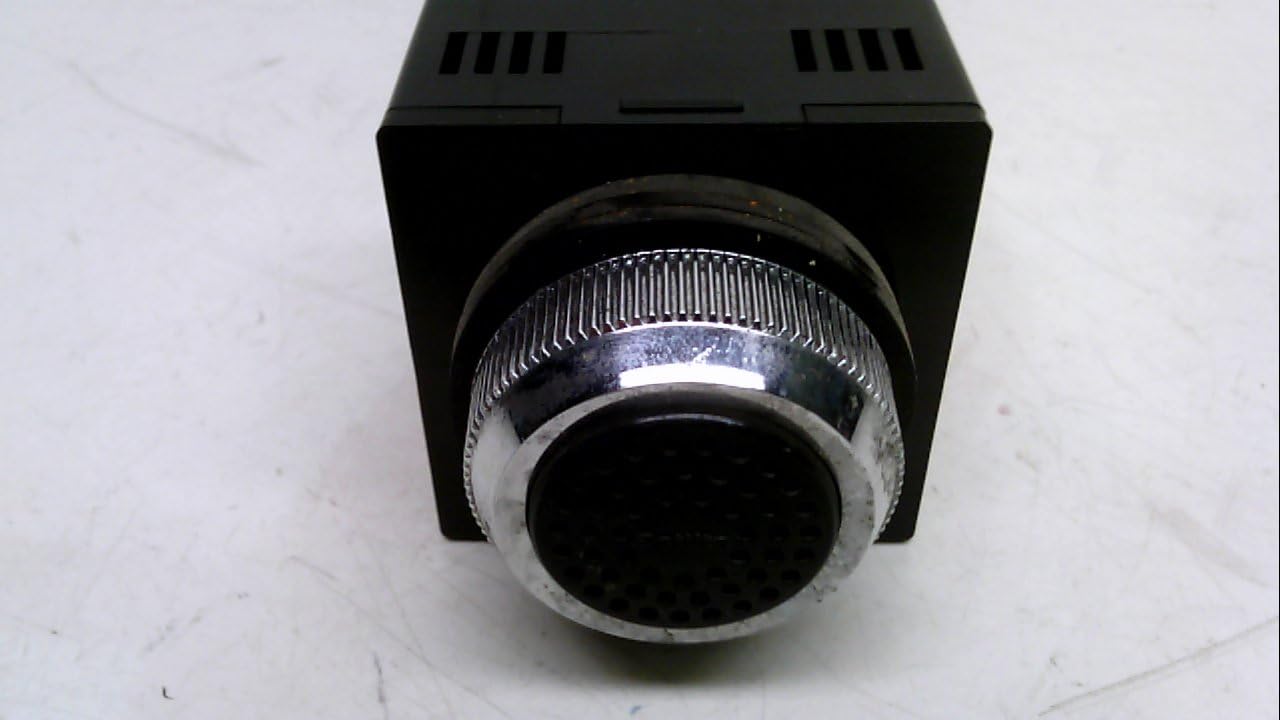

Figure 2: Close-up of Speaker Grille. എ വിശദമായി view of the signal phone's speaker grille, showing its textured surface and the metallic, finely ribbed bezel that secures it to the device housing.

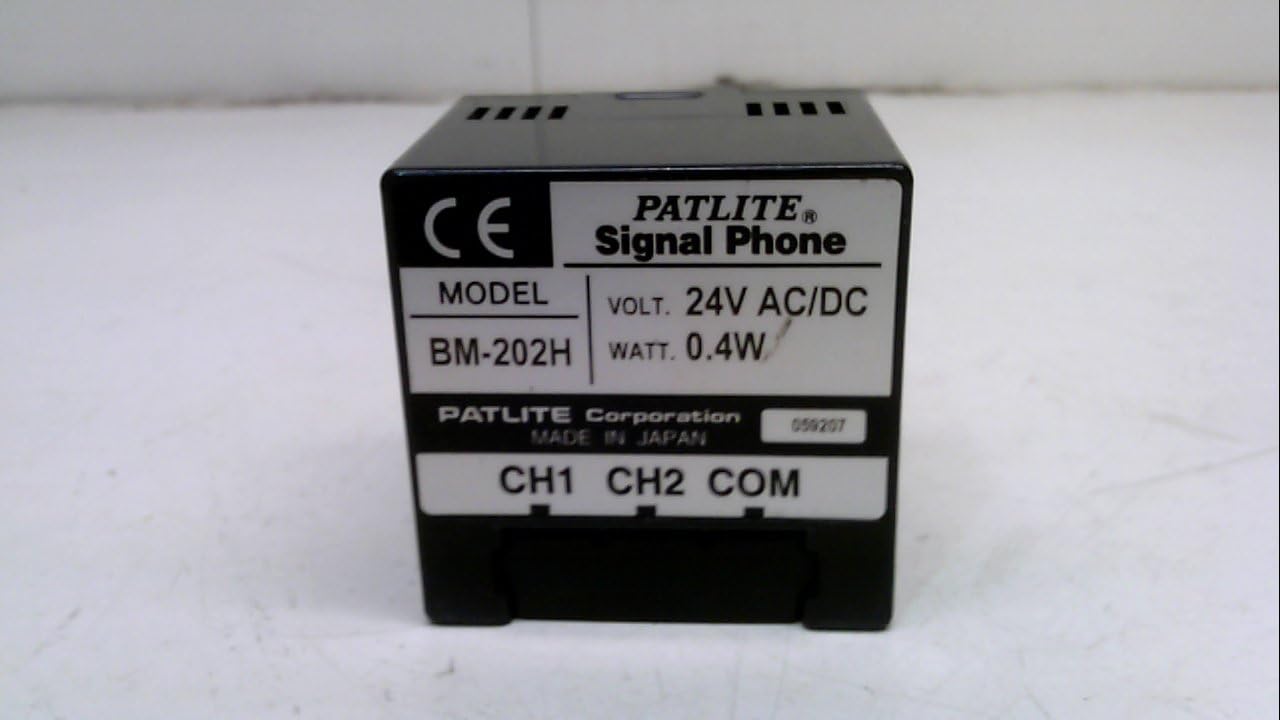

ചിത്രം 3: വശം View with Product Label. This image shows the side of the Patlite BM-202H, featuring a label that clearly indicates the model number (BM-202H), voltage (24V AC/DC), wattage (0.4W), and connection terminals (CH1, CH2, COM). The label also states 'PATLITE Corporation MADE IN JAPAN'.

4. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും

4.1 ഇൻസ്റ്റാളേഷന് മുമ്പ്

• Unpack the BM-202H and inspect it for any visible damage.
• Ensure all necessary tools and wiring materials are available.
• Confirm the installation environment is suitable (e.g., away from excessive heat, moisture, or vibration).

4.2. വയറിംഗ്

The BM-202H requires a 24V AC/DC power supply and features connection terminals labeled CH1, CH2, and COM. These terminals are typically used for signal input and common ground connections.

1. Ensure the power supply is disconnected before beginning any wiring.
2. Connect the 24V AC or DC power supply to the appropriate power input terminals (refer to the product label for exact polarity if DC).
3. Connect the common (COM) terminal to the system's common ground.
4. Connect signal input lines to CH1 and CH2 as required by your application. These channels typically trigger different audio signals or functions.
5. Secure all wiring connections to prevent accidental disconnection.
6. Once wiring is complete, carefully restore power and test the unit's functionality.

5. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

The Patlite BM-202H Signal Phone is designed for straightforward operation, primarily functioning as an audio output device triggered by external signals.

• പവർ ഓൺ: Once correctly wired and power is supplied, the unit is ready for operation.
• സിഗ്നൽ ഇൻപുട്ട്: The unit will emit an audible signal when a trigger is received on its CH1 or CH2 input terminals. The specific audio pattern or message may vary based on the signal input configuration.
• ഓഡിയോ ഔട്ട്പുട്ട്: Sound is emitted from the front speaker grille. Ensure the grille is not obstructed for optimal sound clarity.
• വോളിയം ക്രമീകരണം: If applicable, adjust the volume using any integrated controls. (Note: Specific volume controls are not detailed in product specifications; assume fixed volume unless otherwise indicated by the manufacturer).

6. പരിപാലനം

Regular maintenance helps ensure the longevity and reliable performance of your Patlite BM-202H Signal Phone.

• വൃത്തിയാക്കൽ: Gently wipe the exterior of the unit with a soft, dry cloth. Do not use abrasive cleaners, solvents, or excessive moisture.
• പരിശോധന: Periodically inspect the wiring connections for any signs of wear, corrosion, or looseness. Ensure the unit is securely mounted.
• പരിസ്ഥിതി പരിശോധന: Verify that the operating environment remains within specified conditions (temperature, humidity, dust levels).
• സ്പീക്കർ ഗ്രിൽ: Ensure the speaker grille is free from dust and debris to maintain clear audio output.

7. പ്രശ്‌നപരിഹാരം

If you encounter issues with your BM-202H, refer to the following table for common problems and solutions.

8 സ്പെസിഫിക്കേഷനുകൾ

• മോഡൽ: BM-202H
• ബ്രാൻഡ്: പാട്ലൈറ്റ്
• വാല്യംtage: 24 വി എസി / ഡിസി
• വാട്ട്tage: 0.4W
• ഉൽപ്പന്ന അളവുകൾ (L x W x H): 0.31 x 0.31 x 0.24 ഇഞ്ച് (0.79 x 0.79 x 0.61 സെ.മീ)
• ഇനത്തിൻ്റെ ഭാരം: 1.67 പൗണ്ട് (0.76 കി.ഗ്രാം)
• മെറ്റീരിയൽ: ചെമ്പ് (ആന്തരിക ഘടകങ്ങൾ)
• നിർമ്മാതാവ്: പാട്ലൈറ്റ്

9. വാറൻ്റിയും പിന്തുണയും

For warranty information, technical support, or service inquiries, please contact your authorized Patlite distributor or visit the official Patlite webസൈറ്റ്. വാങ്ങിയതിന്റെ തെളിവായി നിങ്ങളുടെ വാങ്ങൽ രസീത് സൂക്ഷിക്കുക.
