1. ആമുഖം
This user manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your Yato Professional Reversible Ratchet Tap Wrench, model YT-2989. This tool is designed for threading operations with taps ranging from M3 to M10.
പ്രധാന സവിശേഷതകളിൽ ഇവ ഉൾപ്പെടുന്നു:
- Ratchet reverse and forward action for efficient tapping.
- Compact 85 mm length for working in confined spaces.
- Durable polished chrome finish for enhanced rust resistance.
- T-handled design for comfortable grip and leverage.

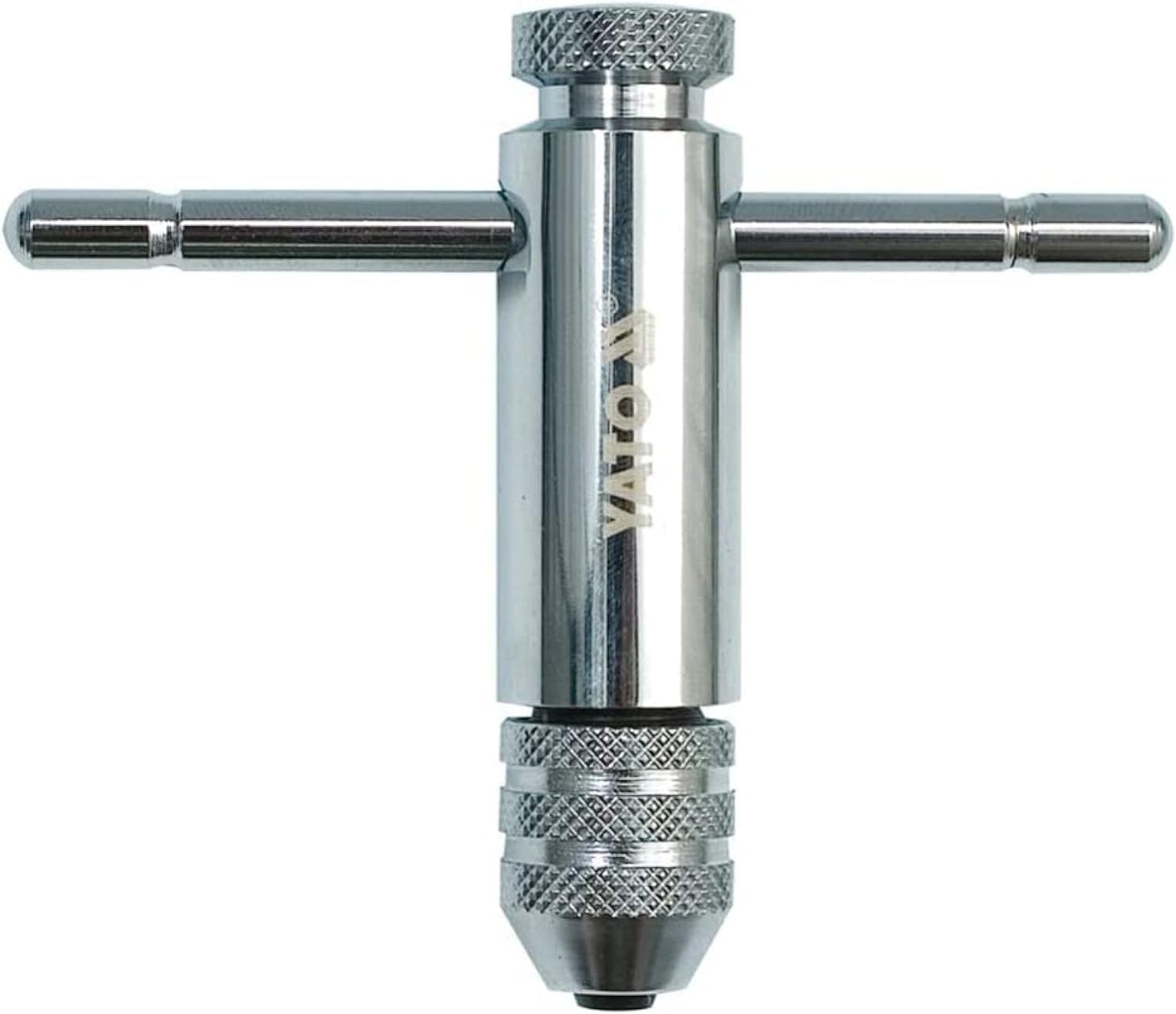

Figure 1: The Yato Professional Reversible Ratchet Tap Wrench (Model YT-2989). This image shows the full view of the T-handled tap wrench with its polished chrome finish and knurled chuck.
2. സജ്ജീകരണം
Before using the tap wrench, ensure you have the correct tap size for your application (M3-M10). Always wear appropriate personal protective equipment, including safety glasses.
2.1. Inserting a Tap
- Locate the chuck at the end of the tap wrench.
- kn തിരിക്കുകurled collar of the chuck counter-clockwise to open the jaws.
- Insert the square drive end of the tap into the chuck jaws. Ensure the tap is seated firmly and straight.
- kn തിരിക്കുകurled collar clockwise to tighten the jaws securely around the tap. Ensure the tap is held firmly and does not wobble.
ചിത്രം 2: ക്ലോസപ്പ് view of the tap wrench's chuck mechanism. This image highlights the knurled collar and the jaws where the tap is inserted.
3. പ്രവർത്തന നിർദ്ദേശങ്ങൾ
3.1. Selecting Ratchet Direction
The Yato tap wrench features a reversible ratchet mechanism. A small lever or switch is located near the chuck. Move this lever to select the desired direction:
- Forward (Clockwise): For cutting new threads.
- Reverse (Counter-clockwise): For backing out the tap or clearing chips.
- ലോക്ക് ചെയ്ത സ്ഥാനം: For fixed operation without ratcheting.
3.2. Threading Procedure
- Drill a pilot hole of the correct size for the tap you are using. Refer to standard tap drill charts for accurate sizing.
- Apply a suitable cutting fluid to the tap and the workpiece.
- Position the tap wrench with the tap perpendicular to the workpiece.
- Apply light, even pressure and rotate the wrench clockwise (for right-hand threads).
- After every half to full turn, reverse the tap wrench slightly (about a quarter turn counter-clockwise) to break off chips and prevent binding.
- Continue this process until the desired thread depth is achieved.
- Once threading is complete, switch the ratchet to reverse and carefully back out the tap from the workpiece.
4. പരിപാലനം
Proper maintenance ensures the longevity and optimal performance of your tap wrench.
- വൃത്തിയാക്കൽ: After each use, wipe the wrench clean with a dry cloth to remove any metal chips, cutting fluid residue, or dirt.
- ലൂബ്രിക്കേഷൻ: Periodically apply a light machine oil to the ratchet mechanism and chuck jaws to ensure smooth operation and prevent corrosion.
- സംഭരണം: Store the tap wrench in a dry environment to prevent rust. Keep it away from corrosive chemicals.
- പരിശോധന: Regularly inspect the chuck jaws for wear or damage. Ensure the ratchet mechanism operates smoothly and locks securely in all positions.
5. പ്രശ്നപരിഹാരം
| പ്രശ്നം | സാധ്യമായ കാരണം | പരിഹാരം |
|---|---|---|
| Tap not holding securely in chuck | Chuck jaws worn or not tightened sufficiently. Incorrect tap size for wrench capacity. | Ensure tap is within M3-M10 range. Tighten chuck firmly. Inspect jaws for damage; replace wrench if jaws are excessively worn. |
| Ratchet mechanism sticking or not engaging | Lack of lubrication. Dirt or debris in mechanism. | Clean the mechanism thoroughly. Apply light machine oil. |
| Difficulty turning tap | Incorrect pilot hole size. Lack of cutting fluid. Tap dull or damaged. Excessive pressure. | Verify pilot hole size. Use appropriate cutting fluid. Replace dull tap. Apply steady, even pressure, not excessive force. |
6 സ്പെസിഫിക്കേഷനുകൾ
| ആട്രിബ്യൂട്ട് | വിശദാംശങ്ങൾ |
|---|---|
| ബ്രാൻഡ് | യാറ്റോ |
| മോഡൽ നമ്പർ | YT-2989 |
| Tap Size Capacity | M3-M10 |
| മൊത്തത്തിലുള്ള ദൈർഘ്യം | 85 മി.മീ |
| മെറ്റീരിയൽ | ക്രോം വനേഡിയം സ്റ്റീൽ |
| ഫിനിഷ് തരം | പോളിഷ് ചെയ്ത Chrome |
| ഇനത്തിൻ്റെ ഭാരം | 0.18 കിലോഗ്രാം (ഏകദേശം 6.2 ഔൺസ്) |
| ഓപ്പറേഷൻ മോഡ് | Mechanical, Reversible Ratchet |
Figure 3: Yato Tap Wrench Model and Size Chart. This table provides details on various Yato tap wrench models, including YT-2989, and their respective tap size capacities and lengths.
7. വാറൻ്റിയും പിന്തുണയും
For warranty information or technical support regarding your Yato Professional Reversible Ratchet Tap Wrench, please refer to the official Yato website or contact your point of purchase. Keep your purchase receipt as proof of purchase.
While specific warranty details are not provided in this manual, Yato products are generally covered by a manufacturer's warranty against defects in materials and workmanship. For detailed terms and conditions, please visit the manufacturer's official support channels.
For further assistance, you may contact the seller, EFI Global Store USA, through the Amazon platform if purchased there.
