1. ആമുഖം
This manual provides essential information for the installation, operation, and maintenance of the Ferroli PCB VMF3, part number 39800070. This Printed Circuit Board (PCB) is a critical component designed for use in specific Ferroli boiler systems, ensuring proper control and functionality.
അനുയോജ്യത: This PCB is suitable for the Ferroli Combi 76FF boiler model.

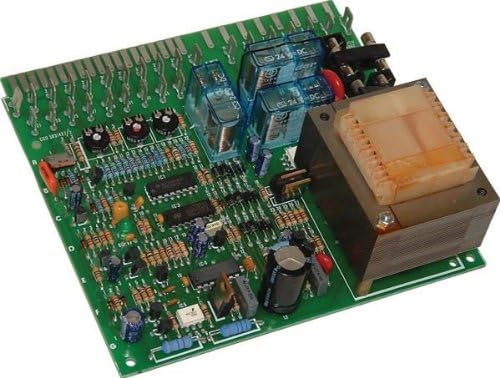

Figure 1: Ferroli PCB VMF3 39800070. This image displays the green circuit board populated with numerous electronic components such as resistors, capacitors, integrated circuits, and a prominent transformer unit.
2. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും
Installation of the PCB VMF3 should only be performed by a qualified and competent person, such as a certified heating engineer or electrician. Incorrect installation can lead to damage to the boiler, property, or personal injury.
2.1 സുരക്ഷാ മുൻകരുതലുകൾ
- അപായം: Always ensure the main power supply to the boiler is completely disconnected and isolated before commencing any work. Verify with a suitable voltagഇ ടെസ്റ്റർ.
- Wear appropriate personal protective equipment (PPE), including anti-static gloves, to prevent electrostatic discharge (ESD) damage to the PCB.
- Handle the PCB by its edges to avoid touching components or connectors.
- ജോലിസ്ഥലം വൃത്തിയായും തടസ്സങ്ങളില്ലാതെയും സൂക്ഷിക്കുക.
2.2 ഇൻസ്റ്റലേഷൻ ഘട്ടങ്ങൾ
- Access the Boiler: Carefully open the boiler casing to gain access to the existing PCB. Refer to your boiler's specific service manual for instructions on accessing internal components.
- Disconnect Old PCB: Systematically disconnect all wiring harnesses and connectors from the old PCB. Take photographs or make detailed diagrams of the connections for accurate reassembly.
- പഴയ PCB നീക്കം ചെയ്യുക: Unfasten any screws or clips securing the old PCB in place and carefully remove it.
- പുതിയ PCB ഇൻസ്റ്റാൾ ചെയ്യുക: Position the new Ferroli PCB VMF3 (39800070) in the designated slot. Ensure it is correctly aligned with mounting points.
- Secure New PCB: Fasten the new PCB using the original screws or clips. Ensure it is securely mounted and does not wobble.
- വയറിംഗ് വീണ്ടും ബന്ധിപ്പിക്കുക: Carefully reconnect all wiring harnesses and connectors to the new PCB, following your previously made diagrams or photographs. Double-check each connection for proper seating and polarity.
- Close Boiler Casing: Once all connections are verified, carefully close and secure the boiler casing.
- പവർ പുന ore സ്ഥാപിക്കുക: Restore the main power supply to the boiler.
- ടെസ്റ്റ് പ്രവർത്തനം: Initiate the boiler's normal operation sequence to confirm the new PCB is functioning correctly. Observe for any error codes or unusual behavior.
3. പ്രവർത്തന തത്വങ്ങൾ
The Ferroli PCB VMF3 (39800070) serves as the central control unit for the Ferroli Combi 76FF boiler. It manages and monitors various boiler functions, including:
- Ignition sequence and flame supervision.
- Temperature regulation for heating and domestic hot water.
- Pump control and fan operation.
- Safety interlocks and fault detection.
- Communication with user interface and external sensors.
Once installed, the PCB operates automatically in conjunction with the boiler's sensors and actuators to maintain desired heating and hot water parameters. User interaction typically occurs via the boiler's external control panel, which sends signals to the PCB.
4. പരിപാലനം
The PCB itself is generally a sealed unit and does not require routine user maintenance. However, ensuring the overall cleanliness and proper environment within the boiler can contribute to its longevity.
- Annual Servicing: It is highly recommended to have your boiler serviced annually by a qualified professional. During servicing, the engineer will inspect internal components, including the PCB, for signs of wear, corrosion, or dust accumulation.
- പരിസ്ഥിതി വ്യവസ്ഥകൾ: Ensure the boiler is installed in a dry, well-ventilated area, free from excessive dust, moisture, or extreme temperatures, which can negatively impact electronic components.
- വൃത്തിയാക്കൽ: If the boiler casing is opened for other maintenance, ensure no dust or debris accumulates on the PCB. Use a soft brush or compressed air (at low pressure) to gently remove any dust, ensuring the power is off.
5. പ്രശ്നപരിഹാരം
Issues related to the PCB often manifest as complete boiler failure, intermittent operation, or specific error codes displayed on the boiler's control panel. Due to the complexity and safety implications, troubleshooting and repair of the PCB should only be attempted by a qualified heating engineer.
5.1 Common Indicators of PCB Issues
- Boiler fails to ignite or ignites intermittently.
- No power to the boiler, even when the main supply is on.
- Incorrect temperature readings or erratic temperature control.
- Pump or fan not operating correctly.
- Specific error codes displayed on the boiler's interface that point to control board issues (refer to your boiler's user manual for error code definitions).
5.2 Recommended Action
If you suspect a problem with the PCB, it is crucial to:
- Consult Boiler Manual: Check your Ferroli Combi 76FF boiler's user manual for specific troubleshooting steps related to the displayed symptoms or error codes.
- ഒരു പ്രൊഫഷണലുമായി ബന്ധപ്പെടുക: Contact a Gas Safe registered (or equivalent local certified) heating engineer. They have the necessary tools, knowledge, and qualifications to safely diagnose and replace boiler components like the PCB.
- സ്വയം നന്നാക്കാൻ ശ്രമിക്കരുത്: Attempting to repair or replace a PCB without proper training and tools can be dangerous and may void your boiler's warranty.
6 സ്പെസിഫിക്കേഷനുകൾ
| ആട്രിബ്യൂട്ട് | മൂല്യം |
|---|---|
| ഭാഗം നമ്പർ | 39800070 |
| മോഡൽ | വിഎംഎഫ്3 |
| ബ്രാൻഡ് | ഫെറോലി |
| നിർമ്മാതാവ് | Boiler-Fans.com |
| ASIN | B00FSD59J6 |
| ആദ്യ തീയതി ലഭ്യമാണ് | ജൂൺ 16, 2014 |
| ബാറ്ററികൾ ഉൾപ്പെടുത്തിയിട്ടുണ്ടോ? | ഇല്ല |
| ബാറ്ററികൾ ആവശ്യമുണ്ടോ? | ഇല്ല |
7. വാറൻ്റിയും പിന്തുണയും
Information regarding the specific warranty period or direct support channels for the Ferroli PCB VMF3 (part number 39800070) is not provided in this document.
For warranty claims, technical support, or service inquiries, please contact the original supplier or a certified Ferroli service partner. Ensure you have your purchase details and the boiler's model and serial number available when contacting support.
8. അനുബന്ധ വീഡിയോകൾ
ഈ മാനുവലിൽ ഉൾപ്പെടുത്തുന്നതിന് വിൽപ്പനക്കാരന്റെ ഔദ്യോഗിക ഉൽപ്പന്ന വീഡിയോകളൊന്നും ലഭ്യമല്ല.
