3 എം 03625

3M Wrap and Repair Silicone Tape

ഇൻസ്ട്രക്ഷൻ മാനുവൽ

ഉൽപ്പന്നം കഴിഞ്ഞുview

The 3M Wrap and Repair Silicone Tape (Model 03625) is an innovative, adhesive-free tape engineered to create permanent, air and watertight seals. This self-fusing silicone tape is highly versatile, designed for a wide range of repair applications including hoses, electrical wiring, plumbing, and various tools. Its unique properties allow it to bond securely to itself, forming a durable and flexible barrier without the need for traditional adhesives or specialized tools.

It is built to withstand challenging conditions, offering resistance to extreme temperatures ranging from -85°F to 500°F, as well as friction and UV exposure. The tape's clear appearance ensures repairs are strong yet discreet.

3M Wrap and Repair Silicone Tape product packaging

Image: Front packaging of 3M Wrap and Repair Silicone Tape, showing the product and its key features.

സുരക്ഷാ വിവരങ്ങൾ

ഉൽപ്പന്ന ഘടകങ്ങൾ

The 3M Wrap and Repair Silicone Tape package includes:

3M Silicone Tape roll in hand

Image: A roll of 3M Wrap and Repair Silicone Tape, demonstrating its compact size and clear material.

സജ്ജീകരണവും തയ്യാറെടുപ്പും

Proper preparation is crucial for an effective and lasting repair.

  1. ഉപരിതലം വൃത്തിയാക്കുക: Thoroughly clean the surface to be repaired. Ensure it is dry and free of any dirt, grease, oil, or loose debris. A clean surface allows the tape to fuse properly to itself.
  2. Identify the Repair Area: Clearly identify the leak, hole, or area requiring reinforcement.

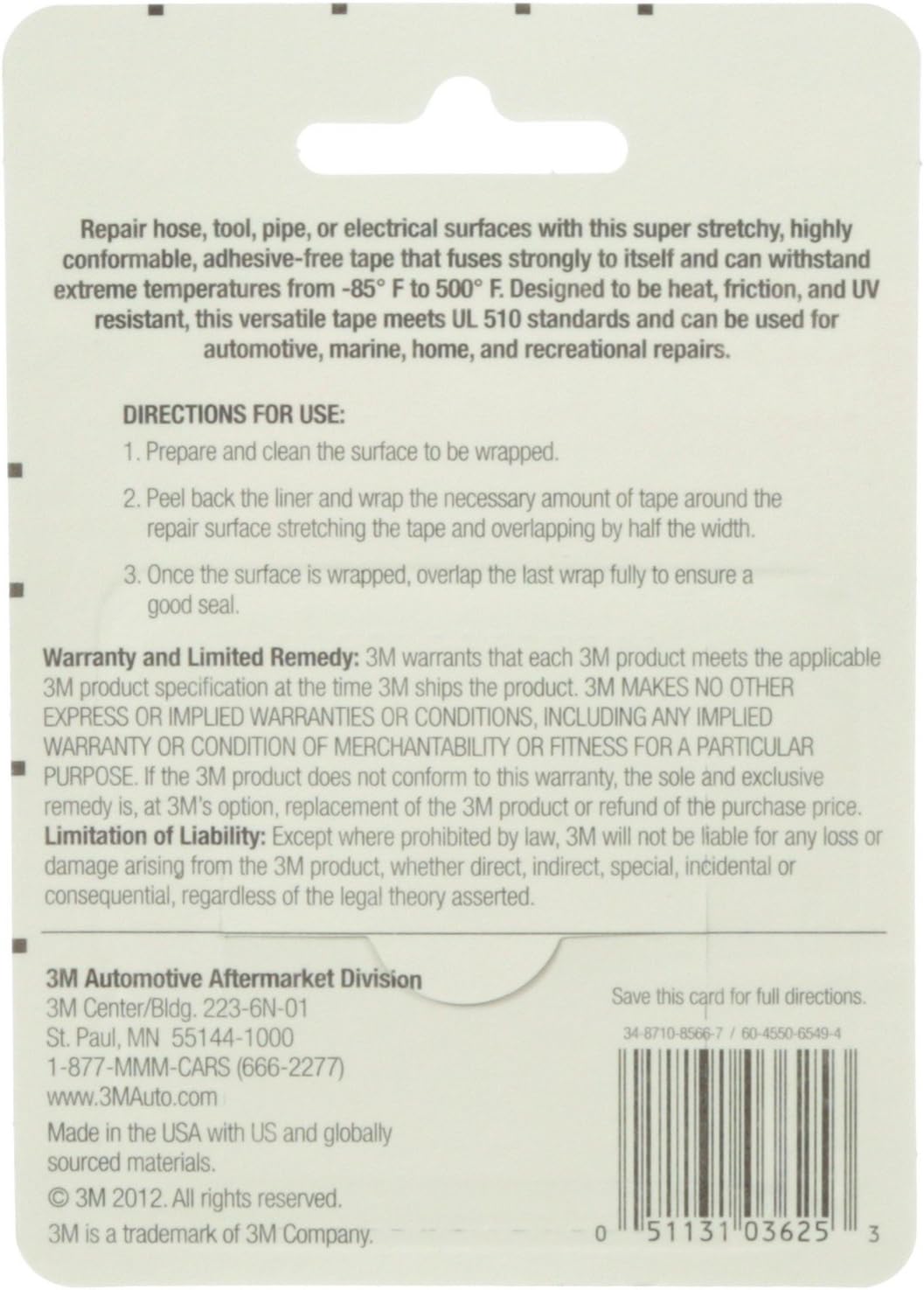

Back of 3M Silicone Tape packaging with directions

Image: Back of the 3M Wrap and Repair Silicone Tape packaging, showing detailed directions for use and warranty information.

പ്രവർത്തന നിർദ്ദേശങ്ങൾ (ആപ്ലിക്കേഷൻ)

Follow these steps for optimal application and a secure seal:

  1. Peel Back Liner: Begin by peeling back a small section of the protective liner from the tape. The tape is adhesive-free and bonds only to itself.
  2. Start Wrapping: Place the end of the tape onto the clean surface, starting approximately one inch away from the beginning of the area to be repaired.
  3. Stretch and Wrap: While wrapping, stretch the tape to approximately twice its original length. This stretching activates the self-fusing properties. Wrap the tape tightly around the repair area, overlapping each wrap by at least half the width of the tape. Continue wrapping until you have covered the entire repair area, extending at least one inch past the end of the damage.
  4. അവസാനം ഉറപ്പിക്കുക: Once the desired area is covered, ensure the final wrap is pulled taut and pressed firmly against the previous layer to ensure a good seal. The tape will fuse to itself, creating a permanent, air and watertight bond.
Applying 3M Silicone Tape to a pipe

Image: Demonstration of 3M Wrap and Repair Silicone Tape being applied to a pipe, showing the stretching and overlapping technique.

പരിപാലനവും ഈടും

The 3M Wrap and Repair Silicone Tape is designed for long-term performance and requires no specific maintenance after application. Its self-fusing nature creates a durable, permanent bond that is resistant to various environmental factors:

Regular inspection of the repaired area is recommended, especially in high-stress applications, to ensure the integrity of the seal over time.

ട്രബിൾഷൂട്ടിംഗ്

While the 3M Wrap and Repair Silicone Tape is highly effective, some common issues may arise:

പ്രശ്നം സാധ്യമായ കാരണം പരിഹാരം
Tape does not bond or leaks persist. Insufficient stretching during application; surface not clean; tape not overlapped enough; unsuitable surface (e.g., highly corrugated). Ensure tape is stretched to twice its length. Clean surface thoroughly. Overlap each wrap by at least half the tape's width. For highly corrugated surfaces, multiple layers or alternative solutions may be required.
Tape feels loose after application. Not enough tension applied during wrapping. Rewrap the area, ensuring consistent and firm tension throughout the application process.
Tape tears during application. Overstretching the tape beyond its elastic limit. Reduce the amount of stretch. The tape should be stretched to approximately twice its length, not to its breaking point.

സ്പെസിഫിക്കേഷനുകൾ

വാറൻ്റിയും പിന്തുണയും

3M products are manufactured to high standards. For specific warranty information and limited remedy details, please refer to the product packaging or contact 3M directly. Generally, 3M warrants that each 3M product meets the applicable 3M product specification at the time 3M ships the product. 3M MAKES NO OTHER EXPRESS OR IMPLIED WARRANTIES OR CONDITIONS, INCLUDING ANY IMPLIED WARRANTY OR CONDITION OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.

If the 3M product does not conform to this warranty, the sole and exclusive remedy is, at 3M's option, replacement of the 3M product or refund of the purchase price. Limitation of Liability: Except where prohibited by law, 3M will not be liable for any loss or damage arising from the 3M product, whether direct, indirect, special, incidental or consequential, regardless of the legal theory asserted.

For further assistance or inquiries, you may contact:

Note: Information regarding warranty and contact details is based on the product packaging (UPC: 0051131036253).
