ആമുഖം
This manual provides detailed instructions for the installation, operation, and maintenance of your BRINKS Stafford Privacy Door Knob. This product features Push Pull Rotate technology, allowing for hands-free operation, and is designed for interior doors requiring privacy locking, such as bedrooms and bathrooms.

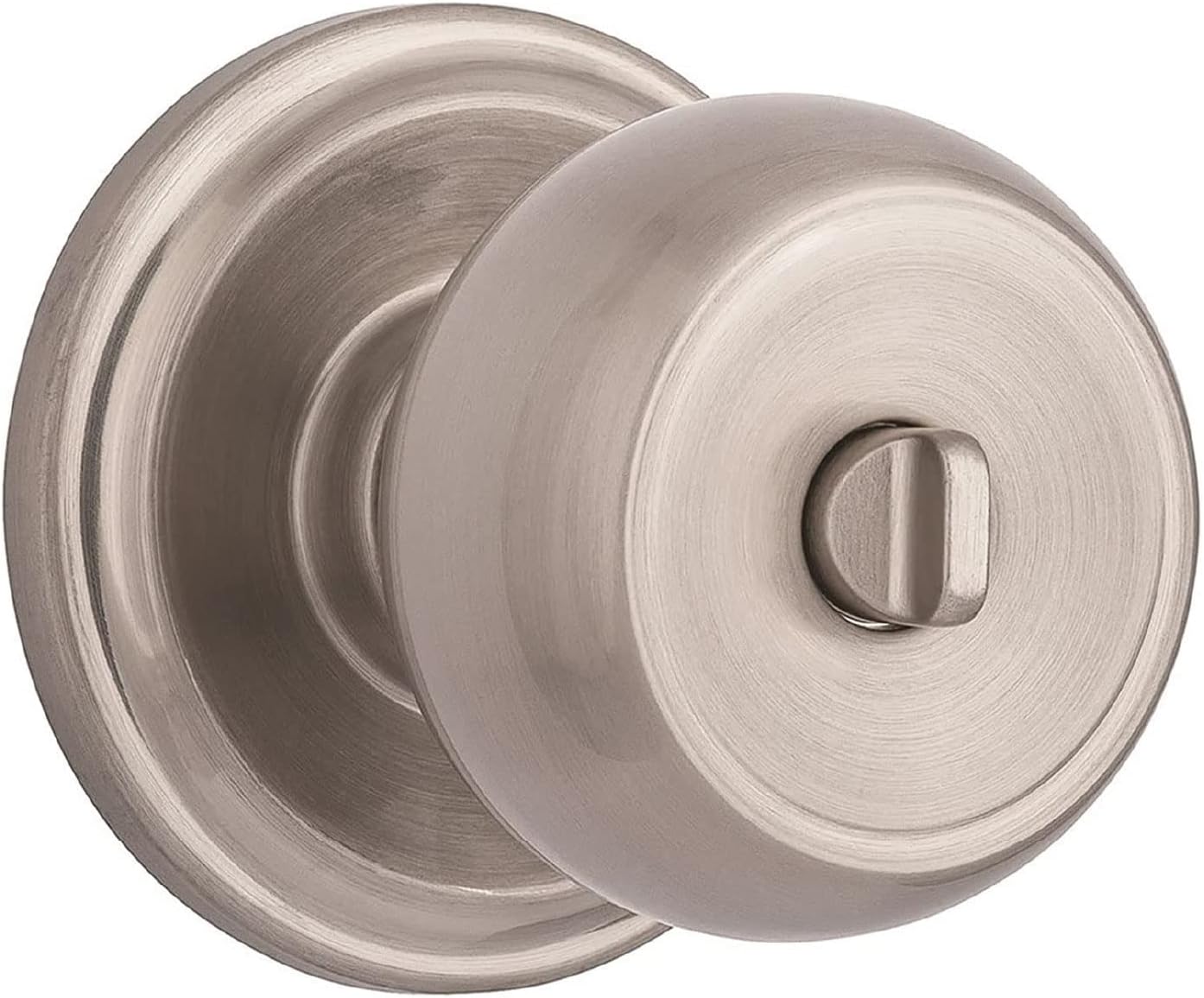

Image: BRINKS Stafford Privacy Door Knob in Satin Nickel finish, showing the complete assembly.
ഉൾപ്പെടുത്തിയ ഘടകങ്ങൾ
The BRINKS Stafford Privacy Door Knob package includes the following items:
- Brinks Push Pull Rotate Door Locks Stafford (complete assembly)
- മൗണ്ടിംഗ് സ്ക്രൂകൾ
- ലാച്ച് മെക്കാനിസം
- സ്ട്രൈക്ക് പ്ലേറ്റ്
- Privacy pin/tool
ചിത്രം: പൊട്ടിത്തെറിച്ചു view of the BRINKS door knob, illustrating components such as the knob, rose, and internal mechanism. Note the concealed screws for a decorative appearance, the steel-lined knob for strength, and the larger rose designed to cover blemishes from previous hardware.
സ്പെസിഫിക്കേഷനുകൾ
| ബ്രാൻഡ് | ബ്രിങ്ക്സ് |
| മോഡൽ നമ്പർ | 23021-119 |
| നിറം | സാറ്റിൻ നിക്കൽ |
| മെറ്റീരിയൽ | Plastic (Handle), Steel (Internal components) |
| എക്സ്റ്റീരിയർ ഫിനിഷ് | നിക്കൽ |
| ഉൽപ്പന്ന അളവുകൾ | 2.95"ലിറ്റർ x 2.95"വാട്ട് |
| ഇനത്തിൻ്റെ ഭാരം | 2.07 പൗണ്ട് |
| ലോക്ക് തരം | Privacy Knob with Push Pull Rotate (PPR) technology |
| കൈ ഓറിയൻ്റേഷൻ | ഉഭയകക്ഷി |
| ഇൻഡോർ/ഔട്ട്ഡോർ ഉപയോഗം | Indoor (Privacy function for in-swinging doors only) |
| ANSI Grading | Meets Grade 2 standards |
| വാതിൽ തയ്യാറാക്കൽ | Cross bore 2 1/8", edge bore 1", 1" x 2 1/4" latch mortise |
| ബാക്ക്സെറ്റ് | 2 3/8" or 2 3/4" |
| വാതിൽ കനം | 1 3/8" to 1 3/4" |
| സിലിണ്ടർ | KW1 standard, 5 pin (Note: This is a privacy knob, not an entry knob with a key cylinder for external locking. The mention of KW1 standard 5 pin refers to the internal locking mechanism if applicable, or is a generic spec from the product family.) |
| ചേസിസ് | സിലിണ്ടർ |
| മുഖംമൂടി | 2 1/4" Round corner |
| പണിമുടക്കുന്നു | 2 1/4" full rim standard |
| ബോൾട്ട് | 1/2" Throw |
| യു.പി.സി | 039208996150 |
Image: A detailed table outlining the specifications for BRINKS knobs, including door preparation, backset, door thickness, cylinder type, chassis, faceplate, strikes, bolt throw, and ANSI grading.
സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും
Installation of the BRINKS Stafford Privacy Door Knob is designed to be straightforward and typically requires only a Phillips screwdriver. It fits all standard doors. Please follow these general steps:
- വാതിൽ തയ്യാറാക്കുക: Ensure your door has the correct cross bore (2 1/8"), edge bore (1"), and latch mortise (1" x 2 1/4").
- ലാച്ച് ഇൻസ്റ്റാൾ ചെയ്യുക: Insert the latch mechanism into the edge bore of the door. Secure it with screws, but do not fully tighten them yet.
- Install the Exterior Knob: Place the exterior knob assembly through the cross bore, ensuring the spindle aligns with the latch mechanism.
- ഇന്റീരിയർ നോബ് ഇൻസ്റ്റാൾ ചെയ്യുക: Attach the interior knob assembly, aligning it with the exterior knob and latch.
- അസംബ്ലി സുരക്ഷിതമാക്കുക: Use the provided screws to connect the interior and exterior knob assemblies. Ensure the latch tail prongs are properly engaged.
- സ്ക്രൂകൾ മുറുക്കുക: Once the main lock body is threaded through the latch tail prongs, fully tighten all screws, including those for the latch faceplate.
- ടെസ്റ്റ് ഓപ്പറേഷൻ: Before closing the door, test the privacy lock function and the Push Pull Rotate mechanism to ensure smooth operation.
പ്രധാന കുറിപ്പ്: The product features 3" diameter roses designed to hide blemishes from old hardware. Removable interior knobs facilitate scratch-free installation.
Image: A close-up of a Phillips screwdriver bit, emphasizing the ease of installation with minimal tools.
പ്രവർത്തന നിർദ്ദേശങ്ങൾ
The BRINKS Stafford Privacy Door Knob incorporates innovative Push Pull Rotate technology for convenient access. This privacy knob is designed for interior doors and can be locked from the inside.
Hands-Free Operation (Push Pull Rotate)
This door knob offers three methods for opening without grasping and turning the knob:
- Push It: Apply pressure to the knob with an elbow, hip, or other body part to push the door open. This is ideal when your hands are full.
- Pull It: Hook the knob with a finger or wrist and pull to open the door.
- Rotate It: For traditional operation, grasp and rotate the knob to open the door.
Push It
Pull It
Rotate It
Images: Illustrations demonstrating the three methods of opening the door knob: pushing with a hand, pulling with fingers, and rotating the knob traditionally.
സ്വകാര്യത ലോക്കിംഗ്
To engage the privacy lock, locate the small button or turn-piece on the interior side of the knob. Press or turn this mechanism to lock the door. To unlock, simply turn the interior knob or use the emergency release tool (if provided) from the exterior side.
Image: The BRINKS Stafford Privacy Door Knob, highlighting its ADA compliance and the Push Pull Rotate functionality with illustrative icons.
മെയിൻ്റനൻസ്
To ensure the longevity and smooth operation of your BRINKS Stafford Privacy Door Knob, follow these simple maintenance guidelines:
- വൃത്തിയാക്കൽ: Wipe the knob and rose with a soft, damp cloth. Avoid abrasive cleaners or harsh chemicals, as these can damage the finish.
- ലൂബ്രിക്കേഷൻ: If the mechanism feels stiff over time, apply a small amount of graphite lubricant or a silicone-based spray lubricant to the latch bolt and internal moving parts. Do not use oil-based lubricants as they can attract dust and grime.
- ദൃഢത പരിശോധന: Periodically check all mounting screws for tightness. Loose screws can affect the knob's performance and durability.
ട്രബിൾഷൂട്ടിംഗ്
If you encounter issues with your BRINKS Stafford Privacy Door Knob, refer to the following common problems and solutions:
| പ്രശ്നം | സാധ്യമായ കാരണം | പരിഹാരം |
|---|---|---|
| Knob feels loose or wobbly. | Mounting screws are loose; incorrect knob distance selection during installation. | Tighten all visible mounting screws. Ensure the correct knob distance was selected during installation as per the original instructions. If not, re-install. |
| വാതിൽ ശരിയായി കുറ്റിയിട്ടിട്ടില്ല. | Strike plate misalignment; latch bolt sticking. | Check the alignment of the strike plate on the door frame. Adjust if necessary. Lubricate the latch bolt. |
| Privacy lock mechanism is stiff or not engaging. | Internal mechanism requires lubrication; debris in the lock. | Apply graphite or silicone lubricant to the privacy lock mechanism. Ensure no debris is obstructing the movement. |
| Push/Pull function is difficult or ineffective. | High friction from the closing latch; improper installation. | Ensure the latch operates smoothly and the strike plate is not causing excessive friction. Re-check installation steps, especially the alignment of the latch and knob. |
വാറൻ്റി വിവരങ്ങൾ
BRINKS provides a ആജീവനാന്ത വാറൻ്റി for defects in material or workmanship for the Stafford Privacy Door Knob. For warranty claims or further details, please refer to the official BRINKS webസൈറ്റ് അല്ലെങ്കിൽ ഉപഭോക്തൃ പിന്തുണയുമായി ബന്ധപ്പെടുക.
ഉപഭോക്തൃ പിന്തുണ
For additional assistance, technical support, or to inquire about replacement parts, please visit the official BRINKS website or contact their customer service department. You can often find contact information on the product packaging or the manufacturer's webസൈറ്റ്.
നിർമ്മാതാവ്: Hampടൺ ഉൽപ്പന്നങ്ങൾ
ഓൺലൈൻ ഉറവിടങ്ങൾ: www.brinks.com
