1. ആമുഖം
The PulseTech PRO-12-RP RediPulse12 Station Battery Maintenance System is designed to maintain up to twelve 12-volt lead-acid batteries, ensuring they remain fully charged and in optimal condition. This system utilizes patented Pulse Technology to prevent and reverse battery sulfation, extending battery life and maintaining peak performance. It is ideal for keeping new and lightly used batteries factory fresh during storage.
Figure 1: The PulseTech PRO-12-RP RediPulse12 Battery Maintenance System, showing the main unit with multiple battery leads connected.
2 പ്രധാനപ്പെട്ട സുരക്ഷാ വിവരങ്ങൾ
Read all instructions carefully before using the PulseTech PRO-12-RP. Failure to follow these safety guidelines may result in injury or damage to the product or property.
- Risk of Explosive Gas: Batteries generate explosive gases during normal operation. Ensure adequate ventilation when using the system.
- കണക്ഷൻ: Connect and disconnect battery leads only when the supply cord is disconnected from the AC outlet.
- വാഹന ഉപയോഗം: Do not install or use this product in vehicles.
- അമിത ചാർജിംഗ്: ബാറ്ററികൾ അമിതമായി ചാർജ് ചെയ്യരുത്.
- Smoking/Sparks: Do not smoke or allow sparks or flames near the battery or the maintenance system.
- വെൻ്റിലേഷൻ: Always operate the system in a well-ventilated area.
- Damaged Cords/Wires: Do not use if the supply cord, output cords, or wires are damaged. Replace defective cords or wires immediately.
- ബാറ്ററി അവസ്ഥ: This unit is not designed for batteries below 11.5 volts or heavily sulfated batteries. Such batteries should be recharged with a standard charger first.
3 പ്രധാന സവിശേഷതകൾ
- Multi-Battery Maintenance: Maintains up to twelve 12-volt lead-acid batteries simultaneously.
- Continuous Low Amp ചാർജ്ജ്: Provides a continuous low amperage charge to offset a battery's natural discharge rate, keeping batteries fully charged.
- Patented Pulse Technology: Reverses and prevents the buildup of lead-sulfate deposits on battery plates, which is a primary cause of battery failure. This technology extends battery life and ensures optimal performance.
- സ്പാർക്ക് രഹിത കണക്ഷൻ: Engineered to prevent sparking between battery leads during connection.
- Plug and Play Technology: Designed for ease of use with simple connection procedures.
- കേൾക്കാവുന്ന അലാറം: An audible alarm sounds if a battery is connected improperly, providing immediate feedback for correct setup.
- LED സൂചകങ്ങൾ: Individual LEDs for each battery connection indicate the condition of each battery, showing when it is charging or ready for use.
Figure 2: The RediPulse12 system connected to multiple 12-volt lead-acid batteries, demonstrating its capacity to maintain up to twelve batteries.
Figure 3: The RediPulse12 unit highlighting its user-friendly 'plug and play' design for easy setup and operation.
Figure 4: Close-up of the RediPulse12 showing the LED indicators, which provide visual feedback on the charge status of each connected battery.
4. സജ്ജീകരണ നിർദ്ദേശങ്ങൾ
Follow these steps to set up your PulseTech PRO-12-RP system:
- പ്ലേസ്മെൻ്റ്: Place the RediPulse12 unit in a dry, well-ventilated area, away from direct sunlight or heat sources. Ensure it is not installed in a vehicle.
- ബാറ്ററി തയ്യാറാക്കൽ: Ensure the 12-volt lead-acid batteries you intend to maintain are clean and in good working order. For deeply discharged batteries (below 11.5 volts) or heavily sulfated batteries, it is recommended to fully charge them with a standard battery charger before connecting to the RediPulse12.
- Connect Battery Leads: Connect the RediPulse12's output leads to the terminals of each battery. Ensure the red clamp പോസിറ്റീവ് (+) ടെർമിനലിലേക്കും കറുത്ത cl യിലേക്കും ബന്ധിപ്പിക്കുന്നുamp connects to the negative (-) terminal. The system is designed to prevent sparking during connection.
- കണക്ഷൻ സ്ഥിരീകരിക്കുക: After connecting each battery, check the corresponding LED indicator on the RediPulse12 unit. If an audible alarm sounds, a battery is connected improperly. Disconnect the power cord from the AC outlet, correct the connection, and then reconnect the power.
- പവർ കണക്ഷൻ: Once all batteries are correctly connected, plug the AC power cord of the RediPulse12 unit into a standard 120V AC wall outlet.
- Operation Confirmation: The LEDs for each connected battery should illuminate, indicating that the system is actively maintaining the batteries.
5. പ്രവർത്തന നിർദ്ദേശങ്ങൾ
The PulseTech PRO-12-RP operates automatically once connected and powered. It provides continuous maintenance to keep your batteries in optimal condition.
- Continuous Maintenance: The system delivers a continuous low-amp charge to counteract the natural self-discharge of batteries, ensuring they remain fully charged over extended periods.
- Pulse Technology: The patented Pulse Technology works continuously to desulfate battery plates, which helps to restore and maintain the battery's ability to accept and store charge.
- LED സൂചകങ്ങൾ: Each battery connection point has an LED. These LEDs provide visual feedback on the status of the individual battery. A lit LED indicates the battery is being maintained or is ready. Refer to the unit's label for specific LED meanings (e.g., "Battery is charging," "Battery is ready for use").
- കേൾക്കാവുന്ന അലാറം: If the system detects an improper connection (e.g., reverse polarity), an audible alarm will sound. Disconnect the unit from AC power, correct the battery connection, and then re-apply power.

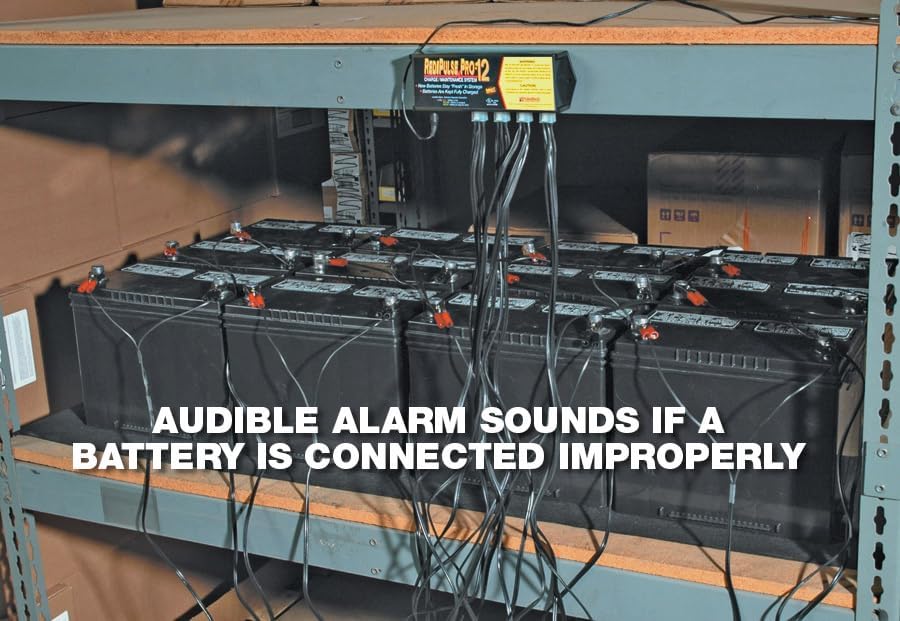

Figure 5: The RediPulse12 system actively maintaining batteries, illustrating the benefits of continuous low-amp charging and patented pulse technology for sulfation reversal.
6. പരിപാലനം
The PulseTech PRO-12-RP is designed for minimal maintenance. However, regular checks can ensure optimal performance and longevity of both the unit and your batteries.
- യൂണിറ്റ് വൃത്തിയാക്കൽ: Keep the unit clean and free from dust and debris. Use a dry cloth to wipe the exterior. Do not use liquid cleaners.
- കേബിൾ പരിശോധന: Periodically inspect all cables and connectors for any signs of wear, damage, or corrosion. Replace any damaged components immediately.
- ബാറ്ററി പരിശോധന: Regularly check the batteries being maintained. Ensure terminals are clean and free of corrosion. For flooded lead-acid batteries, check electrolyte levels and top up with distilled water if necessary, following battery manufacturer guidelines.
- വെൻ്റിലേഷൻ: Ensure the operating area remains well-ventilated to prevent the accumulation of explosive gases from batteries.
7. പ്രശ്നപരിഹാരം
This section addresses common issues you might encounter with your RediPulse12 system.
| പ്രശ്നം | സാധ്യമായ കാരണം | പരിഹാരം |
|---|---|---|
| No LEDs illuminate when connected to power and batteries. |
|
|
| Audible alarm sounds. | Improper battery connection (e.g., reverse polarity). | Disconnect AC power immediately. Correct the battery connection (red to positive, black to negative). Reconnect AC power. |
| Battery does not seem to be maintained or charged. |
|
|
8 സ്പെസിഫിക്കേഷനുകൾ
| ഫീച്ചർ | വിശദാംശങ്ങൾ |
|---|---|
| മോഡൽ നമ്പർ | PRO-12-RP |
| ബ്രാൻഡ് | പൾസ്ടെക് |
| ബാറ്ററി അനുയോജ്യത | 12-Volt Lead-Acid Batteries (VRLA, AGM, Gel, Flooded Cell) |
| Number of Batteries Maintained | 12 വരെ |
| ഇൻപുട്ട് വോളിയംtage | 120V AC (സ്റ്റാൻഡേർഡ് യുഎസ് ഔട്ട്ലെറ്റ്) |
| Putട്ട്പുട്ട് വോളിയംtage | 12 വോൾട്ട് ഡിസി |
| ഔട്ട്പുട്ട് കറൻ്റ് | Continuous Low Amp ചാർജ് ചെയ്യുക |
| സാങ്കേതികവിദ്യ | Patented Pulse Technology |
| അളവുകൾ (L x W x H) | 7.25 x 2.25 x 1 ഇഞ്ച് |
| ഇനത്തിൻ്റെ ഭാരം | 0.01 ഔൺസ് |
| നിർമ്മാതാവ് | പൾസ്ടെക് |
9. വാറണ്ടിയും പിന്തുണയും
For warranty information and customer support regarding your PulseTech PRO-12-RP RediPulse12 Station Battery Maintenance System, please refer to the documentation included with your product or visit the official PulseTech webസൈറ്റ്.
PulseTech Products is committed to providing high-quality battery maintenance solutions. For technical assistance, troubleshooting beyond this manual, or warranty claims, please contact PulseTech customer service directly.
കൂടുതൽ വിവരങ്ങളും ബന്ധപ്പെടാനുള്ള വിശദാംശങ്ങളും നിങ്ങൾക്ക് ഇവിടെ കണ്ടെത്താനാകും PulseTech Brand Store on Amazon or their official company webസൈറ്റ്.
