Crucial Carbon Pre-Filters Instruction Manual

ആമുഖം

This manual provides instructions for the proper installation and maintenance of Crucial Carbon Pre-Filters, designed for use with Whirlpool Air Purifier models AP300, AP350, AP450, and AP510. These pre-filters are essential for capturing larger particles and odors, extending the life of your main HEPA filter, and contributing to cleaner indoor air quality.

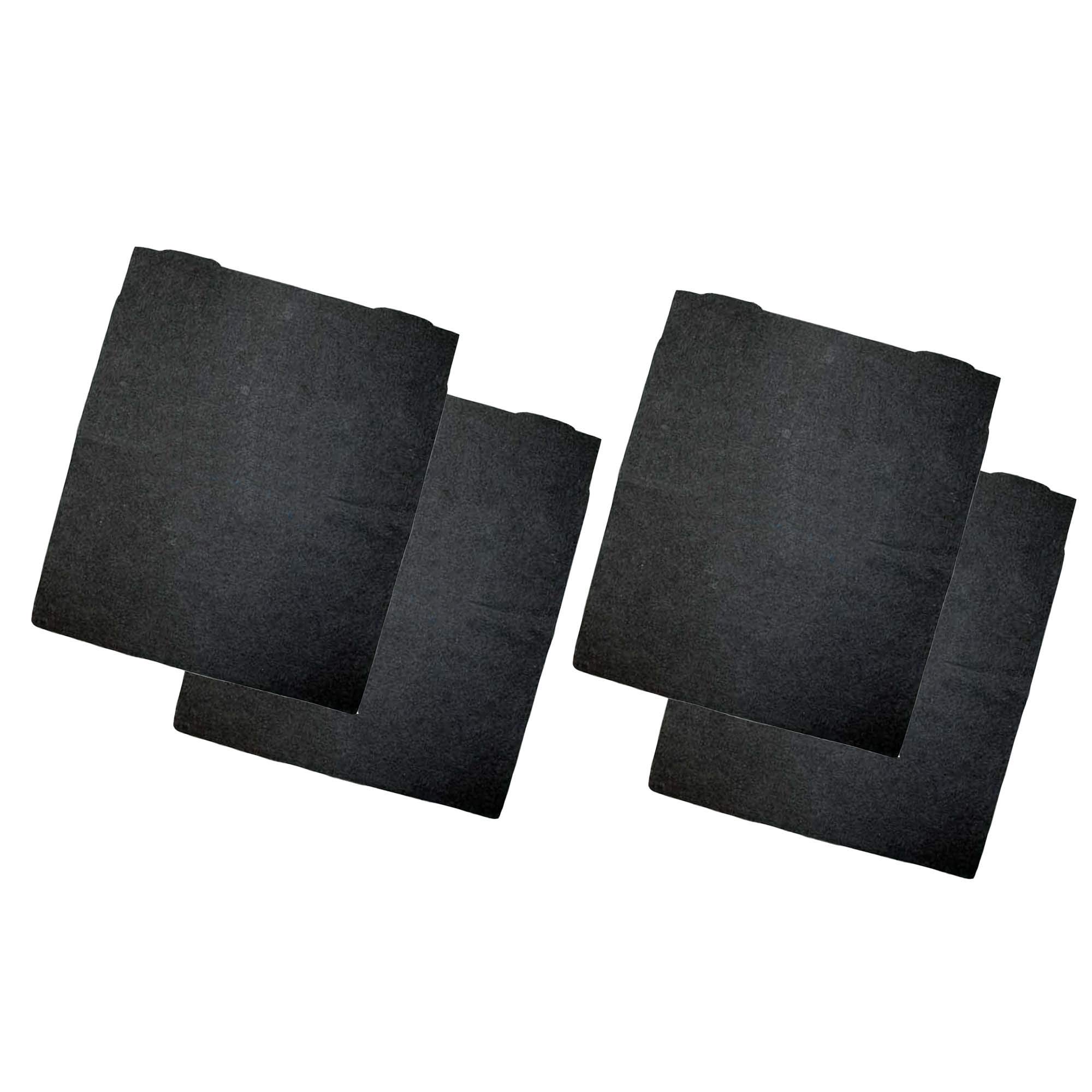

Image: A pack of four Crucial Carbon Pre-Filters.

സുരക്ഷാ വിവരങ്ങൾ

• Always unplug your air purifier from the power outlet before attempting any installation, removal, or maintenance of filters.
• Ensure the air purifier is stable and on a flat surface during filter replacement.
• Keep new and used filters out of reach of children and pets.

ഇൻസ്റ്റലേഷൻ ഗൈഡ്

Follow these steps to replace your carbon pre-filters. For a visual guide, please refer to the installation video below.

ഘട്ടം ഘട്ടമായുള്ള നിർദ്ദേശങ്ങൾ:

1. എയർ പ്യൂരിഫയർ അൺപ്ലഗ് ചെയ്യുക: Disconnect the air purifier from the electrical outlet to prevent accidental operation.
2. മുകളിലെ കവർ നീക്കം ചെയ്യുക: Locate the two small tabs on both sides of the air purifier's top cover. Gently squeeze these tabs and lift the top cover straight off.
3. Remove Old Pre-Filter: Carefully remove the used carbon pre-filter from its housing. Note how it is secured by small plastic tabs or slits.
4. Install New Pre-Filter: Place the new Crucial Carbon Pre-Filter into the designated area on the top cover. Ensure the filter is properly aligned and secured by inserting the plastic tabs into the corresponding slits around the filter's edges. This ensures the filter remains firmly in place during operation.
5. Reattach the Top Cover: Align the top cover with the main unit and gently press down until it snaps securely into place.
6. പ്ലഗ് ഇൻ ചെയ്‌ത് പ്രവർത്തിപ്പിക്കുക: Reconnect the air purifier to the power outlet. You may now resume normal operation.

ഇൻസ്റ്റാളേഷൻ വീഡിയോ:

പ്രവർത്തന നിർദ്ദേശങ്ങൾ

The Crucial Carbon Pre-Filters function as a primary filtration layer within your Whirlpool air purifier. They are designed to capture larger airborne particles such as dust, pet dander, and lint, while the activated carbon material helps to absorb common household odors. For detailed operating instructions of your specific Whirlpool air purifier model, please refer to the original manufacturer's manual.

മെയിൻ്റനൻസ്

Regular replacement of your carbon pre-filters is crucial for maintaining optimal air purifier performance and extending the lifespan of your main HEPA filter. The frequency of replacement depends on usage and environmental conditions.

• മാറ്റിസ്ഥാപിക്കൽ ആവൃത്തി: It is generally recommended to replace carbon pre-filters every 2-3 months, or more frequently in environments with high levels of dust, pet dander, or odors.
• Combined Replacement: For best results, consider replacing both the carbon pre-filter and the main HEPA filter at the same time, as recommended by your air purifier's manufacturer.
• Odor Absorption: The activated carbon in these filters is effective at trapping odors. If you notice a persistent odor, it may be an indication that the pre-filter needs to be replaced.

ട്രബിൾഷൂട്ടിംഗ്

If you encounter issues after installing your new pre-filters, consider the following:

• ഫിൽട്ടർ യോജിക്കുന്നില്ല: Double-check that the plastic tabs on the pre-filter are correctly inserted into the slits on the air purifier's top cover. Ensure you have the correct filter model for your specific Whirlpool air purifier.
• കുറഞ്ഞ വായുപ്രവാഹം: If airflow seems reduced after replacement, ensure the pre-filter is not obstructed and is installed correctly. A new pre-filter should improve, not reduce, airflow. If the issue persists, check the main HEPA filter for clogging.
• സ്ഥിരമായ ദുർഗന്ധം: If odors persist shortly after replacing the pre-filter, ensure the main HEPA filter is also clean and not saturated. In some cases, a deeper cleaning of the air purifier unit itself may be required.

For issues related to the air purifier's electronic functions or other components, consult your Whirlpool air purifier's original instruction manual.

സ്പെസിഫിക്കേഷനുകൾ

Image: Crucial Carbon Pre-Filter with approximate dimensions.

വാറൻ്റിയും പിന്തുണയും

This product is a generic replacement part manufactured by Crucial (Think Crucial) and is not an OEM (Original Equipment Manufacturer) product from Whirlpool. As such, it is not covered under any Whirlpool manufacturer's warranty.

For any questions, concerns, or support regarding your Crucial Carbon Pre-Filters, please contact the manufacturer, Think Crucial, directly. The use of the Whirlpool brand name or model designation for this product is made solely for purposes of demonstrating compatibility.
