GREENCUT GS620X Petrol Chainsaw User Manual

1. ആമുഖം

The GREENCUT GS620X is a robust and easy-to-handle felling chainsaw, equipped with a 20-inch guide bar. It offers an excellent power-to-weight ratio, making it suitable for various cutting tasks. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your chainsaw.

• Robust and Maneuverable: Designed for felling, featuring a 20-inch guide bar for ease of use.
• Consistent Power and Efficiency: Powered by a balanced 62cc, 3.8HP 2-stroke petrol engine, ideal for precise and rapid cuts.
• Automatic and Adjustable Lubrication: An automatic and adjustable oil pump ensures constant lubrication of the bar and chain, extending the chainsaw's lifespan.
• ആന്റി-വൈബ്രേഷൻ സിസ്റ്റം: Silent blocks reduce vibrations, ensuring stability and user comfort during extended operation.
• Easy and Quick Maintenance: Designed for easy access to the air filter, spark plug, and carburetor for simplified upkeep.

2 സുരക്ഷാ വിവരങ്ങൾ

Always prioritize safety when operating the chainsaw. Read and understand all safety warnings and instructions before use. Wear appropriate personal protective equipment (PPE), including eye protection, hearing protection, gloves, and sturdy footwear.

ചിത്രം: The GREENCUT GS620X chainsaw highlighting its safety locking mechanism. This feature prevents accidental startup, ensuring user safety and control.

The chainsaw is equipped with a safety ignition system, including a double safety button, to ensure a complete grip on the handle and prevent accidental starts.

3. ഘടകങ്ങൾ കഴിഞ്ഞുview

Familiarize yourself with the main components of your GREENCUT GS620X chainsaw for proper assembly and operation.

ചിത്രം: The complete GREENCUT GS620X Petrol Chainsaw, showcasing its 20-inch guide bar and ergonomic design.

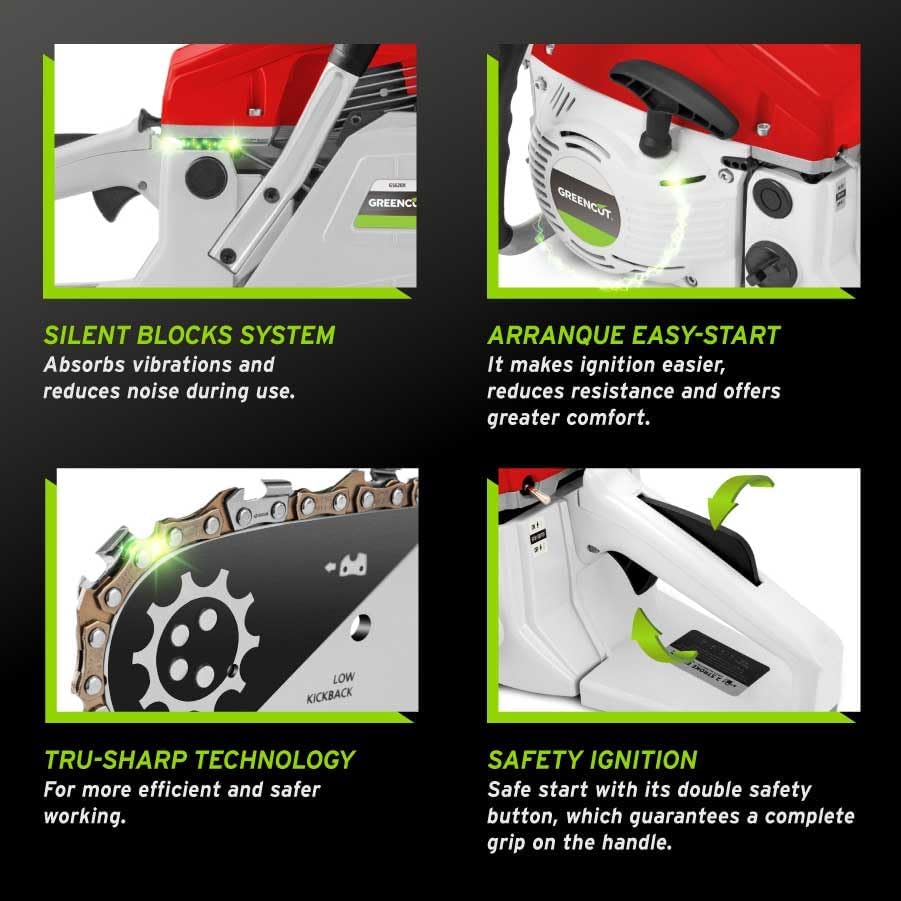

ചിത്രം: വിശദമായി view of key features including the Silent Blocks system for vibration absorption, Easy-Start ignition, TRU-SHARP technology for efficient cutting, and the safety ignition button.

4. സജ്ജീകരണം

Before first use, ensure all components are correctly assembled and fluids are at appropriate levels.

1. അസംബ്ലി: Follow the included assembly instructions for the guide bar and chain. Ensure all nuts and bolts are securely tightened.
2. ഇന്ധന മിശ്രിതം: The GS620X uses a 2-stroke engine. Prepare a proper fuel mixture of unleaded petrol and 2-stroke engine oil according to the manufacturer's recommended ratio (typically 4% oil for classic mixtures).
3. ചെയിൻ ഓയിൽ: Fill the chain oil reservoir with high-quality chain lubricant. The automatic and adjustable oil pump requires sufficient oil for proper chain and bar lubrication during operation.
4. ചെയിൻ ടെൻഷനിംഗ്: Proper chain tension is crucial for safe and efficient operation. Adjust the chain tension using the side chain tensioner. The chain should be snug but still able to be pulled freely around the guide bar by hand.

ചിത്രം: A hand adjusting the side chain tensioner, demonstrating how easily and quickly the chain can be adjusted for optimal performance.

5. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

Always ensure a clear work area and maintain a stable footing. Hold the chainsaw firmly with both hands.

1. ചെയിൻസോ ആരംഭിക്കുന്നു:
   • ചെയിൻസോ ഉറച്ചതും പരന്നതുമായ ഒരു പ്രതലത്തിൽ വയ്ക്കുക.
   • ചെയിൻ ബ്രേക്ക് ഇടുക.
   • Set the ignition switch to 'ON'.
   • Pull the choke lever (if cold start).
   • Use the Easy-Start system to pull the starter cord until the engine fires briefly.
   • Push the choke lever back in and pull the starter cord again until the engine runs smoothly.
   • Allow the engine to warm up for a few minutes before disengaging the chain brake and beginning work.
2. കട്ടിംഗ് ടെക്നിക്കുകൾ: The 20-inch guide bar and 62cc engine are ideal for cutting medium to large branches and for felling and pruning trees. Always plan your cuts to avoid kickback and ensure the wood is stable.

ചിത്രം: A user operating the GREENCUT GS620X chainsaw to cut a tree branch, demonstrating the power and precision in every cut.

ചിത്രം: A user demonstrating high precision and maximum efficiency while cutting a log with the chainsaw.

6. പരിപാലനം

Regular maintenance ensures the longevity and optimal performance of your chainsaw.

• വൃത്തിയാക്കൽ: After each use, clean the chainsaw, especially the guide bar groove and chain. Remove sawdust and debris.
• ചെയിൻ മൂർച്ച കൂട്ടൽ: Keep the chain sharp for efficient and safe cutting. Refer to the chain manufacturer's guidelines for sharpening angles and file വലിപ്പങ്ങൾ.
• എയർ ഫിൽട്ടർ: Regularly inspect and clean the air filter. Easy access is provided for this purpose. A clogged air filter can reduce engine performance.
• സ്പാർക്ക് പ്ലഗ്: Check the spark plug periodically for wear and proper gap. Replace if necessary. The design allows for easy access.
• കാർബ്യൂറേറ്റർ: While designed for easy access, carburetor adjustments should ideally be performed by a qualified technician if issues arise.
• Chain Oil System: Ensure the automatic oil pump is functioning correctly and the oil passages are clear.

ചിത്രം: The chainsaw positioned to show convenient access points for routine maintenance, including the air filter, spark plug, and carburetor.

7. പ്രശ്‌നപരിഹാരം

This section provides general guidance for common issues. For complex problems, consult a qualified service technician.

8 സ്പെസിഫിക്കേഷനുകൾ

9. വാറൻ്റിയും പിന്തുണയും

The GREENCUT GS620X chainsaw typically comes with a 3-year coverage. For specific warranty terms, claims, or technical support, please refer to the warranty card included with your product or contact Greencut customer service directly. Ensure you retain your proof of purchase for any warranty-related inquiries.
