ടൊയോട്ട 85330-50020 വിൻഡ്ഷീൽഡ് വാഷർ മോട്ടോറും പമ്പ് അസംബ്ലി ഇൻസ്ട്രക്ഷൻ മാനുവലും

1. ഉൽപ്പന്നം കഴിഞ്ഞുview

This manual provides instructions for the installation, operation, and maintenance of the Toyota 85330-50020 Windshield Washer Motor and Pump Assembly. This component is a genuine Original Equipment Manufacturer (OEM) part designed for direct fit and optimal performance in compatible Toyota vehicles.

പ്രധാന സവിശേഷതകൾ:

• Direct Fit: Engineered to match the original specifications of your vehicle.
• Genuine OEM Part: Ensures compatibility and reliability as supplied by the vehicle manufacturer.
• Quality Assurance: Guaranteed against poor workmanship and material defects.

ചിത്രം 1.1: മുൻഭാഗം view of the Toyota 85330-50020 Windshield Washer Motor and Pump Assembly. This image shows the main body of the pump with its electrical connector and fluid outlet.

2 സ്പെസിഫിക്കേഷനുകൾ

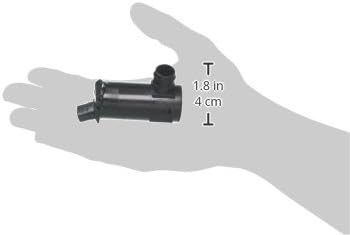

Image 2.1: Size comparison of the washer pump assembly held in a hand, indicating its compact dimensions (approximately 1.8 inches or 4 cm in height).

3. ഇൻസ്റ്റലേഷൻ നിർദ്ദേശങ്ങൾ

പ്രധാനപ്പെട്ടത്: Installation of automotive components can be complex. If you are not experienced with vehicle maintenance, it is recommended to seek professional assistance for installation to ensure proper function and safety.

This pump is typically located at the bottom of the windshield washer fluid reservoir.

1. തയ്യാറാക്കൽ: Ensure the vehicle is turned off and the ignition key is removed. Disconnect the negative terminal of the vehicle's battery for safety.
2. Access the Reservoir: Locate the windshield washer fluid reservoir. Depending on your vehicle model, this may require removing other components such as fender liners, headlights, or bumper covers.
3. ഡ്രെയിൻ ഫ്ലൂയിഡ്: If possible, drain the washer fluid from the reservoir.
4. ഇലക്ട്രിക്കൽ കണക്റ്റർ വിച്ഛേദിക്കുക: Carefully disconnect the electrical wiring harness from the existing washer pump.
5. ഹോസുകൾ നീക്കം ചെയ്യുക: Disconnect the washer fluid hoses from the pump. Be prepared for residual fluid to leak.
6. പഴയ പമ്പ് നീക്കം ചെയ്യുക: The pump is usually held in place by a rubber grommet. Gently pull or twist the old pump out of the reservoir.
7. Inspect and Replace Grommet: It is highly recommended to replace the rubber grommet (part number 90068-32002, if applicable for your vehicle) that seals the pump to the reservoir. Old grommets can become swollen or brittle, leading to leaks.
8. പുതിയ പമ്പ് ഇൻസ്റ്റാൾ ചെയ്യുക: Insert the new Toyota 85330-50020 pump into the reservoir, ensuring it is seated firmly and securely in the new grommet.
9. ഹോസുകളും ഇലക്ട്രിക്കലുകളും വീണ്ടും ബന്ധിപ്പിക്കുക: Reattach the washer fluid hoses and the electrical connector to the new pump. Ensure all connections are secure.
10. റിസർവോയർ വീണ്ടും നിറയ്ക്കുക: Fill the reservoir with appropriate windshield washer fluid.
11. ടെസ്റ്റ് പ്രവർത്തനം: Reconnect the vehicle battery. Turn on the ignition and test the windshield washer system to ensure the pump operates correctly and there are no leaks.

ചിത്രം 3.1: ആംഗിൾഡ് view of the Toyota 85330-50020 Windshield Washer Motor and Pump Assembly, showing the fluid inlet/outlet and electrical connection points. This view is helpful for identifying connection ports during installation.

4. ഓപ്പറേഷൻ

The Toyota 85330-50020 Windshield Washer Motor and Pump Assembly functions automatically when the vehicle's windshield washer system is activated. When the washer stalk or button is engaged, the pump draws fluid from the reservoir and delivers it under pressure through the washer nozzles onto the windshield.

Ensure the washer fluid reservoir is adequately filled for proper operation. Using appropriate washer fluid, especially in freezing conditions, is crucial for preventing damage to the system.

5. പരിപാലനം

• ദ്രാവക നില പരിശോധന: Regularly check the windshield washer fluid level and refill as needed.
• ദ്രാവക തരം: Use only recommended windshield washer fluid. Do not use plain water, especially in cold climates, as it can freeze and damage the pump or lines.
• ഹോസ് പരിശോധന: Periodically inspect the washer fluid hoses for cracks, leaks, or blockages.
• നോസൽ പരിശോധന: Ensure washer nozzles are clear and properly aimed for effective cleaning.

6. പ്രശ്‌നപരിഹാരം

If the windshield washer system is not functioning correctly after installation or during normal use, consider the following:

• No Fluid Spray:
  • Check washer fluid level in the reservoir.
  • Inspect for clogged washer nozzles.
  • Verify electrical connection to the pump.
  • Check for blown fuses related to the washer system.
  • Listen for pump operation when activated; if no sound, the pump may not be receiving power or is faulty.
• Weak Fluid Spray:
  • Check for partial clogs in nozzles or hoses.
  • Ensure hoses are not kinked or pinched.
  • Confirm the pump is securely seated and the grommet is not leaking, which could reduce pressure.
• ചോർച്ച:
  • Inspect the grommet seal between the pump and the reservoir.
  • Check hose connections for tightness.
  • Examine hoses for cracks or damage.

If troubleshooting steps do not resolve the issue, professional diagnosis and repair may be necessary.

7. വാറൻ്റിയും പിന്തുണയും

This Toyota Genuine Part is guaranteed against poor workmanship and material defects. For specific warranty terms and conditions, please refer to your vehicle's warranty documentation or contact an authorized Toyota service center.

For further assistance or technical support, please contact your local authorized Toyota dealership or a certified automotive technician.
