ഉൽപ്പന്നം കഴിഞ്ഞുview
The Moen 3814ORB Brantford Diverter Tub Spout is designed to restore your bathing area's functionality and aesthetic. Featuring an Oil-Rubbed Bronze finish, it offers a rich, dark brown appearance with striking light and dark accents, complementing traditional bathroom designs. This tub spout includes a lift rod for diverting water flow between the tub and a showerhead, ensuring versatile use.
Constructed from corrosion-resistant metal, this spout is built for durability and designed for straightforward installation. It accommodates most bathtubs with its 7.25-inch length.

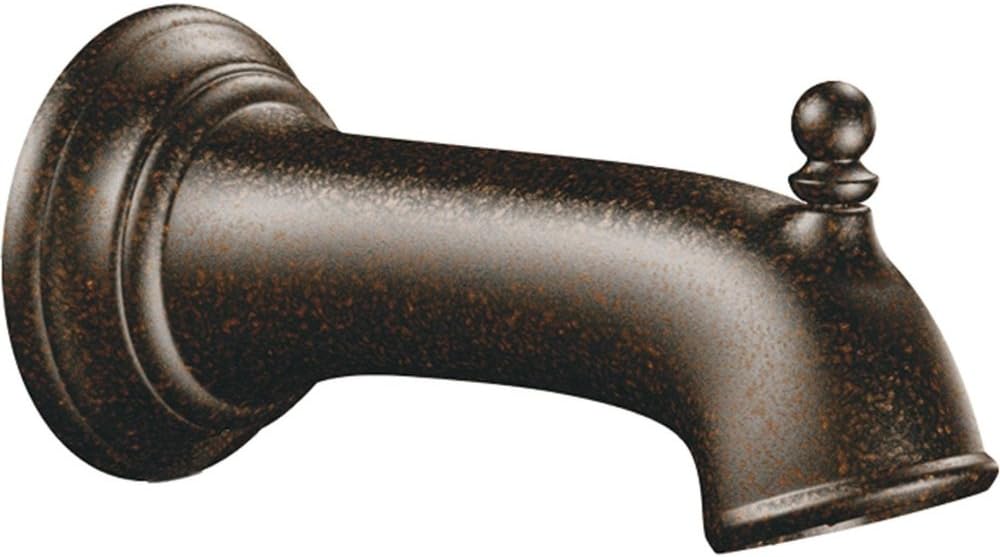

Image: Moen Brantford 1/2-Inch Diverter Tub Spout, Oil Rubbed Bronze finish.
സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും
This section provides general guidance for installing the Moen 3814ORB tub spout. While designed for hassle-free installation, professional plumbing assistance is recommended if you are unfamiliar with plumbing work.
Important Note on Connection Type:
Please be aware that despite the product title, this tub spout features a ത്രെഡ് കണക്ഷൻ, not a slip-fit connection. Ensure your existing plumbing is compatible or prepared for a threaded installation. This may require a brass nipple and appropriate coupler if replacing a rear-threaded spout.
- പ്രദേശം തയ്യാറാക്കുക: Turn off the main water supply to your bathroom. Drain any remaining water from the pipes by opening the existing tub spout and shower valve.
- പഴയ സ്പൗട്ട് നീക്കം ചെയ്യുക: Depending on your current spout type, you may need to unscrew it or loosen a set screw underneath. Clean the pipe and wall area thoroughly.
- പൈപ്പ് തയ്യാറാക്കുക: Ensure the pipe extending from the wall is clean and free of debris. For threaded connections, apply plumber's tape (Teflon tape) clockwise around the threads of the pipe to ensure a watertight seal.
- പുതിയ സ്പൗട്ട് ഇൻസ്റ്റാൾ ചെയ്യുക: Carefully thread the Moen 3814ORB tub spout onto the pipe. Turn clockwise until it is hand-tight, then use a wrench to tighten it an additional quarter to half turn, ensuring the spout is level and facing forward. Do not overtighten.
- ചോർച്ചയ്ക്കുള്ള പരിശോധന: Slowly turn the main water supply back on. Check for any leaks around the base of the new tub spout. If leaks occur, turn off the water, tighten slightly, and re-test.
പ്രവർത്തന നിർദ്ദേശങ്ങൾ
The Moen Brantford Diverter Tub Spout is designed for simple operation to switch between tub filling and showering.
- Tub Filling: To fill the bathtub, ensure the diverter lift rod on top of the spout is in the down position. Water will flow directly from the spout into the tub.
- ഷവറിംഗ്: To divert water to your showerhead, pull the lift rod upwards. This will redirect the water flow from the tub spout to the connected showerhead. Once you are finished showering, push the lift rod back down to resume water flow to the tub spout.
പരിപാലനവും പരിചരണവും
To maintain the beauty and functionality of your Moen Brantford Oil-Rubbed Bronze tub spout, follow these care guidelines:
- പതിവ് വൃത്തിയാക്കൽ: Clean the spout regularly with a soft, damp തുണി. മുരടിച്ച പാടുകൾക്ക്, നേരിയ സോപ്പും വെള്ളവും ലായനി ഉപയോഗിക്കുക. വെള്ളം പറ്റിപ്പിടിക്കാതിരിക്കാൻ നന്നായി കഴുകി മൃദുവായ തുണി ഉപയോഗിച്ച് ഉണക്കുക.
- കഠിനമായ ക്ലീനറുകൾ ഒഴിവാക്കുക: Do not use abrasive cleaners, harsh chemicals, ammonia-based products, or polishing agents, as these can damage the Oil-Rubbed Bronze finish and void the warranty.
- ഫിനിഷ് സംരക്ഷിക്കുക: The Oil-Rubbed Bronze finish is designed to be durable and corrosion-resistant. Avoid scratching the surface with sharp objects or abrasive materials.
- ചോർച്ച പരിശോധിക്കുക: Periodically inspect the connection point for any signs of leaks. Address any leaks promptly to prevent water damage.
ട്രബിൾഷൂട്ടിംഗ്
This section addresses common issues you might encounter with your tub spout.
| പ്രശ്നം | സാധ്യമായ കാരണം | പരിഹാരം |
|---|---|---|
| Water leaks from the base of the spout. | Loose connection or insufficient plumber's tape. | Turn off water supply, remove spout, reapply plumber's tape to pipe threads, and re-install, ensuring a snug fit. Do not overtighten. |
| Water does not fully divert to the showerhead. | Diverter mechanism issue or low water pressure. | Ensure the lift rod is fully pulled up. Check household water pressure. If the issue persists, the diverter mechanism may need inspection by a qualified plumber. |
| Spout is difficult to install due to connection type. | Misunderstanding of threaded vs. slip-fit connection. | ഈ മോഡൽ ത്രെഡ് ചെയ്ത. If your existing plumbing requires a slip-fit, you will need to adapt the pipe (e.g., by adding a brass nipple) or consider a different product. Consult a plumber for assistance. |
സ്പെസിഫിക്കേഷനുകൾ
- ബ്രാൻഡ്: മോയിൻ
- മോഡലിൻ്റെ പേര്: Brantford
- ഭാഗം നമ്പർ: 3814ORB
- നിറം: എണ്ണ തേച്ച വെങ്കലം
- മെറ്റീരിയൽ: ലോഹം
- മൗണ്ടിംഗ് തരം: മതിൽ മൗണ്ട്
- സ്പൗട്ട് നീളം: 7.25 inches (accommodates most bathtubs)
- കണക്ഷൻ തരം: Threaded (1/2-Inch)
- ഉൾപ്പെടുത്തിയ ഘടകങ്ങൾ: ടബ് സ്പൗട്ട്
- ഇനത്തിൻ്റെ ഭാരം: 1.37 പൗണ്ട്
- ഉൽപ്പന്ന അളവുകൾ: 11.75 x 5.88 x 3.69 ഇഞ്ച്
- പ്രത്യേക സവിശേഷതകൾ: Intricate Architectural Details, Diverter Function
- UPC: 026508251065
വാറൻ്റിയും പിന്തുണയും
The Moen 3814ORB Brantford Diverter Tub Spout is backed by Moen's Limited Lifetime Warranty. This warranty covers defects in material and manufacturing for the original consumer purchaser.
For detailed warranty information, product support, or to contact customer service, please visit the official Moen website or refer to the warranty documentation included with your purchase.
മോയിൻ ഒഫീഷ്യൽ Webസൈറ്റ്: www.moen.com
