വിഷനിസ് FPC-5191 300lbs ഇൻഡോർ ഇലക്ട്രോമാഗ്നറ്റിക് ലോക്ക്, L, Z ബ്രാക്കറ്റ് യൂസർ മാനുവൽ

ആമുഖം

This manual provides detailed instructions for the installation, operation, and maintenance of your Visionis FPC-5191 300lbs Indoor Electromagnetic Lock with L and Z Bracket. Please read this manual thoroughly before installation and use to ensure proper function and safety. This product is designed for indoor use only and is suitable for wood or metal doors.

Important Note: These electromagnetic locks are strictly for indoor purposes. They must not be mounted in outdoor applications.

ഉൽപ്പന്നം കഴിഞ്ഞുview

ഉൾപ്പെടുത്തിയ ഘടകങ്ങൾ

• 1x VIS-ML300LED: 300lbs Indoor Electric Magnetic Lock with LED Sensor
• 1x VIS-ZL300: L and Z Inswinging Bracket for 300lbs Magnetic Door Lock
• മൗണ്ടിംഗ് ഹാർഡ്‌വെയർ (സ്ക്രൂകൾ, വാഷറുകൾ, നട്ടുകൾ)
• Installation User Guide and Template

Please note: This product does NOT include a power supply.

Image: Visionis FPC-5191 300lbs Indoor Electromagnetic Lock with L and Z Bracket components.

ചിത്രം: വിശദമായത് view of the electromagnetic lock, armature plate, L-bracket, and Z-bracket included in the FPC-5191 kit.

അളവുകൾ

Image: Technical drawing showing the dimensions of the 300lb electromagnetic lock (170mm x 35mm x 21mm) and its armature plate (130mm x 33mm x 11mm).

Image: Technical drawing displaying the dimensions of the L-bracket (210mm x 38mm x 25mm) and Z-bracket (140mm x 38.1mm x 4.1mm) for inswinging door applications.

സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും

The Visionis FPC-5191 is designed for inswinging door applications. For proper installation, follow the steps outlined in the provided installation template and user guide. The armature plate is installed on the door, and the main lock body is installed on the door frame.

ഇൻസ്റ്റലേഷൻ വീഡിയോ ഗൈഡ്

Installation Steps (Outswinging Door Exampലെ)

The following steps illustrate a typical installation for an outswinging door. For inswinging doors, the FPC-5191 kit includes the necessary L and Z brackets (VIS-ZL300) to adapt the installation.

1. വാതിൽ ഫ്രെയിം തയ്യാറാക്കുക: Use the provided template to mark and drill holes on the door frame for the main lock body.
2. Mount the Lock Body: Separate the cover from the lock body. Secure the mounting plate to the door frame using the provided screws. Adjust the position as needed.
3. Wire the Lock: Connect the power wires through the designated hole in the mounting plate.
4. Hang the Lock Body: Hang the lock body onto the mounting plate. Fasten the screws to secure it.
5. കവർ അറ്റാച്ചുചെയ്യുക: Fit the cover back onto the lock body and fasten its screws.
6. Prepare the Door Leaf: ഗൈഡ് പിന്നുകൾ ആർമേച്ചർ പ്ലേറ്റിലേക്ക് തിരുകുക.
7. Mount the Armature Plate: Fasten the inner hex nut on the back side of the door leaf. Fasten the screw on the armature plate to the nut. Ensure rubber washers are used to allow for slight adjustment and complete fit with the magnetic lock.

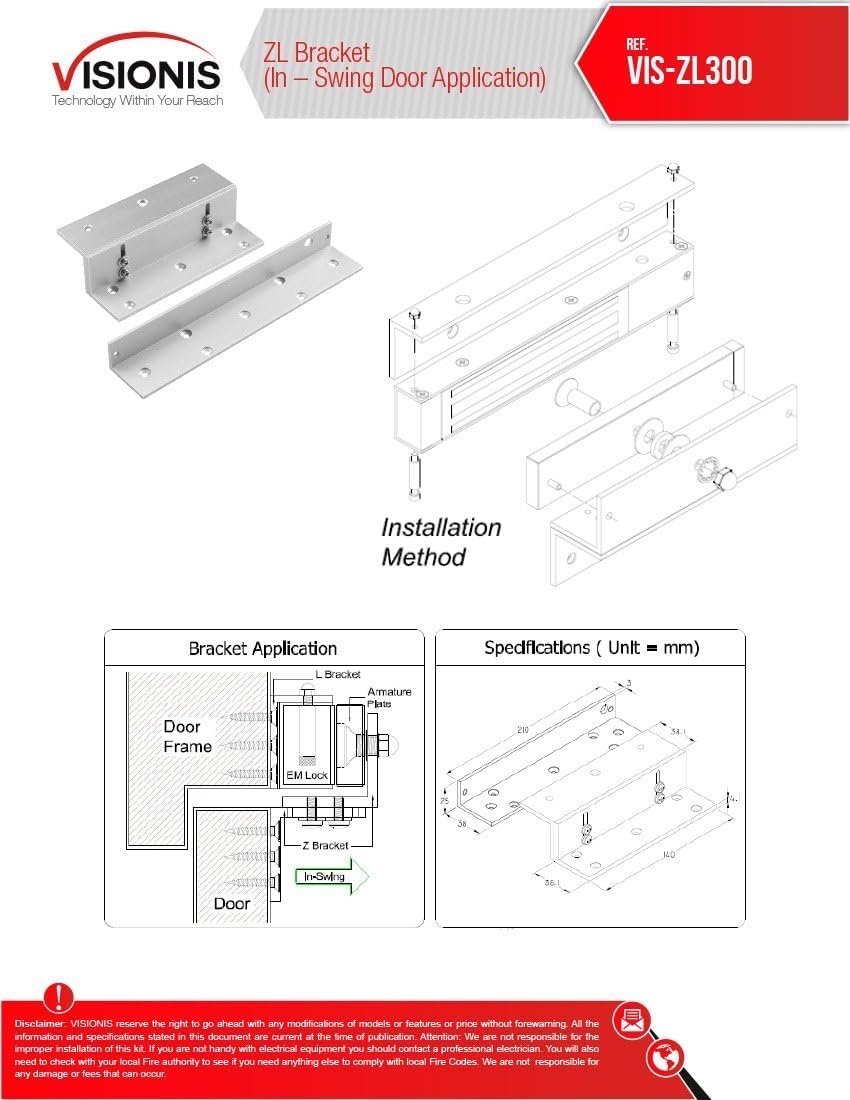

Image: Diagram illustrating the application of L and Z brackets (VIS-ZL300) for installing the electromagnetic lock on an inswinging door.

Inswinging Door Kits

For inswinging door applications, specific kits are available that include the necessary L and Z brackets:

• FPC-5191: 300lb Lock with Bracket for In-Swinging Door (This product)
• FPC-5192: 600lb Lock with Bracket for In-Swinging Door
• FPC-5193: 1200lb Lock with Bracket for In-Swinging Door

പ്രവർത്തന നിർദ്ദേശങ്ങളും സവിശേഷതകളും

ഡ്യുവൽ വോളിയംtagഇ ഓപ്പറേഷൻ

The electromagnetic lock supports dual voltage operation (12V DC or 24V DC). The default voltage is 12V DC. To change the voltage, locate the jumper inside the terminal block of the lock. Adjust the jumper position according to the desired voltage setting. Refer to the user manual included in the product packaging for detailed instructions on jumper settings.

കുറഞ്ഞ വൈദ്യുതി ഉപഭോഗം

The FPC-5191 (300lb lock) is designed for low power consumption:

• Approximately 300mA at 12V DC
• Approximately 150mA at 24V DC

Door Status Monitoring (DSM)

Each lock includes a white wire for door status monitoring. This wire can be connected as a hard-wired alarm contact directly to your security system to indicate whether the door is open or closed. If this feature is not required, the white wire can be cut off.

പവർ കണക്ഷനുകൾ

The lock includes two wires connected to the green terminal block for power: red for positive (+) and black for negative (-). These are the primary wires for powering the lock in most typical applications.

Normally Open (NO) / Normally Closed (NC) / Common (COM) Outputs

For advanced applications, the lock also provides Normally Open (NO), Normally Closed (NC), and Common (COM) outputs located in the green terminals. These outputs allow for integration with various access control systems or other devices.

LED സൂചകം

The lock features an LED indicator that provides visual feedback on the lock's status. This new style of LED indicator is brighter and offers a wider range of visibility.

പരാജയ-സുരക്ഷിത പ്രവർത്തനം

All Visionis electromagnetic locks are fail-safe. This means that in the event of a power failure, the lock will automatically unlock (open) to ensure safety and egress.

മെയിൻ്റനൻസ്

To ensure optimal performance and longevity of your electromagnetic lock, regular maintenance is recommended:

• വൃത്തിയാക്കൽ: Periodically clean the surface of the lock body and armature plate with a soft, dry cloth. Avoid using abrasive cleaners or solvents.
• പരിശോധന: Regularly inspect all mounting screws and connections to ensure they are secure. Check for any signs of wear or damage to the wiring.
• പ്രവർത്തനക്ഷമത പരിശോധന: Periodically test the lock's operation by applying and removing power to verify proper locking and unlocking.

ട്രബിൾഷൂട്ടിംഗ്

If you encounter issues with your electromagnetic lock, consider the following common troubleshooting steps:

• ലോക്ക് ഇടപഴകുന്നില്ല/വിച്ഛേദിക്കുന്നു: Check the power supply connection and ensure the correct voltage (12V or 24V) is being supplied and the internal jumper is set correctly. Verify all wiring connections are secure.
• Weak Holding Force: Ensure the armature plate and lock body are perfectly aligned and make full contact. Check for any debris or obstructions between the two surfaces. Verify the power supply is adequate and stable.
• LED ഇൻഡിക്കേറ്റർ പ്രവർത്തിക്കുന്നില്ല: Check power connections. If the lock is functioning but the LED is not, there may be an issue with the LED component itself.
• Door Status Monitor (DSM) Issues: Verify the white wire is correctly connected to your alarm system and that the system is configured to receive signals from a normally open or normally closed contact as appropriate.

For persistent issues or complex problems, please contact Visionis technical support.

സ്പെസിഫിക്കേഷനുകൾ

വാറൻ്റിയും പിന്തുണയും

For warranty information, technical support, or further assistance, please refer to the official Visionis webസൈറ്റിൽ ബന്ധപ്പെടുകയോ അവരുടെ ഉപഭോക്തൃ സേവന വിഭാഗവുമായി ബന്ധപ്പെടുകയോ ചെയ്യുക. വാറന്റി ക്ലെയിമുകൾക്കായി നിങ്ങളുടെ വാങ്ങൽ രസീത് സൂക്ഷിക്കുക.

Visit the Visionis Store: Visionis Store on Amazon
