ഉൽപ്പന്നം കഴിഞ്ഞുview
The FINDER Series 83 Modular Timer (Model: 83.02.0.240.0000) is a versatile multi-function, multi-voltage timer designed for various industrial and commercial applications. This device features a DPDT (Double Pole Double Throw) 10A relay with a wide operating voltage range of 24V-240V AC/DC coil. It is engineered for precise timing control in automation systems, offering reliability and ease of integration.

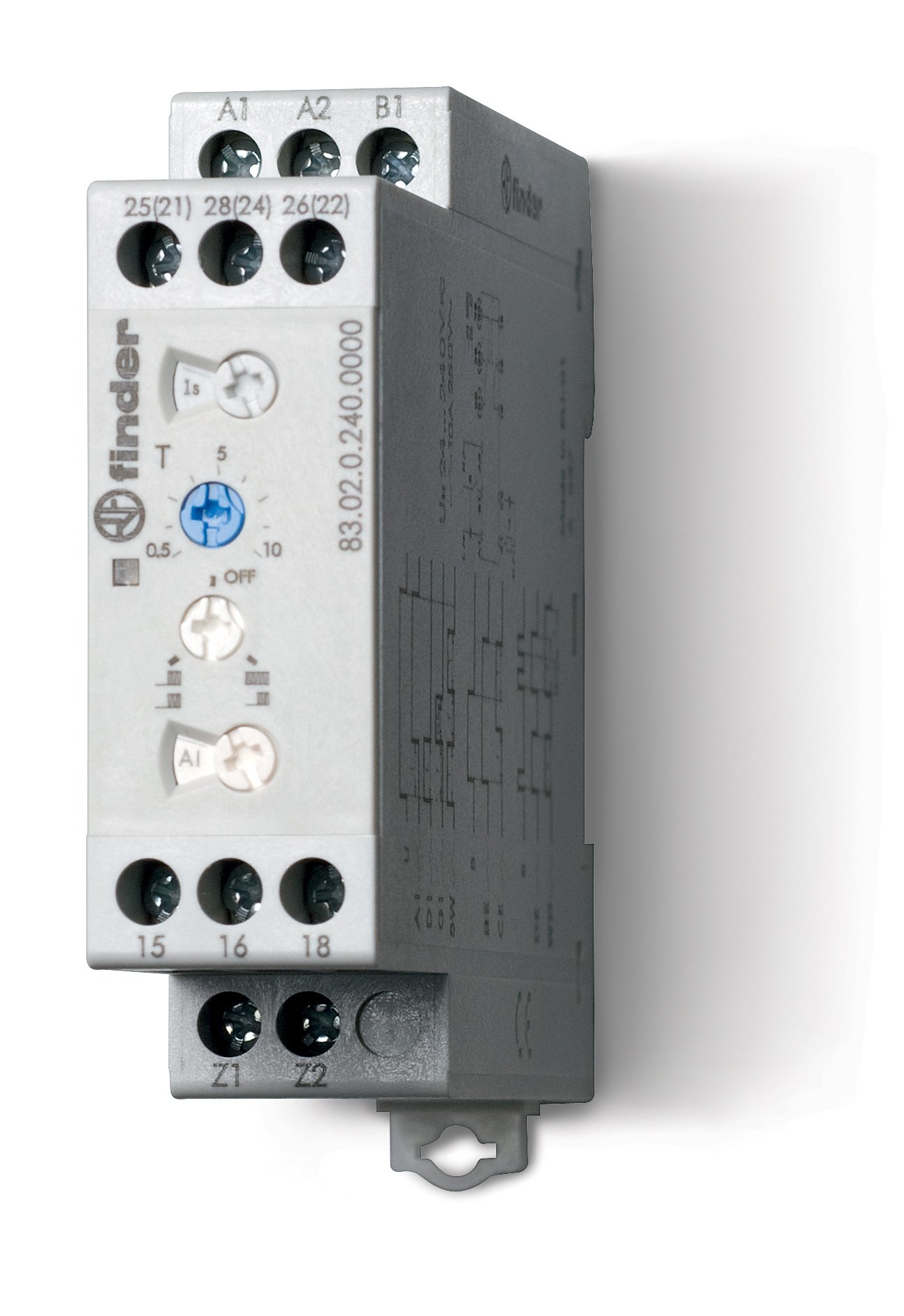

This image displays the FINDER Series 83 Modular Timer, highlighting its various connection terminals (A1, A2, B1, 25(21), 28(24), 26(22), 15, 16, 18, Z1, Z2) and control dials for time setting and function selection.
സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും
Proper installation is crucial for the safe and effective operation of the timer. Ensure all power sources are disconnected before beginning installation.
- മൗണ്ടിംഗ്: The timer is designed for modular mounting, typically on a DIN rail. Securely attach the device to the rail in a suitable enclosure, ensuring adequate ventilation.
- പവർ കണക്ഷൻ: Connect the power supply (24V-240V AC/DC) to the coil terminals, typically labeled A1 ഒപ്പം A2. Observe polarity if using DC, though the wide voltage range often accommodates non-polarized connections.
- ലോഡ് കണക്ഷനുകൾ:
- Connect the common terminal of the first pole to 15. The normally open (NO) contact is 18, and the normally closed (NC) contact is 16.
- For the second pole, the common terminal is 25(21). The normally open (NO) contact is 28(24), and the normally closed (NC) contact is 26(22).
- Ensure all wiring conforms to local electrical codes and standards. Use appropriate wire gauges for the 10A rating.
- External Control (if applicable): If an external start/reset signal is used, connect it to terminals Z1 ഒപ്പം Z2 as per the specific function selected.
After wiring, double-check all connections for tightness and correctness before applying power.
പ്രവർത്തന നിർദ്ദേശങ്ങൾ
The Series 83 timer offers multi-functionality controlled by its front-panel dials.
- ഫംഗ്ഷൻ തിരഞ്ഞെടുക്കൽ: Use the lower rotary switch, labeled with various symbols (e.g., AI, ഓഫ്), to select the desired timing function. Refer to the product's detailed datasheet for a complete list and description of available functions. The 'AI' function typically refers to a delay-on-make timer.
- സമയപരിധി തിരഞ്ഞെടുക്കൽ: The upper rotary switch (e.g., 1s) selects the base time range for the timer.
- സമയ ക്രമീകരണം: The central blue dial, marked from 0.5 വരെ 10 (with a 'T' indicating time), allows for fine adjustment of the delay within the selected time range. For example, if the time range is set to '1s' and the dial to '5', the delay will be 5 seconds.
- പവർ ഓൺ: Once configured, apply power to the A1/A2 terminals. The timer will begin its operation according to the selected function and set time.
Always ensure the selected function and time range are appropriate for your application to prevent unintended operation.
മെയിൻ്റനൻസ്
The FINDER Series 83 timer is designed for long-term, reliable operation with minimal maintenance. However, periodic checks can help ensure optimal performance.
- വൃത്തിയാക്കൽ: Keep the timer free from dust and debris. Use a soft, dry cloth for cleaning. Do not use abrasive cleaners or solvents.
- കണക്ഷൻ പരിശോധനകൾ: Periodically inspect wiring connections to ensure they remain secure and free from corrosion. Loose connections can lead to intermittent operation or overheating.
- പരിസ്ഥിതി വ്യവസ്ഥകൾ: അകാല പരാജയം തടയാൻ പ്രവർത്തന അന്തരീക്ഷം നിശ്ചിത താപനിലയിലും ഈർപ്പത്തിലും ഉണ്ടെന്ന് ഉറപ്പാക്കുക.
- വിഷ്വൽ പരിശോധന: Look for any signs of physical damage, discoloration, or unusual odors, which may indicate a problem.
ഏതെങ്കിലും അറ്റകുറ്റപ്പണികൾ അല്ലെങ്കിൽ പരിശോധന നടത്തുന്നതിന് മുമ്പ് എല്ലായ്പ്പോഴും വൈദ്യുതി വിച്ഛേദിക്കുക.
ട്രബിൾഷൂട്ടിംഗ്
If the timer is not functioning as expected, consider the following common issues and solutions:
| പ്രശ്നം | സാധ്യമായ കാരണം | പരിഹാരം |
|---|---|---|
| Timer does not activate/relay does not switch. | No power to coil (A1/A2), incorrect voltage, incorrect function selected, faulty wiring. | വൈദ്യുതി വിതരണവും വോളിയവും പരിശോധിക്കുകtage. Check all wiring connections. Ensure correct function is selected. Test the timer with a known good power source. |
| Incorrect timing delay. | Incorrect time range or time setting, external interference. | Adjust the time range and time setting dials. Ensure stable power supply. Check for electromagnetic interference. |
| Relay chattering or erratic behavior. | Unstable power supply, excessive load, faulty unit. | Verify stable power supply. Ensure load current does not exceed 10A. If issues persist, the unit may be faulty and require replacement. |
If troubleshooting steps do not resolve the issue, contact FINDER technical support for further assistance.
സ്പെസിഫിക്കേഷനുകൾ
| ആട്രിബ്യൂട്ട് | വിശദാംശങ്ങൾ |
|---|---|
| മോഡൽ നമ്പർ | 83.02.0.240.0000 (830202400000PAS) |
| ടൈപ്പ് ചെയ്യുക | Multi-Function/Multi-Voltagഇ ടൈമർ |
| കോൺടാക്റ്റ് കോൺഫിഗറേഷൻ | ഡിപിഡിടി (ഡബിൾ പോൾ ഡബിൾ ത്രോ) |
| കോൺടാക്റ്റ് റേറ്റിംഗ് | 10എ |
| കോയിൽ വോളിയംtage | 24V-240V എസി/ഡിസി |
| ഉൽപ്പന്ന അളവുകൾ | 3.39 x 0.87 x 3.94 ഇഞ്ച് |
| ഇനത്തിൻ്റെ ഭാരം | 2.12 ഔൺസ് |
| നിർമ്മാതാവ് | ഫൈൻഡർ |
| ആദ്യം ലഭ്യമായ തീയതി | 6 ജനുവരി 2014 |
വാറൻ്റിയും പിന്തുണയും
FINDER products are manufactured to high quality standards and are typically covered by a manufacturer's warranty against defects in materials and workmanship. The specific warranty period may vary by region and product type.
For warranty claims, technical support, or further information regarding the Series 83 Modular Timer, please contact your local FINDER distributor or visit the official FINDER website. When contacting support, please have your product model number (83.02.0.240.0000 or 830202400000PAS) and purchase details readily available.
കൂടുതൽ വിവരങ്ങളും ബന്ധപ്പെടാനുള്ള വിശദാംശങ്ങളും നിങ്ങൾക്ക് ഇവിടെ കണ്ടെത്താനാകും FINDER Store on Amazon or the official FINDER webസൈറ്റ്.
