1. ആമുഖം
This instruction manual provides essential information for the safe and effective installation, operation, and maintenance of the ABB MCB-10 Contact Block. Please read this manual thoroughly before attempting any installation or operation to ensure proper function and safety.
The ABB MCB-10 is a 1 Normally Open (NO) contact block designed for industrial control applications, rated for 8 Amp120 വോൾട്ടിൽ.
2 സുരക്ഷാ വിവരങ്ങൾ
WARNING: Electrical shock hazard. Only qualified personnel should perform installation, maintenance, and troubleshooting procedures. Disconnect all power before working on the device.
- Always follow local and national electrical codes and regulations.
- Ensure the power supply is disconnected and locked out before installation or servicing.
- വോളിയം എന്ന് പരിശോധിക്കുകtage and current ratings of the contact block match the application requirements.
- The device conforms to IEC 60947-5-1 and EN 60947-5-1 standards.
3. ഉൽപ്പന്നം കഴിഞ്ഞുview
The ABB MCB-10 is a single-pole, normally open (1NO) contact block. It is designed for modular mounting with compatible control devices, providing a reliable switching function in control circuits.

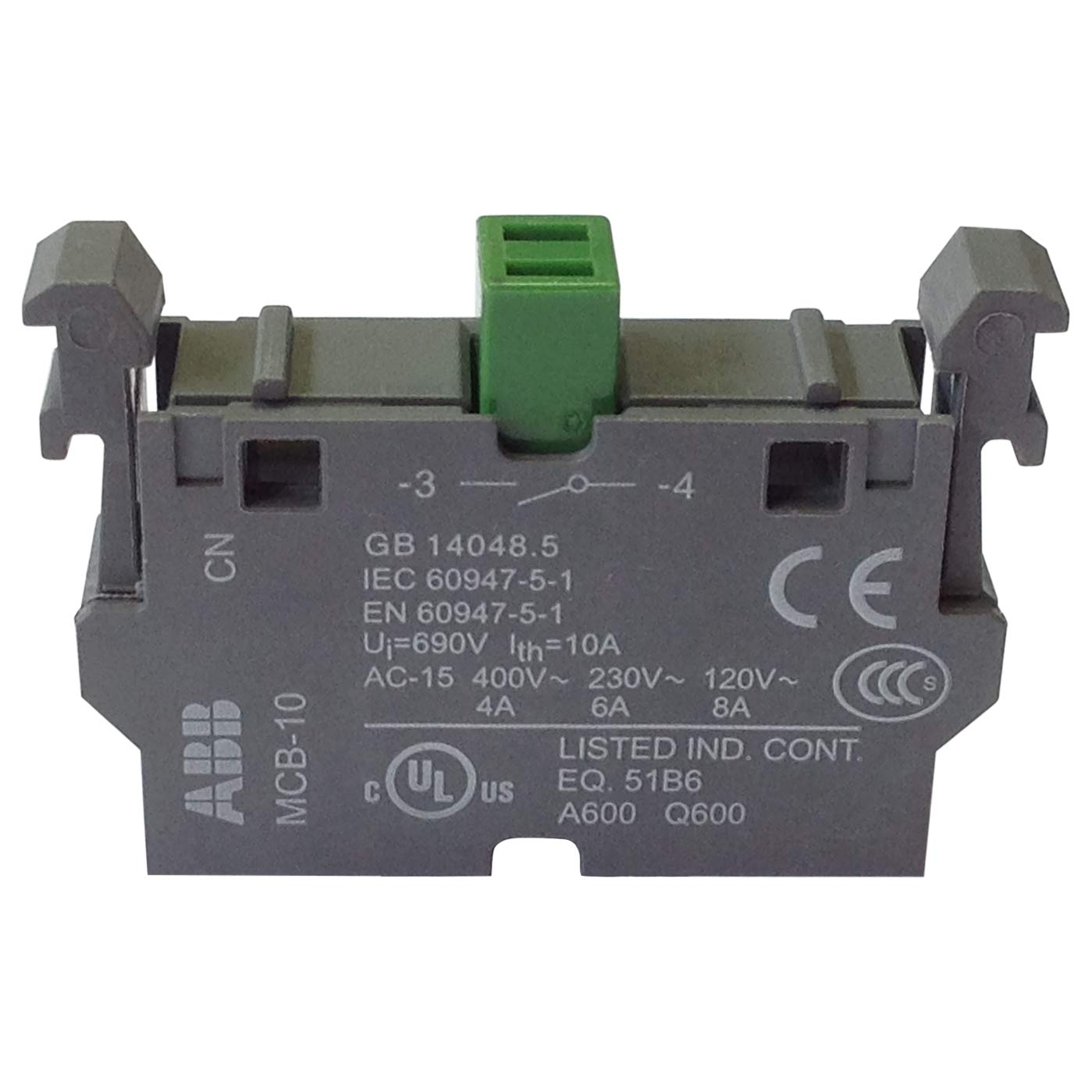

ചിത്രം 1: മുൻഭാഗം view of the ABB MCB-10 Contact Block. The image displays the grey plastic housing with green terminal block, showing markings for model number MCB-10, brand ABB, and electrical ratings including IEC 60947-5-1, EN 60947-5-1, Ui=690V, Ith=10A, and AC-15 ratings for 400V, 230V, and 120V.
4. ഇൻസ്റ്റലേഷൻ
Follow these steps for proper installation of the MCB-10 Contact Block:
- വൈദ്യുതി വിച്ഛേദിക്കൽ: Ensure all power to the control circuit is disconnected and verified using appropriate safety procedures.
- മൗണ്ടിംഗ്: The MCB-10 is designed for plug-in mounting. Align the contact block with the corresponding slots on the control device (e.g., push button, selector switch) and press firmly until it clicks into place. Refer to the control device's manual for specific mounting instructions if necessary.
- വയറിംഗ്:
- Identify the terminals on the contact block. The MCB-10 is a 1NO (Normally Open) contact, meaning the circuit is open when the actuator is at rest and closes when the actuator is pressed.
- Connect the appropriate wires to the terminals. Ensure secure connections to prevent loose contacts and potential hazards.
- The contact block is rated for 120V and 8A for AC-15 applications. Verify that the connected circuit's voltage and current do not exceed these ratings.
- സ്ഥിരീകരണം: After wiring, double-check all connections for tightness and correct polarity.
- വൈദ്യുതി പുനഃസ്ഥാപിക്കൽ: ഇൻസ്റ്റാളേഷൻ പൂർത്തിയായി പരിശോധിച്ചുറപ്പിച്ചുകഴിഞ്ഞാൽ, സർക്യൂട്ടിലേക്ക് പവർ പുനഃസ്ഥാപിക്കുക.
5. ഓപ്പറേഷൻ
The ABB MCB-10 Contact Block functions as a Normally Open (NO) contact. When integrated with a compatible actuator (e.g., a push button), pressing the actuator will close the contact, allowing current to flow through the circuit. Releasing the actuator will open the contact, interrupting the circuit.
Ensure the contact block is used within its specified electrical ratings (e.g., 120V, 8A AC-15) to guarantee reliable operation and prevent damage.
6. പരിപാലനം
The ABB MCB-10 Contact Block is designed for long-term reliability with minimal maintenance. However, periodic inspection is recommended:
- വിഷ്വൽ പരിശോധന: Regularly check the contact block for any signs of physical damage, discoloration, or loose connections.
- വൃത്തിയാക്കൽ: If necessary, gently clean the exterior of the contact block with a dry, lint-free cloth. Do not use abrasive cleaners or solvents.
- കണക്ഷൻ പരിശോധന: Periodically verify that all wire connections are secure and tight.
WARNING: Always disconnect power before performing any maintenance or inspection.
7. പ്രശ്നപരിഹാരം
If the contact block is not functioning as expected, consider the following common issues:
- No Circuit Activation:
- Check if power is supplied to the circuit.
- എല്ലാ വയറിംഗ് കണക്ഷനുകളും ശരിയാണെന്നും സുരക്ഷിതമാണെന്നും ഉറപ്പാക്കുക.
- Ensure the actuator (e.g., push button) is properly installed and functioning.
- Inspect the contact block for visible damage.
- ഇടയ്ക്കിടെയുള്ള പ്രവർത്തനം:
- അയഞ്ഞ വയർ കണക്ഷനുകൾ പരിശോധിക്കുക.
- Ensure the contact block is securely mounted to the control device.
If issues persist, contact qualified electrical personnel or ABB customer support.
8 സ്പെസിഫിക്കേഷനുകൾ
| പരാമീറ്റർ | മൂല്യം |
|---|---|
| മോഡൽ നമ്പർ | എംസിബി-10 |
| ബന്ധപ്പെടാനുള്ള തരം | 1 സാധാരണയായി തുറക്കുക (1NO) |
| റേറ്റുചെയ്ത ഇൻസുലേഷൻ വോളിയംtagഇ (യുഐ) | 690V |
| Conventional Thermal Current (Ith) | 10എ |
| AC-15 Rating (400V) | 4A |
| AC-15 Rating (230V) | 6A |
| AC-15 Rating (120V) | 8A |
| മാനദണ്ഡങ്ങൾ | IEC 60947-5-1, EN 60947-5-1, GB 14048.5 |
| ഉൽപ്പന്ന അളവുകൾ | 2 x 4 x 1 ഇഞ്ച്; 0.32 ഔൺസ് |
| മൗണ്ടിംഗ് തരം | പ്ലഗ്-ഇൻ മൗണ്ട് |
| മെറ്റീരിയൽ | പ്ലാസ്റ്റിക് |
| നിറം | ചാരനിറം |
| സർട്ടിഫിക്കേഷനുകൾ | UL Listed (C US), CE |
9. വാറൻ്റിയും പിന്തുണയും
For information regarding product warranty, technical support, or service, please contact ABB customer service or visit the official ABB website. Ensure you have your product model number (MCB-10) available when seeking support.
This product is manufactured by ABB.
