InSinkErator F-HC2200

InSinkErator F-HC2200CRB Antique Instant Hot and Cold Water Dispenser Faucet

ഉപയോക്തൃ മാനുവൽ

ആമുഖം

This manual provides essential information for the installation, operation, maintenance, and troubleshooting of your InSinkErator F-HC2200CRB Antique Instant Hot and Cold Water Dispenser Faucet. This faucet is designed to deliver near-boiling hot water and filtered cold water instantly, enhancing convenience in your kitchen. Please read these instructions thoroughly before installation and use.

കുറിപ്പ്: This faucet requires a compatible InSinkErator hot water tank and filtration system (e.g., HWT-F1000S), which are sold separately, to function as an instant hot water dispenser.

പ്രധാനപ്പെട്ട സുരക്ഷാ വിവരങ്ങൾ

ഉൽപ്പന്ന ഘടകങ്ങൾ

The InSinkErator F-HC2200CRB faucet package typically includes:

Additional items required (sold separately):

സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും

Installation of the InSinkErator F-HC2200CRB faucet involves mounting the faucet to your sink or countertop, connecting it to the hot water tank, and integrating it with your water supply and filtration system. Due to the complexity of plumbing and electrical connections, professional installation is recommended. Refer to the detailed installation guide provided with your InSinkErator hot water tank and faucet for complete step-by-step instructions.

InSinkErator F-HC2200CRB Antique Instant Hot and Cold Water Dispenser Faucet in Classic Oil Rubbed Bronze

ചിത്രം 1: മുൻഭാഗം view of the InSinkErator F-HC2200CRB Antique Instant Hot and Cold Water Dispenser Faucet.

വശം view of the InSinkErator F-HC2200CRB Antique Instant Hot and Cold Water Dispenser Faucet

ചിത്രം 2: വശം view of the InSinkErator F-HC2200CRB faucet, showing the two levers for hot and cold water.

പ്രധാന ഇൻസ്റ്റാളേഷൻ പരിഗണനകൾ:

പ്രവർത്തന നിർദ്ദേശങ്ങൾ

Once properly installed and the hot water tank is heated (allow approximately 15-20 minutes for initial heating), your InSinkErator F-HC2200CRB faucet is ready for use.

ചൂടുവെള്ളം വിതരണം ചെയ്യുന്നു:

  1. Locate the hot water lever (typically marked with red or on the left side).
  2. Push the hot water lever പിന്നിലേക്ക് to activate the flow of near-boiling water.
  3. The hot water lever is designed to automatically shut off when released, preventing continuous flow for safety.
  4. Exercise extreme caution as the water dispensed is very hot.

തണുത്ത വെള്ളം വിതരണം ചെയ്യുന്നു:

  1. Locate the cold water lever (typically marked with blue or on the right side).
  2. Push the cold water lever മുന്നോട്ട് to activate the flow of filtered cold water.
  3. The cold water lever is designed to stay on until manually turned off, allowing for continuous flow.

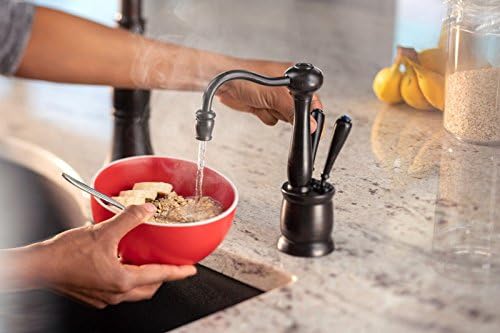

Person dispensing hot water into a bowl of oatmeal from the InSinkErator faucet

Figure 3: The faucet in use, dispensing hot water for instant meals.

Person filling a baby bottle with water from a similar InSinkErator faucet

Figure 4: The faucet can be used for various tasks, including warming baby bottles.

മെയിൻ്റനൻസ്

Regular maintenance ensures optimal performance and longevity of your InSinkErator faucet.

വൃത്തിയാക്കൽ:

ഫിൽട്ടർ മാറ്റിസ്ഥാപിക്കൽ:

The water filtration system (e.g., F-1000 or F-2000) connected to your hot water tank requires periodic filter replacement to maintain water quality and flow. Refer to your filter's specific instructions for replacement frequency, typically every 6-12 months depending on water usage and quality.

InSinkErator F-1000 and F-2000 water dispenser filters

Figure 5: InSinkErator F-1000 and F-2000 water filters, essential for maintaining water quality.

InSinkErator instant hot water tank

Figure 6: The InSinkErator instant hot water tank, which supplies the hot water to the faucet.

ട്രബിൾഷൂട്ടിംഗ്

If you encounter issues with your faucet, consult the following common troubleshooting steps. For more complex problems, refer to the full hot water tank manual or contact customer support.

പ്രശ്നംസാധ്യമായ കാരണംപരിഹാരം
ചൂടുവെള്ളമില്ലHot water tank not plugged in or powered on; tank not heated; water supply valve closed.Check power to the tank; allow 15-20 minutes for heating; ensure water supply valve is open.
Slow flow from faucetClogged filter; low water pressure.Replace water filter; check household water pressure.
Water dripping after hot water shut-offNormal residual drip due to expansion/contraction; minor internal component issue.A few drops are normal. If dripping is continuous or excessive, contact customer support.
തണുത്ത വെള്ളം ഇല്ലCold water supply valve closed; clogged filter.Ensure cold water supply valve is open; replace water filter.

സ്പെസിഫിക്കേഷനുകൾ

ഫീച്ചർവിശദാംശങ്ങൾ
മോഡൽ നമ്പർF-HC2200-CRB
നിറംClassic Oil Rubbed Bronze
ശൈലിചൂടും തണുപ്പും
മെറ്റീരിയൽപിച്ചള
ഇനത്തിൻ്റെ ഭാരം6 പൗണ്ട്
ഉൽപ്പന്ന അളവുകൾ5.25 x 5.25 x 8 ഇഞ്ച്
ഹാൻഡിലുകളുടെ എണ്ണം2
പവർ ഉറവിടംCorded Electric (for tank, not faucet)
സർട്ടിഫിക്കേഷൻസാക്ഷ്യപ്പെടുത്തിയ നിരാശ-രഹിതം

വാറൻ്റിയും പിന്തുണയും

വാറൻ്റി വിവരങ്ങൾ:

This InSinkErator faucet is backed by a 5-Year We Come To You In-Home Service Warranty. This warranty covers parts and labor for defects in materials or workmanship under normal use. Please retain your proof of purchase for warranty claims.

ഉപഭോക്തൃ പിന്തുണ:

For technical assistance, warranty service, or to purchase replacement parts, please contact InSinkErator customer support. Visit the official InSinkErator webനിലവിലെ കോൺടാക്റ്റ് വിവരങ്ങൾക്കും പിന്തുണാ ഉറവിടങ്ങൾക്കുമുള്ള സൈറ്റ്.

ഓൺലൈൻ ഉറവിടങ്ങൾ: www.insinkerator.com
