Gingko Design Cube Alarm Clock Instruction Manual

1. ആമുഖം

The Gingko Design Cube Alarm Clock (Model GK08W6) is a digital alarm clock featuring an LED display that can show time, date, and temperature. It incorporates a sound-activated display function for energy saving. This manual provides comprehensive instructions for setting up, operating, and maintaining your device.

പാക്കേജ് ഉള്ളടക്കം:

• Gingko Design Cube Alarm Clock (GK08W6)
• യുഎസ്ബി പവർ കേബിൾ
• ഇൻസ്ട്രക്ഷൻ മാനുവൽ

2. സജ്ജീകരണം

2.1 ഉപകരണം പവർ ചെയ്യുന്നു

The clock can be powered by either 3x AAA batteries (not included) or via the supplied USB cable connected to a USB power adapter (not included) or a computer USB port.

• ബാറ്ററി പവർ: Open the battery compartment on the back of the clock and insert 3x AAA batteries, ensuring correct polarity.
• യുഎസ്ബി പവർ: Connect the small end of the USB cable to the DC 5V port on the back of the clock and the larger end to a USB power source.

For continuous display, USB power is recommended. Battery power is suitable for portable use or as a backup, but the display will typically turn off after a short period to conserve energy.

ചിത്രം 1: മുൻഭാഗം view of the Gingko Design Cube Alarm Clock displaying the time.

3. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

The control buttons are located on the back of the clock. These typically include 'SET', 'UP', and 'DOWN' buttons.

3.1 സമയവും തീയതിയും ക്രമീകരിക്കുക

1. Press and hold the 'SET' button for 3 seconds to enter time setting mode. The display will flash.
2. Use the 'UP' and 'DOWN' buttons to adjust the hour. Press 'SET' to confirm and move to minutes.
3. Adjust minutes with 'UP'/'DOWN', then press 'SET'.
4. Continue this process to set the year, month, and day.
5. After setting the day, press 'SET' to exit the setting mode.

3.2 അലാറം സജ്ജമാക്കുന്നു

The clock supports up to three independent alarms (A1, A2, A3).

1. Press the 'SET' button repeatedly until 'A1' (or A2, A3) appears on the display.
2. Press and hold 'SET' for 3 seconds. The alarm hour will flash.
3. Use 'UP'/'DOWN' to set the alarm hour, then press 'SET'.
4. Use 'UP'/'DOWN' to set the alarm minute, then press 'SET'.
5. The display will show 'ON:A1' or 'OFF:A1'. Use 'UP'/'DOWN' to toggle the alarm on or off. Press 'SET' to confirm.
6. Repeat for A2 and A3 if desired.

3.3 സ്നൂസ് ഫംഗ്ഷൻ

When the alarm sounds, press any button (except 'SET' or 'DOWN' during alarm setting) to activate the snooze function. The alarm will sound again after approximately 5 minutes.

3.4 ഡിസ്പ്ലേ മോഡുകൾ

The clock offers various display modes. Press the 'UP' button to cycle through them:

• dp-1: Time, date, and temperature display alternately.
• dp-2: Time display only.

Image 2: The clock displaying the date (month and day).

Image 3: The clock displaying the temperature in Celsius.

3.5 Sound Activation Mode

In sound activation mode, the display will turn off when the room is quiet to save power. It will light up again in response to a sound (e.g., a clap, finger snap, or gentle tap on the clock/surface).

• To activate/deactivate sound activation mode, press the 'DOWN' button.
• When 'ON:SD' is displayed, sound activation is active.
• When '--:SD' is displayed, sound activation is inactive, and the display will remain on (if USB powered).

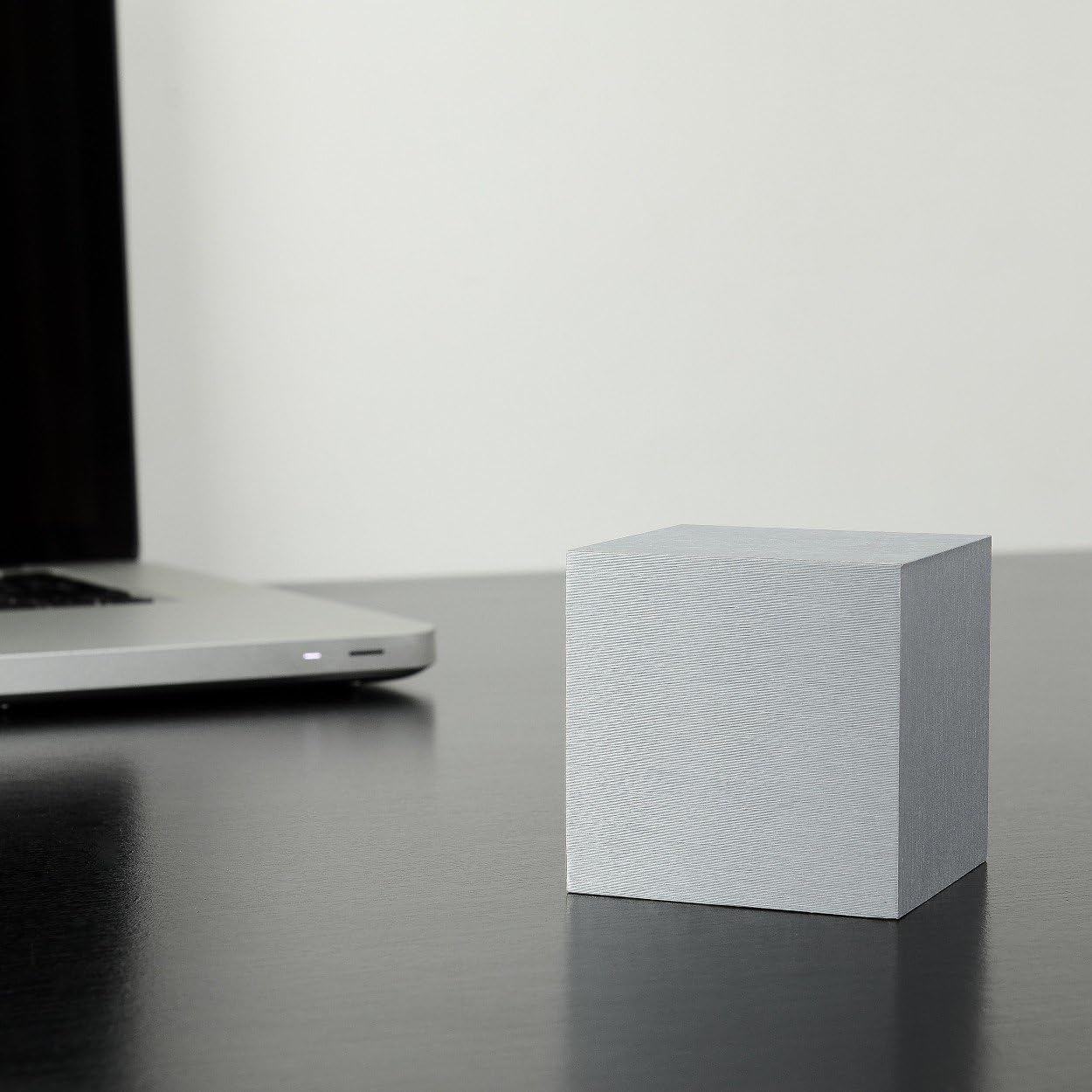

Image 4: The clock with its display off, indicating sound activation mode is active and the environment is quiet.

4. പരിപാലനം

4.1 വൃത്തിയാക്കൽ

To clean the clock, gently wipe the surface with a soft, dry cloth. Avoid using abrasive cleaners, solvents, or excessive moisture, as these can damage the finish or internal components.

4.2 ബാറ്ററി മാറ്റിസ്ഥാപിക്കൽ

If using battery power, replace the AAA batteries when the display dims or the clock functions become unreliable. Ensure the clock is powered off or disconnected from USB before replacing batteries. Dispose of old batteries responsibly.

5. പ്രശ്‌നപരിഹാരം

• Display is off or dim:
  - Check battery level and replace if necessary.
  - Ensure USB power cable is securely connected.
  - If in sound activation mode, make a sound to activate the display.
• Clock not keeping accurate time:
  - Re-set the time following the instructions in Section 3.1.
  - Ensure stable power supply (either fresh batteries or consistent USB power).
• അലാറം മുഴങ്ങുന്നില്ല:
  - Verify that the alarm is set to 'ON' (e.g., 'ON:A1') in the alarm settings.
  - Check the alarm time to ensure it is correctly set.
• ബട്ടണുകൾ പ്രതികരിക്കുന്നില്ല:
  - Disconnect power (both USB and batteries) for a few minutes, then reconnect to perform a soft reset.

6 സ്പെസിഫിക്കേഷനുകൾ

7. വാറൻ്റിയും പിന്തുണയും

For warranty information and customer support, please refer to the documentation included with your purchase or visit the official Gingko Design webസൈറ്റ്. വാറന്റി ക്ലെയിമുകൾക്കായി നിങ്ങളുടെ വാങ്ങലിന്റെ തെളിവ് സൂക്ഷിക്കുക.

Webസൈറ്റ്: www.gingkodesign.com
