DB ഇലക്ട്രിക്കൽ 410-40028 സ്റ്റാർട്ടർ ഇൻസ്ട്രക്ഷൻ മാനുവൽ

1. ആമുഖം

This manual provides essential information for the proper installation, operation, and maintenance of your DB Electrical 410-40028 Starter. This starter is designed as a replacement for various John Deere tractor models. Please read this manual thoroughly before attempting any installation or service to ensure safety and optimal performance.

2 സുരക്ഷാ വിവരങ്ങൾ

മുന്നറിയിപ്പ്: Always disconnect the vehicle's battery before working on the electrical system to prevent electrical shock or damage. Wear appropriate personal protective equipment, including safety glasses and gloves. Ensure the vehicle is stable and secured to prevent accidental movement. If you are unsure about any procedure, consult a qualified technician.

നിർദ്ദേശം 65 മുന്നറിയിപ്പ്: ഈ ഉൽപ്പന്നം നിങ്ങളെ കാലിഫോർണിയ സംസ്ഥാനത്തിന് അറിയാവുന്ന രാസവസ്തുക്കളുമായി സമ്പർക്കം പുലർത്താൻ സാധ്യതയുണ്ട്, അവ കാൻസറിനും ജനന വൈകല്യങ്ങൾക്കും അല്ലെങ്കിൽ മറ്റ് പ്രത്യുൽപാദന വൈകല്യങ്ങൾക്കും കാരണമാകും. കൂടുതൽ വിവരങ്ങൾക്ക്, ഇവിടെ പോകുക www.P65Warnings.ca.gov.

3. ഉൽപ്പന്നം കഴിഞ്ഞുview

The DB Electrical 410-40028 Starter (Model SPR0009) is a 12-volt, 2.5 KW starter with 10 teeth and a CW (Clockwise) rotation. It is a PLGR (Planetary Gear Reduction) type starter, engineered to meet OEM specifications for reliable performance in compatible John Deere applications.

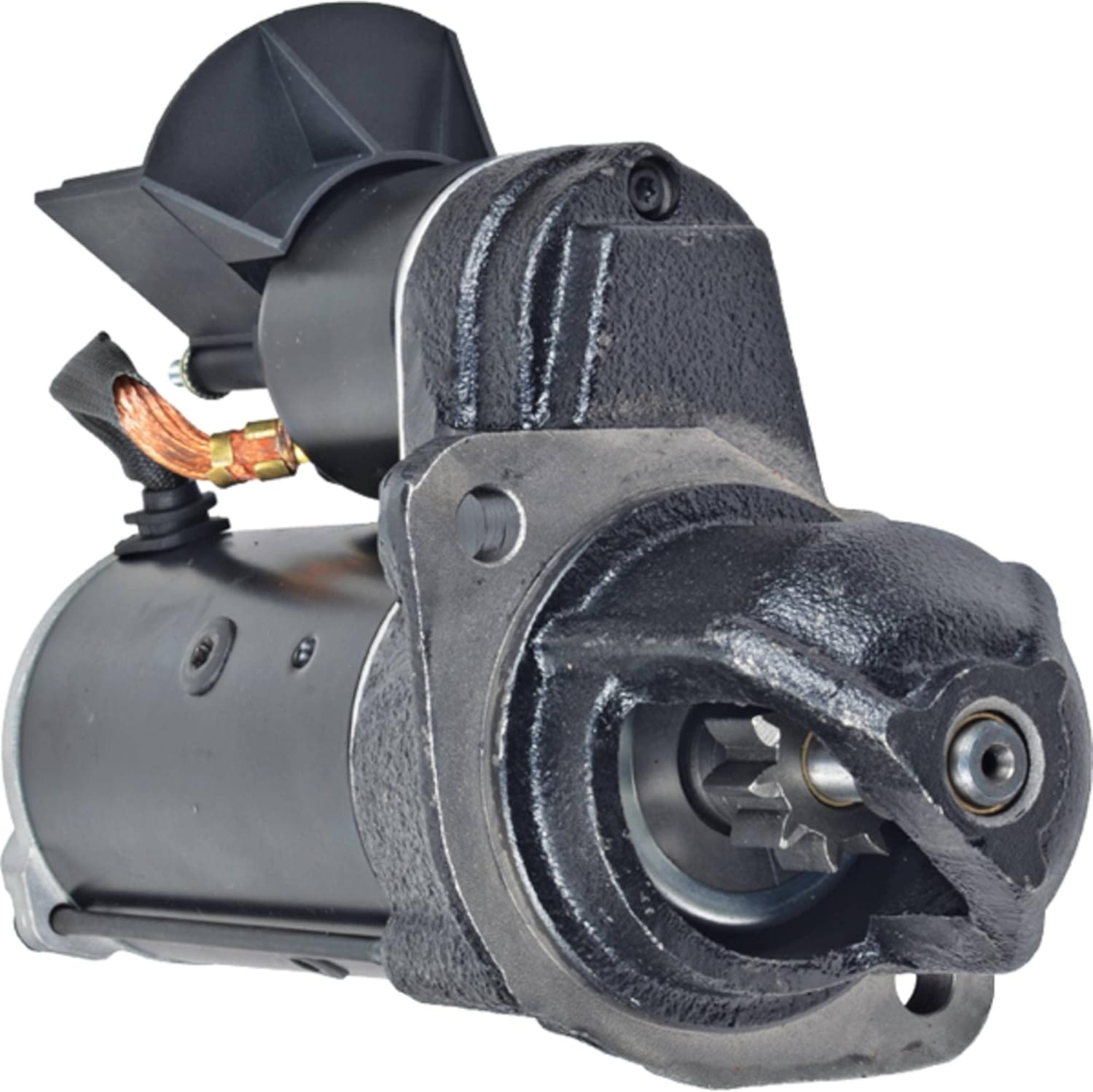

ചിത്രം 3.1: പ്രധാനം view of the DB Electrical 410-40028 Starter, showing the solenoid and gear assembly.

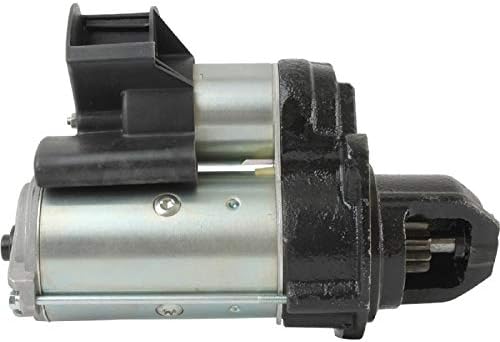

ചിത്രം 3.2: വശം view of the starter, highlighting the motor housing and mounting points.

4. ഇൻസ്റ്റലേഷൻ

പ്രീ-ഇൻസ്റ്റലേഷൻ പരിശോധന: Before installation, verify that this starter is the correct part for your specific John Deere model by cross-referencing the OEM numbers provided in the specifications section of this manual. Ensure the new starter matches the physical dimensions and electrical connections of the original unit.

1. ബാറ്ററി വിച്ഛേദിക്കുക: Disconnect the negative (-) battery cable first, followed by the positive (+) battery cable.
2. Locate and Remove Old Starter: Identify the existing starter motor. Disconnect all electrical connections to the old starter. Remove the mounting bolts securing the old starter to the engine. Carefully extract the old starter.
3. പുതിയ സ്റ്റാർട്ടർ ഇൻസ്റ്റാൾ ചെയ്യുക: Position the new DB Electrical 410-40028 Starter in place. Secure it with the appropriate mounting bolts, tightening them to the manufacturer's specifications.
4. ഇലക്ട്രിക്കൽ വയറിംഗ് ബന്ധിപ്പിക്കുക: Reconnect the main battery cable and the solenoid activation wire to the new starter. Ensure all connections are clean, tight, and correctly oriented.
5. ബാറ്ററി വീണ്ടും ബന്ധിപ്പിക്കുക: Reconnect the positive (+) battery cable first, then the negative (-) battery cable.
6. ടെസ്റ്റ് പ്രവർത്തനം: Attempt to start the engine to confirm proper operation of the new starter.

It is highly recommended to have installation performed by a certified mechanic to ensure correct procedure and safety.

5. ഓപ്പറേഷൻ

The starter motor is an integral component of your vehicle's engine starting system. Its operation is initiated by turning the ignition key or pressing the start button. The starter engages the engine's flywheel, rotating the crankshaft to begin the combustion cycle. Once the engine starts, the starter disengages automatically.

6. പരിപാലനം

The DB Electrical 410-40028 Starter is designed for durability and requires minimal maintenance. However, regular inspection of related components can prolong its lifespan:

• ബാറ്ററി അവസ്ഥ: Ensure your vehicle's battery is always fully charged and in good condition. A weak battery can strain the starter.
• കേബിൾ കണക്ഷനുകൾ: Periodically inspect all battery cables and starter connections for corrosion, looseness, or damage. Clean and tighten as necessary.
• ശാരീരിക ക്ഷതം: Check the starter for any signs of physical damage or excessive wear.

There are no internal user-serviceable parts within the starter motor. Any internal issues should be addressed by a qualified professional.

7. പ്രശ്‌നപരിഹാരം

• Starter Does Not Engage (No Click or Whirring Sound):
  • Check battery charge and terminals.
  • Verify all electrical connections to the starter are secure.
  • Inspect the ignition switch and starter relay for proper function.
• സ്ലോ ക്രാങ്കിംഗ്:
  • Indicates a low battery or corroded battery cables.
  • Could also be excessive resistance in the starter circuit. Inspect all connections and battery condition.
• ആരംഭിക്കുമ്പോൾ പൊടിക്കുന്ന ശബ്ദം:
  • May indicate improper starter engagement with the engine's flywheel.
  • Ensure the starter is correctly mounted and the gear teeth are not damaged.
• Starter Engages but Engine Does Not Turn Over:
  • Could indicate a mechanical issue with the engine or a faulty starter drive (bendix).

If these basic troubleshooting steps do not resolve the issue, it is recommended to seek professional assistance.

8 സ്പെസിഫിക്കേഷനുകൾ

Compatible OEM Numbers:

• ARROWHEAD: 410-40028, MS430, V438012, IS1059
• BOSCH: 0-001-223-502
• കാർഗോ: 113478
• ജമ്മു & നേഷൻ: 410-40028
• JOHN DEERE: RE501347, RE501680, RE501693, RE502156, RE502196, RE60641, RE63010
• ലെസ്റ്റർ: 17086, 18526
• LETRIKA (ISKRA) AFTERMARKET: IS 1059
• MAHLE: MS430
• റെമി ലൈറ്റ് ഡ്യൂട്ടി: 69600
• VALEO: D7R14, 438012

Compatible John Deere Models:

• 240 (1999-2004), 240 Series II
• 250 (1999-2004), 250 Series II
• 260 (1999-2004), 260 Series II
• 5055E, 5065E
• 5103, 5105
• 5203, 5205, 5210, 5220
• 5303, 5310, 5310N, 5320, 5320N
• 5410, 5410N
• 8875 (1994-1998)

9. വാറൻ്റിയും പിന്തുണയും

This DB Electrical product comes with a 1-year warranty from the date of purchase. This warranty covers manufacturing defects and ensures the product will function flawlessly when installed correctly in your vehicle. In the rare event of a product malfunction within the warranty period, DB Electrical will replace the unit.

For warranty claims, technical assistance, or any inquiries regarding your DB Electrical 410-40028 Starter, please contact DB Electrical customer support through their official website or authorized retailers. Please have your purchase details and product model number (SPR0009) available when contacting support.
