കഡ്‌ബാക്ക് കഡ്‌ലിങ്ക് 2+1 സെല്ലുലാർ സ്റ്റാർട്ടർ കിറ്റ് (KT-001) ഇൻസ്ട്രക്ഷൻ മാനുവൽ

1. ആമുഖം

The Cuddeback CuddeLink 2+1 Cellular Starter Kit provides a comprehensive solution for remote wildlife monitoring and security. This kit includes one CuddeLink Cell Home unit and two CuddeLink IR Remote Cameras, designed to establish a wireless network for image transmission. The Cell Home unit acts as the central hub, collecting images from all linked remote cameras and transmitting them to your device via LTE cellular service. The remote cameras capture high-quality images and relay them to the Cell Home without requiring individual cellular plans, offering flexible placement options.

This manual provides detailed instructions for the setup, operation, and maintenance of your CuddeLink system to ensure optimal performance.

2. പാക്കേജ് ഉള്ളടക്കം

Verify that all items listed below are present in your kit:

• 1 x CuddeLink Cell Home Unit (LLC-H)
• 2 x CuddeLink IR Remote Cameras (LL-2A)
• 3 x മൗണ്ടിംഗ് സ്ട്രാപ്പുകൾ
• 3 x മൗണ്ടിംഗ് ബ്രാക്കറ്റുകൾ
• 3 x Antennas (one for each unit)
• നിർദ്ദേശ മാനുവൽ (ഈ പ്രമാണം)

Image: The CuddeLink 2+1 Cellular Starter Kit includes one CuddeLink Home Unit and two L-Series IR Remote Cameras, along with necessary accessories for initial setup.

3. ഉൽപ്പന്നം കഴിഞ്ഞുview

3.1 CuddeLink System Architecture

The CuddeLink system operates on a network principle where multiple remote cameras communicate wirelessly with a single Cell Home unit. The Cell Home then utilizes cellular service (AT&T or Verizon) to transmit collected images to the user. This design allows for extensive coverage with only one cellular data plan.

3.2 പ്രധാന സവിശേഷതകൾ

• Network Capacity: Supports up to 23 remote cameras linked to one Cell Home unit.
• ട്രിഗർ വേഗത: Fast 1/4 second trigger speed for capturing rapid movement.
• സെല്ലുലാർ കണക്റ്റിവിറ്റി: Pre-installed AT&T and Verizon SIM cards for broad network compatibility.
• ഊർജ്ജ സ്രോതസ്സ്: Each unit requires 4 D-cell batteries (not included) for operation.
• Daisy-Chain Transmission: Images are transmitted from camera to camera, extending the network range up to 2+ miles.
• Camera Link Range: Each camera can link to another unit up to 1/4 mile away, even in dense terrain.
• ചിത്രത്തിന്റെ നിലവാരം: Features high-quality timelapse and advanced low-glow IR night vision modes.
• സംഭരണം: Compatible with SD cards up to 256GB (not included).
• ചിത്രം Tagജിംഗ്: Photos are tagged with date, time, moon phase, and camera ID.
• റിമോട്ട് കൺട്രോൾ: Manage camera settings and view images via a dedicated app or web ബ്രൗസർ.

Image: The CuddeLink Cell Home and two remote cameras, illustrating the core components of the starter kit.

Image: A visual representation of the CuddeLink network, demonstrating how cameras daisy-chain to extend range and transmit images to the central Cell Home unit.

4. സജ്ജീകരണം

4.1 ബാറ്ററി ഇൻസ്റ്റാളേഷൻ

1. Open the battery compartment on each CuddeLink unit (Cell Home and Remote Cameras).
2. Insert 4 new D-cell batteries into each unit, ensuring correct polarity (+/-).
3. ബാറ്ററി കമ്പാർട്ട്മെൻ്റ് സുരക്ഷിതമായി അടയ്ക്കുക.

4.2 SD കാർഡ് ചേർക്കൽ

1. Locate the SD card slot on each unit.
2. Insert a compatible SD card (up to 256GB, not included) into the slot until it clicks into place.
3. It is recommended to format the SD card using the camera's menu system after insertion.

4.3 ആന്റിന അറ്റാച്ച്മെന്റ്

1. Screw the provided antennas onto the designated ports on the top of each CuddeLink unit.
2. Ensure the antennas are securely tightened but do not overtighten.

4.4 Mounting the Units

1. Select a suitable location for each camera, typically a tree or post, ensuring a clear line of sight between units for optimal network performance.
2. Use the provided mounting straps and brackets to securely attach each unit.
3. Position the cameras to cover the desired monitoring area.

4.5 Initial Power-On and Network Linking

1. Power on the CuddeLink Cell Home unit first.
2. Follow the on-screen prompts or refer to the unit's display for initial setup, including selecting your cellular carrier (AT&T or Verizon).
3. Power on the CuddeLink IR Remote Cameras. They will automatically attempt to connect to the nearest Cell Home unit or another linked remote camera.
4. Verify successful linking on the display of each unit.

4.6 App/Web ബ്രൗസർ സജ്ജീകരണം

1. Download the official Cuddeback app from your device's app store or visit the Cuddeback webസൈറ്റ് web ബ്രൗസർ ആക്സസ്.
2. Create an account and register your CuddeLink Cell Home unit using the provided serial number.
3. Configure camera settings, view images, and manage your network through the app or web ഇൻ്റർഫേസ്.

Image: The CuddeLink mobile application allows users to control cameras and view captured images remotely.

5. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

5.1 ഇമേജ് ക്യാപ്ചർ

The remote cameras are equipped with motion sensors that trigger image capture. With a 1/4 second trigger speed, the cameras are designed to capture fast-moving subjects effectively.

5.2 Image Transmission

Once an image is captured by a remote camera, it is wirelessly transmitted through the CuddeLink network to the Cell Home unit. The Cell Home then sends these images to your registered account, accessible via the mobile app or web ബ്രൗസർ.

5.3 പ്രവർത്തന രീതികൾ

• Daytime Mode: Captures full-color images in daylight conditions.
• നൈറ്റ് വിഷൻ മോഡ്: Utilizes advanced low-glow infrared (IR) technology to capture clear black and white images in low-light or nighttime conditions.
• Timelapse Mode: Captures images at set intervals, useful for monitoring slow-moving events or changes over time.

ചിത്രം: ഉദാamples of daytime color photography and advanced low-glow IR night vision images captured by CuddeLink cameras.

5.4 റിമോട്ട് മാനേജ്മെന്റ്

Use the Cuddeback app or web portal to:

• View ചിത്രങ്ങളും വീഡിയോകളും പകർത്തി.
• Adjust camera settings (e.g., trigger delay, photo resolution, mode).
• Monitor battery levels and SD card capacity.
• Receive notifications for new activity.

6. പരിപാലനം

6.1 ബാറ്ററി മാറ്റിസ്ഥാപിക്കൽ

Regularly check battery levels via the app or unit display. Replace all 4 D-cell batteries in a unit simultaneously to ensure consistent power and optimal performance. Battery life can vary based on usage and environmental conditions.

6.2 SD കാർഡ് മാനേജ്മെന്റ്

Monitor the remaining capacity of your SD cards. When full, images will no longer be saved. You can either replace the SD card with a new one or format the existing card (which will erase all stored images). It is recommended to back up important images before formatting.

6.3 വൃത്തിയാക്കൽ

Periodically clean the camera lens and IR array with a soft, lint-free cloth to ensure clear image quality. Wipe down the camera housing to remove dirt, dust, or debris that may accumulate.

6.4 ഫേംവെയർ അപ്ഡേറ്റുകൾ

Check the Cuddeback website or app periodically for available firmware updates. Firmware updates can improve performance, add new features, or resolve known issues. Follow the provided instructions carefully when performing updates.

Image: Details on power and storage, including battery requirements and SD card compatibility.

7. പ്രശ്‌നപരിഹാരം

If you encounter issues with your CuddeLink system, refer to the following common problems and solutions:

• No Images Received:
  • Check battery levels in all units.
  • Ensure SD cards are properly inserted and have sufficient space.
  • Verify that all cameras are linked to the Cell Home unit and the Cell Home has cellular signal.
  • Confirm your cellular data plan is active and not expired.
  • Check camera placement for obstructions or insufficient motion in the detection zone.
• മോശം ചിത്രത്തിന്റെ ഗുണനിലവാരം:
  • Clean the camera lens and IR array.
  • ക്യാമറ ചലനം തടയാൻ സുരക്ഷിതമായി ഘടിപ്പിച്ചിട്ടുണ്ടെന്ന് ഉറപ്പാക്കുക.
  • Check settings in the app to ensure appropriate resolution and mode are selected.
• Delayed Image Transmission:
  • Image transmission time can vary based on cellular network congestion and signal strength.
  • Ensure the Cell Home unit has a strong cellular signal. Relocate if necessary.
  • Verify that remote cameras are within effective range of other linked cameras or the Cell Home.
• ഹ്രസ്വ ബാറ്ററി ലൈഫ്:
  • Ensure you are using fresh, high-quality D-cell batteries.
  • Frequent image capture, video recording (if enabled), and cold temperatures can reduce battery life.
  • Consider using a Cuddeback solar panel add-on for extended runtime.
• Missing SIM Card:
  • The kit is advertised with AT&T & Verizon SIM cards installed. If a SIM card is missing, contact Cuddeback customer support immediately.

For further assistance, refer to the official Cuddeback support resources or contact customer service.

8 സ്പെസിഫിക്കേഷനുകൾ

9. വാറൻ്റിയും പിന്തുണയും

For information regarding product warranty, please refer to the documentation included with your purchase or visit the official Cuddeback website. For technical support, troubleshooting assistance beyond this manual, or inquiries about parts and service, please contact Cuddeback customer service directly.

Cuddeback Customer Service: Refer to the contact information provided on the Cuddeback webസൈറ്റിലോ നിങ്ങളുടെ ഉൽപ്പന്ന പാക്കേജിംഗിലോ.

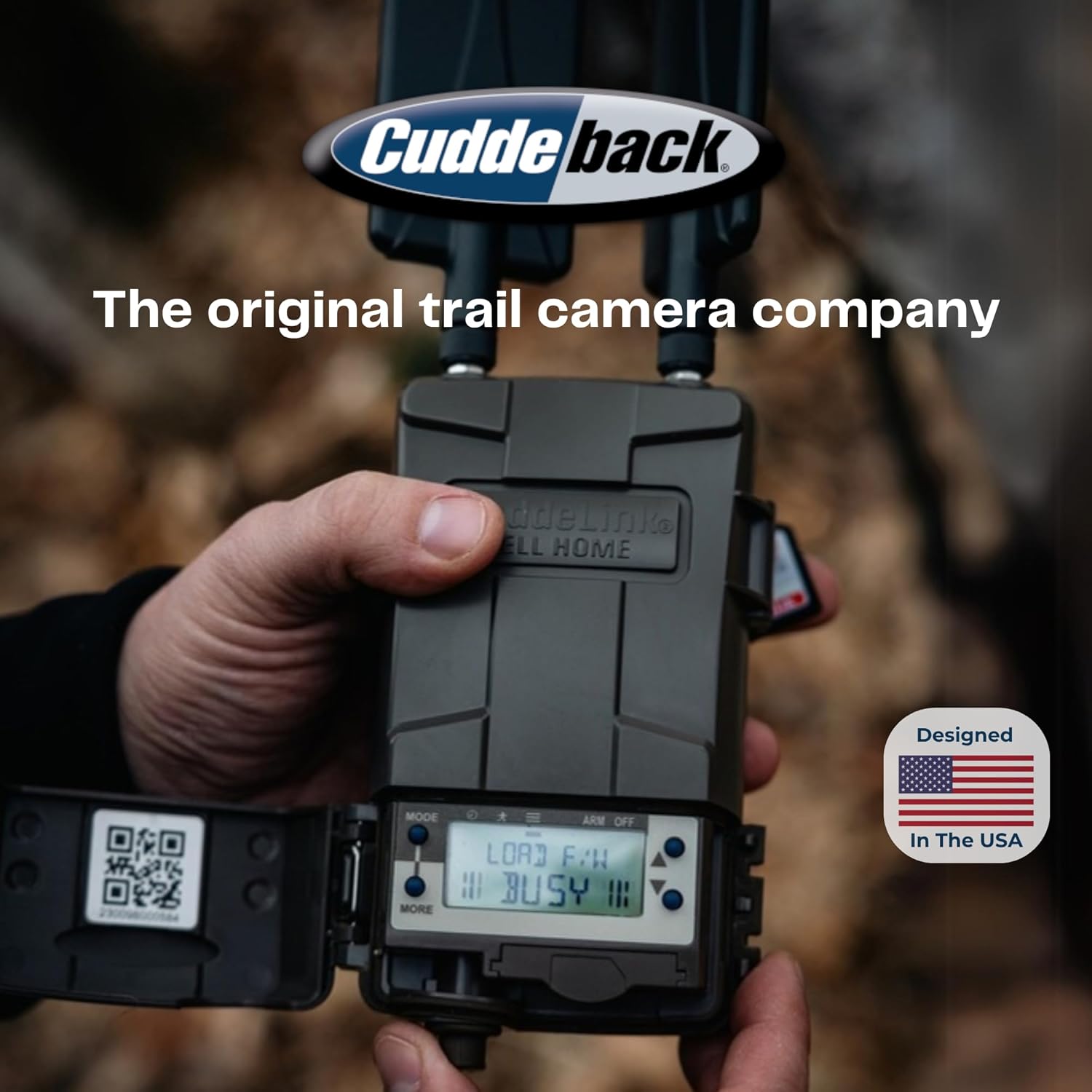

Image: Cuddeback trail camera, highlighting the brand's commitment to design in the USA.
