STMicroelectronics ST-LINK/V2

ST-Link/V2 In-Circuit Debugger/Programmer User Manual

Model: ST-LINK/V2 | Brand: STMicroelectronics

1. ആമുഖം

The ST-LINK/V2 is an essential in-circuit debugger and programmer designed for the STM8 and STM32 microcontroller families. It facilitates communication between your development environment and the target microcontroller on an application board.

This device utilizes two primary interfaces for communication:

  • Single Wire Interface Module (SWIM): Used for STM8 microcontrollers.
  • JTAG/Serial Wire Debugging (SWD): Used for STM32 microcontrollers.

The ST-LINK/V2 connects to your computer via a USB full-speed interface, enabling seamless interaction with various integrated development environments (IDEs) and programming software.

ST-Link/V2 debugger/programmer kit with box, device, and cables

Figure 1: ST-Link/V2 kit including the debugger, connection cables, and documentation.

2 പ്രധാന സവിശേഷതകൾ

  • 5 V power supplied directly via a USB connector.
  • USB 2.0 full-speed compatible interface.
  • Includes a USB standard A to Mini-B cable for connection.
  • SWIM Specifics:
    • Supports 1.65 V to 5.5 V application voltage.
    • Supports low-speed and high-speed modes.
    • Programming speed rates: 9.7 Kbytes/s (low speed), 12.8 Kbytes/s (high speed).
    • Includes SWIM cable for connection via ERNI standard vertical/horizontal connectors or 2.54 mm pitch pin headers.
  • JTAG/SWD Specifics:
    • Supports 1.65 V to 3.6 V application voltage with 5 V tolerant inputs.
    • Includes JTAG cable for connection to standard JTAG 20-pin pitch 2.54 mm connectors.
    • ജെയെ പിന്തുണയ്ക്കുന്നുTAG, SWD, and Serial Wire Viewer (SWV) communication.
  • Direct Firmware Update (DFU) feature supported.
  • Status LED indicates communication activity with the PC.
  • Operating temperature range: 0 to 50 °C.

3. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും

Before using the ST-LINK/V2, ensure proper driver installation and connection to your development environment.

3.1. ഹാർഡ്‌വെയർ കണക്ഷൻ

  1. Connect the ST-LINK/V2 to your computer using the provided USB standard A to Mini-B cable. The device is powered via this USB connection.
  2. Identify the appropriate interface on the ST-LINK/V2 for your target microcontroller:
    • For STM8 microcontrollers, use the SWIM interface.
    • For STM32 microcontrollers, use the JTAG/SWD ഇന്റർഫേസ്.
  3. Connect the ST-LINK/V2 to your application board's target microcontroller using the relevant cable (SWIM cable for STM8, JTAG cable for STM32). Ensure correct pin orientation and voltagഇ അനുയോജ്യത.

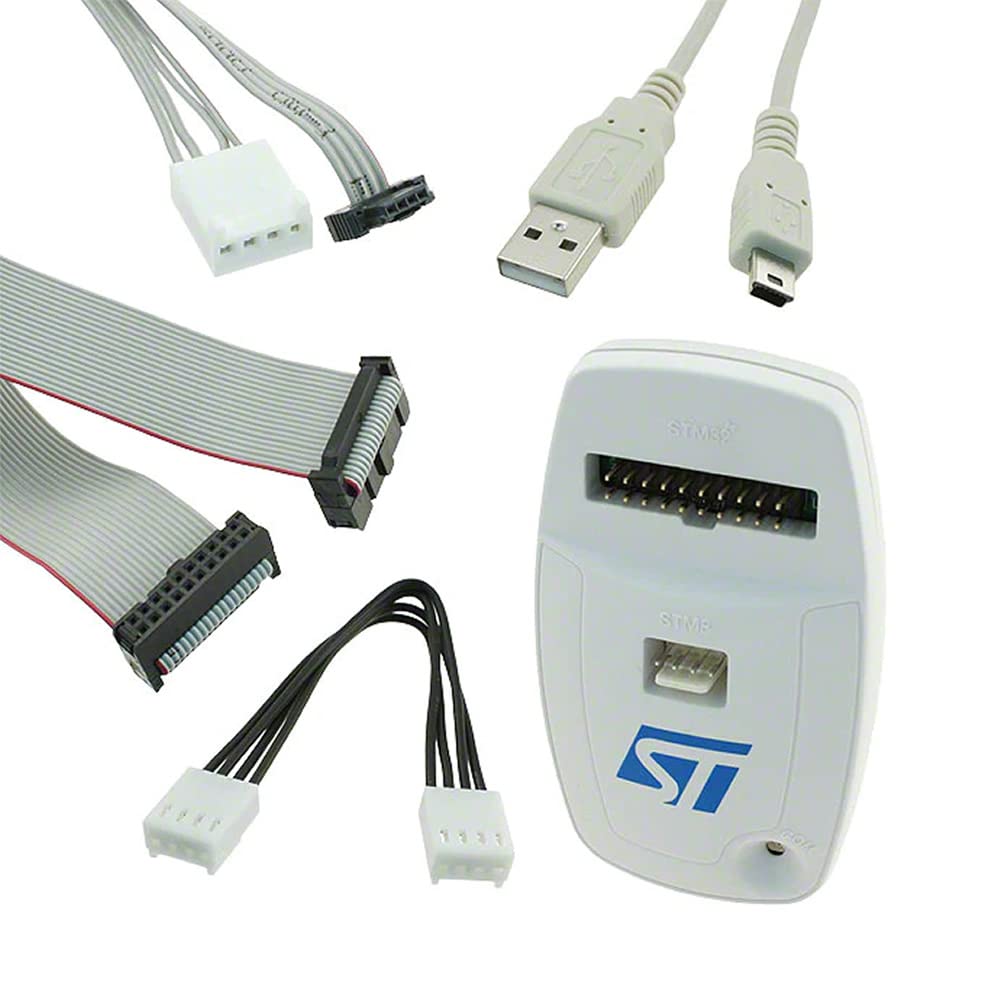

ST-Link/V2 device with various connection cables including USB, SWIM, and JTAG

Figure 2: ST-Link/V2 device and its accompanying connection cables for different interfaces.

3.2 സോഫ്റ്റ്‌വെയറും ഡ്രൈവർ ഇൻസ്റ്റാളേഷനും

Drivers for the ST-LINK/V2 are typically included with the STMicroelectronics development tools. It is recommended to download the latest ST-LINK drivers and firmware from the official STMicroelectronics webസൈറ്റ്.

  1. Visit the official STMicroelectronics website and navigate to the ST-LINK/V2 product page or the software and tools section.
  2. Download and install the latest ST-LINK drivers. These drivers are crucial for your operating system to recognize the device.
  3. Download and install the necessary integrated development environment (IDE) or programming software for your microcontroller family:
    • For STM8 applications: ST Visual Develop (STVD) or ST Visual Program (STVP).
    • For STM32 applications: Atollic TrueSTUDIO, IAR Embedded Workbench, Keil MDK-ARM, or TASKING.
  4. Ensure the ST-LINK/V2 firmware is up to date using the ST-LINK Utility software (usually part of the driver package).

4. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

Once the ST-LINK/V2 is connected and drivers are installed, you can begin programming and debugging your microcontrollers.

4.1. Programming and Debugging STM8

For STM8 microcontrollers, the ST-LINK/V2 uses the SWIM interface.

  1. Open ST Visual Develop (STVD) for debugging or ST Visual Program (STVP) for programming.
  2. In your chosen software, select ST-LINK as the programming/debugging tool.
  3. Configure the target microcontroller settings, including the SWIM interface speed (low-speed or high-speed) and application voltage.
  4. Load your firmware or project into the software.
  5. Initiate programming or debugging as required by the software interface. The status LED on the ST-LINK/V2 will blink during communication.

4.2. Programming and Debugging STM32

For STM32 microcontrollers, the ST-LINK/V2 uses the JTAG/SWD ഇന്റർഫേസ്.

  1. Open your preferred IDE (e.g., Atollic TrueSTUDIO, IAR Embedded Workbench, Keil MDK-ARM, TASKING).
  2. In the IDE's project settings or debug configuration, select ST-LINK as the debugger/programmer.
  3. Ensure the correct interface (JTAG or SWD) is selected and verify the application voltagഇ ക്രമീകരണങ്ങൾ.
  4. Build your project and load the executable onto the target.
  5. Start the debugging session or program the flash memory. The status LED on the ST-LINK/V2 will blink during data transfer.
ST-Link/V2 device connected via USB and to a ribbon cable, with its status LED illuminated

Figure 3: ST-Link/V2 in operation, showing the illuminated status LED indicating active communication.

4.3. Direct Firmware Update (DFU)

The ST-LINK/V2 supports Direct Firmware Update (DFU), allowing you to update its internal firmware. This is typically done via the ST-LINK Utility software and ensures compatibility with the latest microcontrollers and features. Refer to the ST-LINK Utility documentation for detailed DFU procedures.

5. പരിപാലനം

To ensure the longevity and optimal performance of your ST-LINK/V2, follow these maintenance guidelines:

  • സംഭരണം: ഉപയോഗത്തിലില്ലാത്തപ്പോൾ ഉപകരണം വരണ്ടതും പൊടിയില്ലാത്തതുമായ അന്തരീക്ഷത്തിൽ സൂക്ഷിക്കുക.
  • വൃത്തിയാക്കൽ: ഉപകരണത്തിന്റെ പുറംഭാഗം വൃത്തിയാക്കാൻ മൃദുവായതും ഉണങ്ങിയതുമായ തുണി ഉപയോഗിക്കുക. ലിക്വിഡ് ക്ലീനറുകളോ ലായകങ്ങളോ ഉപയോഗിക്കുന്നത് ഒഴിവാക്കുക.
  • കൈകാര്യം ചെയ്യൽ: Handle the device and its cables with care. Avoid excessive bending or pulling of cables, especially near connectors.
  • താപനില: Operate and store the device within its specified temperature range (0 to 50 °C).
  • ഫേംവെയർ അപ്‌ഡേറ്റുകൾ: Regularly check for and apply firmware updates for the ST-LINK/V2 to ensure compatibility and access to new features.

6. പ്രശ്‌നപരിഹാരം

If you encounter issues with your ST-LINK/V2, consider the following troubleshooting steps:

6.1. Device Not Recognized by PC

  • USB കണക്ഷൻ: Ensure the USB cable is securely connected to both the ST-LINK/V2 and the PC. Try a different USB port or cable.
  • ഡ്രൈവർമാർ: Verify that the ST-LINK drivers are correctly installed. Reinstall them if necessary, downloading the latest version from STMicroelectronics.
  • മറ്റ് യുഎസ്ബി ഉപകരണങ്ങൾ: Disconnect other non-essential USB devices to rule out conflicts.
  • PC Restart: നിങ്ങളുടെ കമ്പ്യൂട്ടർ പുനരാരംഭിക്കുക.

6.2. Cannot Connect to Target Microcontroller

  • കേബിൾ കണക്ഷൻ: Ensure the SWIM or JTAG/SWD cable is correctly and securely connected to both the ST-LINK/V2 and the target board. Check for correct pin orientation.
  • ലക്ഷ്യ ശക്തി: Verify that the target microcontroller board is powered on and receiving the correct voltage.
  • വാല്യംtagഇ അനുയോജ്യത: Confirm that the application voltage of your target board is within the supported range of the ST-LINK/V2 (1.65 V to 5.5 V for SWIM, 1.65 V to 3.6 V for JTAG/SWD).
  • Interface Selection: In your IDE or programming software, ensure the correct interface (SWIM, JTAG, or SWD) is selected.
  • Target Microcontroller State: The target microcontroller might be in a protected state (e.g., read-out protection). Refer to your microcontroller's datasheet for recovery procedures.
  • Pinout Verification: Double-check the pinout of your target board's debug connector against the ST-LINK/V2 pinout.
Pinout diagram for the 20-pin JTAG/SWD connector, showing VAPP, GND, SWDIO, SWCLK, TMS, TCK, SWO, TDO, NRST, and VDD pins

ചിത്രം 4: ജെTAG/SWD 20-pin connector pinout diagram for reference.

6.3. Programming/Debugging Errors

  • ഫേംവെയർ പതിപ്പ്: Ensure your ST-LINK/V2 firmware is up to date.
  • സോഫ്റ്റ്‌വെയർ പതിപ്പ്: Use the latest versions of your IDE and programming tools.
  • Project Configuration: Verify that your project settings in the IDE match the target microcontroller and ST-LINK/V2 configuration.
  • വൈദ്യുതി വിതരണം: Ensure a stable power supply to both the ST-LINK/V2 and the target board.

7 സ്പെസിഫിക്കേഷനുകൾ

ഫീച്ചർവിശദാംശങ്ങൾ
മോഡലിൻ്റെ പേര്ST-LINK/V2
ബ്രാൻഡ്എസ്ടിമൈക്രോ ഇലക്ട്രോണിക്സ്
ഉൽപ്പന്ന അളവുകൾ4 x 3 x 1 ഇഞ്ച്
ഇനത്തിൻ്റെ ഭാരം0.01 ഔൺസ്
വൈദ്യുതി വിതരണം5 V via USB connector
യുഎസ്ബി ഇൻ്റർഫേസ്USB 2.0 full-speed compatible
SWIM Application Voltage1.65 V മുതൽ 5.5 V വരെ
SWIM Programming Speed9.7 Kbytes/s (low), 12.8 Kbytes/s (high)
JTAG/SWD Application Voltage1.65 V to 3.6 V (5 V tolerant inputs)
പ്രവർത്തന താപനില0 മുതൽ 50 °C വരെ
അനുയോജ്യമായ ഉപകരണങ്ങൾപേഴ്സണൽ കമ്പ്യൂട്ടർ
കണക്റ്റർ തരംUSB

8. വാറൻ്റിയും പിന്തുണയും

8.1. വാറൻ്റി വിവരങ്ങൾ

Specific warranty terms for the ST-LINK/V2 are provided by the manufacturer, STMicroelectronics. Please refer to the official STMicroelectronics website or the documentation included with your purchase for detailed warranty information, including coverage period and conditions.

8.2. സാങ്കേതിക പിന്തുണ

For technical assistance, driver updates, firmware updates, and additional resources, please visit the official STMicroelectronics support website. You can find comprehensive documentation, forums, and contact information for technical support there.

നിർമ്മാതാവ്: എസ്ടിമൈക്രോ ഇലക്ട്രോണിക്സ്

Webസൈറ്റ്: www.st.com
