1. ആമുഖം
This manual provides essential information for the safe and efficient operation of the Endress Hauser Cerabar PMC71 pressure transmitter. The Cerabar PMC71 is a highly reliable and robust device designed for precise pressure measurement in various industrial applications. It is engineered to deliver accurate and stable readings, ensuring optimal process control and monitoring. Please read this manual thoroughly before installation, operation, or maintenance to ensure proper handling and to prevent damage or injury.
2 സുരക്ഷാ വിവരങ്ങൾ
Safety is paramount when working with industrial equipment. Adhere to all local and national safety regulations, as well as company-specific safety procedures.
- Installation, commissioning, and maintenance must only be performed by qualified and authorized personnel.
- Ensure the power supply is disconnected before performing any installation or maintenance work.
- എല്ലായ്പ്പോഴും ഉചിതമായ വ്യക്തിഗത സംരക്ഷണ ഉപകരണങ്ങൾ (പിപിഇ) ധരിക്കുക.
- Be aware of potential hazards such as high pressure, electrical shock, and moving parts.
- Do not modify the device in any way. Unauthorized modifications can compromise safety and performance.
- Protect the device from extreme temperatures, vibrations, and corrosive environments unless specifically designed for such conditions.
3. ഉൽപ്പന്നം കഴിഞ്ഞുview
The Endress Hauser Cerabar PMC71 is a robust pressure transmitter designed for demanding industrial environments. It typically features a durable housing, a process connection for pressure measurement, and an electrical connection for power and signal output.

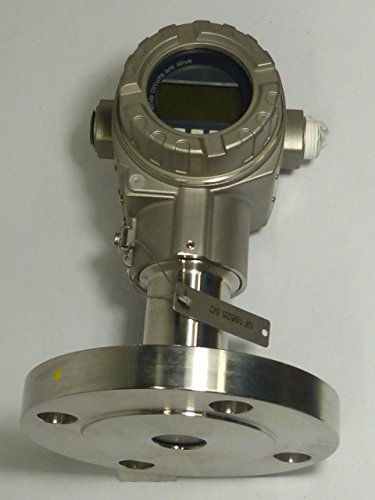

ചിത്രം 3.1: ഫ്രണ്ട് view of the Endress Hauser Cerabar PMC71 pressure transmitter. This image shows the robust metallic housing, the display window, and the process connection flange at the bottom.

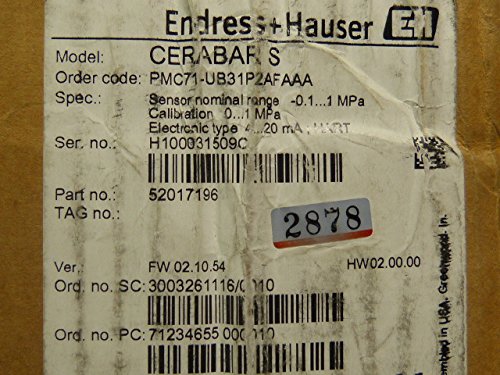

ചിത്രം 3.2: ക്ലോസ് അപ്പ് view of the product label on the Endress Hauser Cerabar PMC71 packaging. The label displays critical information such as the model (CERABAR S), order code (PMC71-UB31P2AFAAA), sensor nominal range, calibration details, serial number (H100031509C), and part number (52017196).
The device is typically shipped in protective packaging to ensure its integrity during transit.
ചിത്രം 3.3: Original packaging for the Endress Hauser Cerabar PMC71. The cardboard box features the Endress+Hauser logo and shipping labels, indicating careful handling for delicate instruments.
4. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും
Proper installation is crucial for the accurate and reliable operation of the Cerabar PMC71.
4.1 അൺപാക്കിംഗ്
- ഉപകരണം അതിന്റെ പാക്കേജിംഗിൽ നിന്ന് ശ്രദ്ധാപൂർവ്വം നീക്കം ചെയ്യുക.
- Inspect the device for any visible damage that may have occurred during shipping.
- പാക്കിംഗ് സ്ലിപ്പിൽ ലിസ്റ്റ് ചെയ്തിരിക്കുന്ന എല്ലാ ഘടകങ്ങളും ഉണ്ടെന്ന് ഉറപ്പാക്കുക.
4.2 മൗണ്ടിംഗ്
Mount the pressure transmitter securely in a location that is easily accessible for maintenance and where it is protected from excessive vibration and extreme environmental conditions. Ensure the mounting position allows for proper drainage if condensation is a concern.
4.3 ഇലക്ട്രിക്കൽ കണക്ഷൻ
Connect the device to the appropriate power supply and signal lines according to the wiring diagram provided in the full technical documentation. Ensure all connections are secure and comply with local electrical codes.
4.4 Process Connection
Connect the pressure transmitter to the process line using the appropriate flange or thread connection. Ensure a leak-free seal. Refer to the device's specifications for compatible process media and pressure ranges.
5. പ്രവർത്തന നിർദ്ദേശങ്ങൾ
Once installed and powered, the Cerabar PMC71 begins measuring pressure.
5.1 പവർ ഓണാണ്
Apply power to the device. The display (if present) should illuminate, and the device will initiate its self-test routine.
5.2 അടിസ്ഥാന പ്രവർത്തനം
The Cerabar PMC71 is designed for continuous pressure measurement. The measured pressure value is typically transmitted as an analog signal (e.g., 4-20 mA) or digital signal (e.g., HART) to a control system. For detailed configuration and calibration, refer to the comprehensive technical documentation or contact Endress Hauser support.
6. പരിപാലനം
Regular maintenance ensures the longevity and accuracy of the Cerabar PMC71.
6.1 പതിവ് പരിശോധനകൾ
- Periodically inspect the device for any signs of physical damage, corrosion, or leaks.
- Ensure all electrical and process connections remain secure.
- Keep the device clean, especially the display window and process connection area. Use a soft, damp cloth for cleaning; avoid abrasive cleaners.
6.2 കാലിബ്രേഷൻ
Depending on application requirements and industry standards, periodic calibration of the pressure transmitter may be necessary to maintain measurement accuracy. Refer to Endress Hauser's calibration guidelines or consult a certified calibration service.
7. പ്രശ്നപരിഹാരം
പൊതുവായ പ്രശ്നങ്ങൾക്കുള്ള മാർഗ്ഗനിർദ്ദേശം ഈ വിഭാഗം നൽകുന്നു. സങ്കീർണ്ണമായ പ്രശ്നങ്ങൾക്ക്, സാങ്കേതിക പിന്തുണയുമായി ബന്ധപ്പെടുക.
| പ്രശ്നം | സാധ്യമായ കാരണം | പരിഹാരം |
|---|---|---|
| No display/No power | No power supply; Loose electrical connection; Blown fuse | Check power supply; Secure electrical connections; Replace fuse if necessary (by qualified personnel) |
| തെറ്റായ മർദ്ദ വായന | Sensor clogged; Incorrect calibration; Process connection leak; Incorrect configuration | Inspect and clean sensor; Perform calibration; Check process connection for leaks; Verify configuration settings |
| അസ്ഥിരമായ വായന | Vibration; Process fluctuations; Electrical interference | Reduce vibration if possible; Analyze process stability; Check for proper grounding and shielding |
If the problem persists after attempting these solutions, refer to the detailed troubleshooting guide in the full technical documentation or contact Endress Hauser customer support.
8 സ്പെസിഫിക്കേഷനുകൾ
Key technical specifications for the Endress Hauser Cerabar PMC71 (Model 52017196):
- ബ്രാൻഡ്: എൻഡ്രസ് ഹൗസർ
- മോഡൽ: Cerabar PMC71
- നിർമ്മാതാവിൻ്റെ റഫറൻസ്: 52017196
- ASIN: B00TGGFXRO
- ഉൽപ്പന്ന അളവുകൾ: 51 x 36 x 36 സെ.മീ
- ഇനത്തിൻ്റെ ഭാരം: 7 കിലോഗ്രാം
- ആദ്യം ലഭ്യമായ തീയതി: 1 മാർച്ച് 2017
9. വാറൻ്റിയും പിന്തുണയും
For detailed information regarding the warranty period and terms for your Endress Hauser Cerabar PMC71, please refer to the documentation provided with your purchase or contact your authorized Endress Hauser distributor.
For technical support, service, or to obtain additional documentation, please contact Endress Hauser directly through their official website or your local sales representative.
Endress Hauser Official Webസൈറ്റ്: www.endress.com
