ആമുഖം
This manual provides comprehensive instructions for the IOGEAR 4-Port 4K HDMI Switch, Model GHDSW4K4. This device allows you to connect up to four HDMI source devices to a single HDMI display, supporting resolutions up to 4K at 60Hz. It is designed for seamless integration into your home theater or workstation, offering convenient switching between various multimedia devices.
The switch features one HDMI port on the front panel for easy access with portable devices, and three additional HDMI ports on the back for permanent connections. Switching between inputs can be performed using the front panel pushbuttons or the included IR remote control. Front panel LED indicators provide clear status of the active input.
ചിത്രം: മുൻഭാഗം view of the IOGEAR 4-Port 4K HDMI Switch, showing its compact design.
പാക്കേജ് ഉള്ളടക്കം
നിങ്ങളുടെ പാക്കേജിൽ എല്ലാ ഇനങ്ങളും ഉണ്ടെന്ന് ഉറപ്പാക്കുക:
- 1 x IOGEAR 4-Port 4K HDMI Switch (Model GHDSW4K4)
- 1 x IR വിദൂര നിയന്ത്രണം
ഉൽപ്പന്ന സവിശേഷതകൾ
- Supports resolutions up to 4K (2160p) at 60Hz, including 480p, 720p, 1080i, and 1080p.
- HDCP 2.2 compliant for seamless compatibility with various devices.
- Supports Dolby True HD and DTS-HD for uncompressed 7.1 digital surround sound.
- Full 3D passthrough and Consumer Electronics Control (CEC) support.
- Effortless switching via front panel button or IR remote control.
- Supports IR extension using a receiver extension cable (not included) for discreet placement.
- Compatible with most standard HDMI devices including game consoles, Blu-ray players, and streaming devices.
- Powered by connected HDMI sources, eliminating the need for an external power adapter in most cases. A micro USB power port is available for additional power delivery if required.
സജ്ജീകരണ നിർദ്ദേശങ്ങൾ
Follow these steps to set up your IOGEAR 4-Port 4K HDMI Switch:
- പവർ ഓഫ് ഡിവൈസുകൾ: Ensure all HDMI source devices (e.g., Blu-ray player, game console) and your display (TV, monitor) are powered off before making connections.
- HDMI ഉറവിടങ്ങൾ ബന്ധിപ്പിക്കുക: Connect your HDMI source devices to the HDMI input ports on the switch. The front panel has one input, and the rear panel has three inputs (Input 2, Input 3, Input 4).
- ഡിസ്പ്ലേയിലേക്ക് കണക്റ്റുചെയ്യുക: Connect an HDMI cable from the 'OUTPUT' port on the switch to the HDMI input on your display.
- ഓപ്ഷണൽ പവർ കണക്ഷൻ: The switch is typically powered by the connected HDMI sources. If additional power is needed (e.g., for longer HDMI cables or certain devices), connect a micro USB cable (not included) from the 5V/1A micro USB port on the switch to a USB power source.
- റിമോട്ട് ബാറ്ററി ഇടുക: Open the battery compartment of the IR remote control and insert the required battery (1 Lithium Ion battery, typically CR2025, not always included). Ensure any plastic pull-tabs are removed.
- പവർ ഓൺ ഉപകരണങ്ങൾ: Power on your display first, then power on your HDMI source devices.

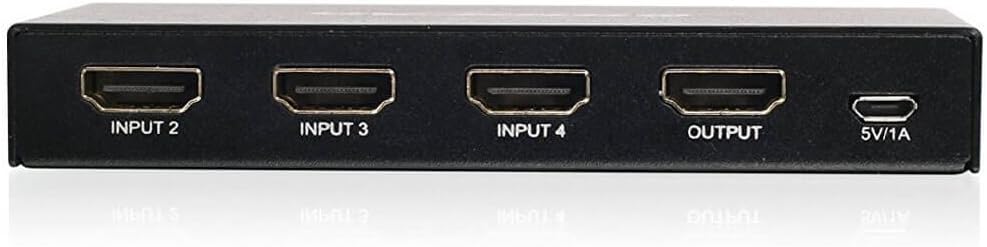

ചിത്രം: പിൻഭാഗം view of the IOGEAR 4-Port 4K HDMI Switch, illustrating the HDMI input ports (Input 2, Input 3, Input 4), the HDMI output port, and the 5V/1A micro USB power input.
Image: The IOGEAR 4-Port 4K HDMI Switch shown in a typical desk environment, connecting a laptop, tablet, and external monitor.
പ്രവർത്തന നിർദ്ദേശങ്ങൾ
The IOGEAR 4-Port 4K HDMI Switch offers two methods for switching between connected devices:
- Front Panel Pushbutton: Press the 'Select' button on the front of the switch to cycle through the connected HDMI input sources. The corresponding LED indicator will illuminate to show the active input.
- IR റിമോട്ട് കൺട്രോൾ: Use the included IR remote control to directly select an input (if numbered buttons are present) or to cycle through inputs. Point the remote towards the IR receiver on the front of the switch.
- യാന്ത്രിക സ്വിച്ചിംഗ്: The switch may automatically switch to a newly activated HDMI source. This feature can be convenient but may cause unintended switching if devices periodically send signals.
മെയിൻ്റനൻസ്
To ensure optimal performance and longevity of your HDMI switch, follow these maintenance guidelines:
- വൃത്തിയാക്കൽ: Use a soft, dry cloth to clean the exterior of the switch. Avoid using liquid cleaners or aerosols, which may damage the device.
- വെൻ്റിലേഷൻ: Ensure the switch is placed in a well-ventilated area to prevent overheating. Do not block any ventilation openings.
- കേബിൾ മാനേജുമെന്റ്: Keep HDMI cables neatly organized to prevent strain on the ports and accidental disconnections.
- സംഭരണം: ദീർഘനേരം ഉപയോഗിക്കാത്തപ്പോൾ, നേരിട്ടുള്ള സൂര്യപ്രകാശവും കടുത്ത താപനിലയും ഏൽക്കാത്ത ഒരു തണുത്തതും വരണ്ടതുമായ സ്ഥലത്ത് സ്വിച്ച് സൂക്ഷിക്കുക.
ട്രബിൾഷൂട്ടിംഗ്
If you encounter issues with your IOGEAR 4-Port 4K HDMI Switch, refer to the following common solutions:
- വീഡിയോ/ഓഡിയോ ഔട്ട്പുട്ട് ഇല്ല:
- എല്ലാ HDMI കേബിളുകളും സോഴ്സ് ഉപകരണങ്ങൾ, സ്വിച്ച്, ഡിസ്പ്ലേ എന്നിവയുമായി സുരക്ഷിതമായി ബന്ധിപ്പിച്ചിട്ടുണ്ടെന്ന് ഉറപ്പാക്കുക.
- Verify that the correct input on the HDMI switch is selected.
- Confirm that your display is set to the correct HDMI input channel.
- If using a micro USB power cable, ensure it is connected to a reliable power source.
- Try bypassing the switch by connecting a source directly to the display to confirm the source and display are functioning correctly.
- റിമോട്ട് കൺട്രോൾ പ്രവർത്തിക്കുന്നില്ല:
- Check if the battery in the remote control is correctly inserted and has sufficient charge. Replace if necessary.
- Ensure there are no obstructions between the remote control and the IR receiver on the switch.
- Remove any plastic pull-tabs from the remote's battery compartment.
- 4K Resolution Issues:
- Ensure all connected HDMI cables are rated for 4K (High-Speed HDMI cables).
- Verify that your source device and display both support 4K resolution at the desired refresh rate (e.g., 60Hz).
- Some devices may require specific settings to output 4K through an HDMI switch. Consult your device's manual.
- Unintended Automatic Switching:
- This behavior is often due to the CEC (Consumer Electronics Control) feature or active signal detection. If it becomes disruptive, manually select inputs using the remote or front panel button.
സ്പെസിഫിക്കേഷനുകൾ
| ഫീച്ചർ | വിശദാംശങ്ങൾ |
|---|---|
| മോഡൽ നമ്പർ | GHDSW4K4 |
| ഉൽപ്പന്ന അളവുകൾ | 4.75 x 2.4 x 0.75 ഇഞ്ച് |
| ഇനത്തിൻ്റെ ഭാരം | 7.2 ഔൺസ് |
| പിന്തുണയ്ക്കുന്ന പ്രമേയങ്ങൾ | 480p, 720p, 1080i, 1080p, 2160p (up to 4K@60Hz) |
| HDMI പാലിക്കൽ | HDMI 2.0, HDCP 2.2 (also backwards compatible with HDCP 1.2) |
| വർണ്ണ ആഴം | 12-ബിറ്റ് ആഴത്തിലുള്ള നിറം |
| 3D പിന്തുണ | Full 3D pass-through |
| ഓഡിയോ പിന്തുണ | DTS / Dolby / DTS-HD / Dolby True HD / LPCM 7.1 / AC3 |
| നിയന്ത്രണ രീതികൾ | Front-panel pushbutton, IR remote control |
| പവർ ഉറവിടം | HDMI bus-powered (optional Micro USB 5V/1A for additional power) |
| അനുയോജ്യമായ ഉപകരണങ്ങൾ | PC, laptop, Roku, PS4, Xbox, Apple TV, Blu-ray player, DVI devices (with adapter) |
വാറൻ്റി വിവരങ്ങൾ
IOGEAR products are designed for reliability and performance. For specific warranty details regarding your GHDSW4K4 HDMI Switch, please refer to the warranty card included with your product or visit the official IOGEAR website. Typically, IOGEAR offers a limited warranty covering defects in materials and workmanship under normal use.
വാറൻ്റി ക്ലെയിമുകൾക്കായി നിങ്ങളുടെ വാങ്ങിയതിൻ്റെ തെളിവ് സൂക്ഷിക്കുക.
പിന്തുണ
For technical assistance, product registration, or further information, please contact IOGEAR customer support:
- Webസൈറ്റ്: Visit the official IOGEAR webപതിവുചോദ്യങ്ങൾ, ഡ്രൈവർ ഡൗൺലോഡുകൾ, പിന്തുണാ ഉറവിടങ്ങൾ എന്നിവയ്ക്കുള്ള സൈറ്റ്.
- ബന്ധപ്പെടുക: Refer to the contact section on the IOGEAR website for phone numbers or email support options.
When contacting support, please have your product model number (GHDSW4K4) and a detailed description of your issue ready.
