Robinair 34788NI-H Premier R-134A Refrigerant Recovery, Recycling, and Recharging Machine User Manual

1. ആമുഖം

The Robinair 34788NI-H is an advanced, fully automatic machine designed for the recovery, recycling, evacuation, leak-testing, and recharging of R-134a refrigerant in both standard and hybrid automotive A/C systems. This unit offers a high recovery efficiency of 98.5% and features a user-friendly graphical display and automated functions to streamline service operations.

Figure 1: Robinair 34788NI-H Refrigerant Recovery Machine

2 സുരക്ഷാ വിവരങ്ങൾ

WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Always refer to local safety regulations and guidelines.

Always wear appropriate personal protective equipment (PPE), including safety glasses and gloves, when handling refrigerants or operating the machine. Ensure proper ventilation in the work area. Do not overfill recovery cylinders; always use a scale to prevent filling beyond 80% capacity.

3 പ്രധാന സവിശേഷതകൾ

• പൂർണ്ണമായും യാന്ത്രിക പ്രവർത്തനം: Program the machine to recover, vacuum, leak test, and charge without operating panel valves.
• Hybrid Vehicle Capable: Services high voltage electric compressor A/C systems.
• Programmable Vacuum Function: Defaults to 15 minutes, programmable up to 99 minutes, with remaining time displayed.
• ഓട്ടോമാറ്റിക് ഓയിൽ ഡ്രെയിൻ: Automatically drains recovered oil into a 12oz graduated container.
• Flushing Function: Liquid refrigerant flushing for A/C systems or components (adapters not included).
• Vacuum Leak Test: Monitors vacuum level after evacuation to detect possible leaks.
• Automatic Refrigerant Refill: Maintains a user-selectable amount of refrigerant in an internal vessel and signals when the supply tank needs changing.
• Refrigerant Management System: Displays refrigerant use and monitors remaining filter life, with prompts when 1/3 filter life remains.
• Printer Compatible: Allows saving and printing of before and after service data (printer not included).
• Multilingual Display: Supports multiple languages for user interface.

Figure 2: Key Features of the Robinair 34788NI-H

4. സജ്ജീകരണവും കണക്ഷനുകളും

Before operating the machine, ensure all connections are secure and hoses are in good condition. Always use the shortest possible 3/8" hoses to maximize recovery rates.

4.1 പ്രാരംഭ സജ്ജീകരണം

1. Place the Robinair 34788NI-H on a stable, level surface.
2. Connect the power cord to a grounded 125 VAC 60 Hz outlet.
3. Ensure the internal refrigerant cylinder is properly installed and secured.

4.2 Connecting to the Vehicle A/C System

1. Connect the manifold gauge set to the vehicle's high and low-side service ports.
2. Connect the yellow hose from the manifold gauge set to the INLET port of the Robinair 34788NI-H machine.
3. Connect a recovery cylinder to the OUTLET port of the Robinair 34788NI-H. Always use a refrigerant scale under the recovery cylinder to prevent overfilling.
4. If recovering from a system with potential acid contamination (e.g., a burned-out compressor), install an acid core filter-drier in-line between the vehicle and the recovery machine.

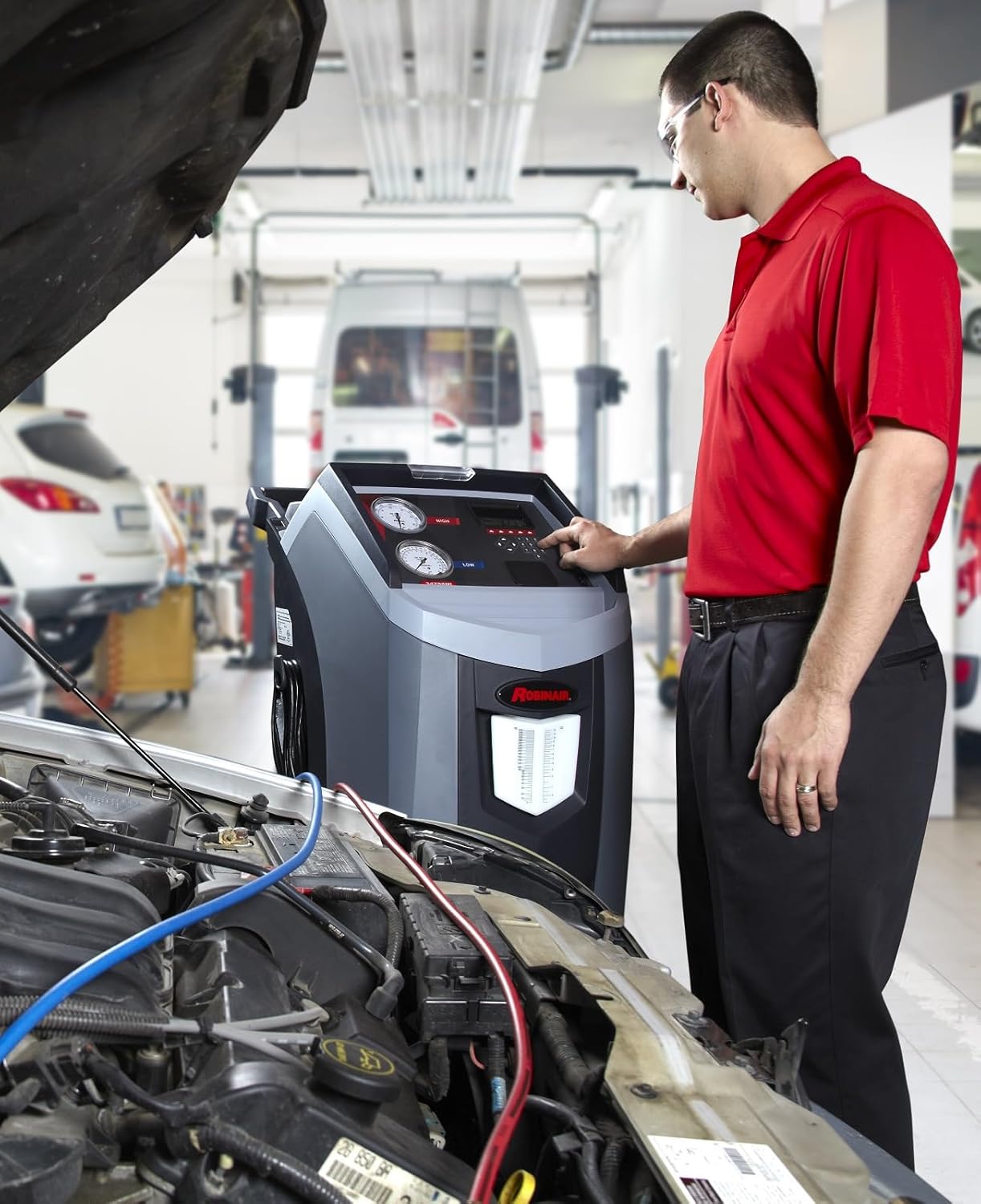

Figure 3: Technician operating the Robinair 34788NI-H during service.

4.3 Video: General Operation Overview

വീഡിയോ 1: ഈ വീഡിയോയിൽ പൊതുവായ ഒരു വിവരണം നൽകുന്നുview of how to operate a similar A/C service machine, demonstrating key steps for preparation and basic functions.

5. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

The Robinair 34788NI-H offers fully automatic functions for most A/C service procedures. Follow the on-screen prompts on the 4.3" full-color multilingual display.

Figure 4: Close-up of the control panel and gauges.

5.1 റഫ്രിജറന്റ് വീണ്ടെടുക്കൽ

1. Ensure all hoses are correctly connected as per Section 4.2.
2. Select the 'Recovery' function from the main menu.
3. The machine will automatically begin recovering refrigerant. The display will show the amount recovered.
4. The machine will automatically shut down if the pressure rises above 550 PSI.
5. For faster recovery, remove valve cores from the system when possible.

5.2 Vacuum and Leak Test

1. After recovery, select the 'Vacuum' function. The default time is 15 minutes, adjustable up to 99 minutes.
2. The machine will evacuate the system.
3. Upon completion of the vacuum, the machine will automatically perform a 'Vacuum Leak Test' to monitor the vacuum level and indicate potential leaks.

5.3 Oil Drain and Injection

1. The machine automatically drains recovered oil into a graduated container. Note the amount to replace.
2. Select the 'Oil Inject' function to add the appropriate amount of new oil back into the system.

5.4 Refrigerant Recharging

1. Select the 'Charge' function.
2. Input the required charge amount or select from the optional A/C system capacities database (if installed).
3. Choose the charge mode: high side, low side, or both sides.
4. The machine will automatically charge the system to the specified amount.

5.5 Video: Tank Filling Operation

Video 2: This video demonstrates the process of filling the internal refrigerant tank of an A/C service machine from an external source.

5.6 Video: Refrigerant Recovery Process

Video 3: This video illustrates the refrigerant recovery process using a recovery machine, highlighting key steps and connections.

6. പരിപാലനം

• ഫിൽട്ടർ ലൈഫ് മോണിറ്ററിംഗ്: The refrigerant management system monitors filter life and prompts when 1/3 of filter life remains, indicating it's time for replacement.
• Automatic Air Purge: The machine automatically purges system-damaging air, eliminating the need for manual monitoring.
• Field Serviceable: The Robinair 34788NI-H is completely field serviceable, and repair parts are readily available to minimize downtime.

7. പ്രശ്‌നപരിഹാരം

• High Pressure Shut-off: The machine features a high-pressure safety shut-off switch that activates if pressure rises above 550 PSI. Address any blockages or system overpressure conditions.
• Slow Recovery: Ensure hoses are the shortest possible length and valve cores are removed from the system if feasible. Verify the recovery cylinder is not overfilled.
• Filter Life Warning: If a filter life warning appears, replace the filter-drier promptly to maintain optimal performance and prevent damage.

8 സ്പെസിഫിക്കേഷനുകൾ

9. ബോക്സിൽ എന്താണുള്ളത്?

• Robinair 34788NI-H Recover/Recycle/Recharge Machine

10. വാറൻ്റിയും പിന്തുണയും

The Robinair 34788NI-H machine typically comes with a 1-year warranty, often including an over-the-counter exchange program. For specific warranty details and technical support, please refer to the documentation included with your product or contact Robinair customer service.
