ഇൻസ്ട്രക്ഷൻ മാനുവൽ

1. ആമുഖം

This manual provides essential information for the proper use, installation, and maintenance of the Horiba 3200172800 Replacement Tungsten Turbidity Cell. This cell is designed as a direct replacement component for the Horiba U-53 Series meters, specifically compatible with Model #7801.

Please read this manual thoroughly before attempting any installation or operation to ensure safe and effective use of the product and to maintain the accuracy of your turbidity measurements.

2 സുരക്ഷാ വിവരങ്ങൾ

ഉപകരണത്തിന് പരിക്കേൽക്കുന്നതും കേടുപാടുകൾ സംഭവിക്കുന്നതും തടയാൻ ഇനിപ്പറയുന്ന സുരക്ഷാ മുൻകരുതലുകൾ എപ്പോഴും പാലിക്കുക:

• Handle the turbidity cell with care. Avoid dropping or subjecting it to strong impacts.
• Ensure the U-53 Series meter is powered off and disconnected from any power source before installing or removing the turbidity cell.
• Do not attempt to disassemble the turbidity cell. Refer to qualified service personnel for repairs.
• Use only genuine Horiba replacement parts to ensure compatibility and optimal performance.
• Dispose of the old turbidity cell according to local environmental regulations.

3. ഉൽപ്പന്നം കഴിഞ്ഞുview

The Horiba 3200172800 is a replacement tungsten turbidity sensor designed for use with the Horiba U-53 Series multi-parameter water quality meters, specifically for the Model 7800 turbidity measurement function.

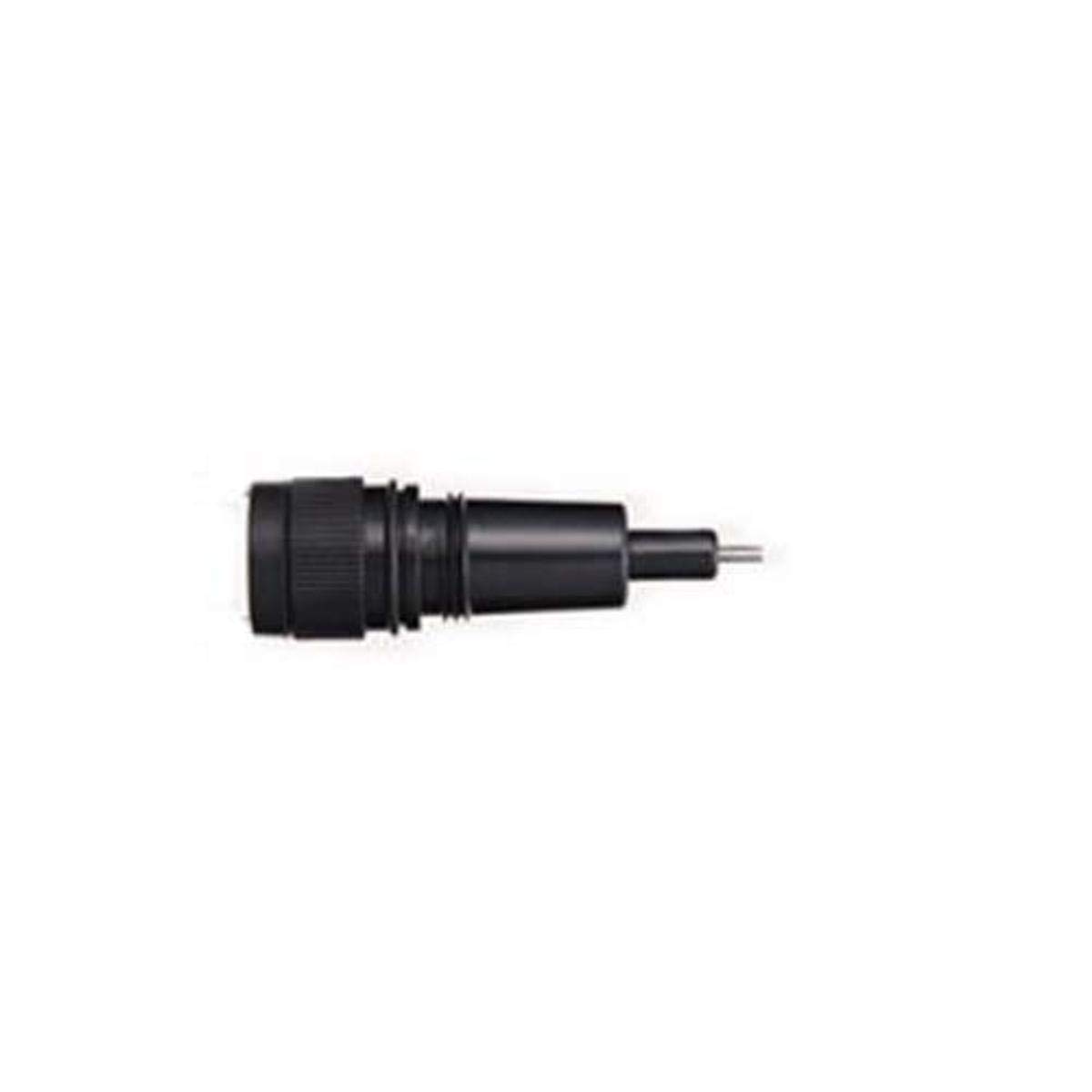

Figure 3.1: The Horiba 3200172800 Replacement Tungsten Turbidity Cell. This image shows the black cylindrical sensor with a threaded base and a small metallic tip extending from one end, indicating its connection point.

പ്രധാന സവിശേഷതകൾ:

• Direct replacement for worn or damaged turbidity cells.
• Ensures accurate turbidity measurements when properly installed.
• Compatible with Horiba U-53 Series meters.

4. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും

Follow these steps to replace the turbidity cell in your Horiba U-53 Series meter:

1. പവർ ഓഫ്: Ensure the Horiba U-53 Series meter is completely powered off and disconnected from any power source.
2. Locate Old Cell: Identify the existing turbidity cell on your U-53 Series meter. Refer to your U-53 Series meter's instruction manual for specific location and removal procedures if unsure.
3. Remove Old Cell: Carefully unscrew or unclip the old turbidity cell from its housing. Be mindful of any residual liquid or debris.
4. കണക്ഷൻ പരിശോധിക്കുക: Before installing the new cell, inspect the connection port on the U-53 meter for any dirt, moisture, or damage. Clean if necessary using a soft, dry cloth.
5. Install New Cell: Align the new Horiba 3200172800 Replacement Tungsten Turbidity Cell with the connection port. Gently push and twist (if applicable) until it is securely seated. Do not overtighten if it is a threaded connection.
6. കണക്ഷൻ സ്ഥിരീകരിക്കുക: Ensure the cell is firmly attached and there is no wobble. A loose connection can lead to inaccurate readings or damage.
7. പവർ ഓൺ: Reconnect power to the U-53 Series meter and power it on. Perform a calibration as per the U-53 Series meter's manual to ensure proper functionality with the new cell.

5. പ്രവർത്തന പരിഗണനകൾ

The Horiba 3200172800 Replacement Tungsten Turbidity Cell functions as an integral part of the Horiba U-53 Series meter. Its operation is directly controlled by the main meter unit.

• കാലിബ്രേഷൻ: After replacing the turbidity cell, it is crucial to perform a calibration of the turbidity sensor using the U-53 Series meter's calibration function and appropriate turbidity standards. Refer to your U-53 Series meter's manual for detailed calibration procedures.
• അളവ്: Once calibrated, the turbidity cell will automatically provide readings when the U-53 Series meter is used for turbidity measurements. Ensure the cell is fully immersed in the sample liquid as required by the U-53 Series meter's operating instructions.
• പരിസ്ഥിതി വ്യവസ്ഥകൾ: Operate the U-53 Series meter with the new cell within the environmental specifications outlined in the U-53 Series meter's manual to ensure accurate and reliable performance.

6. പരിപാലനം

Proper maintenance extends the life and ensures the accuracy of your turbidity cell:

• വൃത്തിയാക്കൽ: After each use, especially when measuring turbid samples, gently rinse the turbidity cell with distilled or deionized water. Use a soft, lint-free cloth to carefully wipe the optical surfaces. Avoid abrasive materials or harsh chemicals that could scratch the sensor.
• സംഭരണം: When not in use, store the turbidity cell in a clean, dry, and temperature-controlled environment. Protect the optical surfaces from dust and scratches. It is recommended to store it in its original packaging or a protective case.
• പരിശോധന: Periodically inspect the cell for any signs of damage, scratches on the optical surfaces, or accumulation of residue. Replace the cell if significant damage is observed or if calibration becomes consistently difficult.

7. പ്രശ്‌നപരിഹാരം

If you encounter issues after replacing the turbidity cell, consider the following:

For issues not listed here or if problems persist, refer to the comprehensive troubleshooting guide in your Horiba U-53 Series meter's manual or contact Horiba customer support.

8 സ്പെസിഫിക്കേഷനുകൾ

9. വാറൻ്റിയും പിന്തുണയും

For detailed information regarding the warranty of the Horiba 3200172800 Replacement Tungsten Turbidity Cell, please refer to the warranty documentation provided with your original Horiba U-53 Series meter or contact Horiba customer support directly.

For technical assistance, service, or to order additional replacement parts, please visit the official Horiba website or contact their authorized distributors. Ensure you have your product model number (3200172800) and the serial number of your U-53 Series meter ready when contacting support.

കൂടുതൽ വിവരങ്ങളും ബന്ധപ്പെടാനുള്ള വിശദാംശങ്ങളും നിങ്ങൾക്ക് ഇവിടെ കണ്ടെത്താനാകും ആമസോണിലെ HORIBA സ്റ്റോർ or the official Horiba webസൈറ്റ്.
